2022 Maggi Junior 640 Radial Arm Crosscut Saw

Maggi Junior 640 Radial Arm Crosscut Saw

Machine Type: Manual, Radial-Arm Crosscut Saw

Year: 2022

Condition: As New. Bought in Oct 2023. Never set-up, commissioned or used. In storage without power. New price: €5,100.00

Description

For straight (90°) and miter (45° left) cross cutting, ripping and bevel cutting at 45° left and right, of wooden-based panels and solid wood boards up to 3mt. For furniture manufacturing and joinery.

- Small footprint: well suited to small workshops

- Easy to use

- Versatile

- Useful complement to panel saws

More than 30.000 machines manufactured, over fifty years' experience. 100% made-in-Italy machines abiding by the highest quality standards as a result of the "Lean" manufacturing process, also known as "Toyota System".

Technical Specifications

Table Dimensions: 1690 x 1160mm

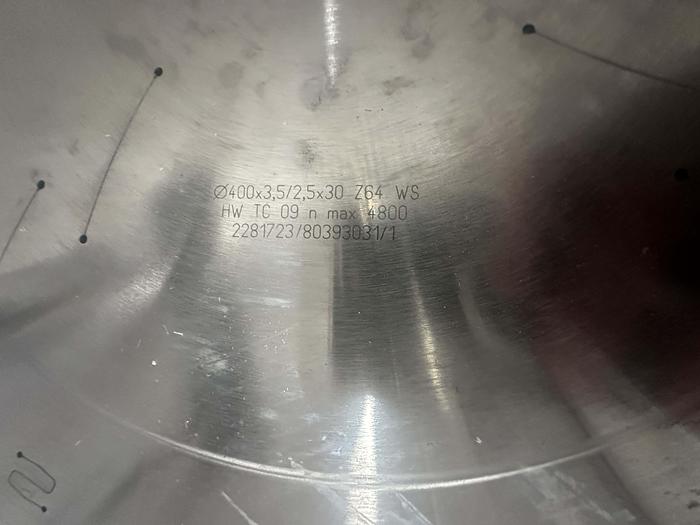

Blade Diameter: 400mm

Blade Bore Diameter: 30mm

Max. Cutting Height: 125mm

Max. Cutting Width: 545 x 20mm

Min. Cutting Width: 450 x 125mm

Max. Length of Workpiece: Infinite

Max. Cutting Width for Ripping: 0 - 860mm

Cutting Height at 45 °: 0 - 80mm

Min. and Max. Cutting Width at 45° (right): 315 - 380mm

Min. and Max. Cutting Width at 45° (left): 125 - 190mm

Height of Blade from Working Bench: 0 - 45mm

Motor Power:  4hp/3kW

Motor Speed: 2800rpm

Motor Shaft Dimensions: Ø25x80mm

Diameter of Dust Collection Nozzle on Blade Guard: 60mm

Diameter of Dust Collection Nozzle on Rear Hood:100mm x 2

Machine Dimensions: 1690x1560x1580mm

Machine Weight: 203Kg
