2001 Akyapak APK 35 Section Rolls

Cork, Ireland

Sold

Description

Akyapak Akbend APK-35 Section Rolls


Machine Type: Section Rolls

Year: 2001

Condition: Good


Description

2 Powered Rolls

50mm Shaft Diameter

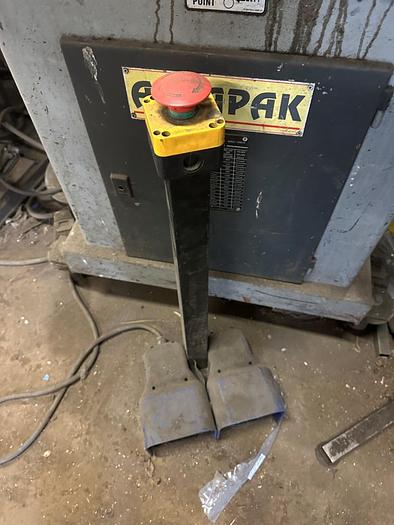

Double Foot Switch

Vertical and Horizontal Use


Technical Specification

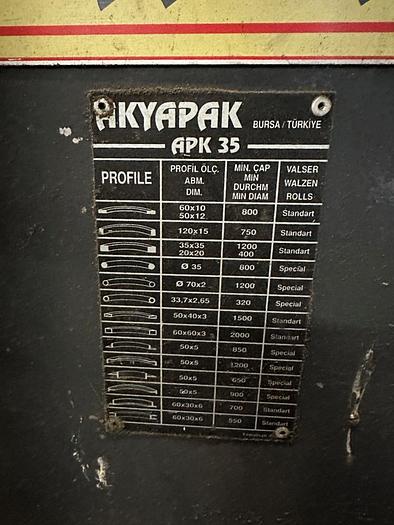

Capacity (Flat): 120 x 15mm (d 750mm)

Capacity (Flat on Edge): 60 x 10mm (d 800mm)

Angle steel: 50 x 5mm (d 1200mm)

Round material: 35.0mm (d 800mm)

Max. tube diameter: 70 x 2mm (d 1200mm)

Square material: 50 x 40 x 3mm

Bending speed: 4.3 m/min

Roller Diameter Top: 155mm

Shaft Diameter: 50.0mm

Total power requirement: 1.5 kW

Electrical Connection: 400V/3ph

Dimensions LWH: 730 x 830 x 1500 mm

Weight: 320kg

Specifications

ManufacturerAkyapak
ModelAPK 35 Section Rolls
Year2001
ConditionUsed
Machine TypeSection Rolls
Round material35.0mm (d 800mm)
Bending speed4.3 m/min
Roller Diameter Top155mm
Shaft Diameter50.0mm
Total power requirement1.5 kW
Electrical Connection400V/3ph
Weight320kg
