€315 (EUR)
+ Vat

Cormak XY Cross Table 475 x 154mm

1

Poland

or
Call +353 838108745

Description

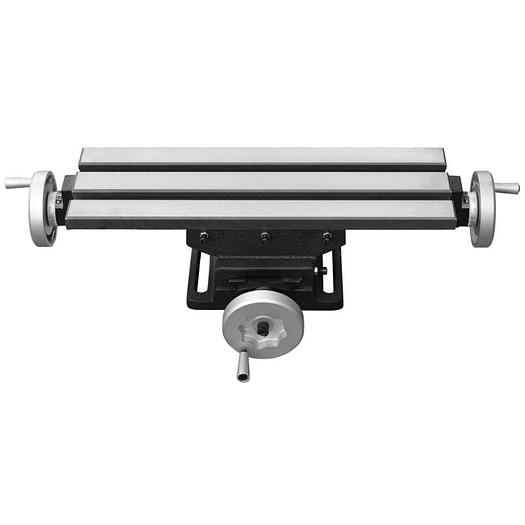

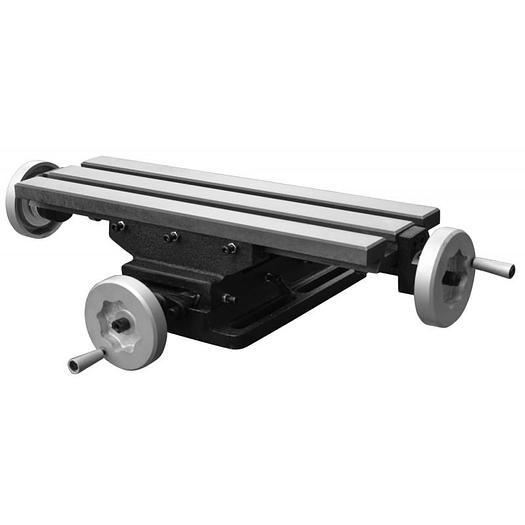

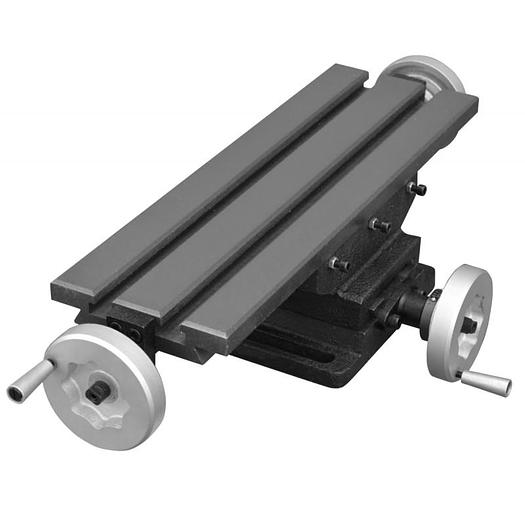

Cormak XY (Cross-Slide) Table 475mm x 154mm


Table Type: Cross Table/XY Table

Table Description

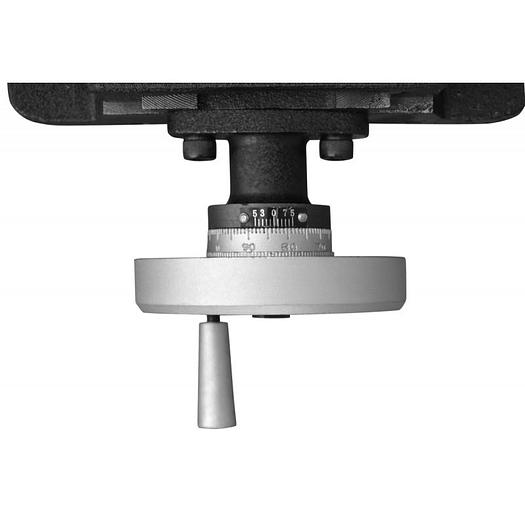

Cross table with precisely ground cast iron work surface. Equipped with T-slots which allow for workpiece fixture. Intended for processing, milling and drilling while preserving high precision due to a very accurate 0.02 mm vernier.

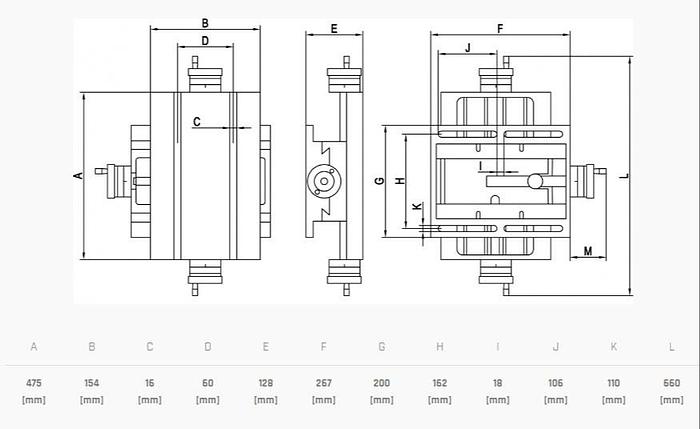

Technical Specification Table Height: 128mm Base size: 200 x 270mm Table size: 475 x 154mm Y Axis Travel: 150mm X Axis Travel: 320mm Graduations: 0.02mm Tee- Slot: 16mm

Total Dimensions: 72x440x180mm Weight: 28kg

Show All

Specifications

ManufacturerCormak
Model475mm x 154mm
ConditionNew
Stock Number00191
Table TypeCross Table/XY Table
Base size (mm)200x270
Table size (mm)475 x 154
Y Axis Travel (mm)150
X Axis Travel (mm)320
Graduations(mm)0.02
Tee- Slot16mm
Total Dimensions72x440x180mm
Weight28kg
