€37,500 + Vat

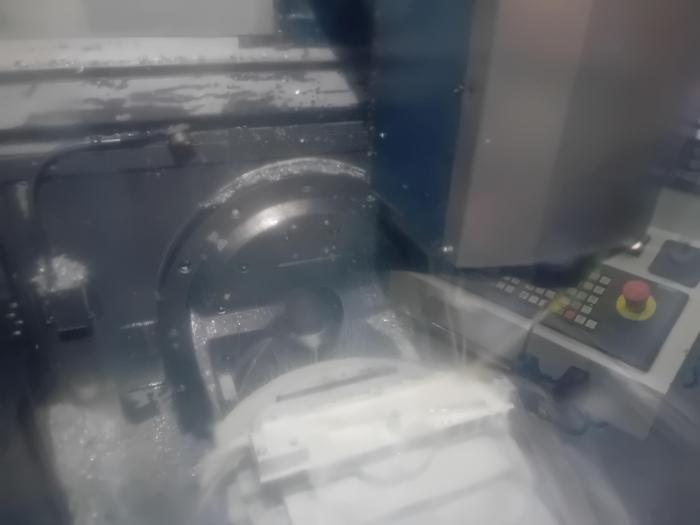

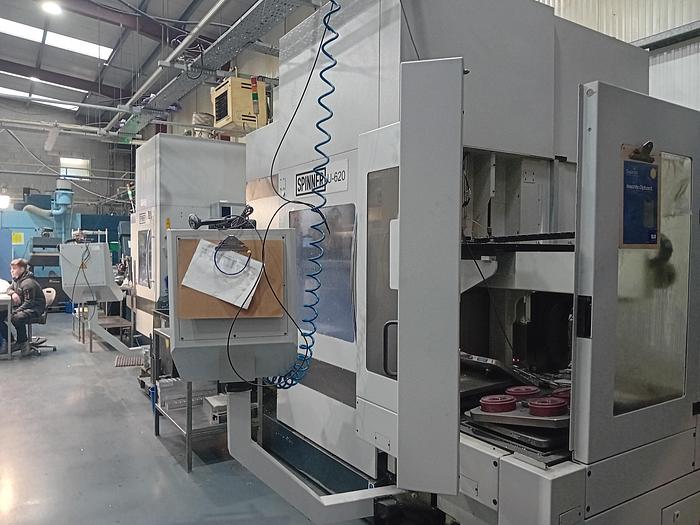

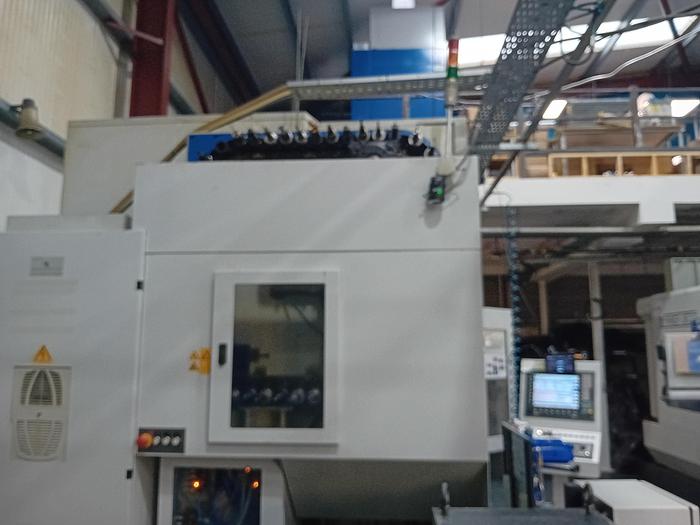

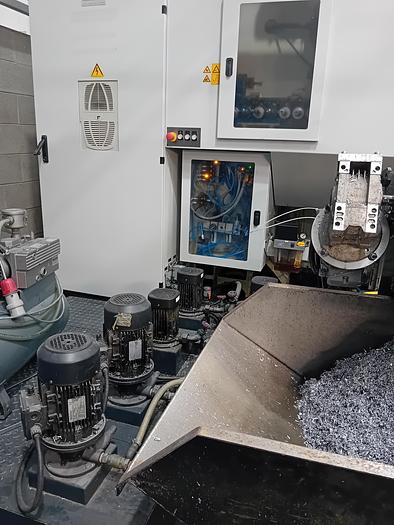

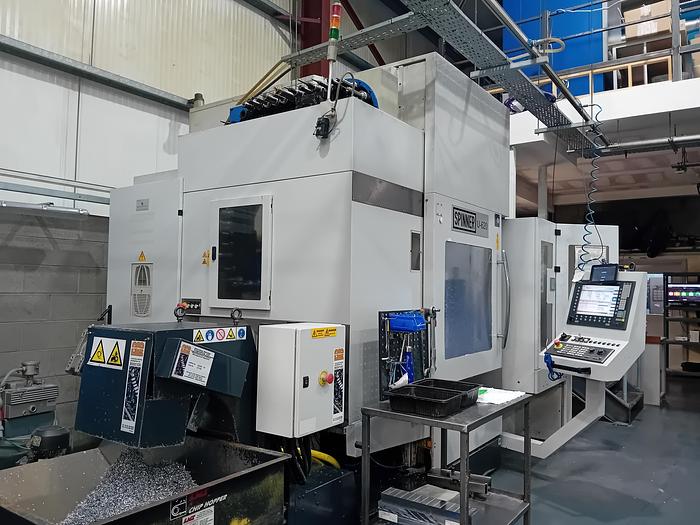

2015 Spinner U5-620 5 Axis Machining Centre
Description
Spinner U5-620 5 Axis Machining Centre
Machine Type: Full 5 Axis Machining Centre
Year: 2015
Control: Siemens 840D SL Control

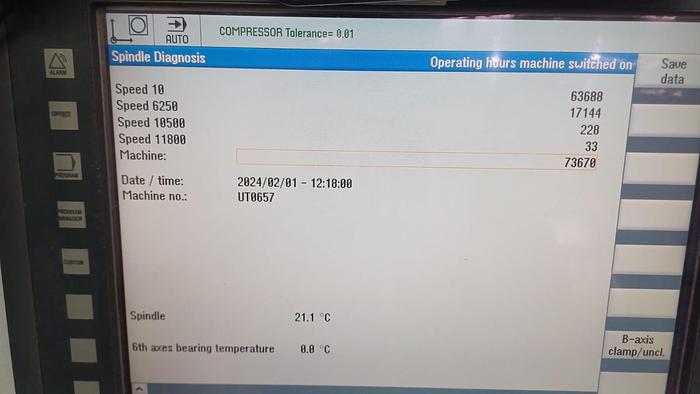

Machine On Hours: 73,670hrs
Spindle On Hours: 17,405hrs
Condition: Very Good
Technical Specification
Table Diameter: 650mm
X Axis Travel: 620mm
Y Axis Travel: 520mm
Z Axis Travel: 460mm
C Axis Travel: 360 Deg
B Axis Travel: +60/-140 Deg
X,Y,Z Axis Rapid Feeds: 48m/min
Spindle Taper: BT40
Spindle Speed: 12,000rpm
ATC: 54 Stations
C Axis Rotation Speed: 250rpm
B Axis Rotation Speed: 50rpm
Max Part Weight: 250kg
Tool Changer: Double Arm
Max Tool Diameter: 76mm
Max Tool Weight: 7kg
Max Tool Length: 290mm
Machine Dimensions: 2260 x 2415 x 3016mm
Machine Weight: 7200kg approx.
Specifications
| Manufacturer | Spinner |
| Model | U5-620 5 Axis Machining Centre |
| Year | 2015 |
| Condition | Used |
| Year | 2015 |
| Control | Siemens 840D SL Control |
| Machine On Hours | 73,670hrs |
| Spindle On Hours | 17,405hrs |
| Condition | Very Good |
| Table Diameter | 650mm |
| X Axis Travel | 620mm |
| Y Axis Travel | 520mm |
| Z Axis Travel | 460mm |
| C Axis Travel | 360 Deg |
| B Axis Travel | +60/-140 Deg |
| X,Y,Z Axis Rapid Feeds | 48m/min |
| Spindle Taper | BT40 |
| Spindle Speed | 12,000rpm |
| ATC | 54 Stations |
| C Axis Rotation Speed | 250rpm |
| B Axis Rotation Speed | 50rpm |
| Max Part Weight | 250kg |
| Tool Changer | Double Arm |
| Max Tool Diameter | 76mm |
| Max Tool Weight | 7kg |
| Max Tool Length | 290mm |
| Machine Weight | 7200kg approx |
