Contact us for price

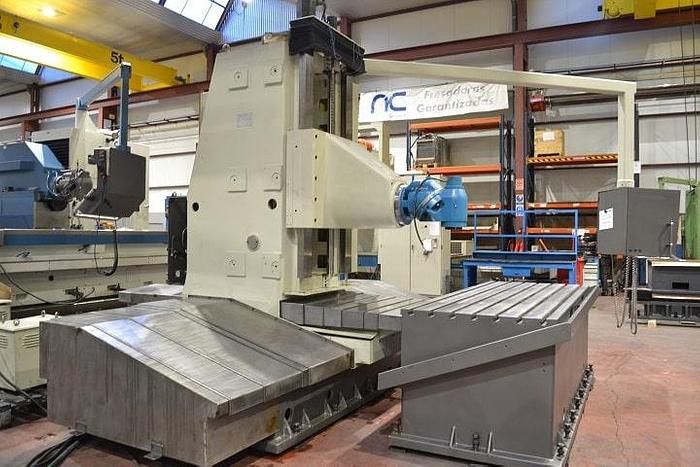

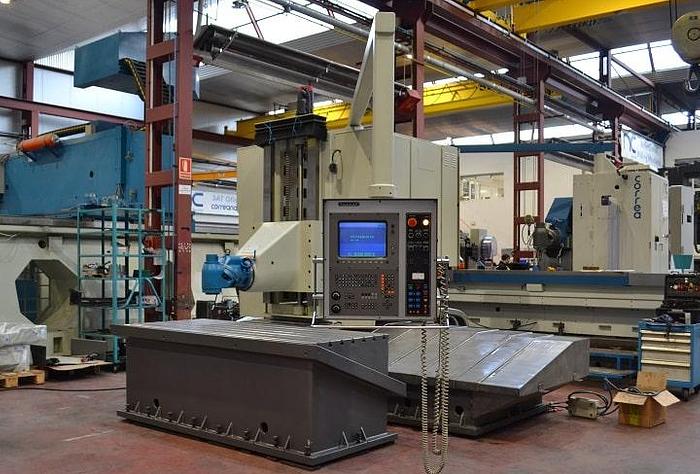

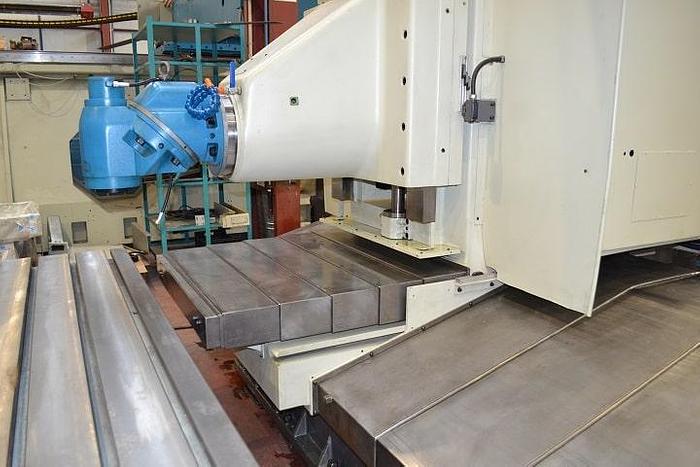

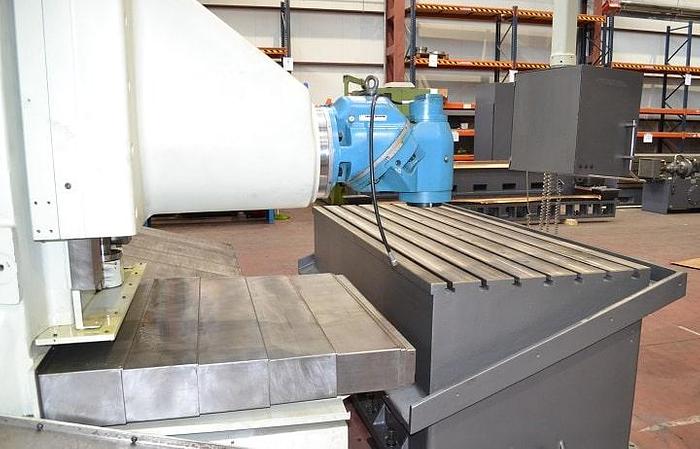

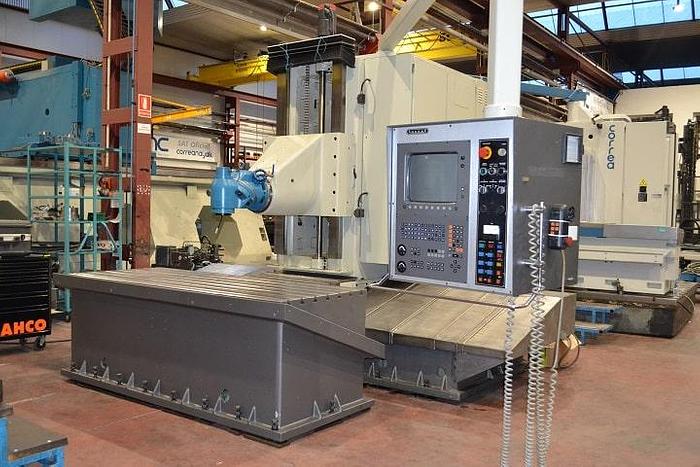

Refurbished Anayak HVM-2300 Mobile Column Milling Machine
Description
Refurbished Anayak HVM-2300 Mobile Column Milling Machine
Year of Manufacture: 1991
Year Refurbished: Under Going Refurbishment
6 Month Warranty on Mechanical Parts

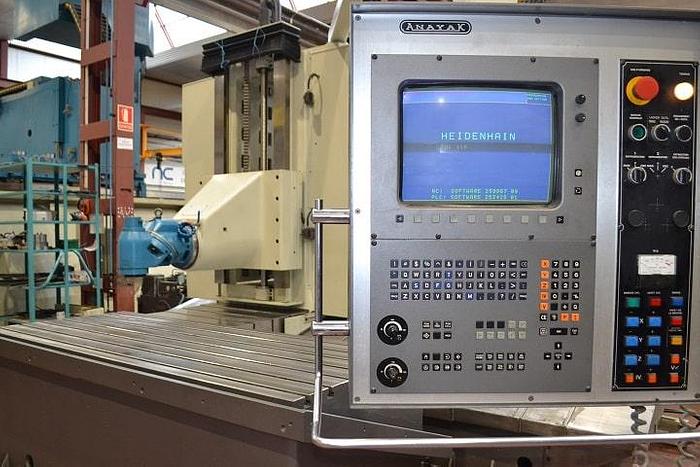

Control: Heidenhain TNC-415
Table Size: 2300 x 1000mm
Travels
X: 2000mm
Y: 1000mm
Z: 1000mm

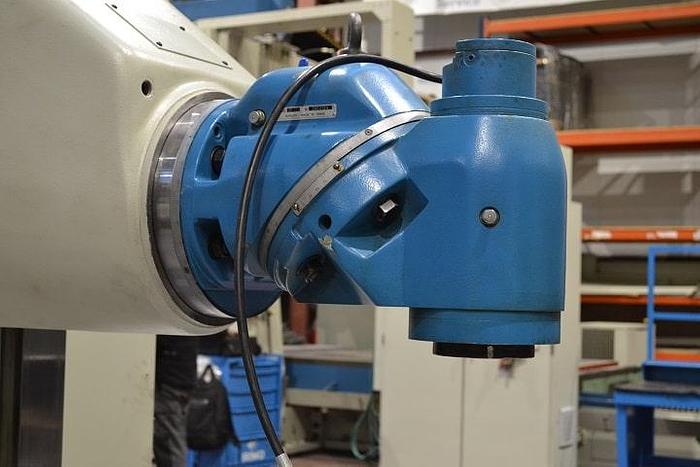

Milling Head
Universal Manual U22
Taper: ISO50
Spindle Speed: 60-2000rpm
Machine Dimensions
L: 7230mm
W: 6240mm
H: 3460mm
Includes
Guarding
Longitudinal Chip Conveyor
Specifications
| Manufacturer | Anayak |
| Model | HVM2300 |
| Year | 1991 |
| Condition | Refurbished |
| Stock Number | 00143 |
| Year of Manufacture | 1991 |
| Year Refurbished | Under Going Refurbishment |
| Control | Heidenhain TNC-415 |
| Table Size | 2300 x 1000 mm |
| Max Part Weight | 4.000 Kg |
| Tool Clamping System | Hydraulic |
| Head Type | Universal manual (U22) |
| Spindle Speed | 60 - 2.000 rpm |
| Taper | ISO 50 |
| Travels (X) | 2000mm |
| Travels (Y) | 1000mm |
| Travels (Z) | 1000mm |
| Machine Dimensions (L x W x H) | 7230 x 6240 x 3460 mm |
| Machine Weight | 21500kg |
