Contact us for price

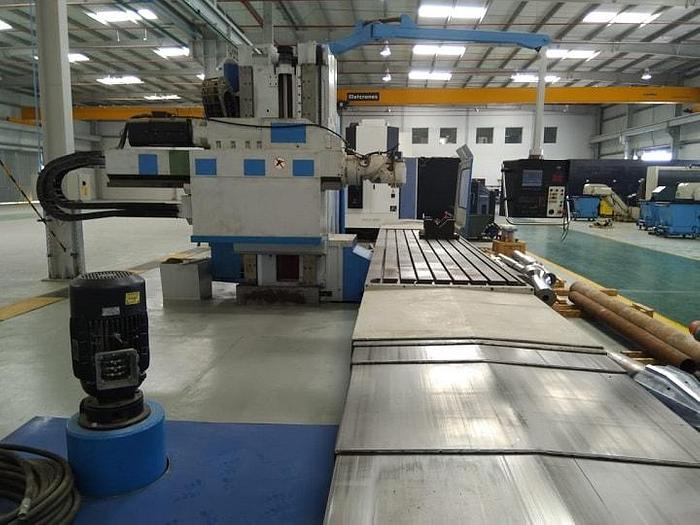

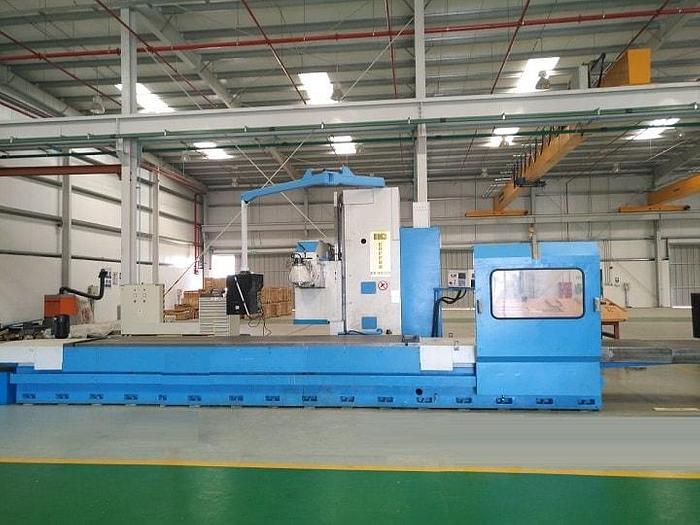

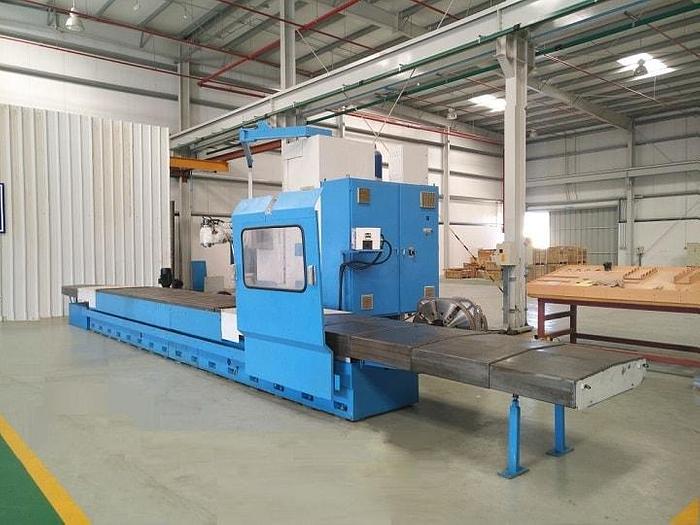

Refurbished 1991 Correa CF40/50 Bed Type Milling Machine
Description
Refurbished 1991 Correa CF40/50 Bed Type Milling Machine
Year of Manufacture: 1991
Year Refurbished: Under Going Refurbishment
6 Month Warranty on Mechanical Parts
Control: Heidenhain TNC-415 or New TNC-320 as an optional extra
Table Size: 5000 x 1000mm
Travels
X: 5000mm
Y: 1200mm
Z: 1500mm
Milling Head
Universal Manual
Taper: ISO50
Spindle Speed: 20-2500rpm
Machine Dimensions
L: 5200mm
W: 2900mm
H: 2760mm
Includes
Guarding
Electronic Handwheel HR-410
Specifications
| Manufacturer | Correa |
| Model | CF40/50 |
| Year | 1991 |
| Condition | Refurbished |
| Stock Number | 00136 |
| Year of Manufacture | 1991 |
| Year Refurbished | Under Going Refurbishment |
| Control | Heidenhain TNC-415 or New TNC-320 as an optional extra |
| Table Size | 5000 x 1000 mm |
| Max Part Weight | 12000 kg |
| Tool Clamping System | Hydraulic |
| Head Type | Universal manual / Option: New Universal Auto-indexing UDG (2.5º) |
| Spindle Speed | 20 - 2500 rpm |
| Taper | ISO50 |
| Travels (X) | 5000mm |
| Travels (Y) | 1200mm |
| Travels (Z) | 1500mm |
| Machine Dimensions (L x W x H) | 5200 x 2900 x 2760 mm |
| Machine Weight | 27000 kg |
