Contact us for price

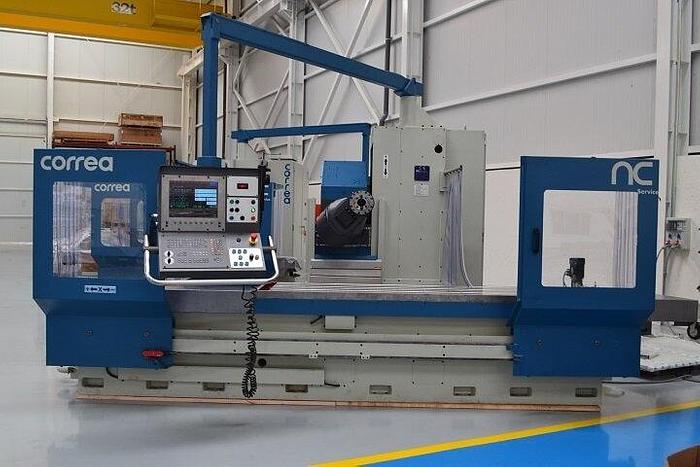

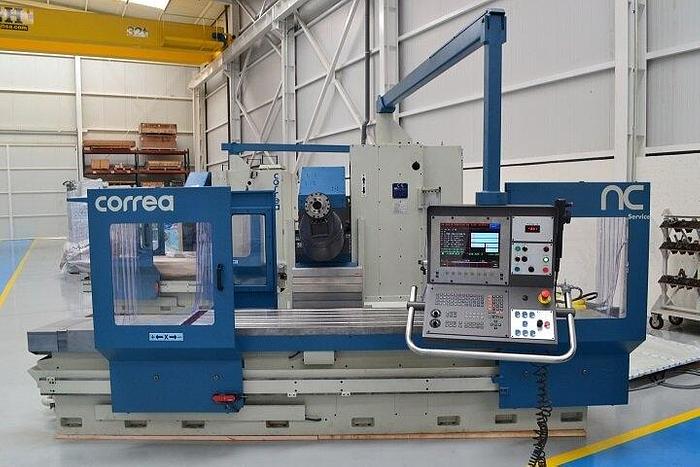

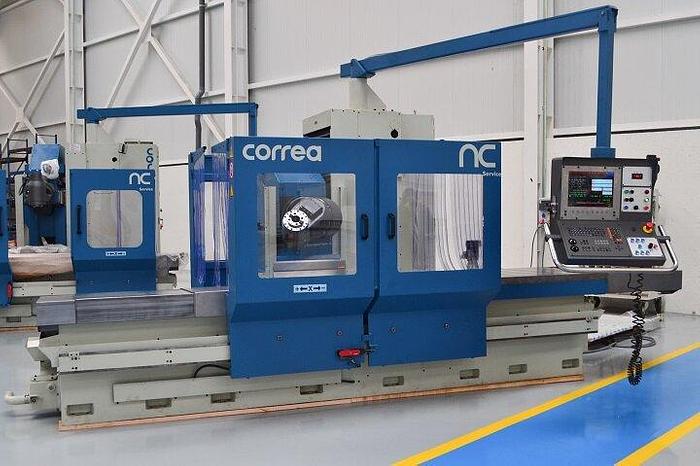

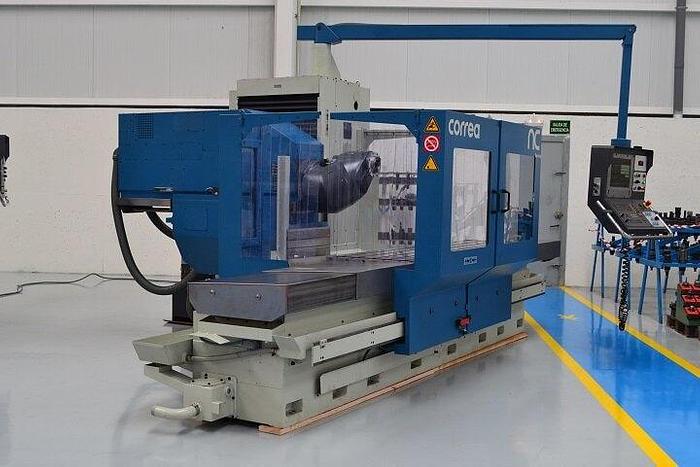

Refurbished 2001 Correa CF22/25-Plus Bed Type Milling Machine
Description
Refurbished 2001 Correa CF22/25-Plus Bed Type Milling Machine
Year of Manufacture: 2001
Year Refurbished: 2019
6 Month Warranty on Mechanical Parts

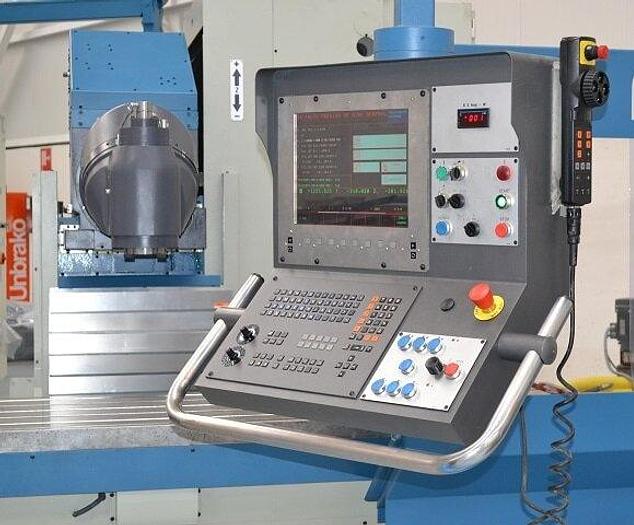

Control: Heidenhain TNC-426
Table Size: 2500 x 700mm
Travels
X: 2500mm
Y: 800mm
Z: 800mm

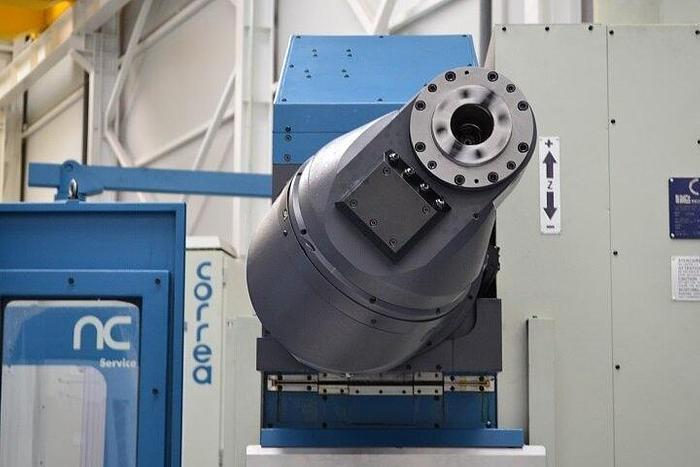

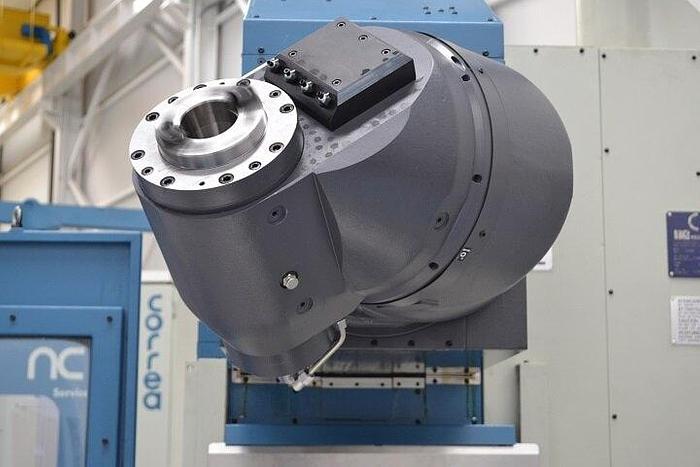

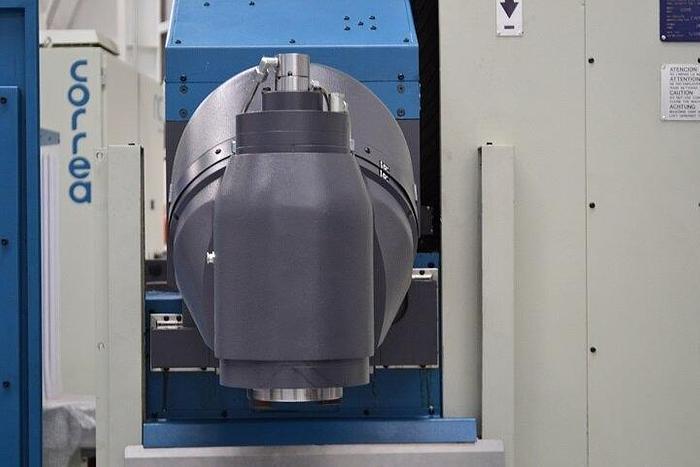

Milling Head
New Universal Auto Indexing UDG
Taper: ISO50
Spindle Speed: 3000rpm
Machine Dimensions
L: 6605mm
W: 3315mm
H: 2730mm
Includes
Guarding
Electronic Handwheel HR-410
Through Spindle & External Coolant
Specifications
| Manufacturer | Correa |
| Model | CF22/25 Plus |
| Year | 2001 |
| Condition | Refurbished |
| Stock Number | 00134 |
| Year of Manufacture | 2001 |
| Year Refurbished | 2019 |
| Control | Heidenhain TNC-426 |
| Table Size | 2500 x 700 mm |
| Max Part Weight | 4000 kg |
| Tool Clamping System | Hydraulic |
| Head Type | New Universal Auto-indexing UDG (2.5º) |
| Spindle Speed | 3000 rpm |
| Taper | ISO 50 (DIN 69871) |
| Travels (X) | 2500mm |
| Travels (Y) | 800mm |
| Travels (Z) | 800mm |
| Machine Dimensions (L x W x H) | 6605 x 3315 x 2730 mm |
| Machine Weight | 9500 kg |
