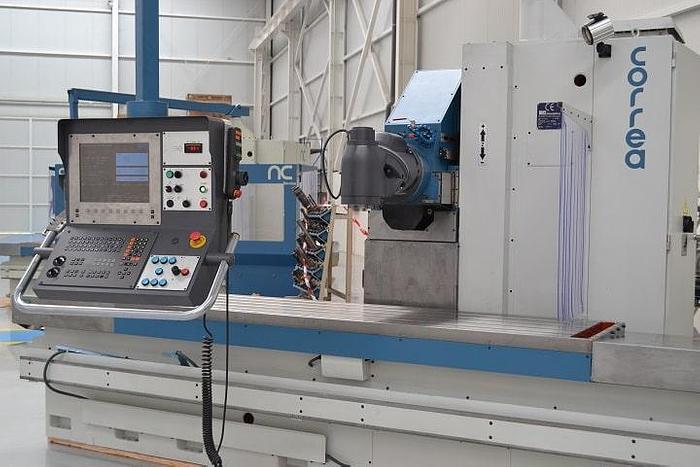

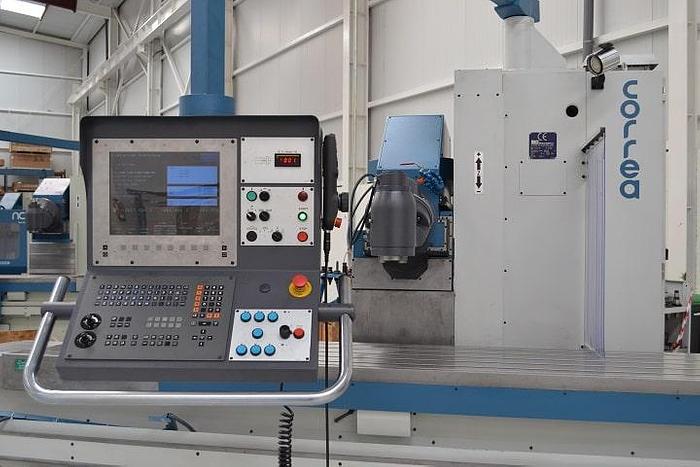

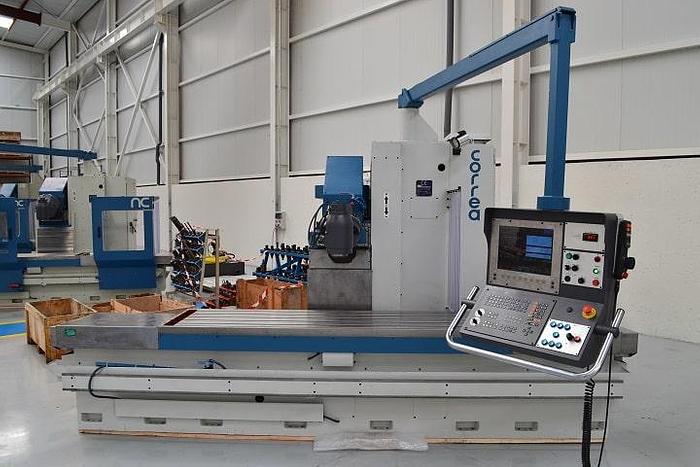

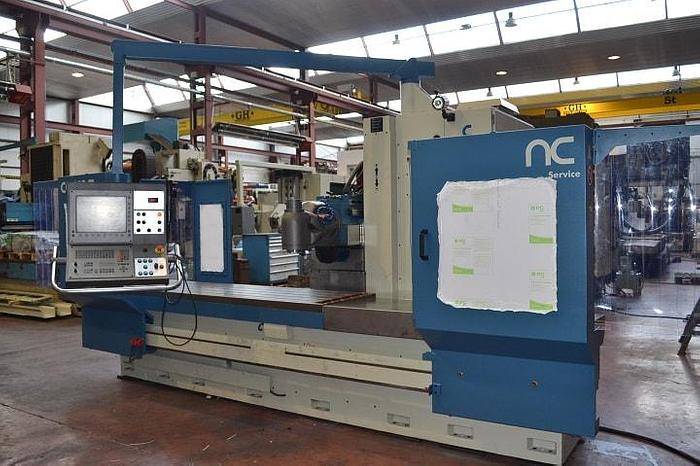

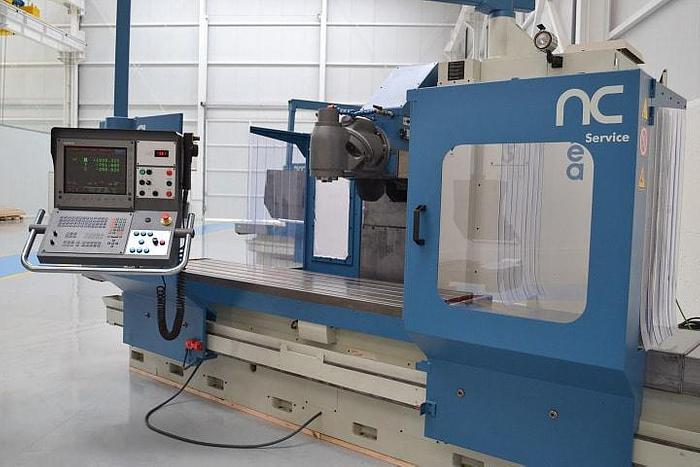

Refurbished 1998 Correa CF22/25 Bed Type Milling Machine
Sold
Description
Refurbished 1998 Correa CF22/25 Bed Type Milling Machine Year of Manufacture: 1998 Year Refurbished: Under Going Refurbishment 6 Month Warranty on Mechanical Parts Control: Heidenhain TNC-426 Table Size: 2500 x 700mm Travels X: 2500mm Y: 800mm Z: 800mm Milling Head Universal Manual U22 Taper: A50 Spindle Speed: 20-4000rpm Machine Dimensions L: 6605mm W: 2900mm H: 2760mm Includes Guarding New Electronic Handwheel HR-510 External Coolant
Specifications
| Manufacturer | Correa |
| Model | CF22/25 |
| Year | 1998 |
| Condition | Refurbished |
| Stock Number | 00132 |
| Year of Manufacture | 1998 |
| Year Refurbished | 2020 |
| Control | HEIDENHAIN TNC-426 |

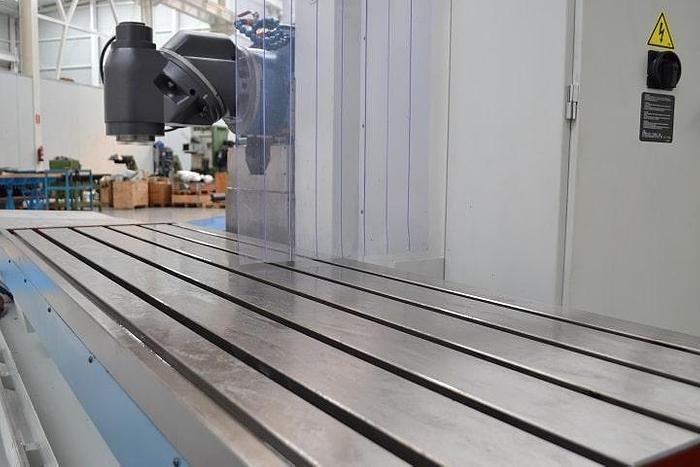

| Table Size | 2500 x 700 mm |
| Max Part Weight | 4000 kg |
| Tool Clamping System | Hydraulic |

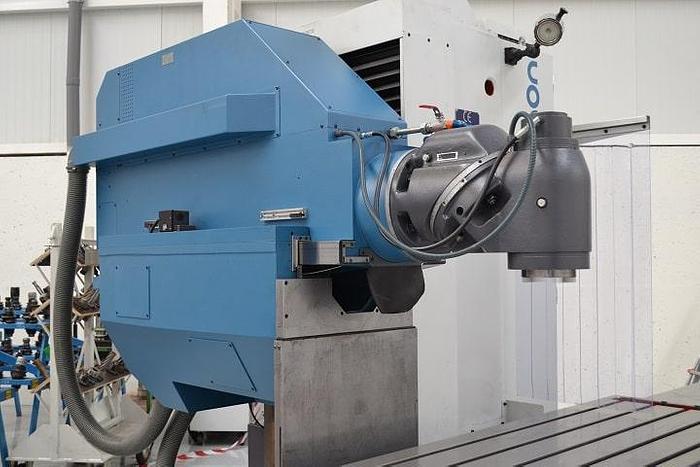

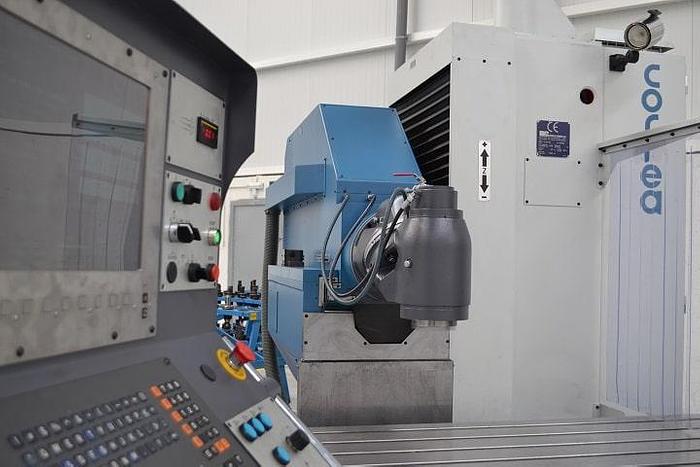

| Head Type | Universal manual (U22) |
| Spindle Speed | 20-4000rpm |
| Taper | A50 - DIN69871 |
| Travels (X) | 2500 mm |
| Travels (Y) | 800mm |
| Travels (Z) | 800mm |
| Machine Dimensions (L x W x H) | 6605 x 2900 x 2760 mm |
| Machine Weight | 9500 kg |
