Contact us for price
Refurbished 1996 Correa CF22 Bed Type Milling Machine
Description

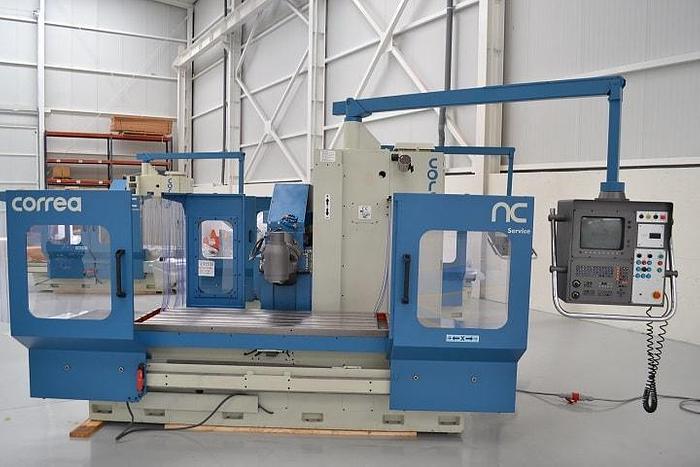

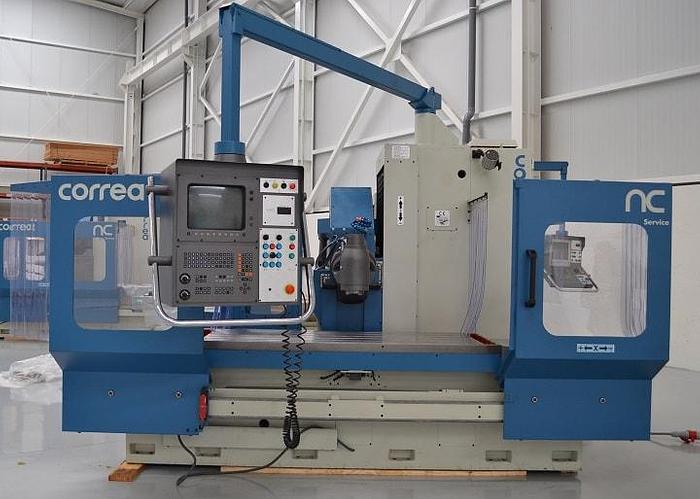

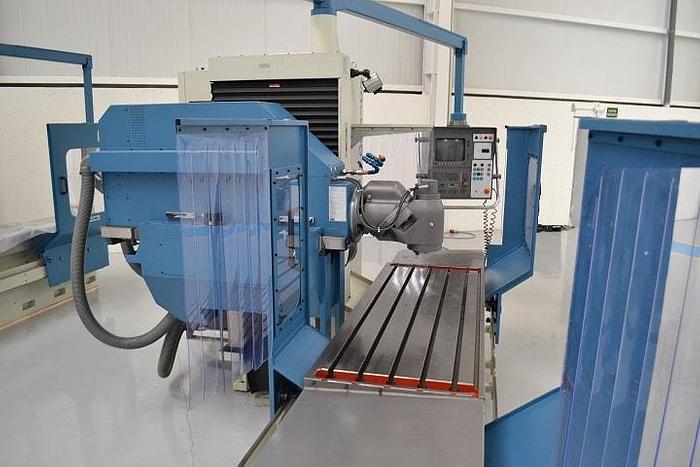

Refurbished 1996 Correa CF22 Bed Type Milling Machine
Year of Manufacture: 1996
Year Refurbished: 2018
6 Month Warranty on Mechanical Parts

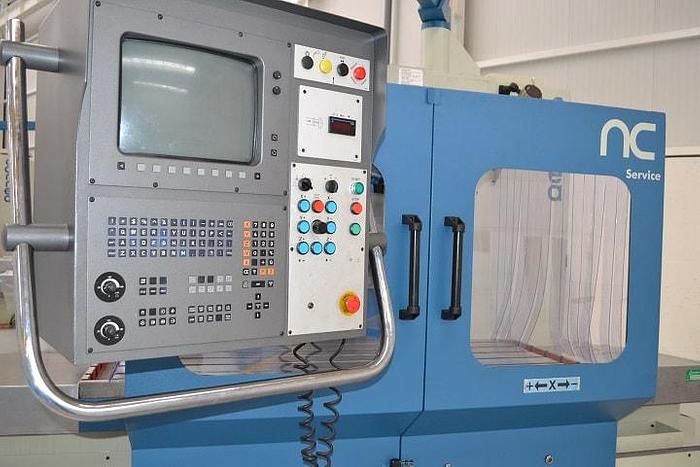

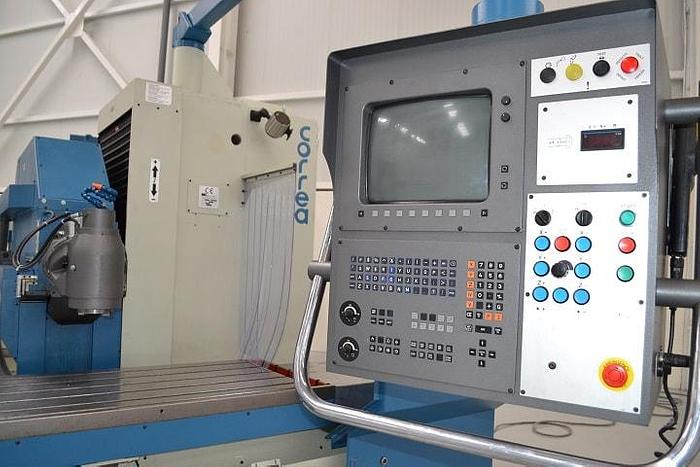

Control: Heidenhain TNC-426
Table Size: 2000 x 700mm
Travels
X: 2000mm
Y: 800mm
Z: 800mm

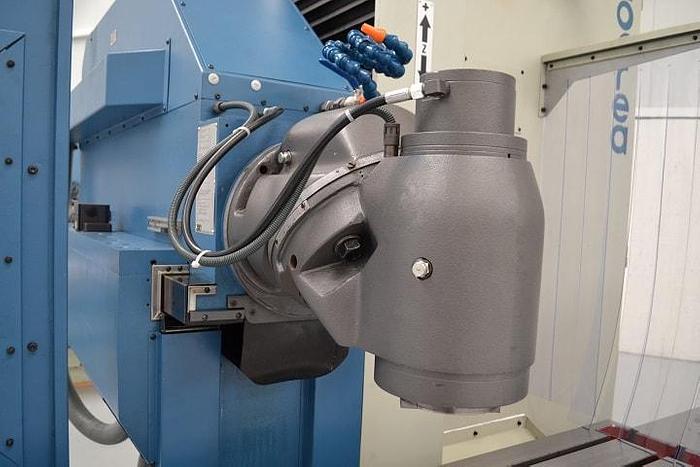

Milling Head
Universal Manual
Taper: A50
Spindle Speed: 20-4000rpm
Machine Dimensions
L: 5200mm
W: 2900mm
H: 2760mm
Includes
Guarding
Electronic Handwheel HR-410
Specifications
| Manufacturer | Correa |
| Model | CF22 |
| Year | 1996 |
| Condition | Refurbished |
| Stock Number | 00131 |
| Year of Manufacture | 1996 |
| Year Refurbished | 2018 |
| Control | HEIDENHAIN TNC-426 |
| Table Size | 2000 x 700 mm |
| Max Part Weight | 3500kg |
| Tool Clamping System | Hydraulic |
| Head Type | Universal manual |
| Spindle Speed | 20 - 4000 r.p.m. |
| Taper | A50 DIN69871 |
| Travels (X) | 2000mm |
| Travels (Y) | 800mm |
| Travels (Z) | 800mm |
| Machine Dimensions (L x W x H) | 5200 x 2900 x 2760 mm |
| Machine Weight | 9000 Kg |
