Contact us for price

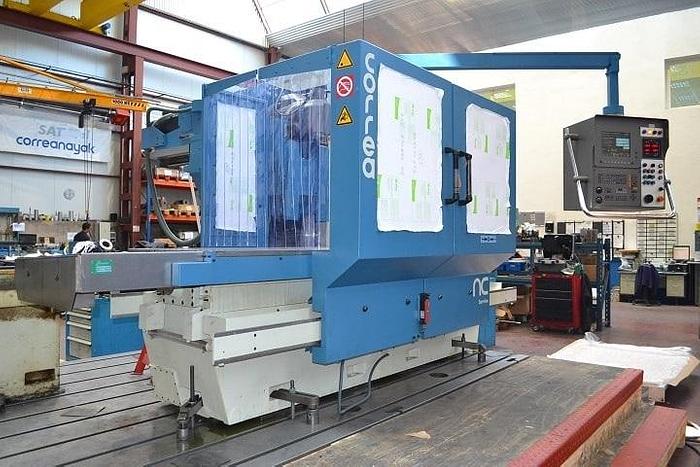

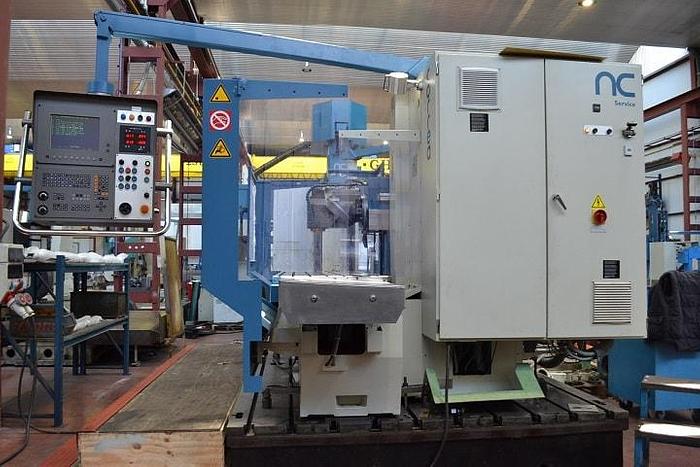

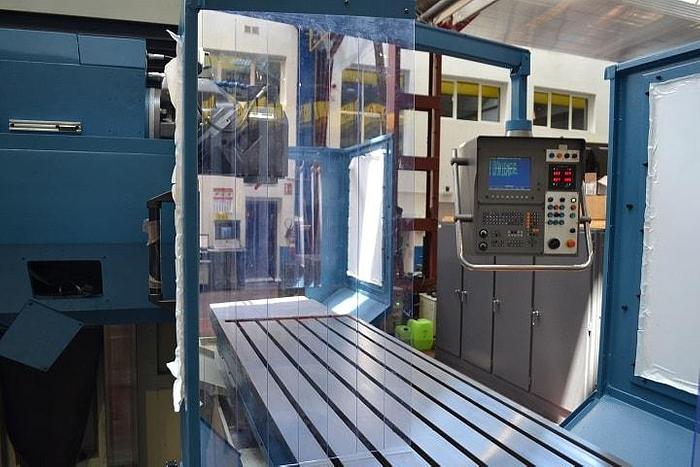

Refurbished 1995 Correa CF20/20 Bed Type Milling Machine
Description
Refurbished 1995 Correa CF20/20 Bed Type Milling Machine
Year of Manufacture: 1995
Year Refurbished: Under Going Refurbishment
6 Month Warranty on Mechanical Parts
Control: Heidenhain TNC-407
Table Size: 2000 x 700mm
Travels
X: 2000mm
Y: 800mm
Z: 800mm

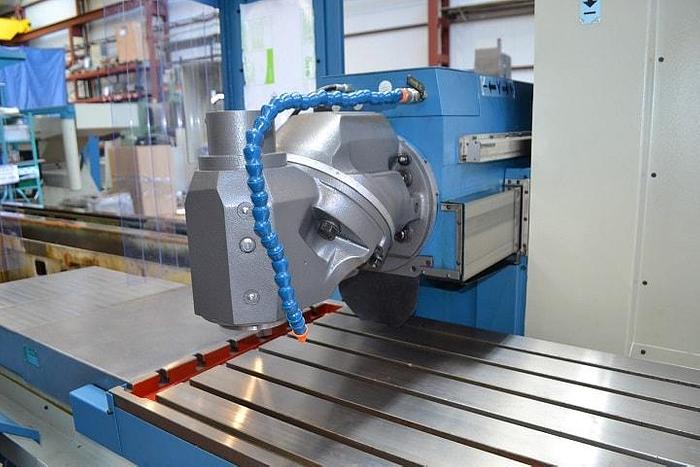

Milling Head
Universal Manual U25
Taper: ISO50
Spindle Speed: 20-2500rpm
Machine Dimensions
L: 5200mm
W: 3127mm
H: 2450mm
Includes
Guarding
Electronic Handwheel HR-130
External Coolant
Specifications
| Manufacturer | Correa |
| Model | CF20/20 |
| Year | 1995 |
| Condition | Refurbished |
| Stock Number | 00130 |
| Year of Manufacture | 1995 |
| Year Refurbished | Under Going Refurbishment |
| Control | HEIDENHAIN TNC-407 |
| Table Size | 2000 x 700 mm |
| Max Part Weight | 3500 kg |
| Tool Clamping System | Hydraulic |
| Head Type | Universal Manual (U25) |
| Spindle Speed | 20 - 2500 rpm |
| Taper | ISO 50 (DIN 2080) |
| Travels (X) | 2000mm |
| Travels (Y) | 800mm |
| Travels (Z) | 800mm |
| Machine Dimensions (L x W x H) | 5200 x 3127 x 2450 mm |
| Machine Weight | 10000 kg |
