Refurbished Correa CF17D Bed Type Milling Machine

1

Spain

or
Call +353 838108745

Description

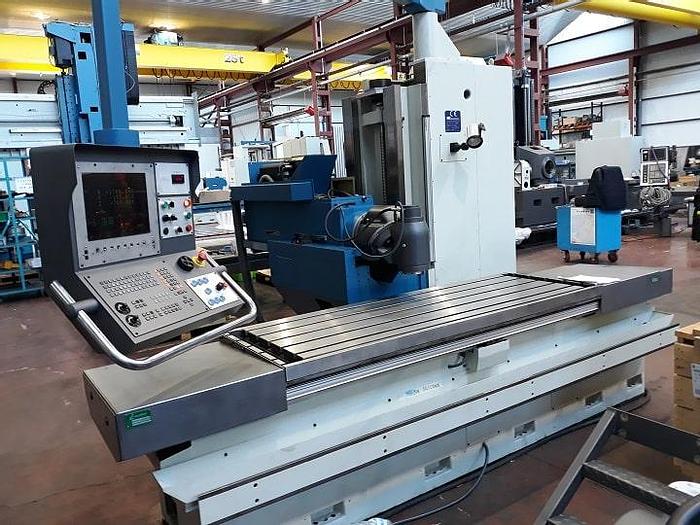

Refurbished 2001 Correa CF17D Bed Type Milling Machine


Machine Type: Bed Type Milling Machine Year of Manufacture: 2001 Year Refurbished: 2021 Warranty: 6 Month Warranty on Mechanical Parts Control: Heidenhain TNC-430

Condition: Fully mechanically and electronically refurbished. In excellent geometry and accuracy conditions.


Includes

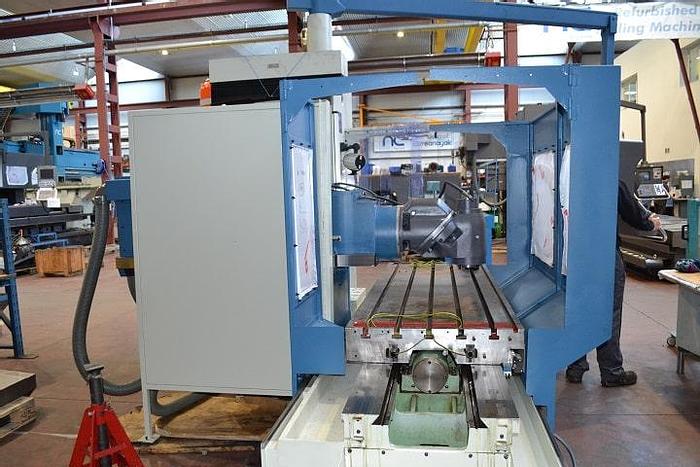

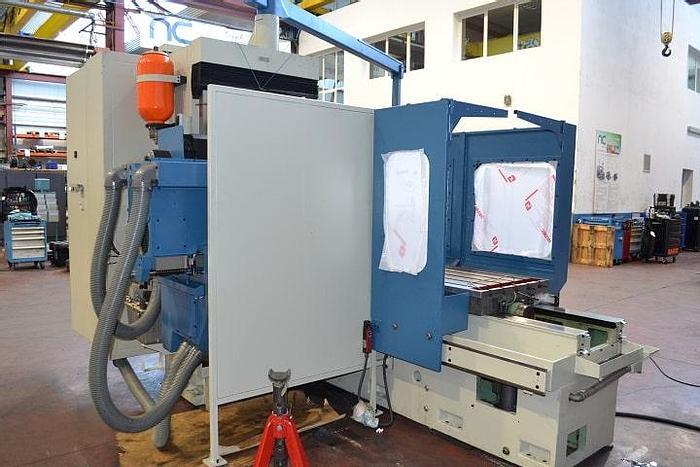

Guarding

Electronic Handwheel HR-130

External Coolant


Technical Specification Table Size: 2000 x 700mm Max Weight of Table: 3500kg

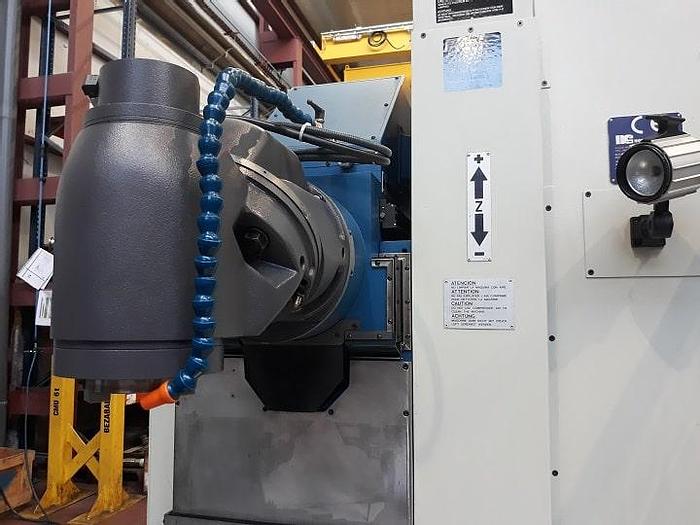

X Axis Travel: 2000mm Y Axis Travel: 800mm Z Axis Travel: 800mm Milling Head: Universal Manual U22 Spindle Taper: ISO50

Tool Clamping: Hydraulic Spindle Speed: 3000rpm Spindle Power: 17kW


Feedrate: 5-5000mm/min

Rapid Feed: 12000m/min


Dimensions: 5265x3250x2760mm Weight: 9500kg

Show All

Specifications

ManufacturerCorrea
ModelCF17D Bed Type Milling Machine
Year2001
ConditionRefurbished
Stock Number968702
Year of Manufacture2001

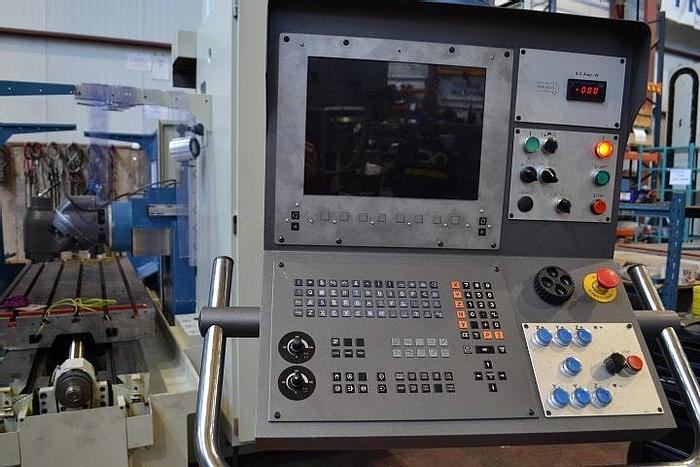

ControlHeidenhain TNC-430
Table Size2000 x 700mm
Max Part Weight3500kg
Tool Clamping SystemHydraulic
Head TypeUniversal manual (U22)
Spindle Speed20 - 3000rpm
TaperISO-50 - DIN2080
Travels (X)2000mm
Travels (Y)800mm
Travels (Z)800mm
Machine Dimensions (L x W x H)5265 x 3250 x 2760 mm
Machine Weight9500 kg
