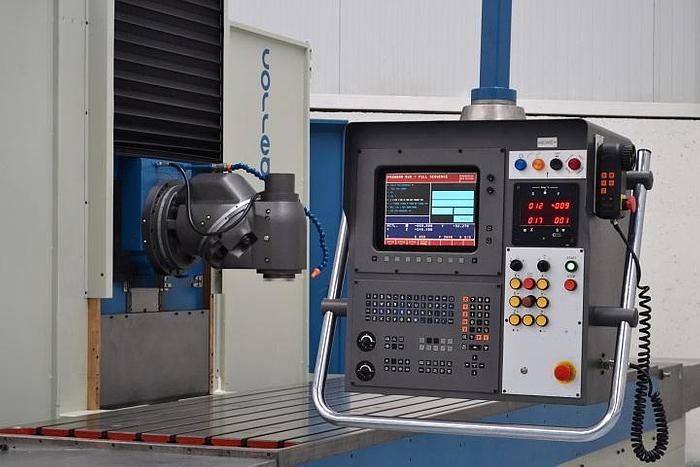

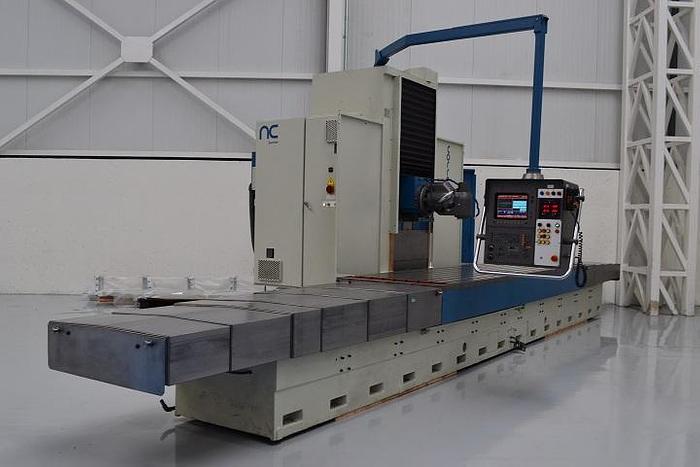

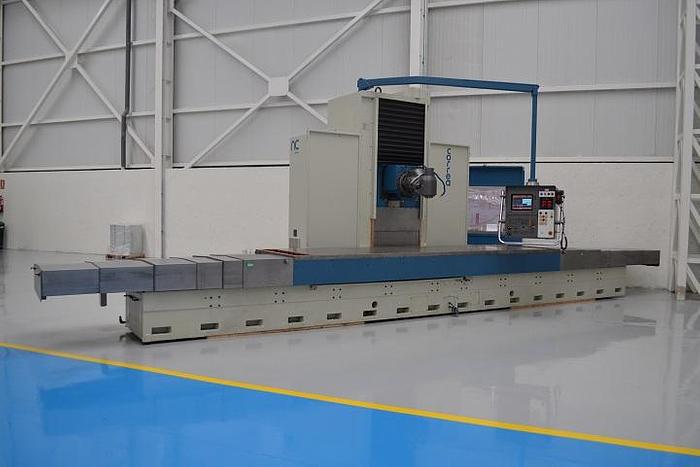

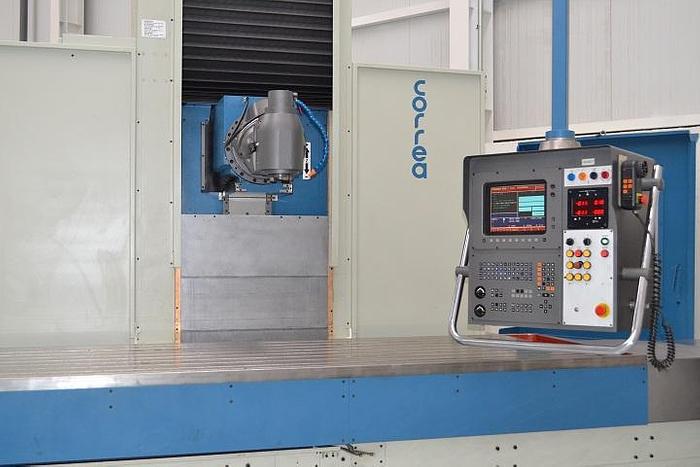

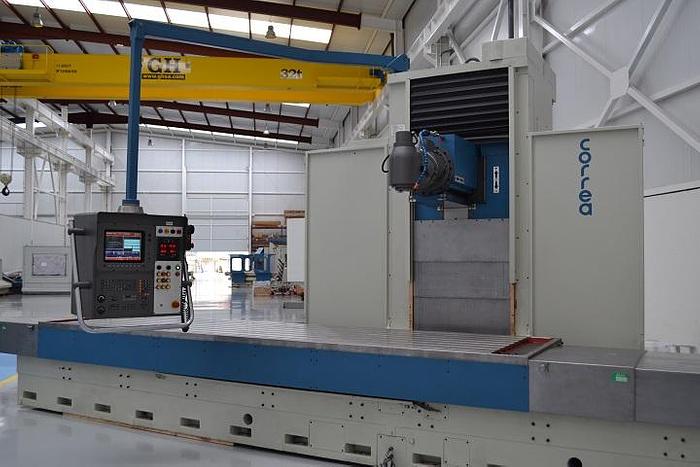

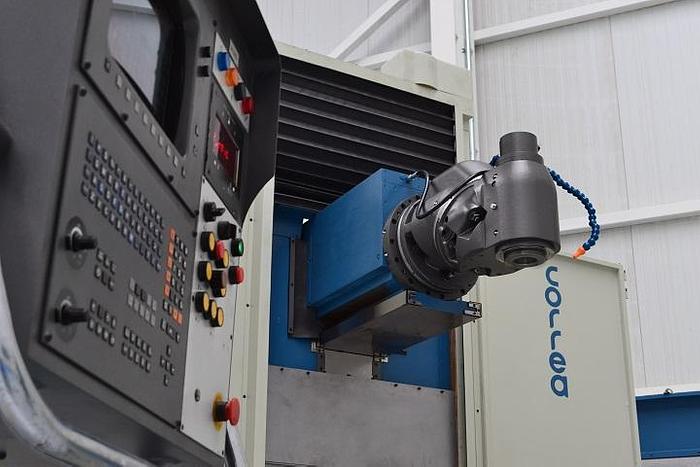

Refurbished 1993 Correa A30/40 Bed Type Milling Machine
Sold
Description
Refurbished 1993 Correa A30/40 Bed Type Milling Machine Year of Manufacture: 1993 Year Refurbished: 2019 6 Month Warranty on Mechanical Parts Control: Heidenhain TNC-407 Table Size: 4500 x 1100mm Travels X: 4000mm Y: 1200mm Z: 1500mm Milling Head Universal Manual Taper: ISO50 Spindle Speed: 20-2000rpm Machine Dimensions L: 11100mm W: 5392mm H: 3400mm Includes Guarding Electronic Handwheel HR-330
Specifications
| Manufacturer | Correa |
| Model | A30/40 |
| Year | 1993 |
| Condition | Refurbished |
| Stock Number | 00128 |
| Year of Manufacture | 1993 |
| Year Refurbished | 2019 |
| Control | Heidenhain TNC-407 |
| Table Size | 4500 x 1100mm |
| Max Part Weight | 9000kg |
| Tool Clamping System | Hydraulic |
| Head Type | Universal manual |
| Spindle Speed | 20 - 2000 r.p.m. |
| Taper | ISO 50 |
| Travels (X) | 4000mm |
| Travels (Y) | 1200mm |
| Travels (Z) | 1500mm |
| Machine Dimensions (L x W x H) | 11100 x 5392 x 3400 mm |
| Machine Weight | 22500 Kg |
