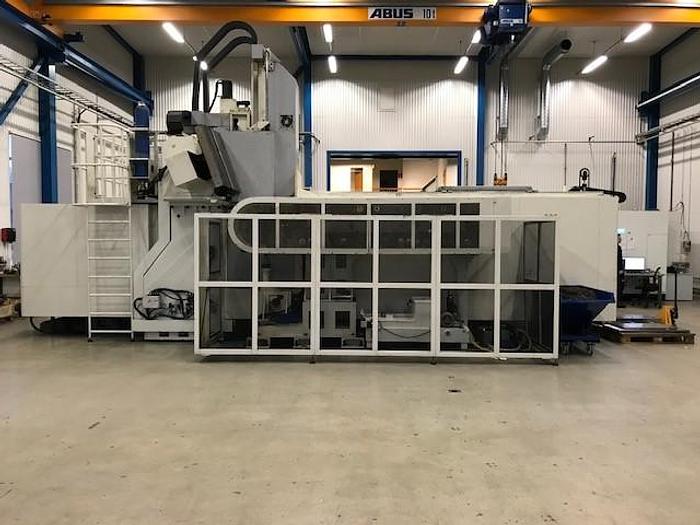

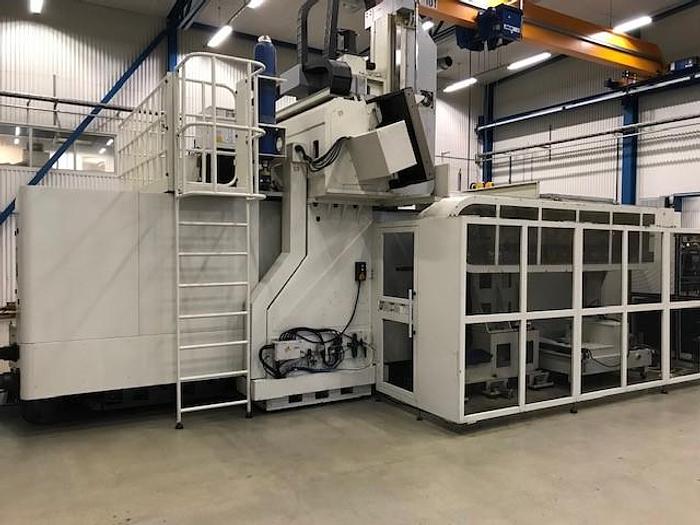

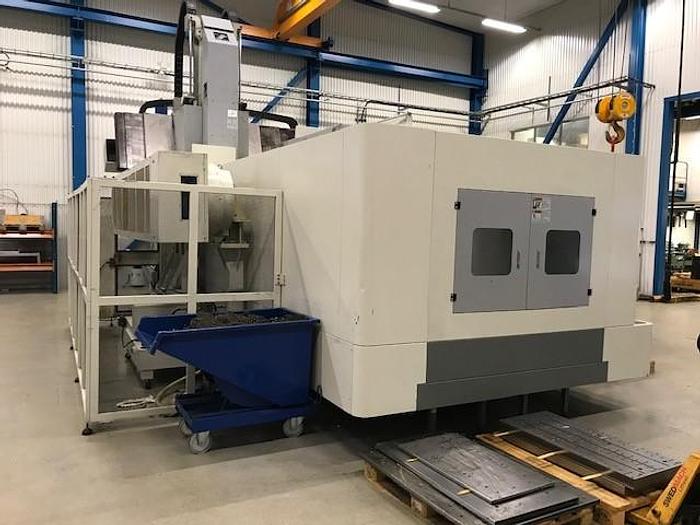

2010 Chevalier FVM-80125DC Double Column Mould Making Machine

2010 Chevalier FVM-80125DC Double Column Mould Making Machine Year: 2010 Installed: 2011 Location: Sweden Table Size: 3200 x 1800mm Travel X: 3,200 mm Y: 2,100 mm Z: 1,000 mm ATC: 60 Tool Places Spindle Taper: BT50 Spindle Speed: 6,000rpm Spindle Motor: 26kW with ZF gearbox Control: Fanuc OiM Complete with: Remote Jog Handle Through spindle coolant 30 bar Coolant Jet arround spindle with side cooling X/Y C3 Class hollow ball screws with oil coolant system Chip conveyor Automatic lubrication system Spindle Air blast Airconditioning system on electrical cabinet Automatic power-off Spindle oil cooling system Machining light Dual screw type chip conveyor on X-axis Chain type chip conveyor in Y-axis Fanuc Manual Guide control option.
