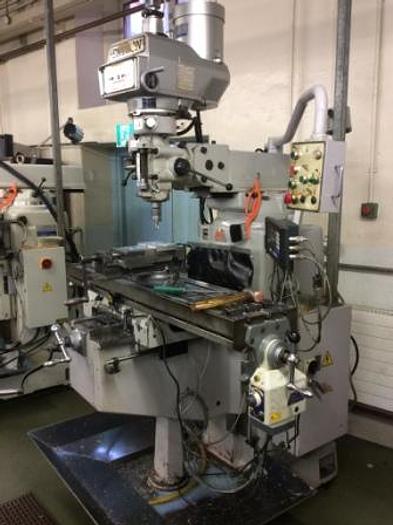

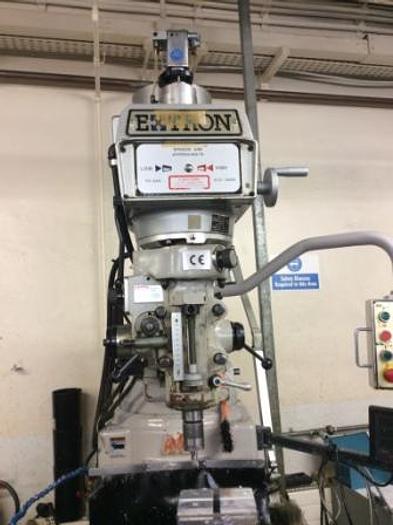

1999 Extron K3V Turret Milling Machine
Sold
Description

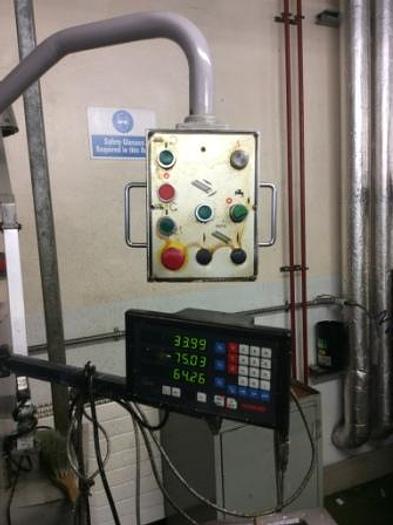

1999 Extron K3V Turret Milling Machine Ex College Machine Table Size: 1470 x 280mm Spindle Motor: 3kW Spindle Speeds: 60 – 4200 rpm Head: Variable Speed Head Includes: Newall Topaz Mill 3 Axis DRO Align Power Feed in X Axis Align Power Drawbar Coolant Tray Machine Dimensions L: 1800mm W: 1900mm H: 2400mm Weight: 1250kg
Specifications
| Manufacturer | Extron |
| Model | K3V |
| Year | 1999 |
| Condition | Used |
| Serial Number | K3V-217 |
| Stock Number | 00108 |
| DRO | Newall Topaz Mill 3 Axis DRO |
| Rapid Traverse | Align Power Feed in X Axis |
| Head | Variable Speed Head |
| Spindle Speed Range | Variable Speeds 60 - 4200 rpm |
| Table Size | 1470 x 280mm |
| Quill Feed Stroke | 125mm |
| Spindle Taper | R8 |
| Spindle Motor | 3kW |
| Year of Manufacture | 1999 |
| Voltage | 380V 3-Phase Motor, |
| Machine Dimensions (L x W x H) | 1800 x 1900 x 2400mm |
| Weight | 1250kg |
