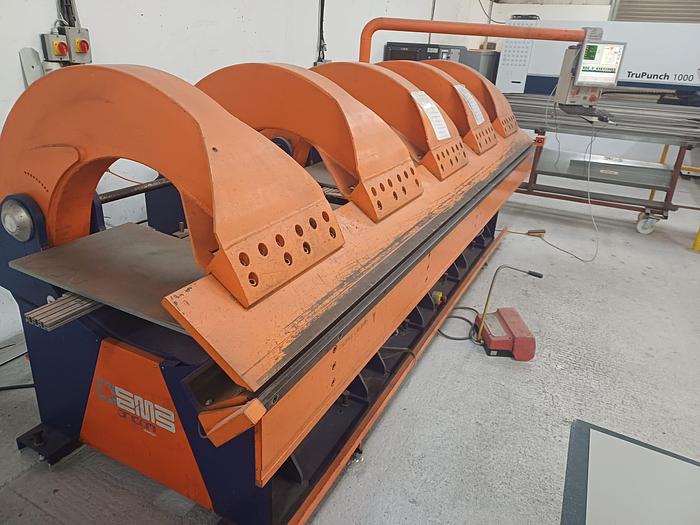

2008 Tensol OEMB H200-4 CNC Folder
Sold
Description
Tensol OEMB H200.40 CNC Folder
Machine Type: CNC Sheet Metal Folder
Year: 2008

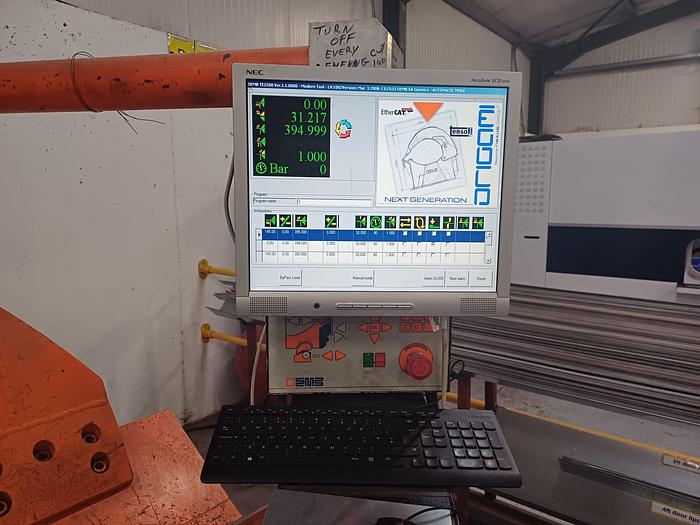

Control: OEMB with new external screen and software
Software: OEMB TE2200 Ver. 1.1.0000
Condition: Very Good
Technical Specifications
Max Bending Length: 4000mm
Max Bending Thickness: 2mm
Upper Beam Stroke: 145mm
Blade Opening: 270mm
Backgauge Travel: 1000mm
Backgauge Fingers: 2
Electrical Power: 7.5kW
Working Pressure: 180Bar

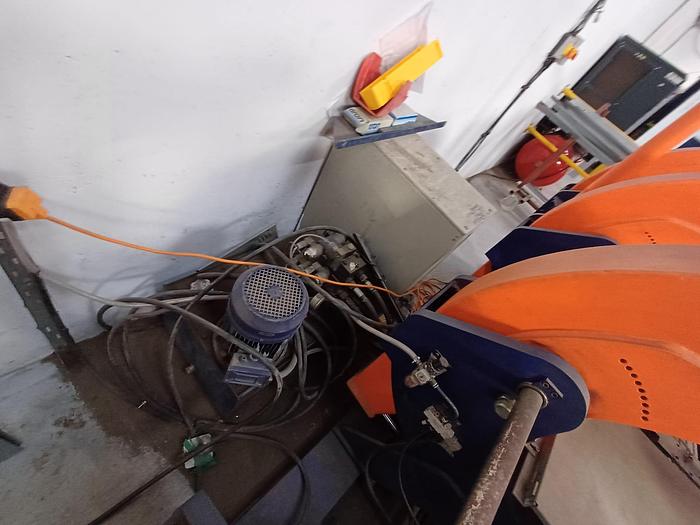

Hydraulic Unit Power: 4kW
Dimensions: 4000 x 2200 x 1900mm
Weight: 5000kg
Specifications
| Manufacturer | Tensol OEMB |
| Model | H200-4 CNC Folder |
| Year | 2008 |
| Condition | Used |

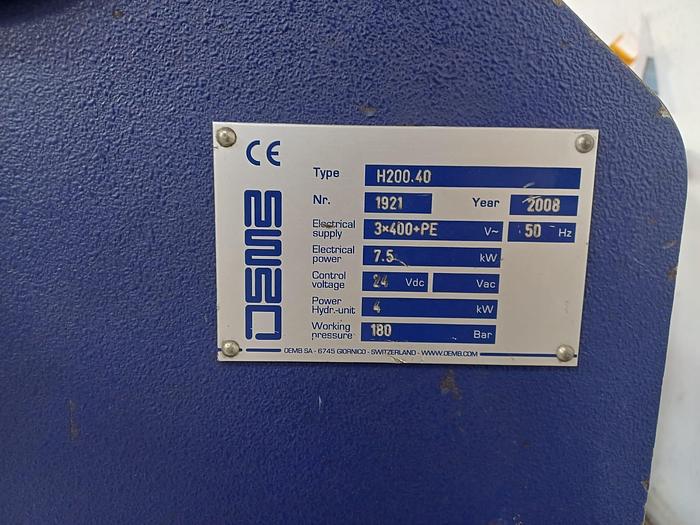

| Serial Number | 1921 |
| Machine Type | CNC Sheet Metal Folder |
| Year | 2008 |
| Software | OEMB TE2200 Ver. 1.1.0000 |
| Condition | Very Good |
| Max Bending Length | 4000mm |
| Max Bending Thickness | 2mm |
| Upper Beam Stroke | 145mm |
| Blade Opening | 270mm |
| Backgauge Travel | 1000mm |
| Backgauge Fingers | 2 |
| Electrical Power | 7.5kW |
| Working Pressure | 180Bar |
| Hydraulic Unit Power | 4kW |
| Weight | 5000kg |
