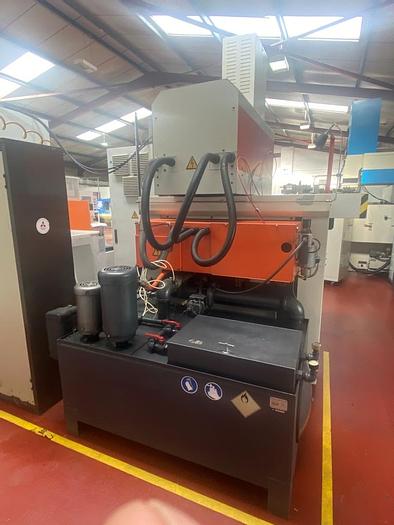

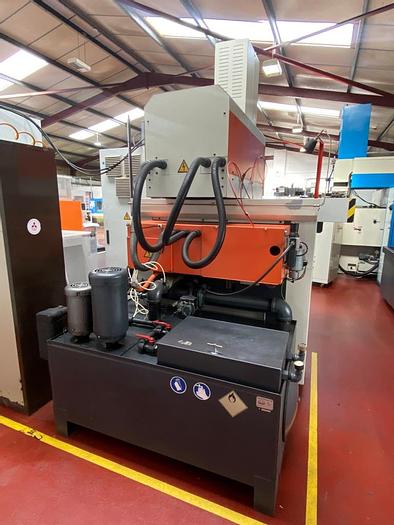

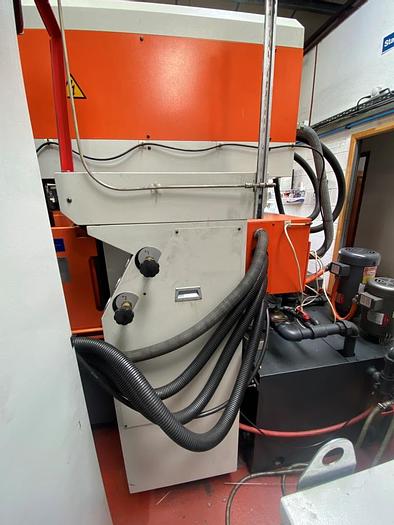

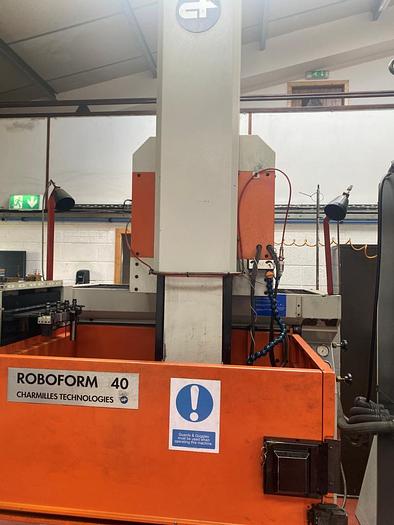

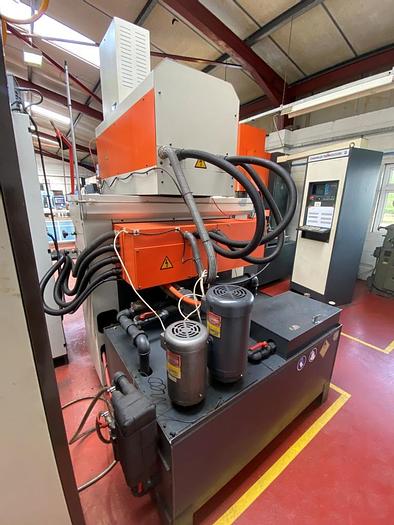

1993 Charmilles Roboform 40 EDM Machine
Sold
Description

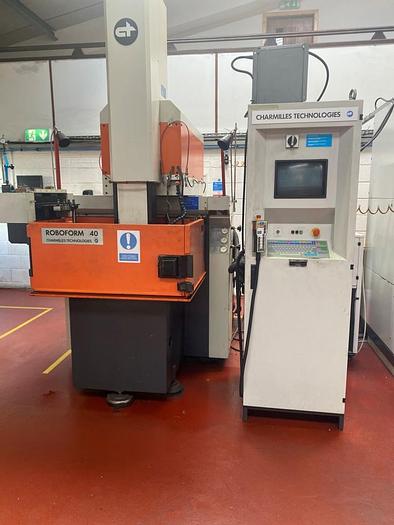

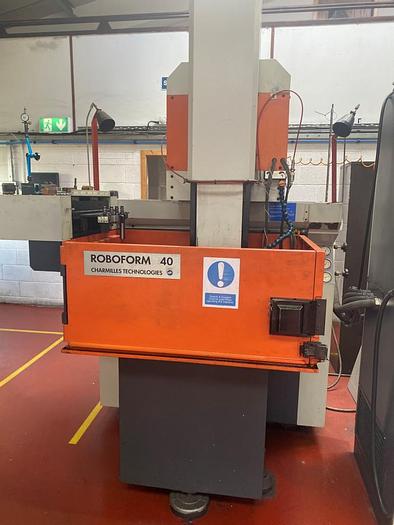

1993 Charmilles Roboform 40 EDM Machine
Machine Type: EDM/Spark Erosion Machine
Year: 1993

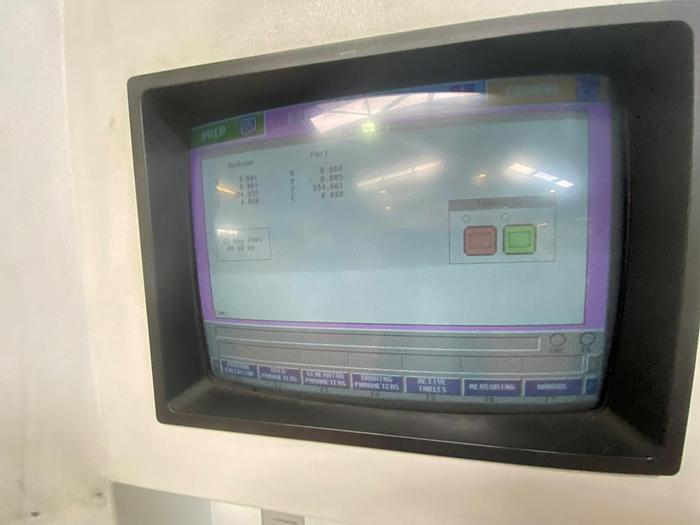

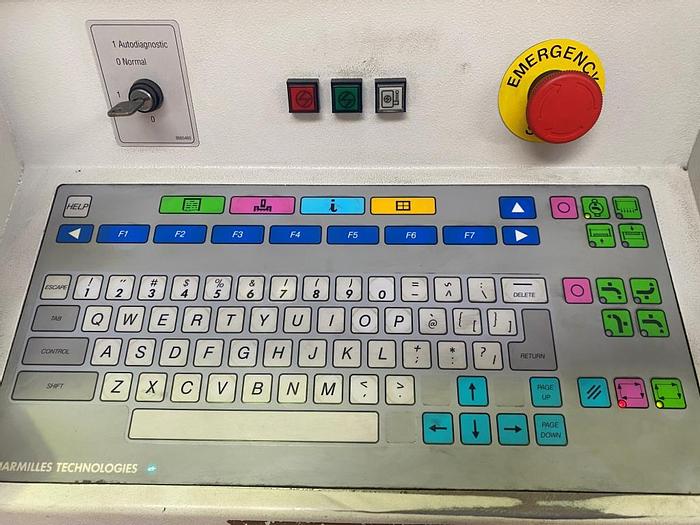

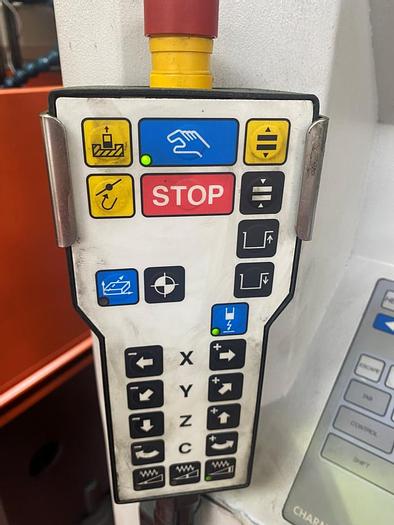

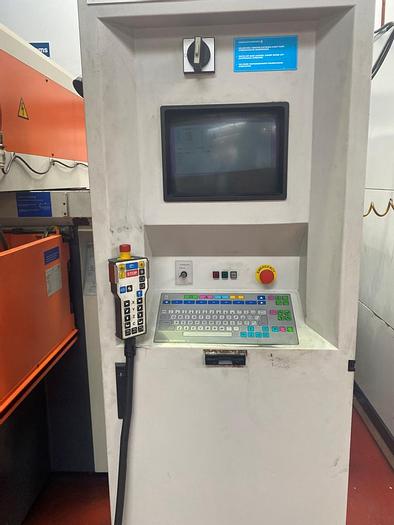

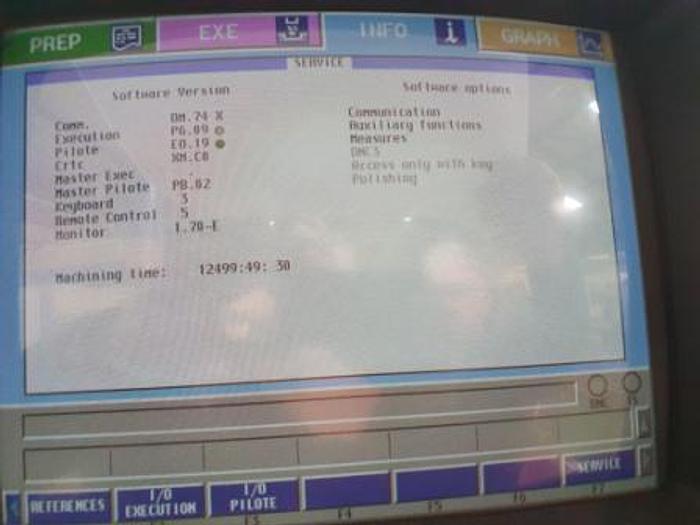

Control: Charmilles Technologies
Tooling Type: Erowa
Condition: Very Good
Includes:

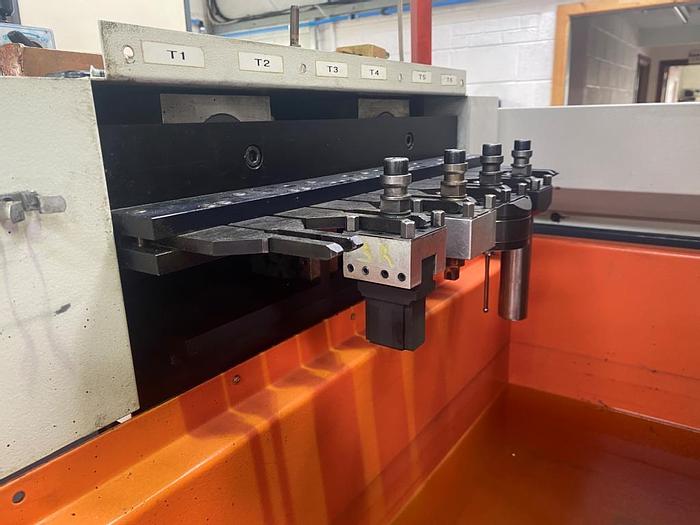

6 Station Tool Changer
5 x Tool Holders
Technical Specification Travels X: 500mm Y:400mm Z:450mm C:360º Table Dimensions: 750 x 500mm Max Workpiece Weight: 1,000kg Work Tank Dimensions: 1220 x 795 x 465mm Minimum Fill Level: 135mm Maximum Fill Level: 425mm Dielectric Tank Dimensions: 1,160 x 1,380 x 1,010mm Dielectric Tank Capacity: 725L Machine Dimensions (L x W x H): 2,300 x 1,560 x 2,850mm Machine Weight: 3,340kg
Specifications
| Manufacturer | Charmilles Technologies |
| Model | Roboform 40 |
| Year | 1993 |
| Condition | Used |

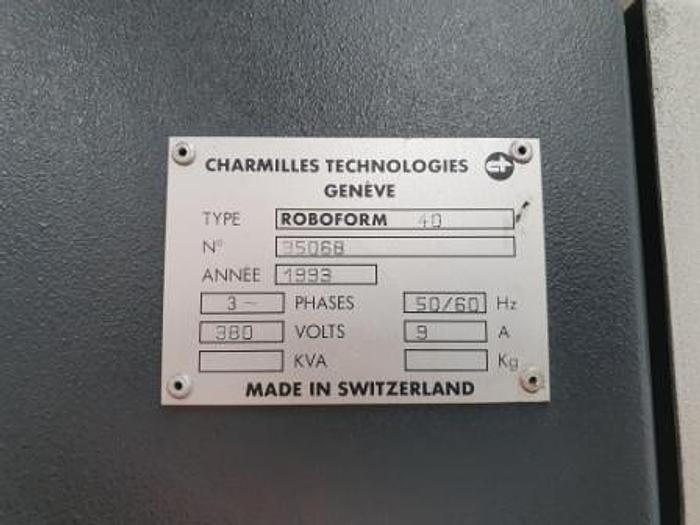

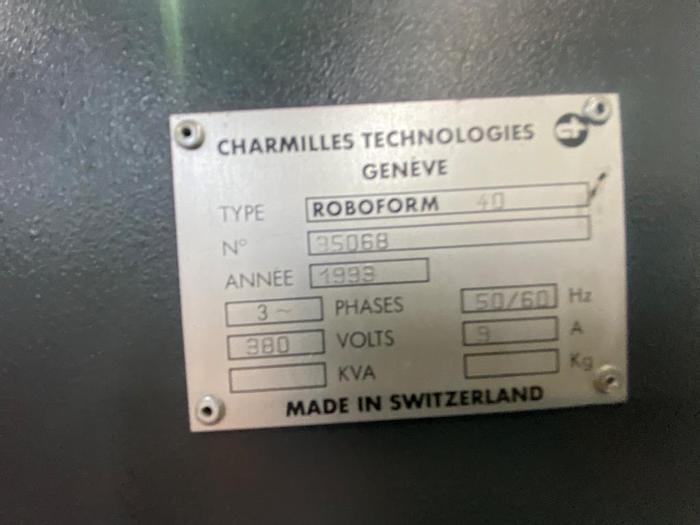

| Serial Number | 35068 |
| Stock Number | 00110 |
| Year | 1993 |
| Control | Charmilles Technologies |
| Tooling Type | Erowa |
| Tool Changer | 6 Station |
| Travels (X) | 500mm |
| Travels (Y) | 400mm |
| Travels (Z) | 450mm |
| Travels (C) | 360º |
| Table Dimensions | 750 x 500mm |
| Max Workpiece Weight | 1,000kg |

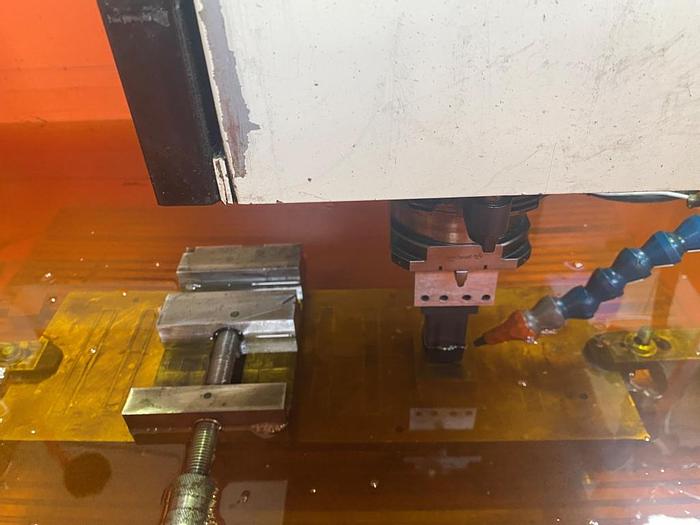

| Work Tank Dimensions | 1220 x 795 x 465mm |
| Minimum Fill Level | 135mm |
| Maximum Fill Level | 425mm |

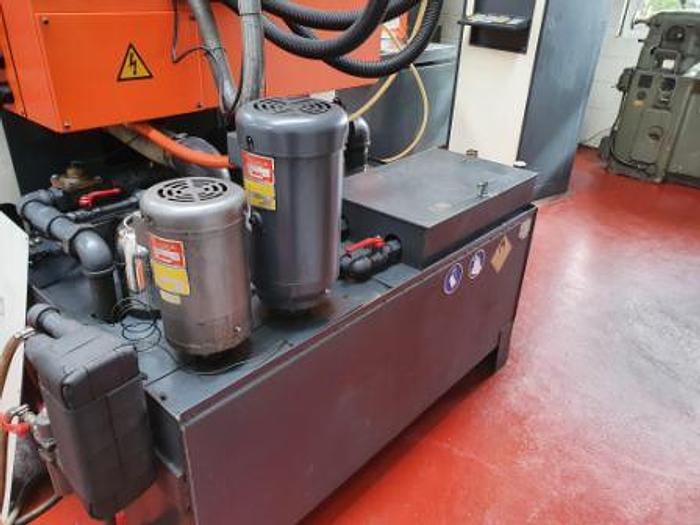

| Dielectric Tank Dimensions: | 1,160 x 1,380 x 1,010mm |
| Dielectric Tank Capacity | 725L |
| Machine Dimensions (L x W x H) | 2,300 x 1,560 x 2,850mm |
| Machine Weight | 3,340kg |
