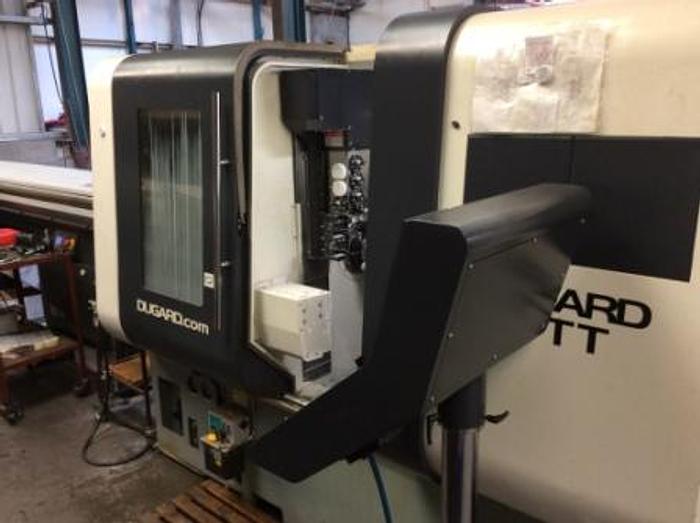

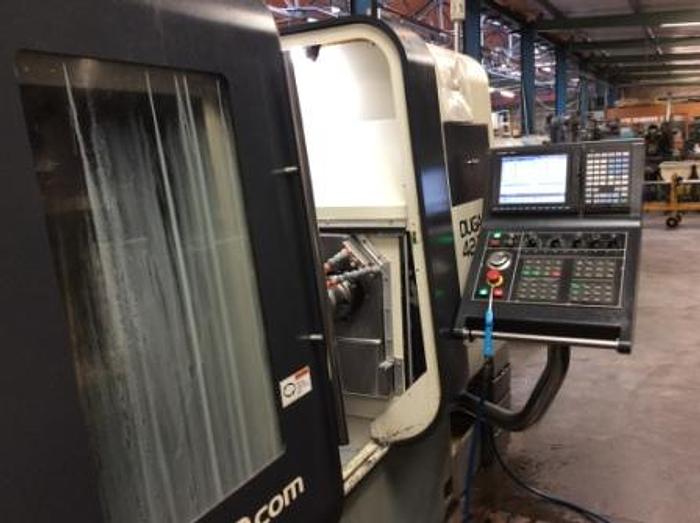

2012 Dugard 42TT CNC Lathe
Sold
Description
2012 Dugard 42TT CNC Lathe
Technical Details Year: 2012 Control: Mitsubishi M700 Axes: 12 (8 Axis + 2 Spindles with X & Y Positioning) Spindles: 2 Live Tooling: 12 No. of Tools: OD 6 Tools, ID 4 Tools Max Bar Capacity: Main Spindle: 60mm Sub Spindle: 42mm Spindle 1 Nose: A2-6 Spindle 2 Nose: A2-5 Main Spindle Motor: Mitsubishi 7. 5kW Main Spindle Speed: 4000rpm Sub Spindle Motor: Mitsubishi 3.7kW Sub Spindle Speed: 3000rpm Travels: X: 140mm Y: 410mm Z: 230mm X1: 410mm Y1: 410mm Z1: 360mm Includes Barload MOG Automatic Bar Feeder
Specifications
| Manufacturer | Dugard |

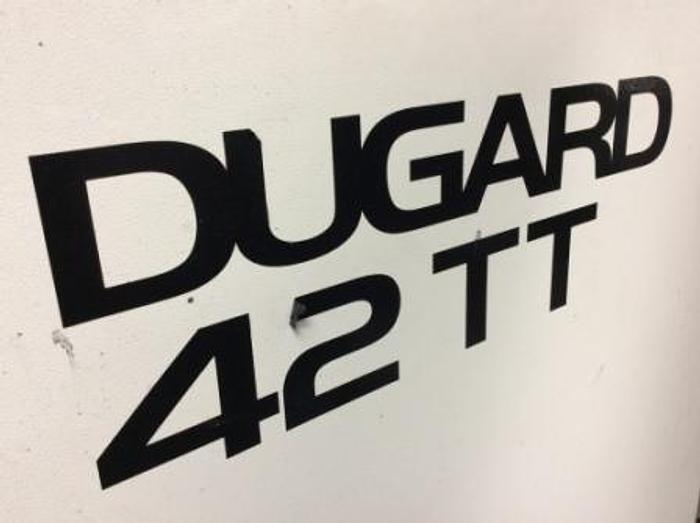

| Model | 42TT |
| Year | 2012 |
| Condition | Used |

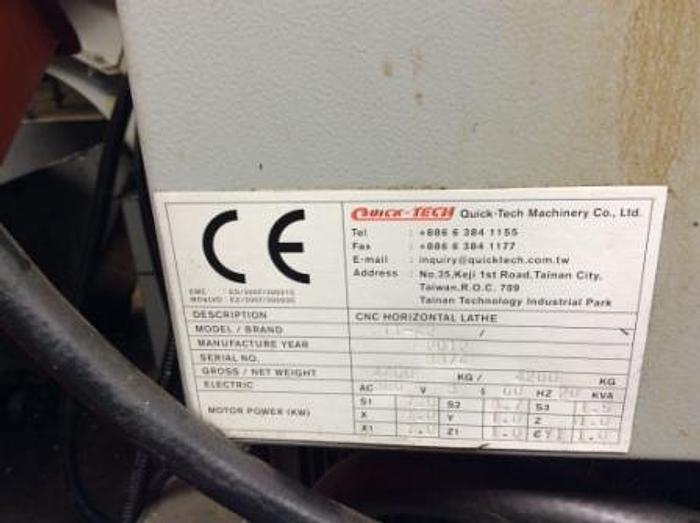

| Serial Number | 3374 |
| Stock Number | 00097 |
| Year | 2012 |

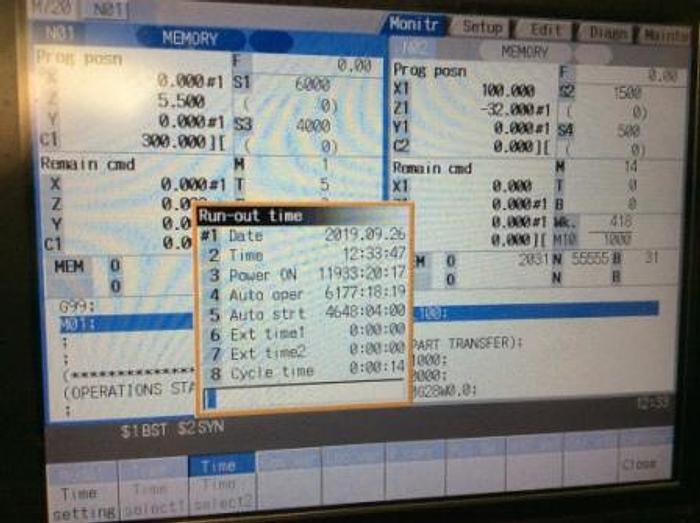

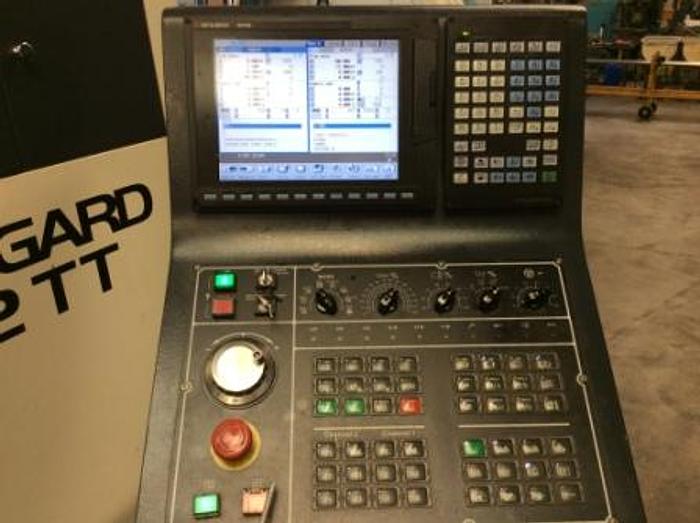

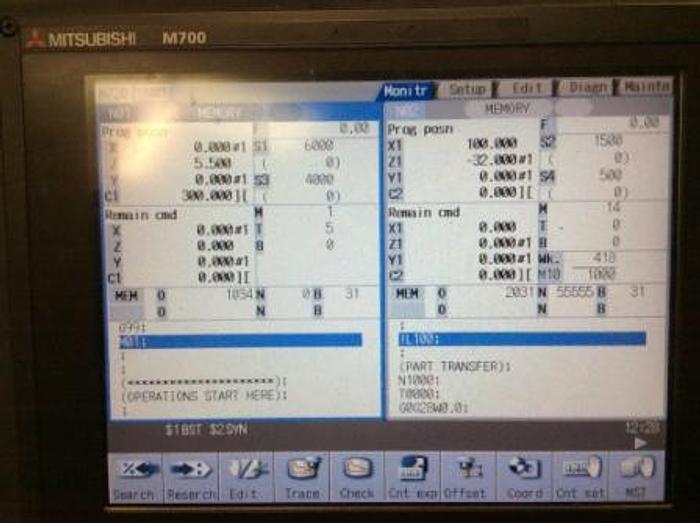

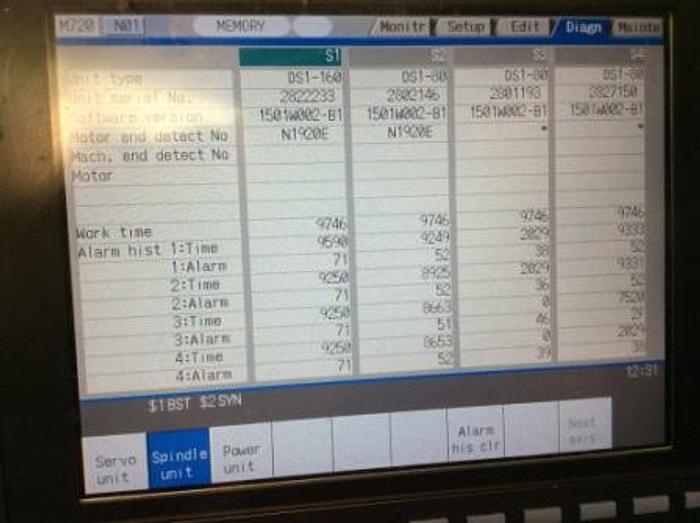

| Control | Mitsubishi M700 |
| Spindles | 2 |

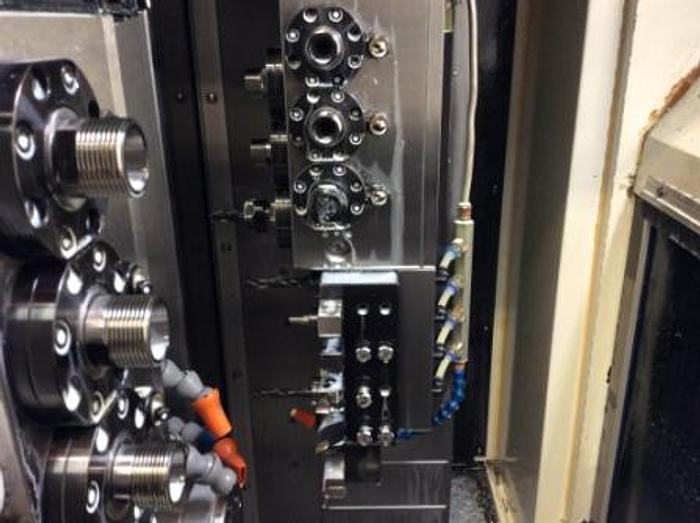

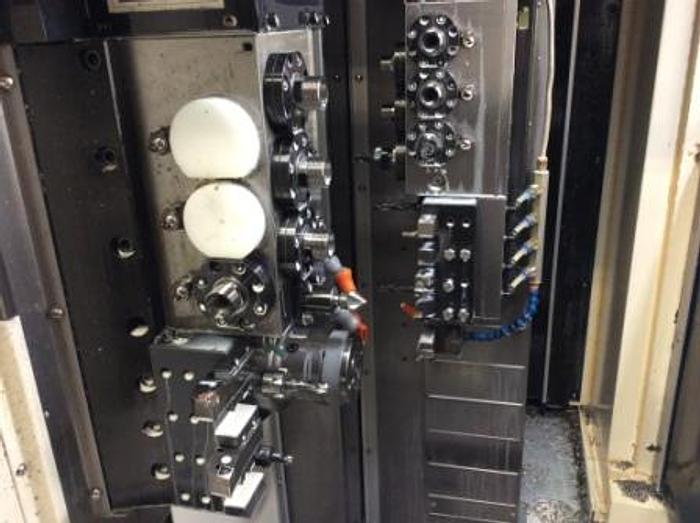

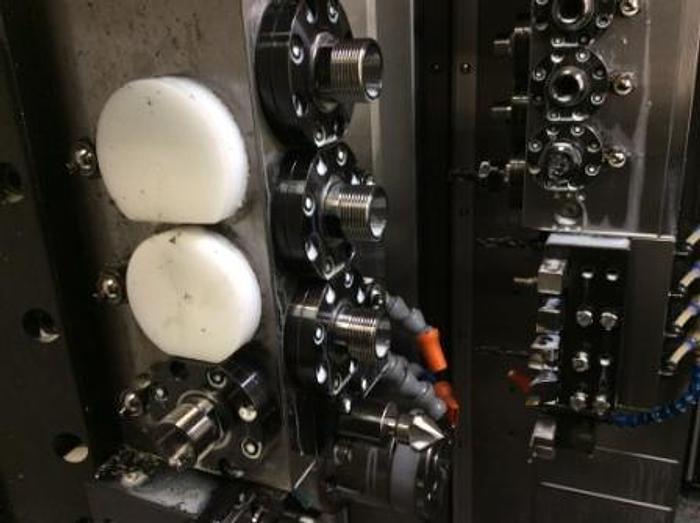

| Live Tooling | 12 |
| Bar Capacity - Main Spindle | 60 |
| Bar Capacity - Sub Spindle | 42 |
| Spindle 1 Nose | A2-6 |
| Spindle 2 Nose | A2-5 |
| Main Spindle Motor | Mitsubishi 7. 5kW |
| Main Spindle Speed | 4000rpm |
| Sub Spindle Motor | Mitsubishi 3.7kW |
| Sub Spindle Speed | 3000rpm |
| Travels (X) | 140mm |
| Travels (Y) | 410mm |
| Travels (Z) | 230mm |
| Travels (X1) | 410mm |
| Travels (Y1) | 410mm |
| Travels (Z1) | 360mm |
| Machine Dimensions (L x W x H) | 2500 x 1700 x 1900mm |
| Machine Weight | 4200kg |

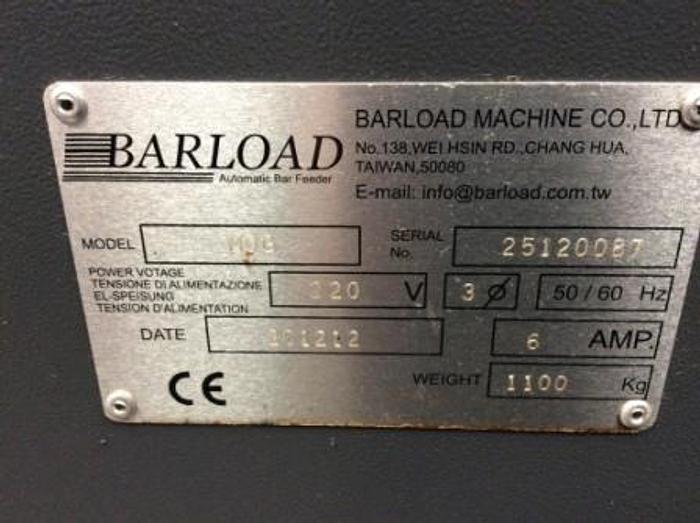

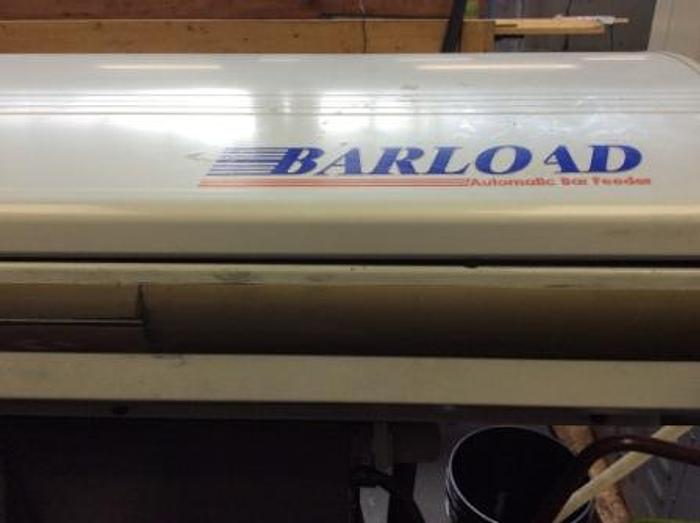

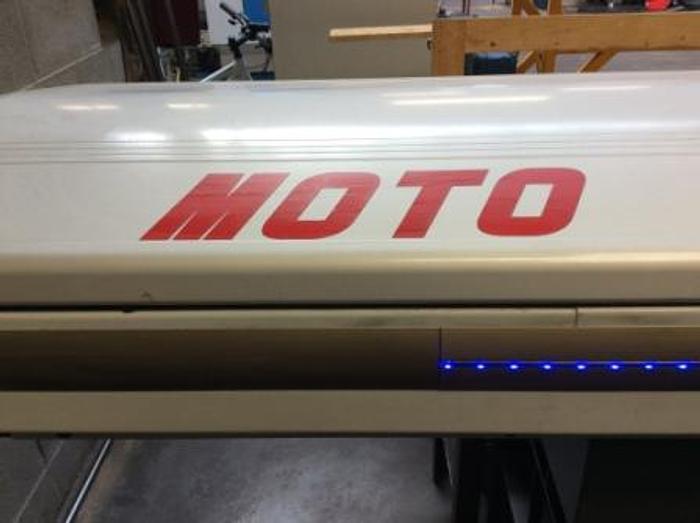

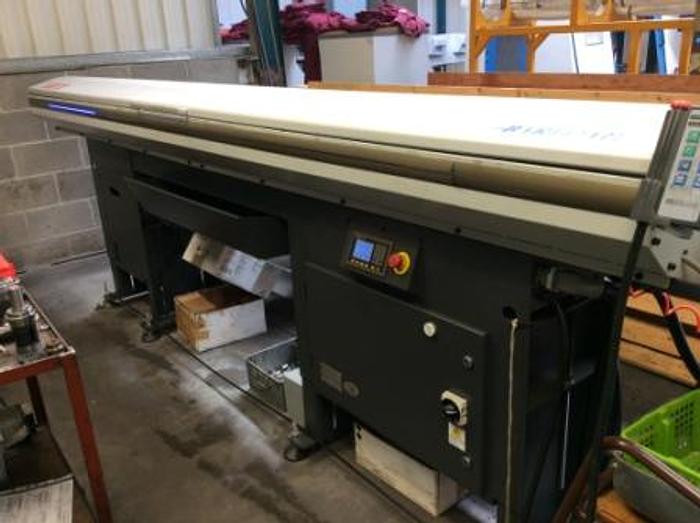

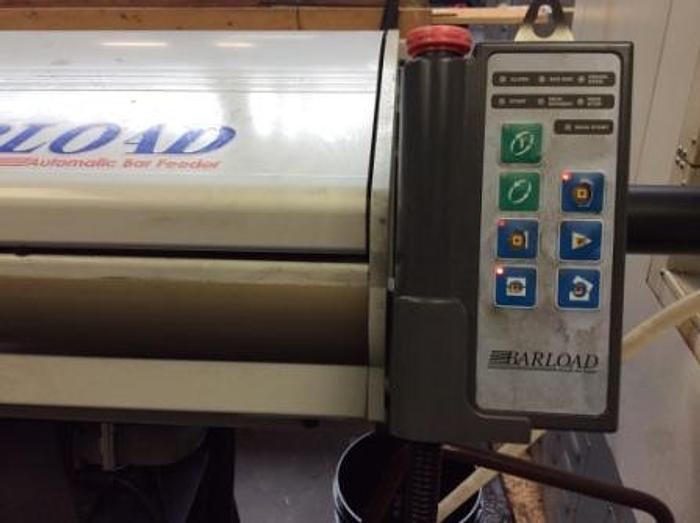

| Bar Feed | Barload MOG |
