Novopress HSBL Busbar Processing Tools
Description
Novopress HSBL Busbar Proceesing Tools
Machine Type: Portable System for Punching & Bending Copper Busbars
Electrical Connection: 220v Single Phase
Condition: Good
Includes

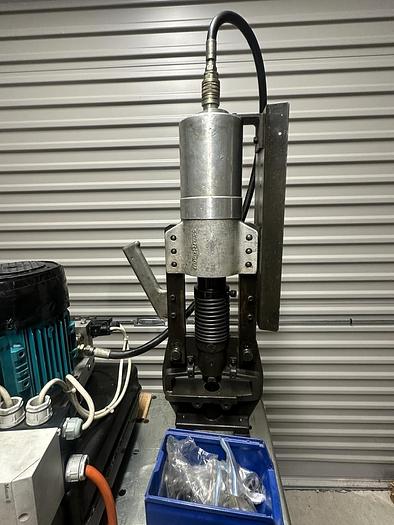

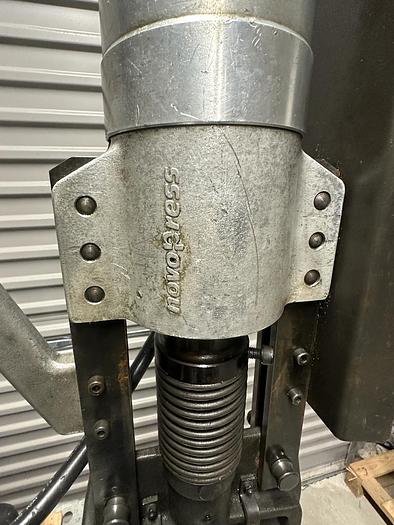

2 x Novopress HSBL 2420 Hydraulic Cylinders

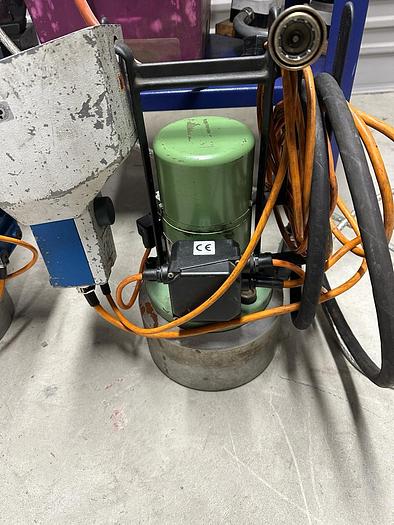

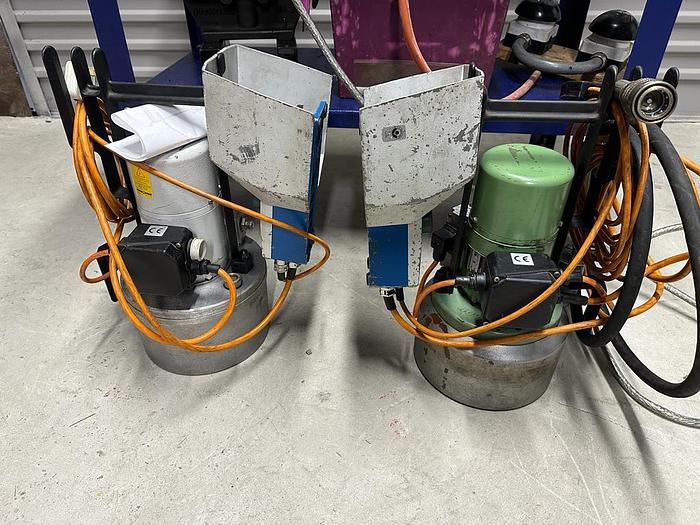

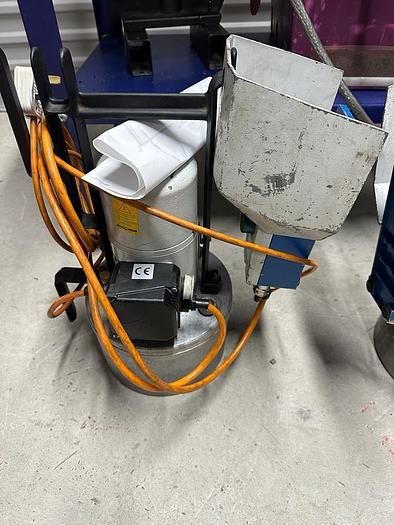

2 x Novopress HA-1 Electro Hydraulic Pumps with Foot Pedals

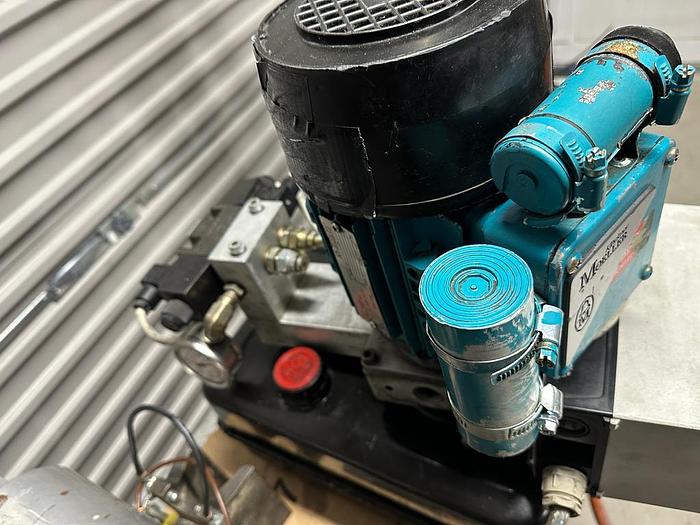

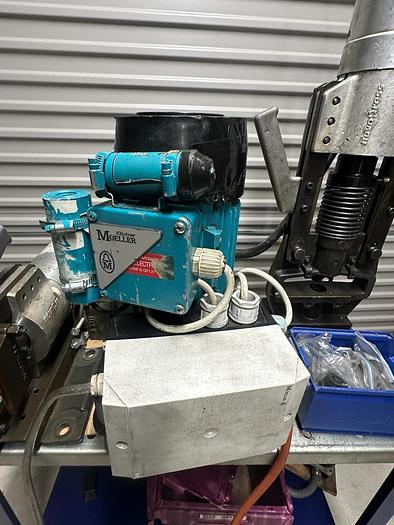

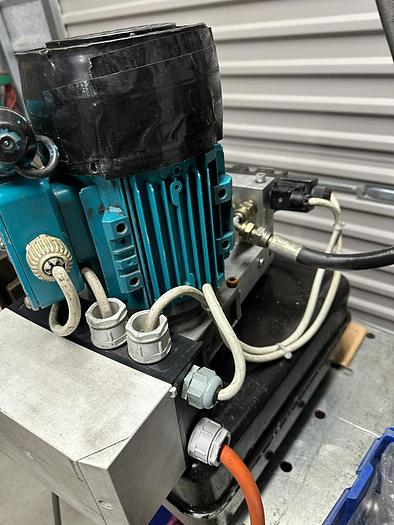

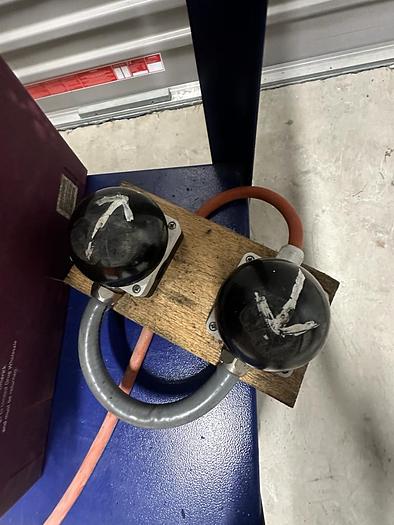

1 x Klockner Moeller Electro Hydraulic Pump with Double Foot Pedal
2 x Novopress Bending Punches
2 x Novopress Bending Dies
2 x Novopress Punching Fixtures
Selection of Dies from 6.6mm to 18mm Diameter
Selection of Oblong Dies

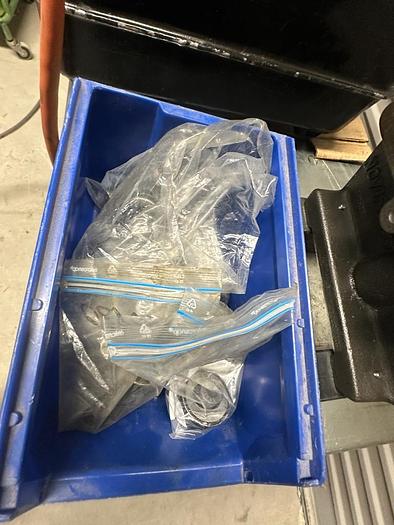

Small Selection of Punches

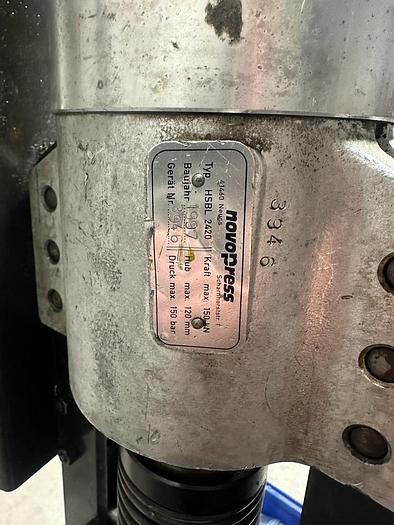

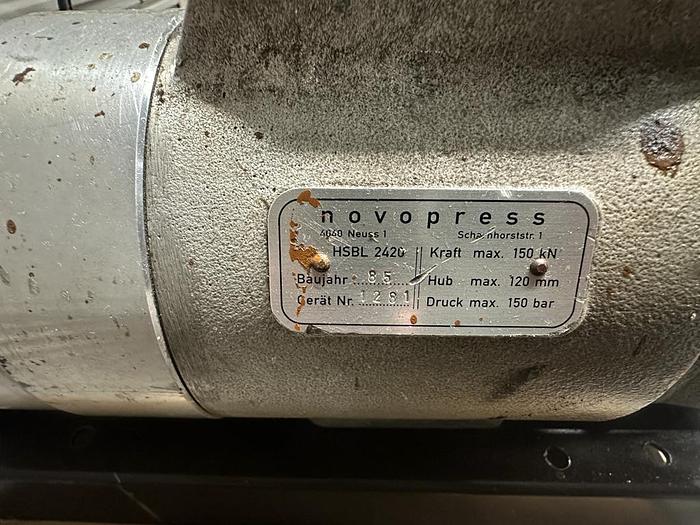

Novopress HSBL 2420 Technical Specifications
Stroke Length: 120mm
Max Working Pressure: 150bar(2200psi)
Power: 150kN(15T)
Dimensions: 620 x 140 x 365mm
Weight: 21kg

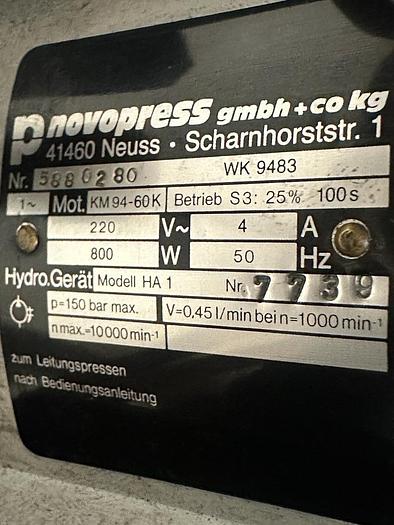

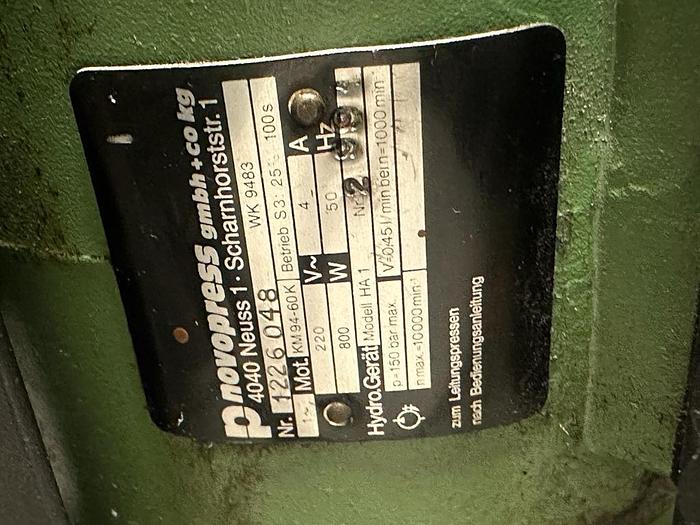

Novopress HA-1 Technical Specifications
Electrical Connection: 220V Single Phase
Operating Pressure: 150bar(2200psi)
Oil Flow: 4.5l/min
Oil Capacity: 3.5L
Dimensions: W270mm x H470mm
Weight: 15.5kg

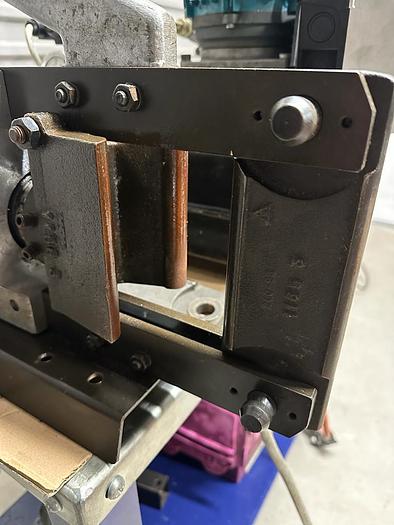

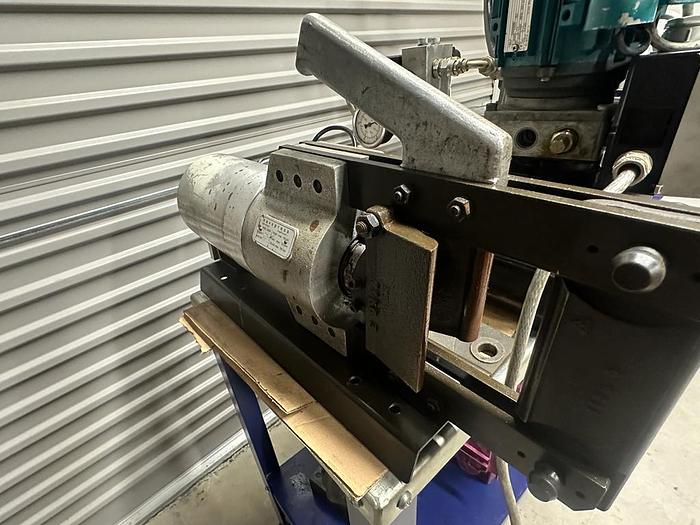

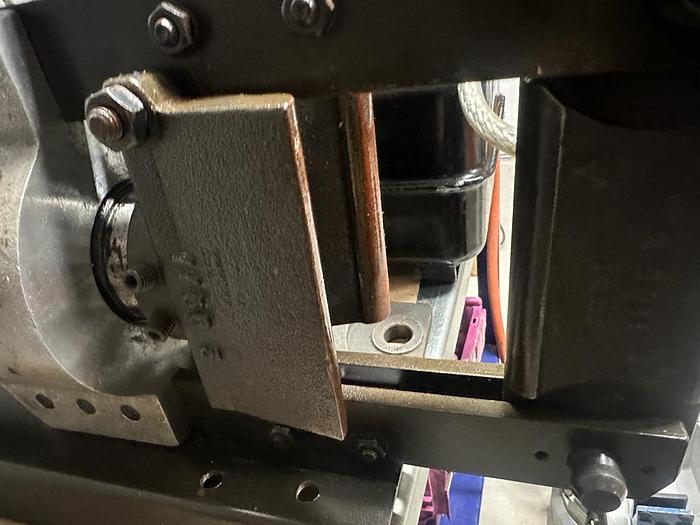

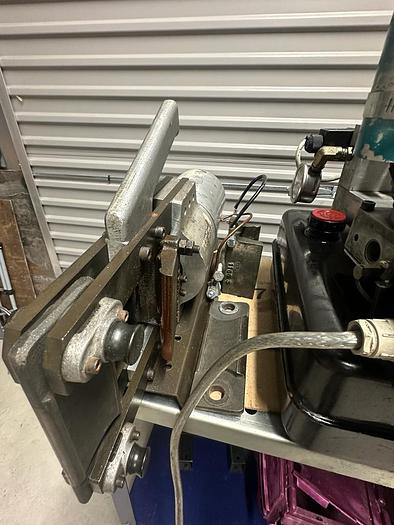

Novopress Bending Station Technical Specifications
Max Capacity: 120 x 10mm
Max Material Strength: 250N/mm2
Max Bending Angle: 100 Deg
Working Cylinder Length: 625mm
Smallest flange length (inside size) at a rail thickness of 10 mm (3/8):
At a 90° angle 40 mm (1.6")
At U, flange height 80 mm (3.1")
At Z at 90° flange height 80 mm (3.1")
Dimensions: W210mm x D200mm
Weight: 4.4kg

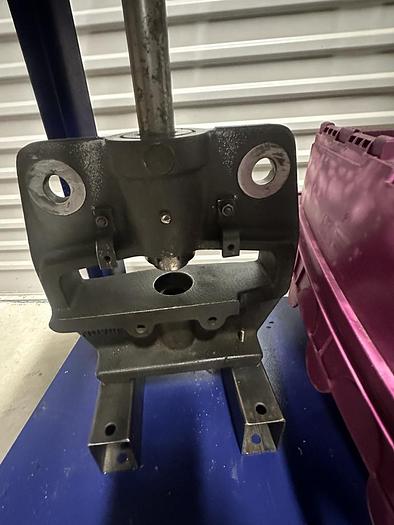

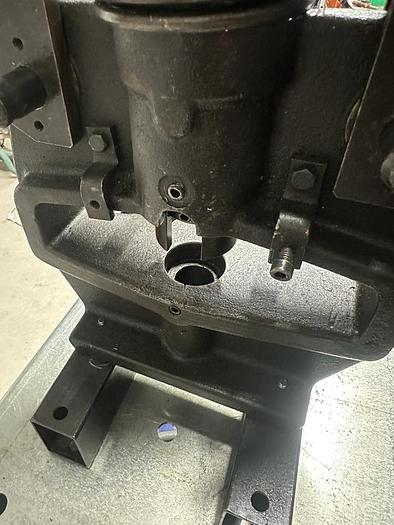

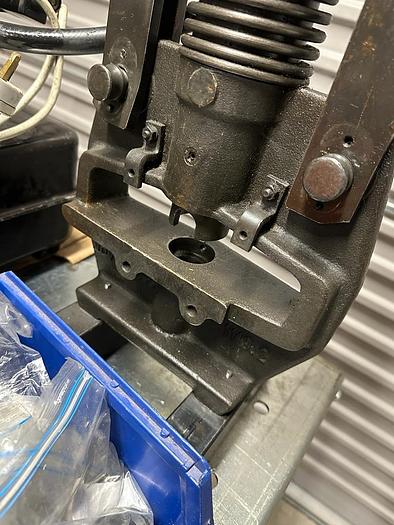

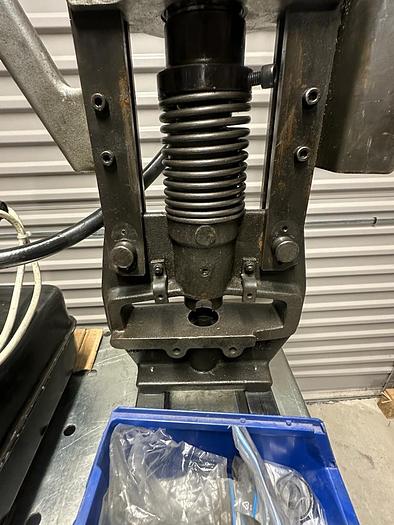

Novopress Punching Station Technical Specifications
Max Material Size: 120 x 13mm
Max Material Strength: 250N/mm2
Max Diameter Punch: 21mm in 10mm or 18mm in 13mm
Working Cylinder Height: 860mm
Clear Width of Stand: 200mm
Dimensions: W260mm x D200mm
Wight: 15kg
Specifications
| Manufacturer | Novopress |
| Model | HSBL Busbar Processing Tools |
| Condition | Used |
| Electrical Connection | 220v Single Phase |
| Condition | Good |
| Max Working Pressure | 150bar(2200psi) |
