Contact us for price

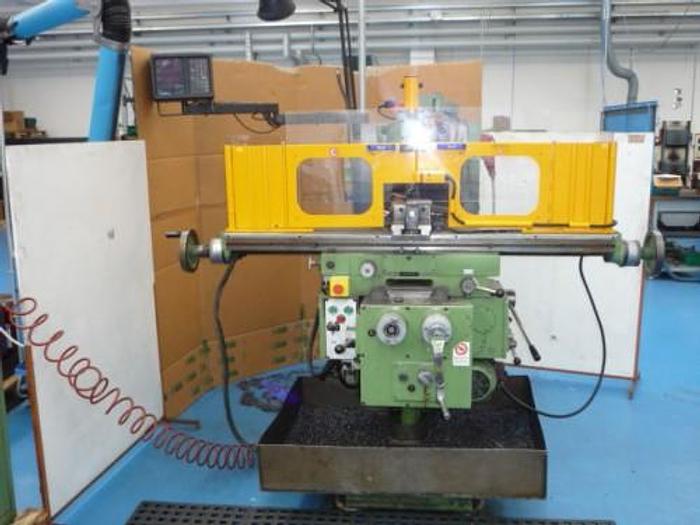

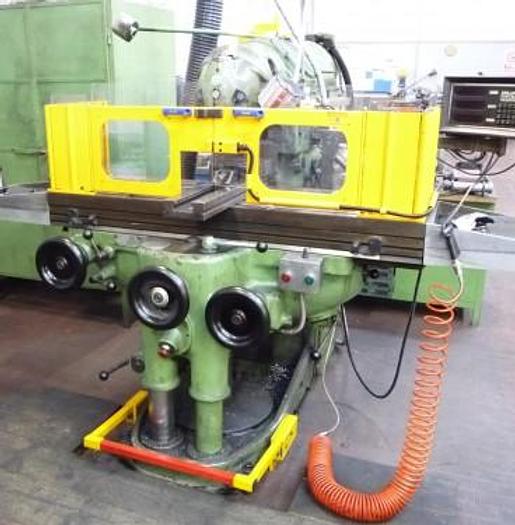

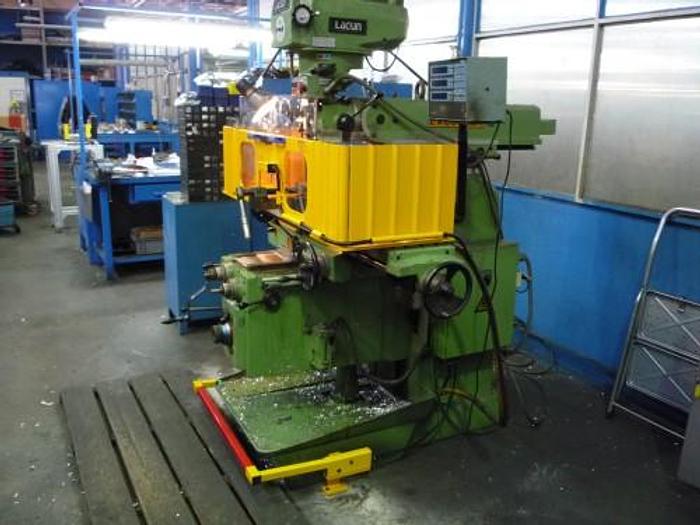

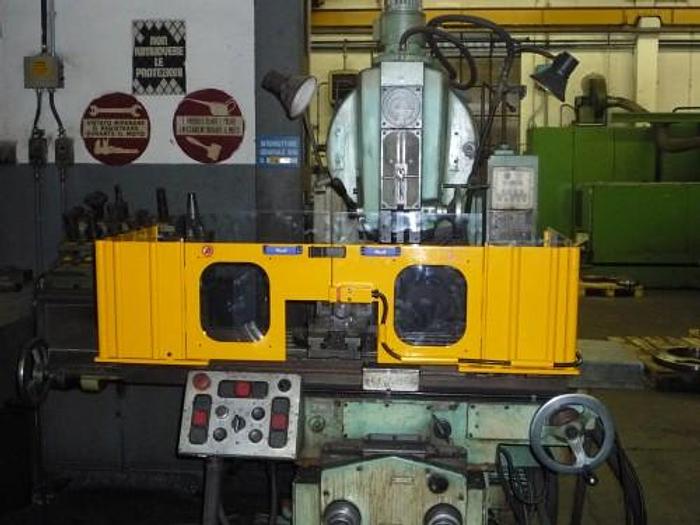

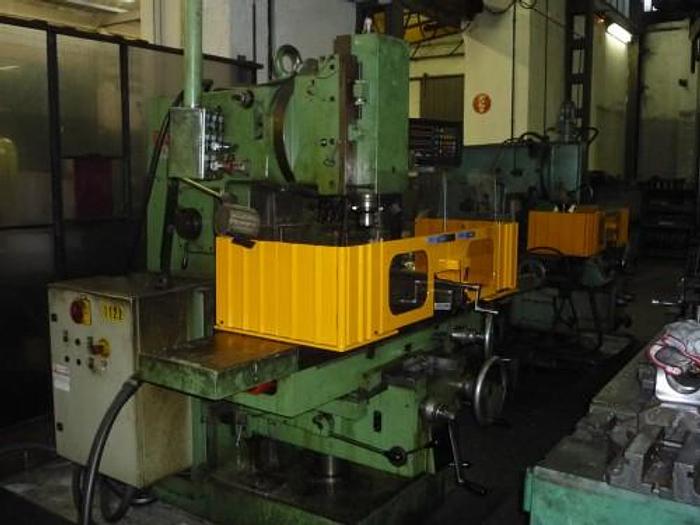

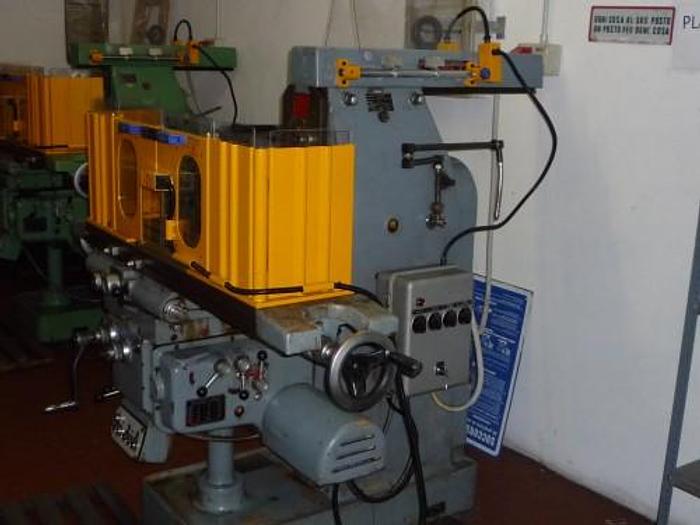

Repar2 2FTM2CM Milling Machine Table Safety Guard

Italy

orCall +353 838108745

Description

Repar2 2FTM2CM Milling Machine Table Guard Ref: 2FTM2CM Complete With Vice Opening Dimensions: Length: 1000mm - Length can be increased at time of order. (Add 5% to Guard Price per 100mm Increase in Length) Width: 501mm to 800mm - Width to be chosen at time of order Height: 330mm to 630mm - Adjustable Safety guards for milling machine machine table with microswitch. Easy and quick application for the protection of the operator against chip projection. Machine start prevented when safeguard is open. Provided with double protection wall made of polycarbonate, Adjustable in height. With Vice Opening Frame Material: Painted Steel Screen Material: Polycarbonate Safety Micro-Switch: 14MIC004 with L Type Key Fitting instructions included. Other sizes available upon request.

Specifications

ManufacturerRepar2
Model2FTM2CM
ConditionNew
Ref2FTM2CM
Frame MaterialPainted Steel
Screen MaterialPolycarbonate
Safety Micro-Switch14MIC004 with L Type Key
Length1000mm (other lengths available)
Width501mm to 800mm (dependant on table width)
HeightAdjustable from 330mm to 630mm
