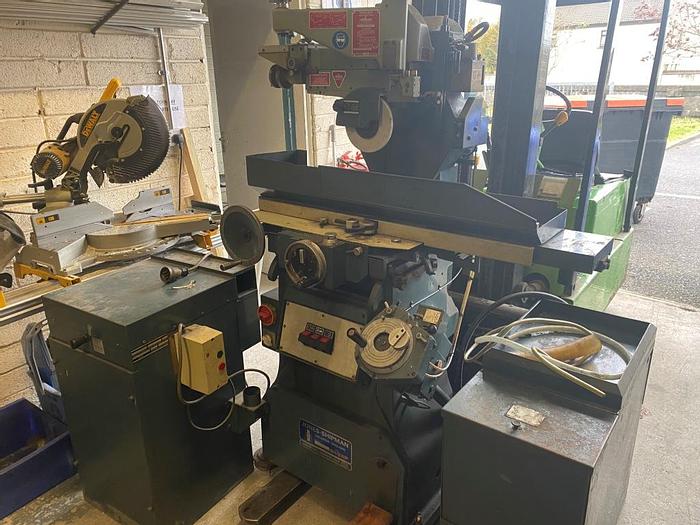

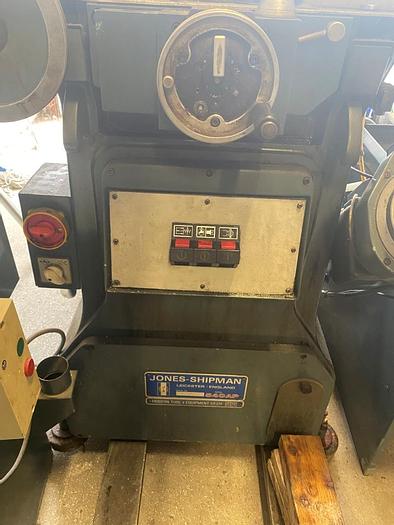

Jones & Shipman 540AP Surface Grinder
Sold
Description

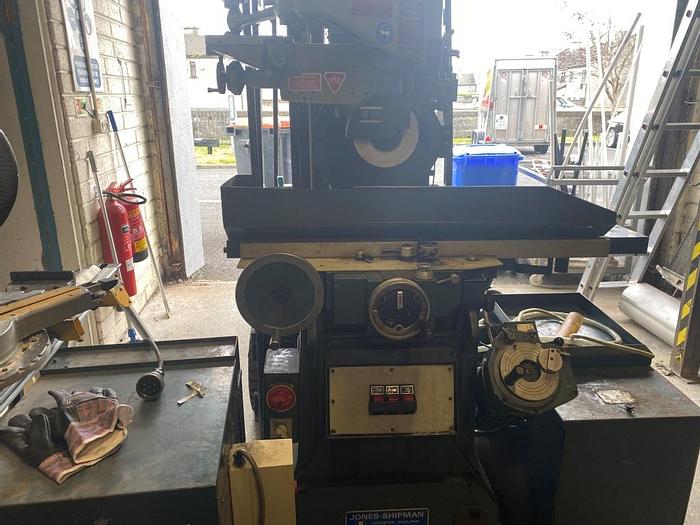

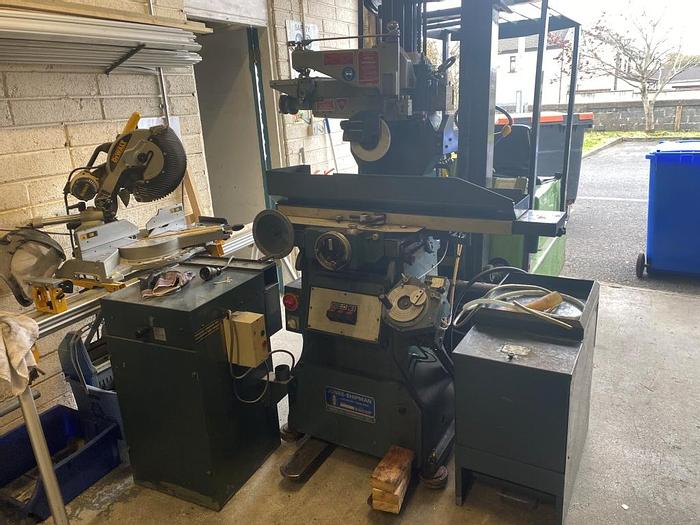

Jones & Shipman 540AP Surface Grinder
Machine Type: Manual Surface Grinder
Includes

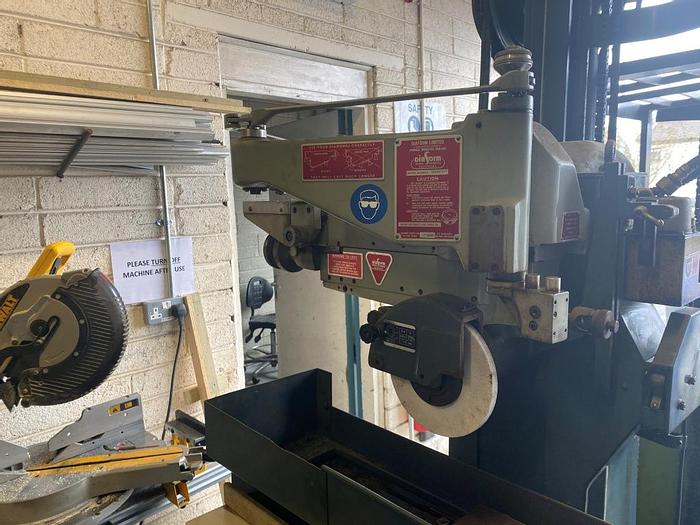

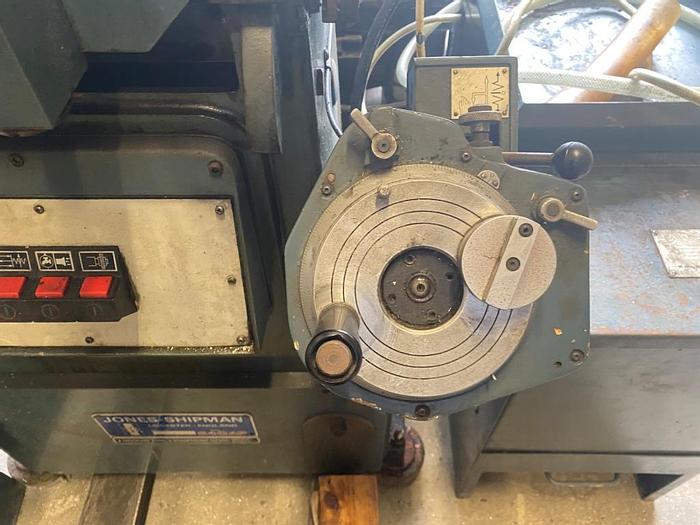

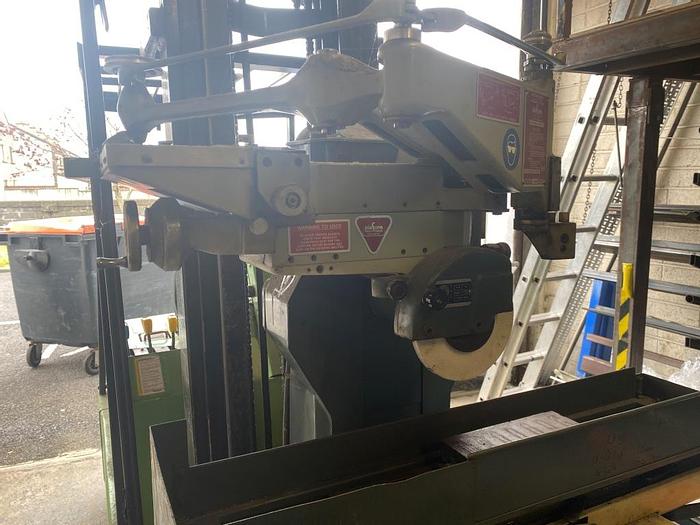

Diaform Wheel Dresser
Magnetic Chuck, Coolant

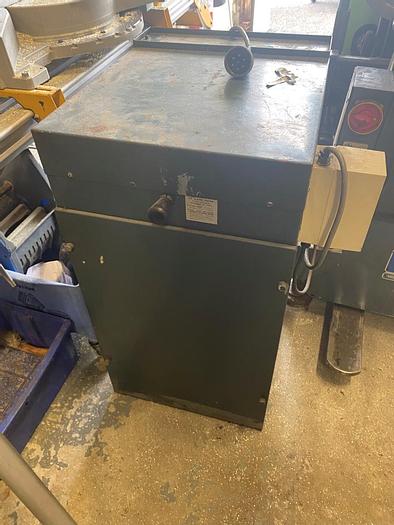

Extraction Power Rise & Fall
Specifications
Table Size: 457 x 1520mm Longitudinal Manual traverse: 480mm
Longitudinal Hydraulic traverse: 470mm
Cross Traverse: 168mm
Traverse Feed: 1.5 to 18m/min Vertical movement of wheelhead (max.): 280mm
Spindle Speed: 3000rpm Size of grinding wheel (standard): 180 x 13 x 31.75mm bore
Specifications
| Manufacturer | Jones & Shipman |
| Model | 540AP Surface Grinder |
| Condition | Used |

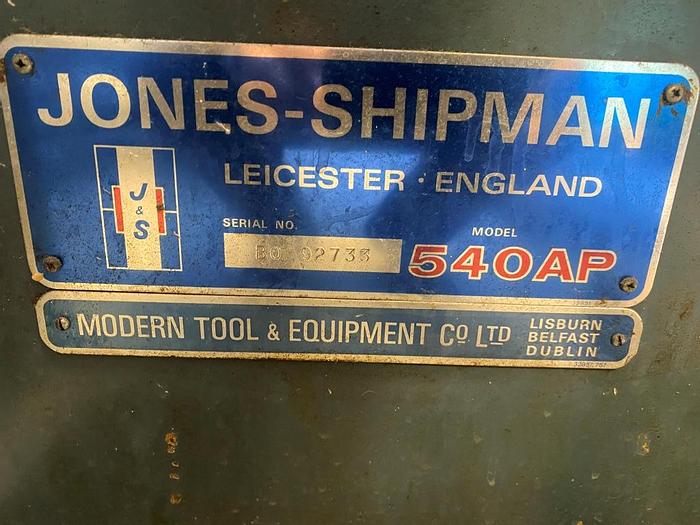

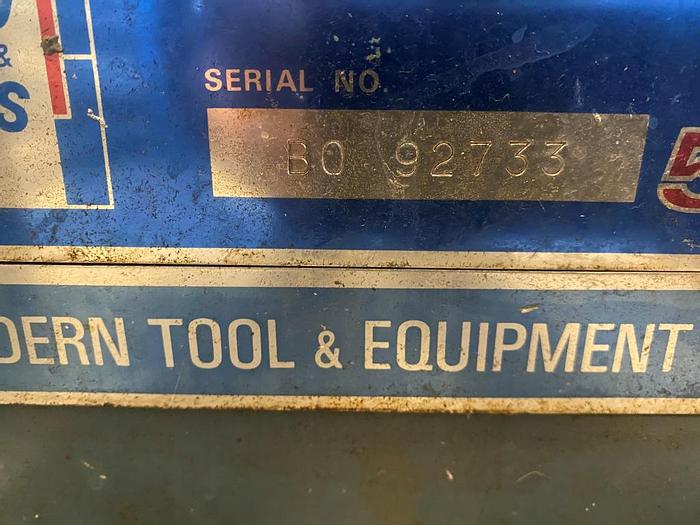

| Serial Number | BO 92733 |
| Machine Type | Manual Surface Grinder |
| Table | 457mm x 1520mm |
| Cross traverse | 168mm |
| Traverse speed range | 1.5 to 18m/min |
| Longitudinal Hydraulic traverse | 470mm |
| Longitudinal Manual traverse | 480mm |
| Vertical Movement of Head | 280mm |

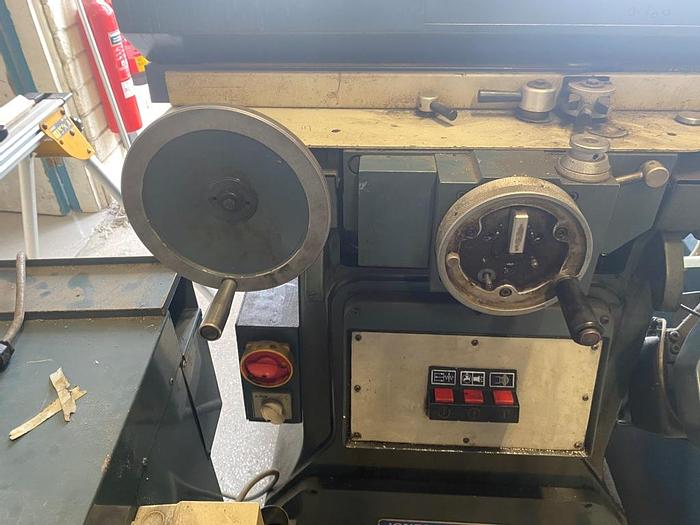

| Table traverse per revolution of handwheel | 60mm |
| Size of Grinding Wheel (standard) | 180 x 13 x 31.75mm bore |
