€1,935 + VAT

Cormak MBS 270FH Manual Bandsaw

10

Poland

orCall +353 838108745

Description

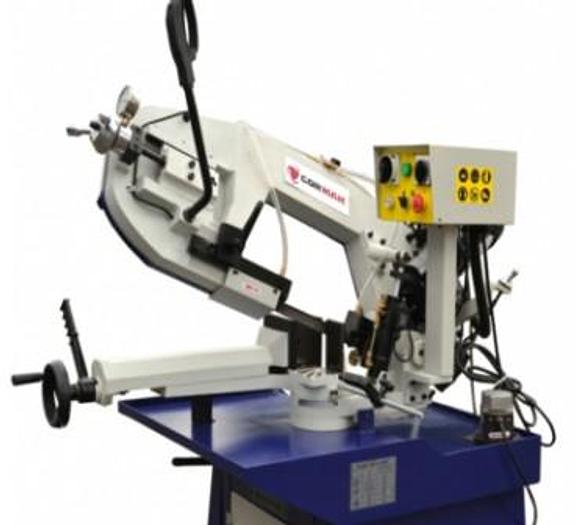

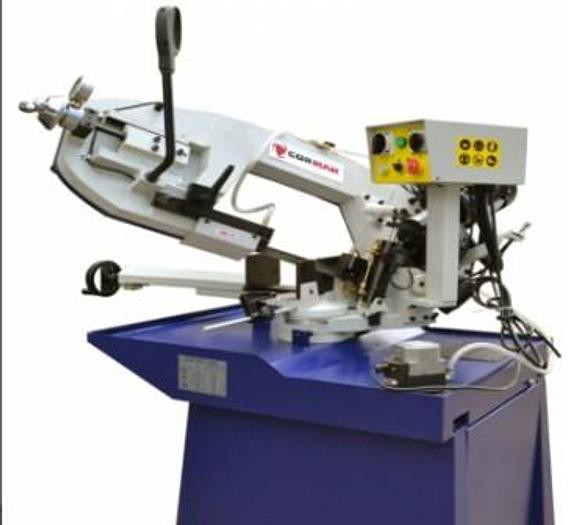

Cormak MBS 270FH Manual Metal Cutting Bandsaw

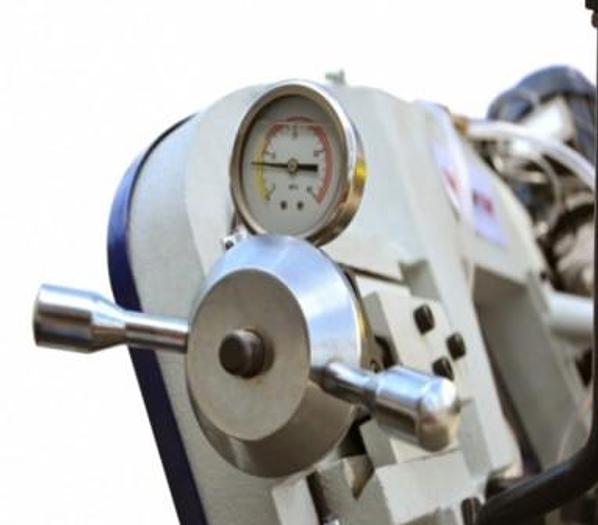

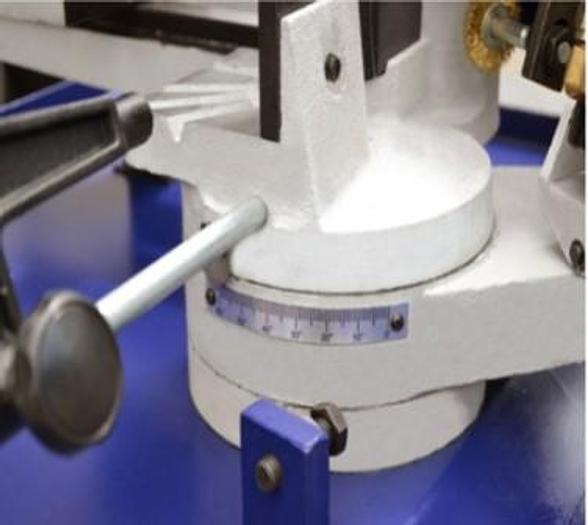

Machine Description The Cormak MBS 270FH Bandsaw is a professional, powerful and efficient band saw for metal with an arm swivelling from 0° to 60°. The model is equipped with a tension gauge and carbide guides.

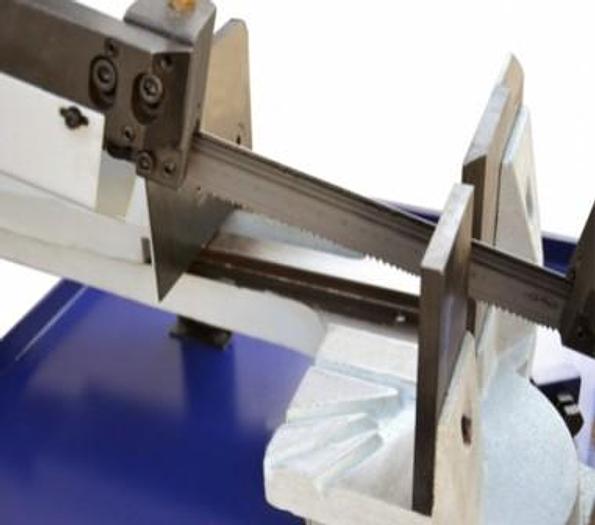

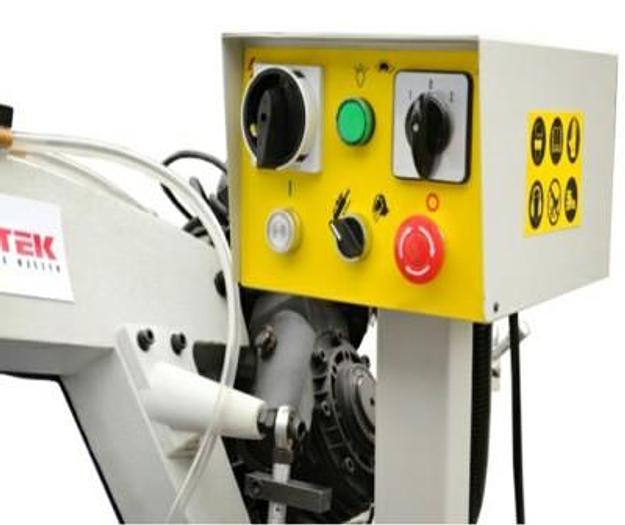

Machine Characteristics The cutting material can be fed manually or with any mechanical device, while the Arm feed is automatic. The cutting speed (band speed) is adjustable on the control panel. The rigid construction arm is made of profiled cast iron. The control panel is located next to the arm for convenience. The drive from the electric motor to the wheel driving the cutting band is transferred by a motor with a worm gear. The cutting blade is stretched on two cast iron wheels by means of a manual tensioner and guided in adjustable rolling and sliding carbide guides. The entire blade transmission is protected by a hinged lid attached to the housing. The base is built as a rigid welded steel body. Inside there is a separate coolant tank with an electropump. The shape of the upper part of the base is a tray for draining the coolant and trapping swarf. The speed of dropping the arm (feed speed) is regulated by means of an actuator. The band speed is adjusted on the control panel of the machine. You can choose between two cutting speeds 37 and 75 m / min. In the lower position of the arm (after cutting the material) the blade drive is switched off automatically.

Specifications

ManufacturerCormak
ModelMBS 270FH Manual Bandsaw
ConditionNew
Blade length2450 × 27 × 0.9mm
Electrical Power400V 3 Phase
Blade speed2 Speeds - 36/72 m/min-1
Total power1.5 kW
Capacity 0º (Round)220mm
Capacity 0º (Rectangular)260 x 140mm
Capacity 0º (Square)100 x 100mm
Capacity (Square 90º)225 x 225mm
Capacity 45º R (Round)160mm
Capacity 45º R (Rectanagular)160 x 140mm
Capacity 45º R (Square)160 x 160mm
Capacity 60º R (Round)100mm
Capacity 60º R (Rectangular)120 x 110mm
Capacity 60º R (Square)100 x 100mm
Feed Rate0-50 m/min (stepless feed)

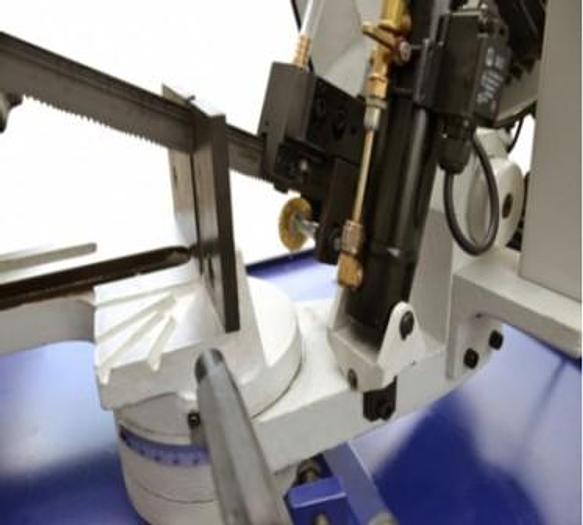

Feed ControlStepless - hydraulic cylinder
Vice Base Height900mm
Blade TensionManually Adjusted
Weight227kg
