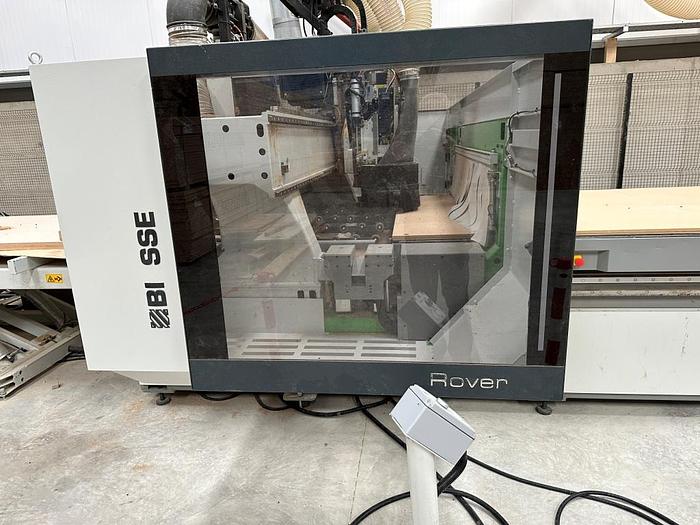

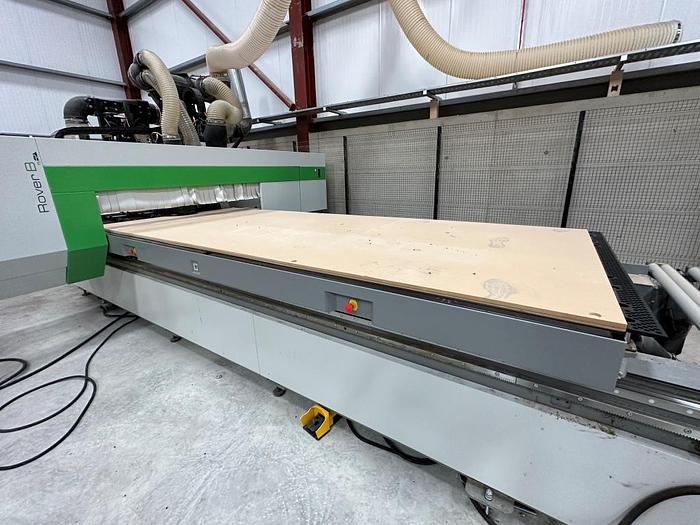

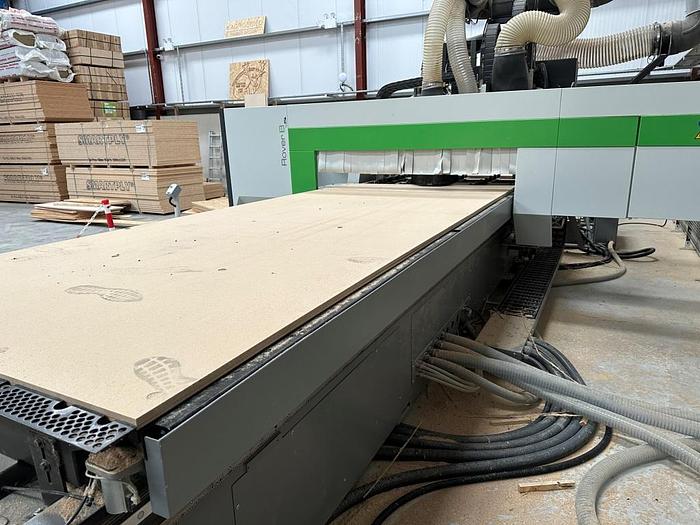

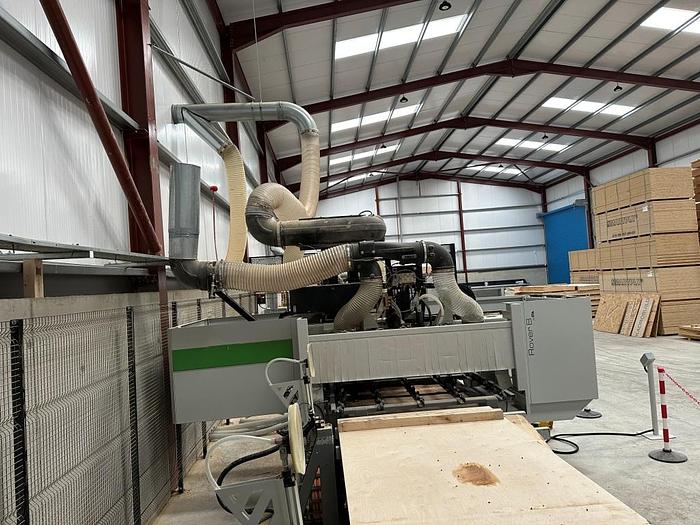

2018 Biesse Rover B FT 1536 Nesting Machining Centre

Biesse Rover B FT 1536 NC Controlled Machining Centre

Machine Type: NC Machining Centre for Wood Working

Year: 2018

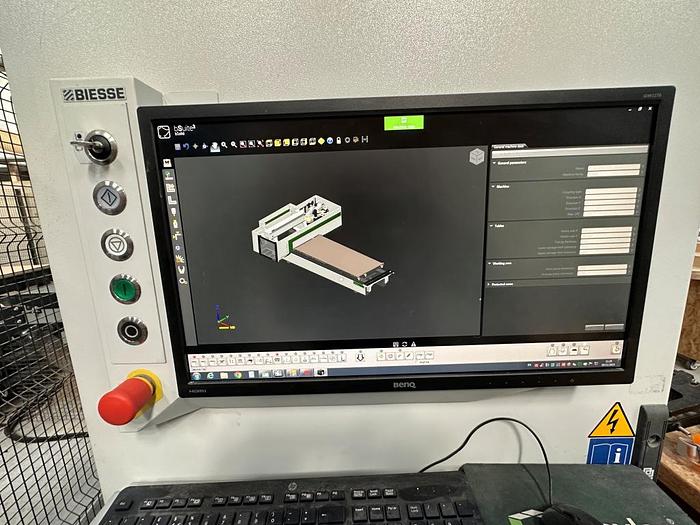

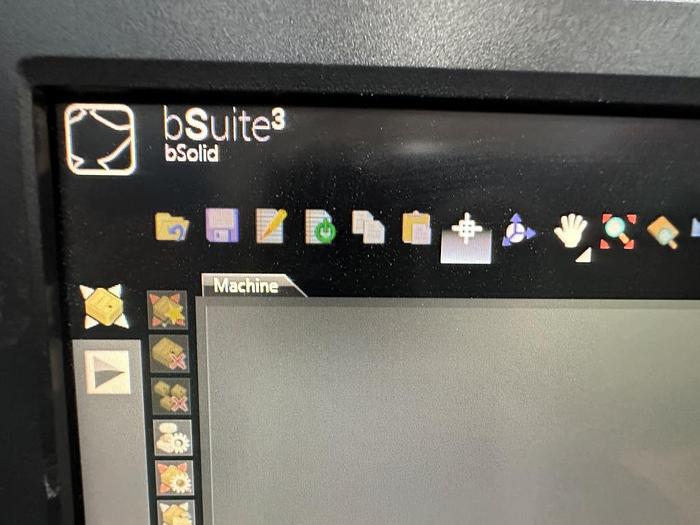

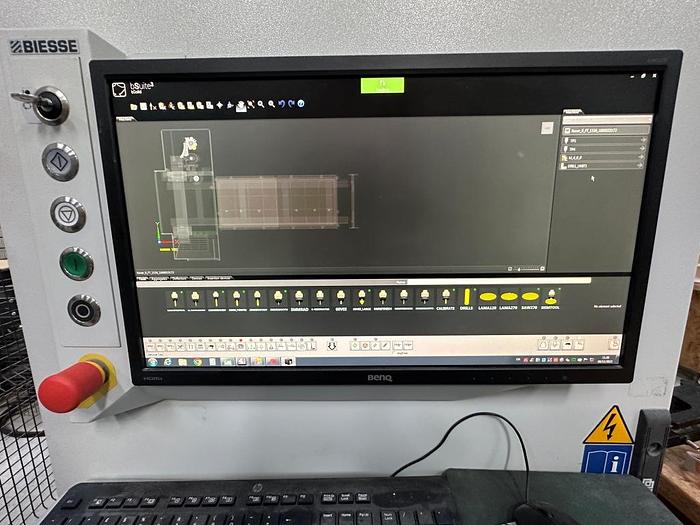

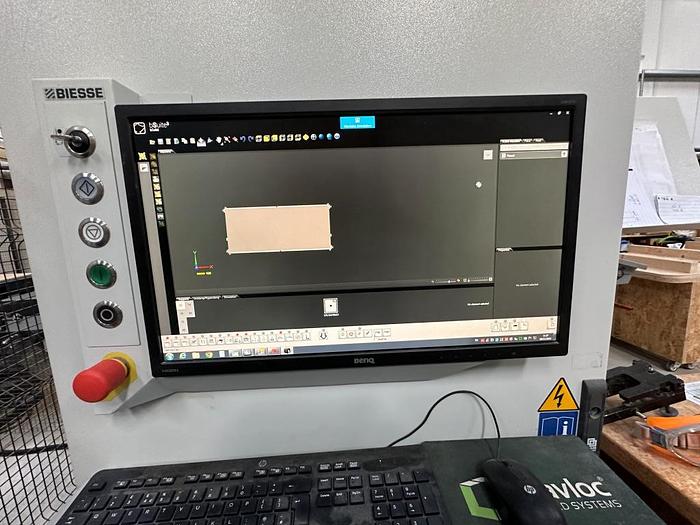

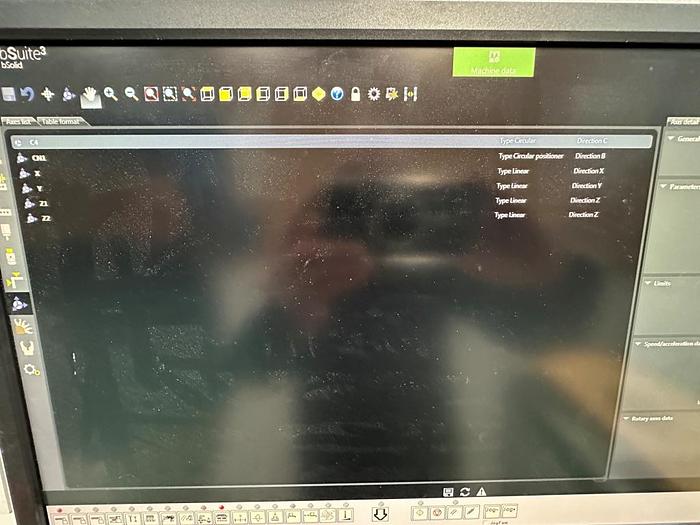

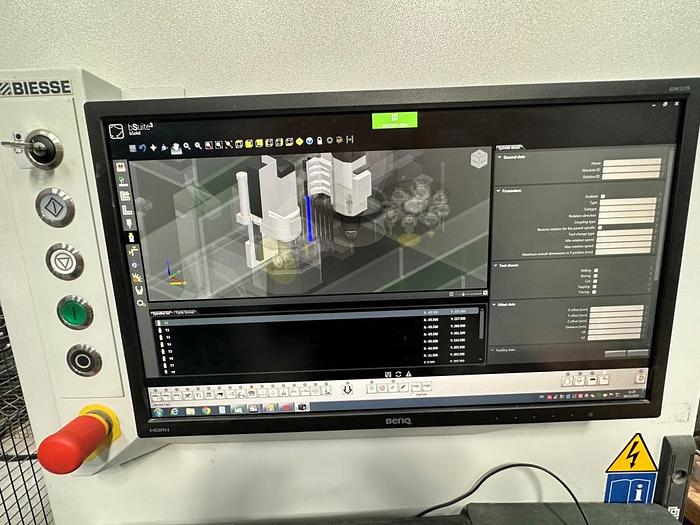

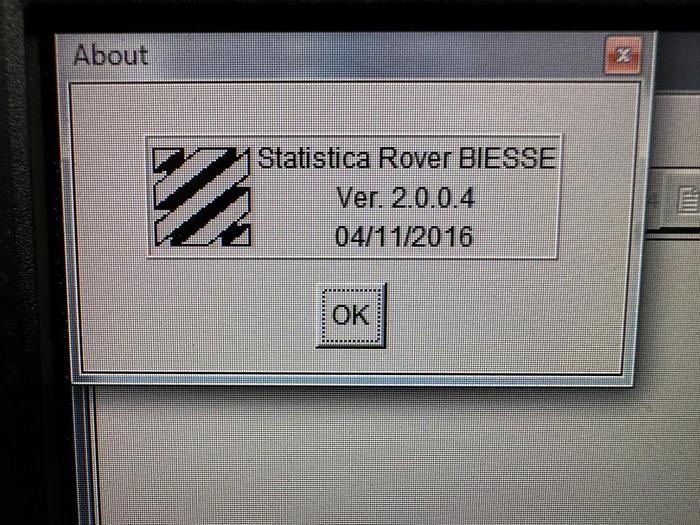

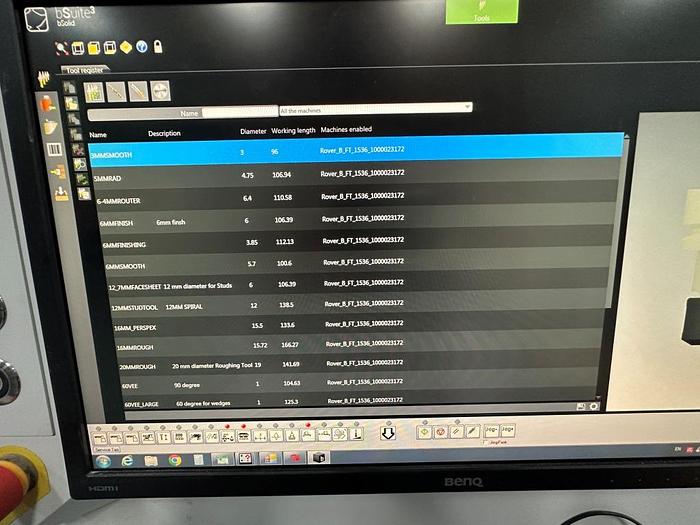

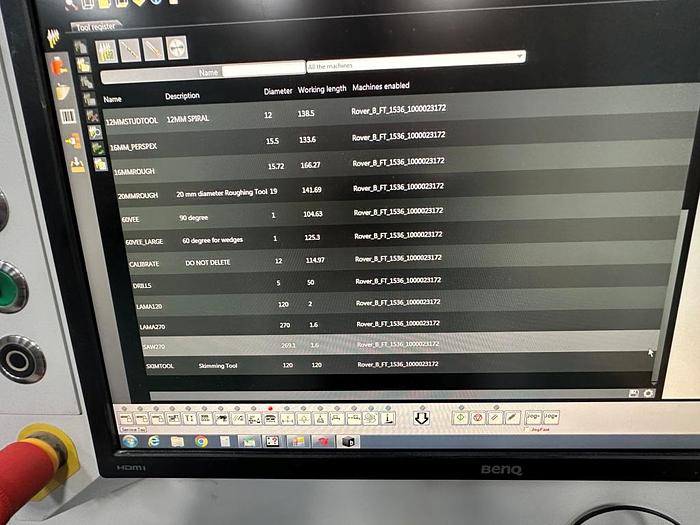

Software: bSuite3

Condition: Excellent

Includes

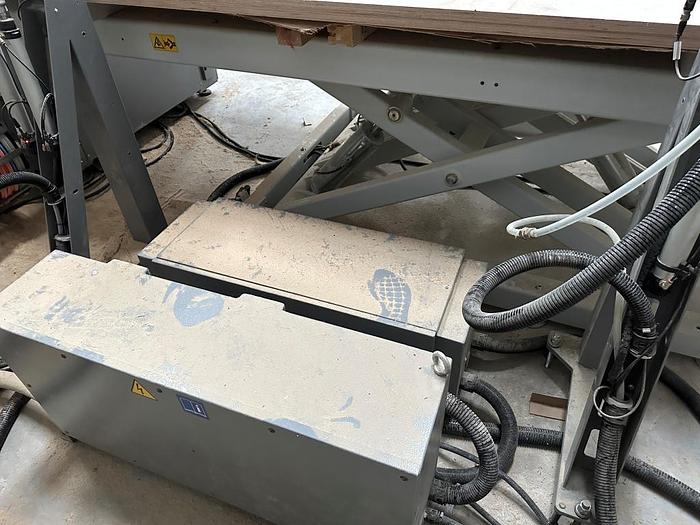

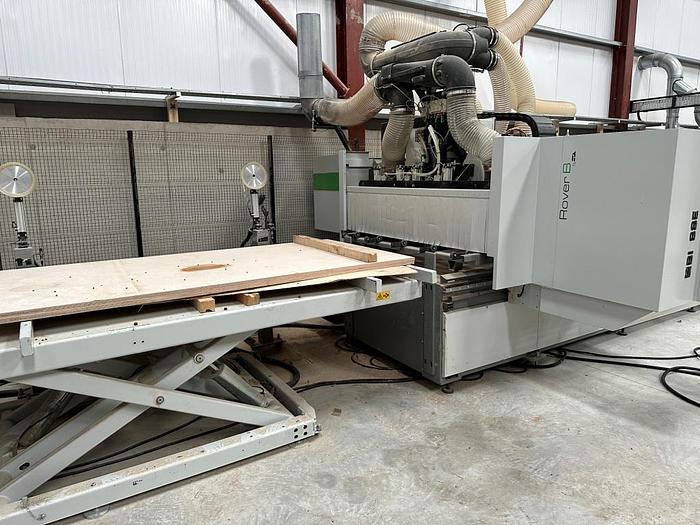

3.5m Panel Loading System with Scissor Lift

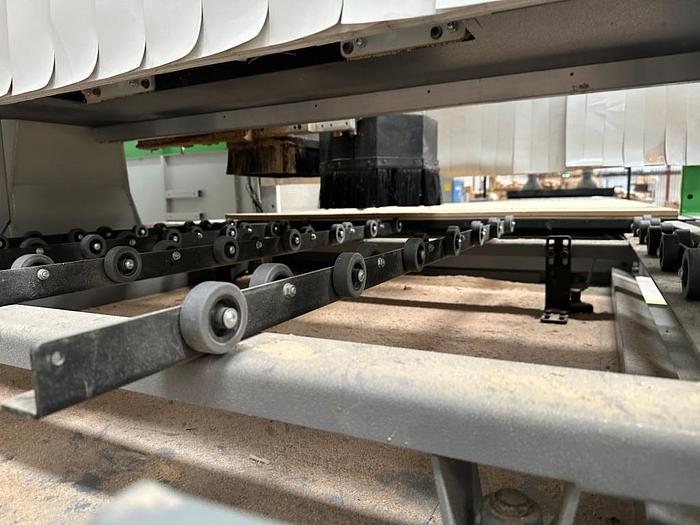

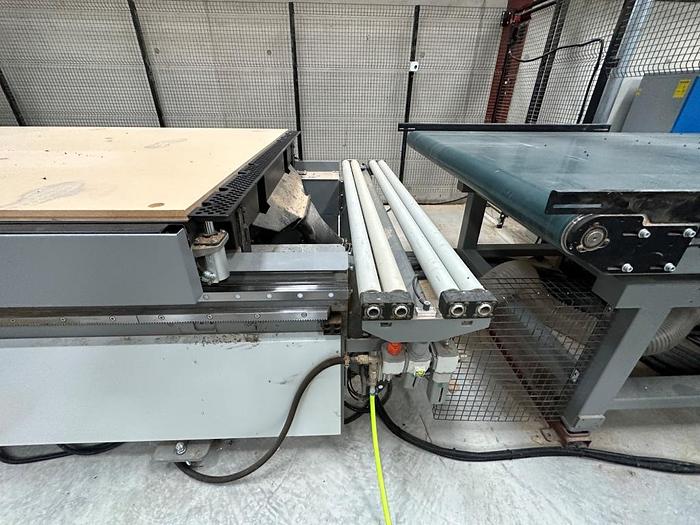

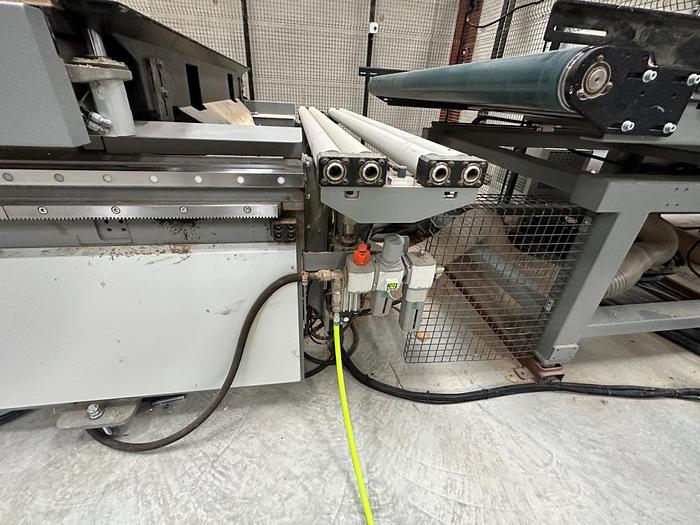

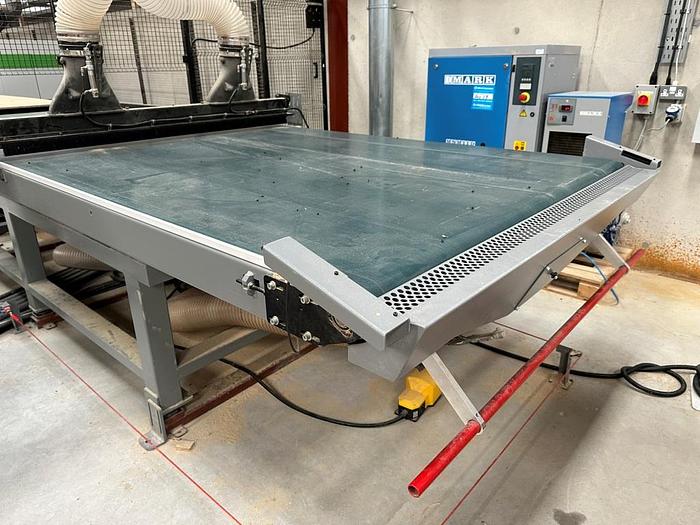

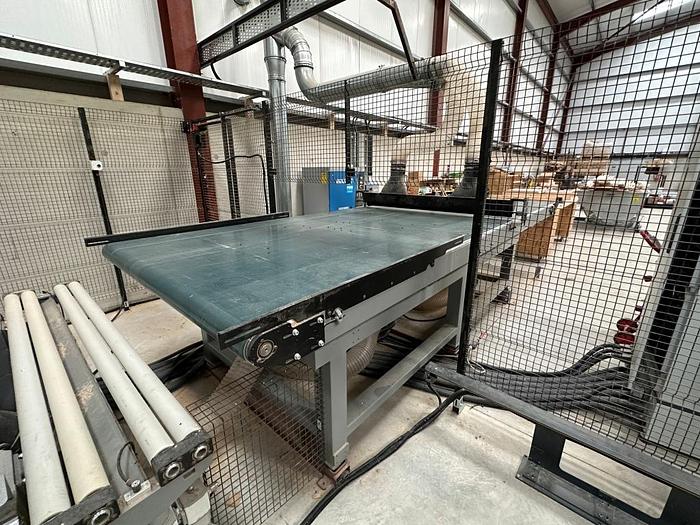

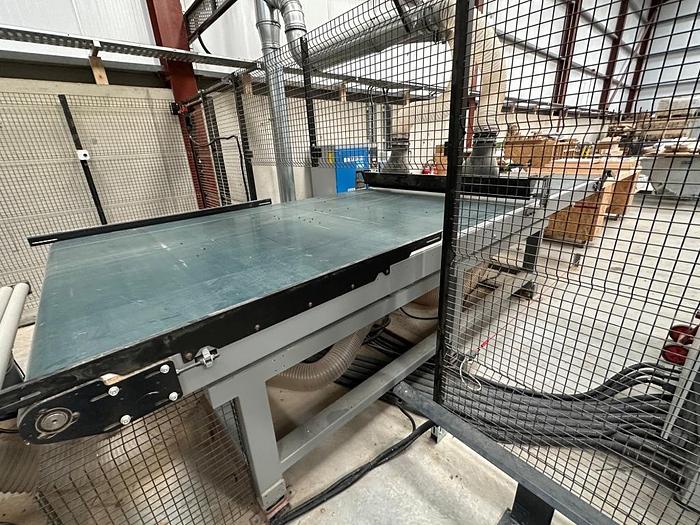

Exit Side Conveyor Belt

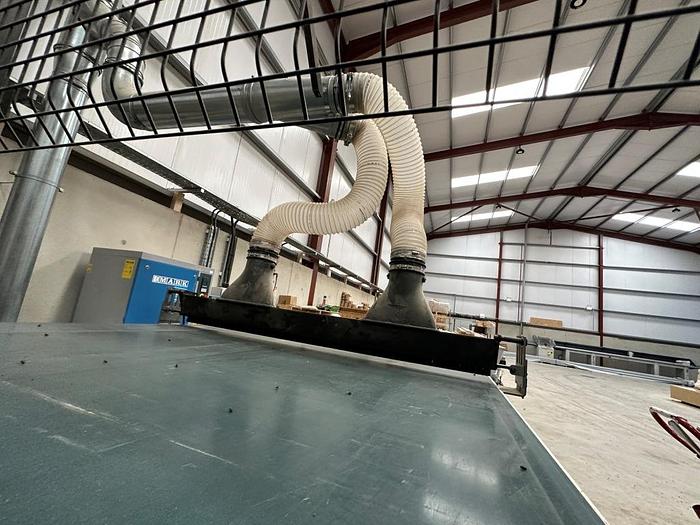

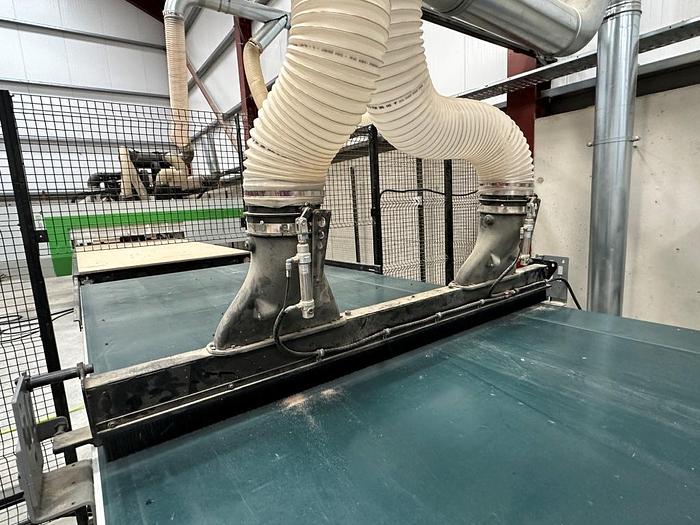

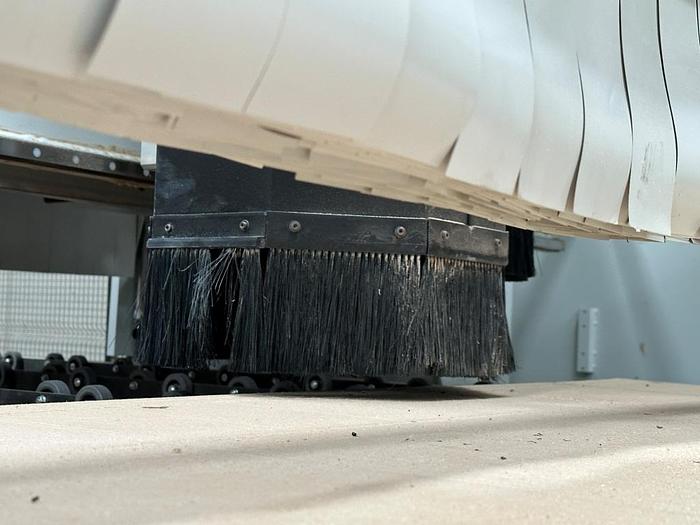

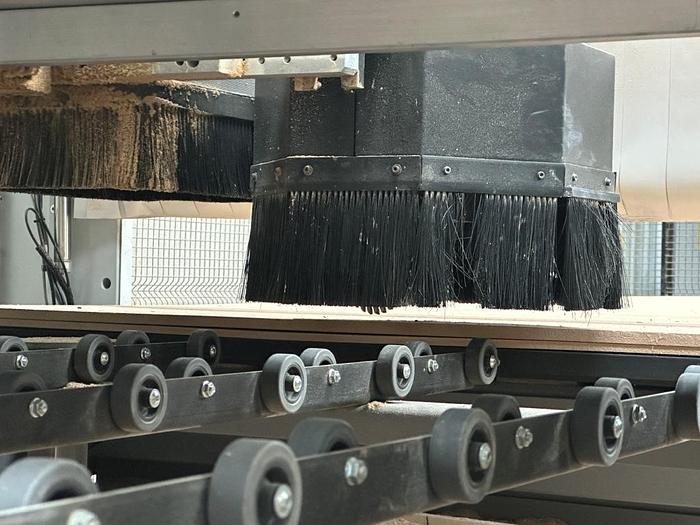

Sweeping Arm

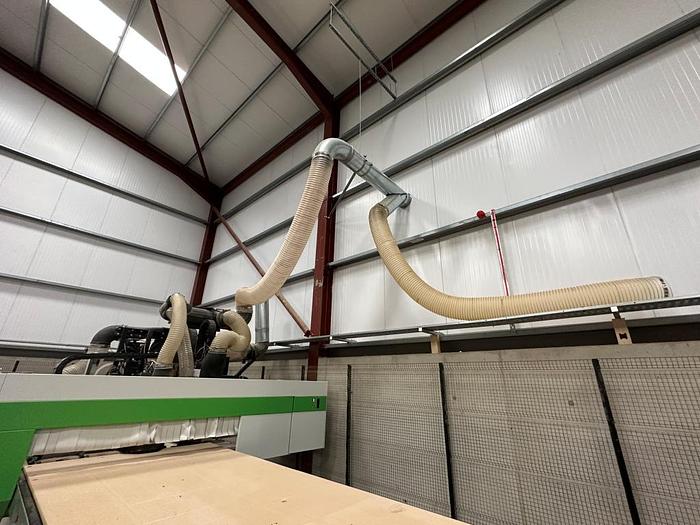

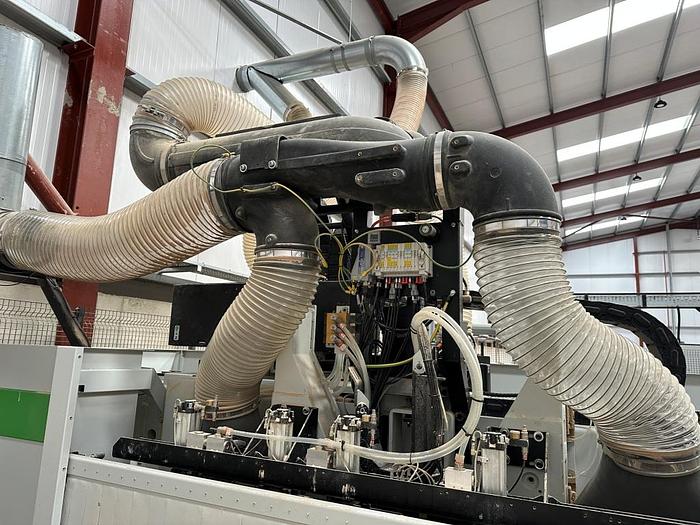

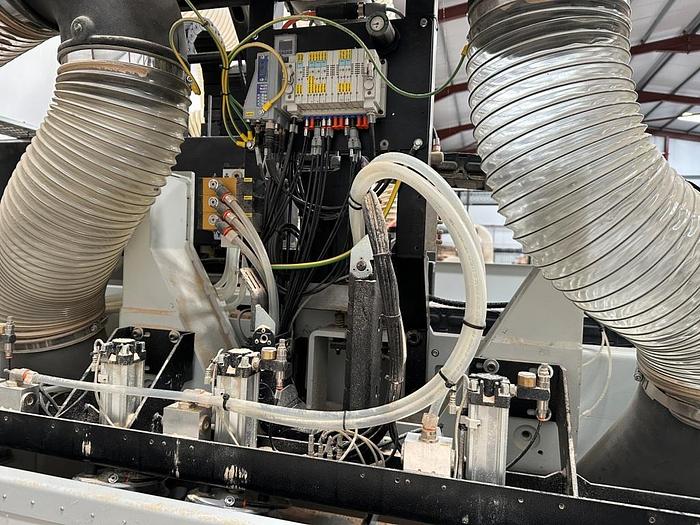

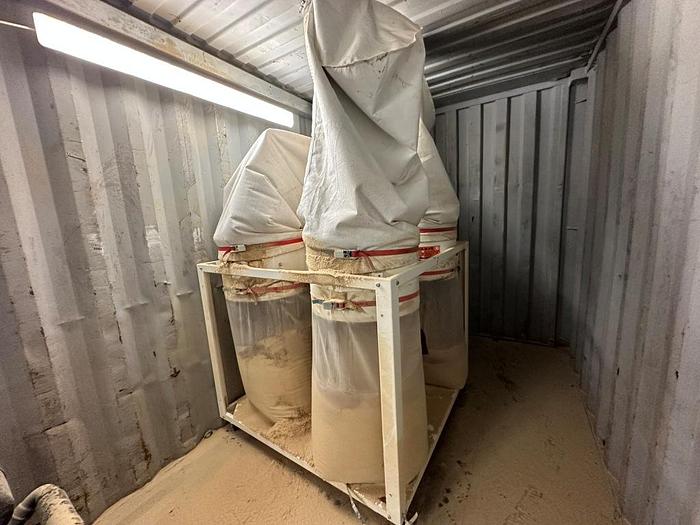

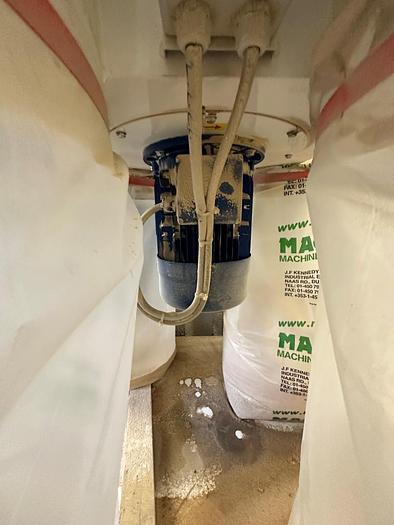

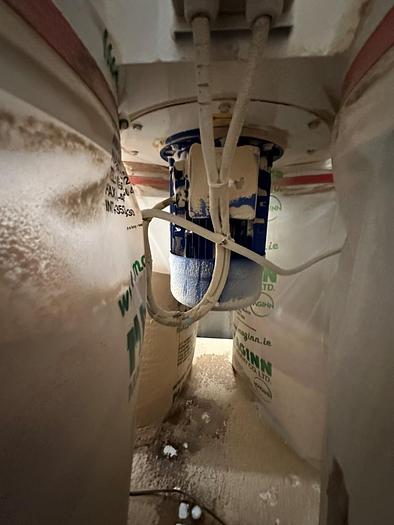

Extraction Units x 2

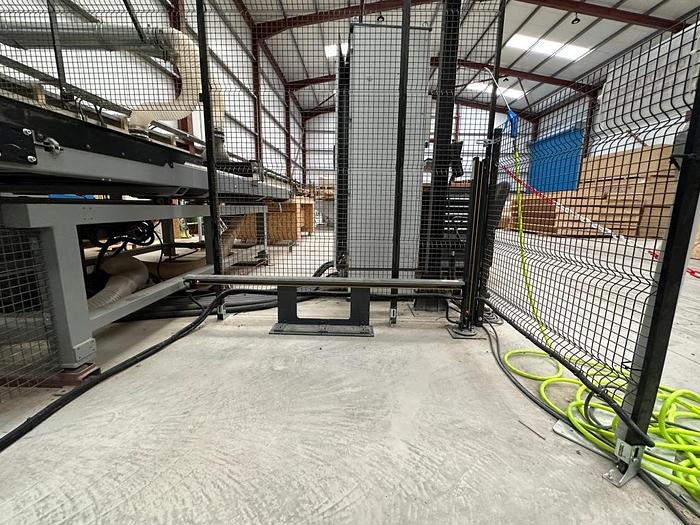

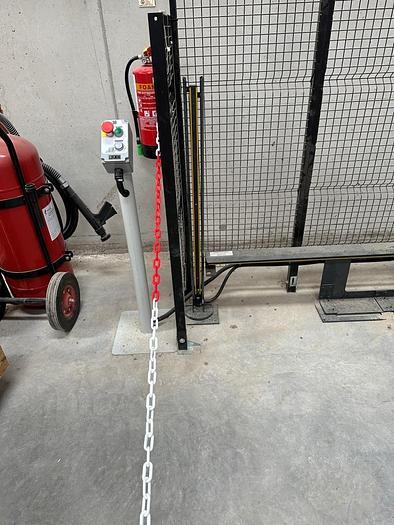

Perimeter Guarding

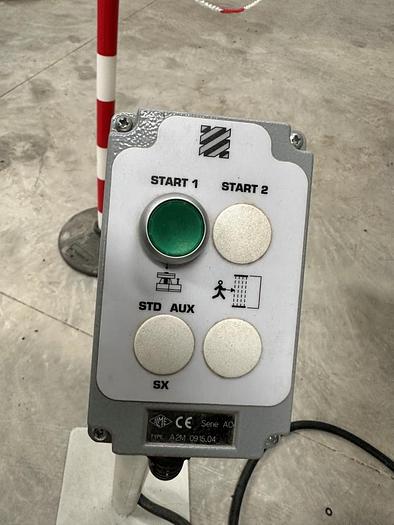

Light Guards

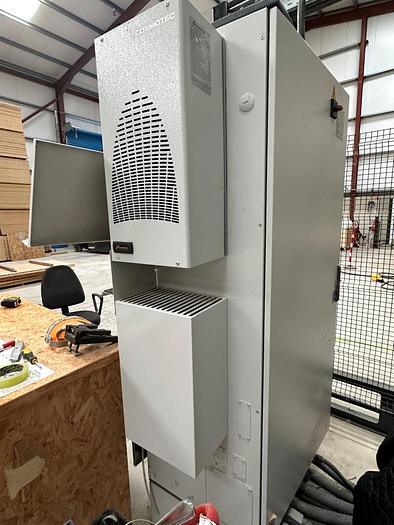

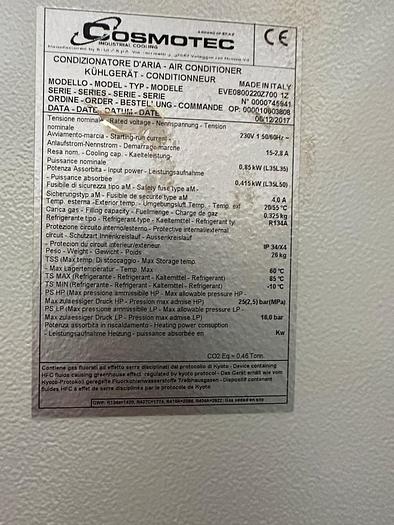

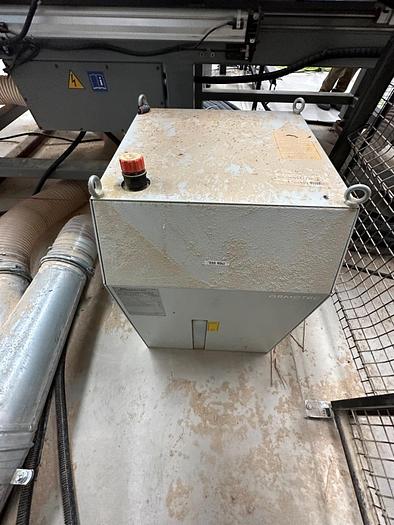

Chiller

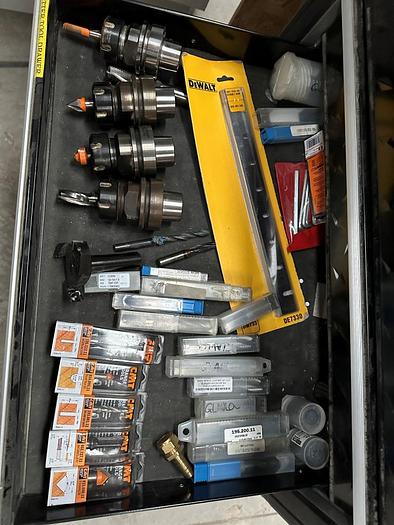

Selection of Tool Holders and Tools

Technical Specifications

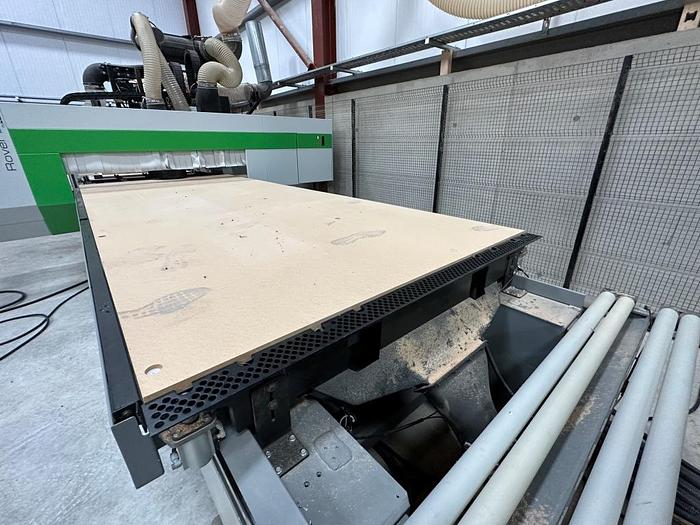

Max Sheet Size: 3000 x 1500mm

Working Fields: 3765 x 1560 x 250mm

X Axis Speed: 60m/min

Y Axis Speed: 60m/min

Z Axis Speed: 20m/min

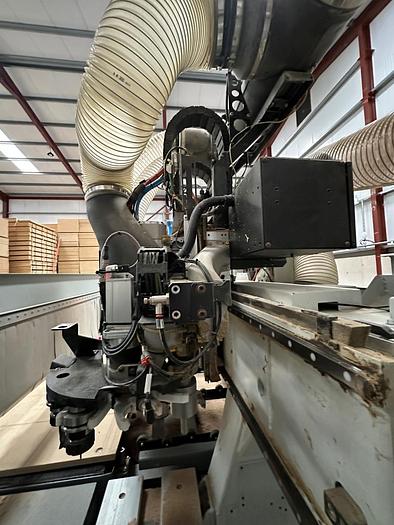

Spindle Type: ISO 30 (Air Cooled)

Spindle Power: 12kW

Spindle Speed: 24000rpm

Boring Unit Motor: 3kW

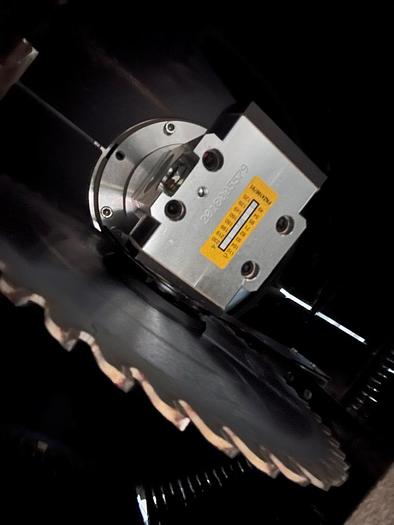

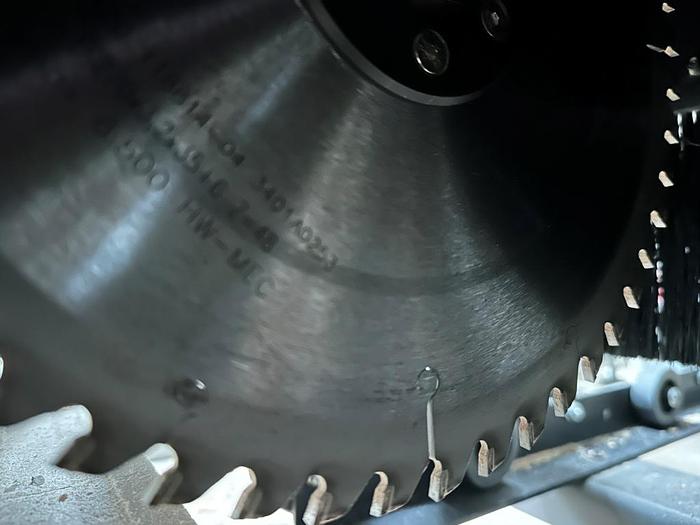

Min Spindle Speed for Circular Blade: 6500rpm

Max Spindle Speed for Circular Blade: 7500rpm

Rotation Speed of Vertical Spindle: 6000rpm

Rotation Speed of Horizontal Spindle: 4740rpm

Distance Between Spindle Centres: 32mm

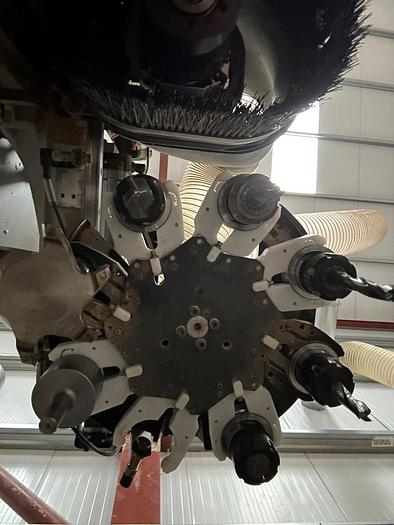

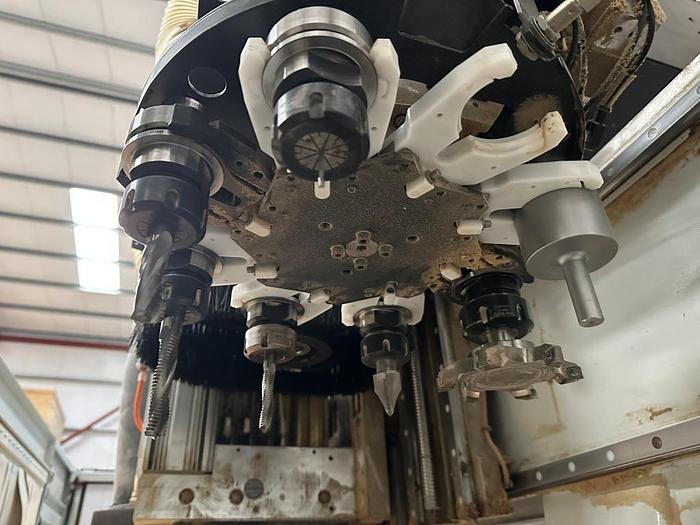

Tool Turret: 8 Station

Machine Dimensions: 8128 x 5470mm

Cell Dimensions(Nesting Cell): 14106 x 5037mm
