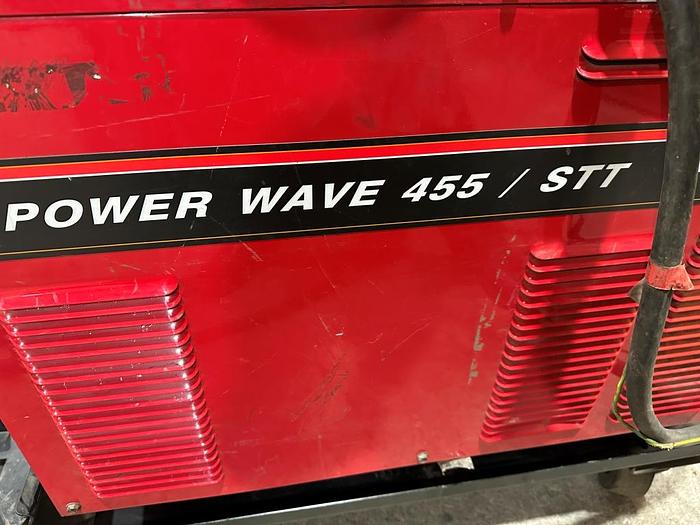

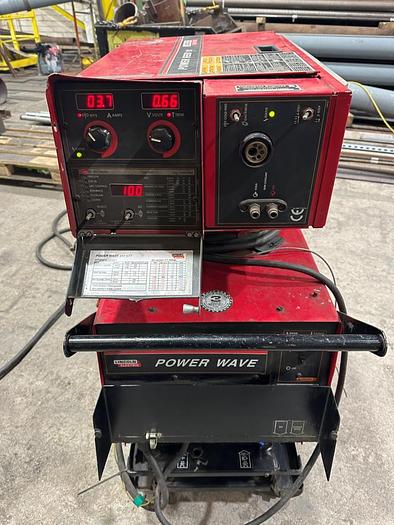

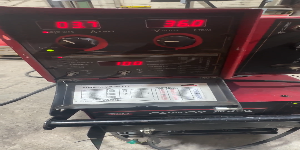

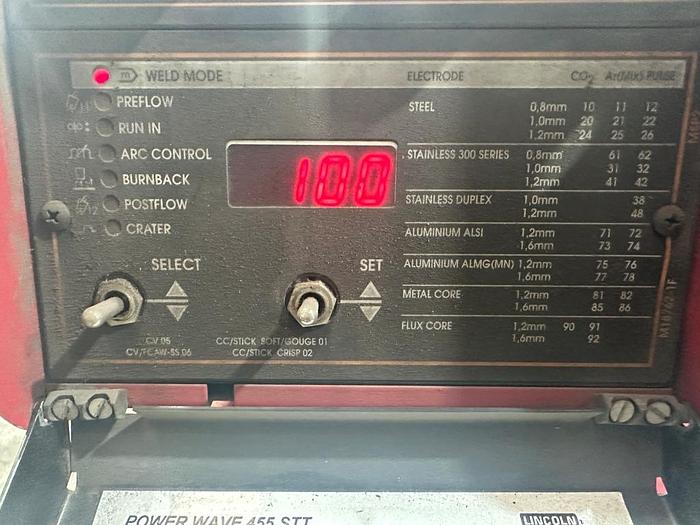

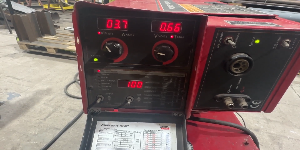

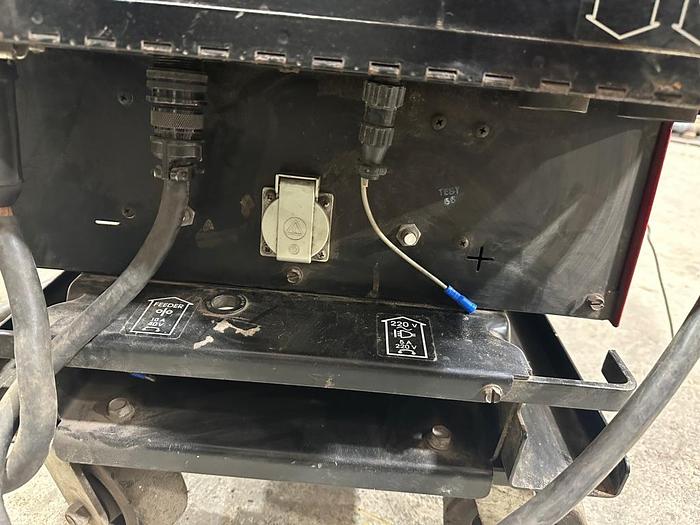

Lincoln Electric Power Wave 455/STT MIG Welder

Lincoln Electric Power Wave 455/STT Mig Welder

Machine Type: Mig Welder

Code: 10522

Condition: Very Good

Includes

Torch

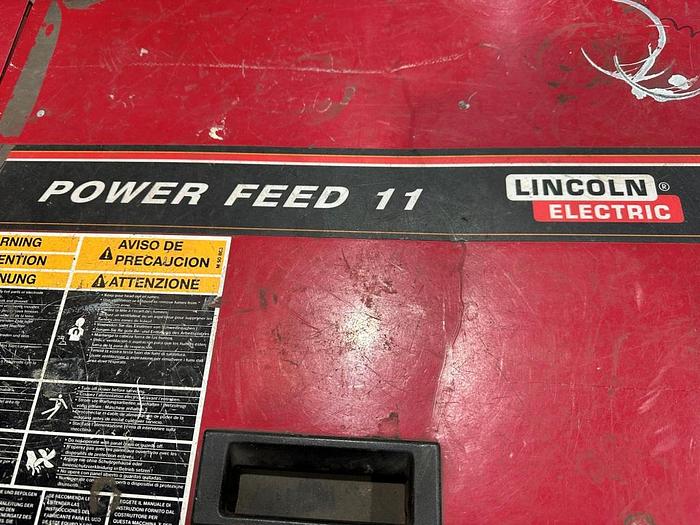

Power Feed 11 Wire Feeder (Code: 10531)

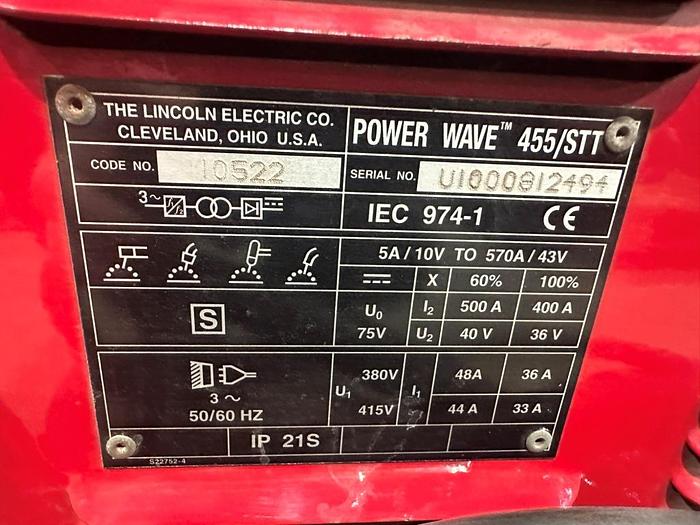

Technical Specifications

Input at rated output 380V 50Hz: 400A@36V.100%

Input Current: 36A

Input at rated output 380V 50Hz: 500A@40V.60%

Input Current: 48A

Output

Open Circuit Voltage: 75VDC

Current Range: 5-570A

Pulse Frequency: 0.15 - 1000Hz

Pulse Voltage Range: 5-55 VDC

Pulse & Back Ground Time Rage: 100ms to 3.3s

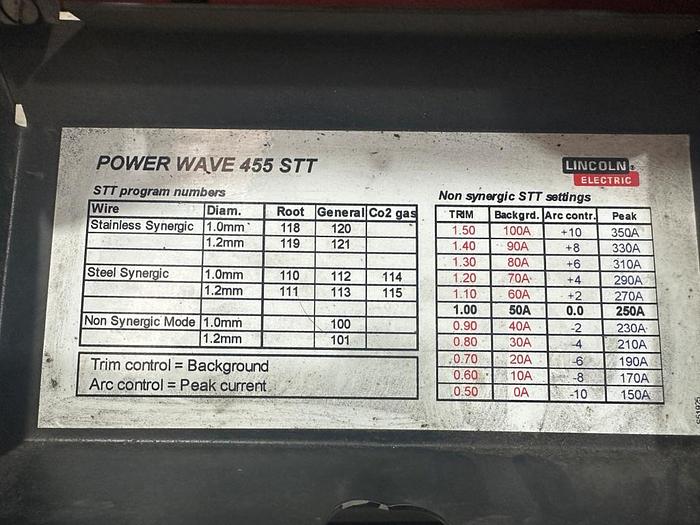

STT Parameters Peak & Back Ground Current: 15-450A

Auxiliary Power: 40 VDC @ 10A

Process Current Ranges (DC)

MIG/MAG: 50-500A

FCAW: 40-500A

SMAW: 30-500A

Pulse: 5-750A

STT: 40-325A

Dimensions: 665x505x835mm

Weight: 121kg

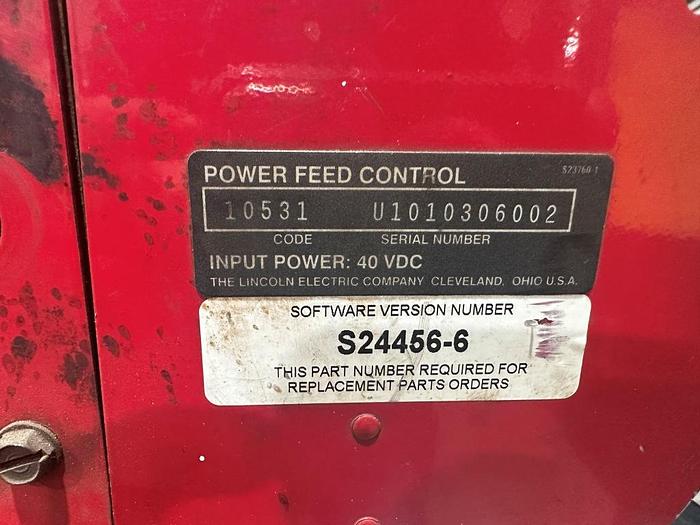

Power Feed 11 Specifications

Spec: K1636-1

Code: 10531

Speed (Low): 1.27 - 15.9m/min

Wire Size (Low Speed) Solid: 0.6 - 1.6mm

Wire Size (Low Speed) Cored: 0.9 - 2.0mm

Speed (High): 2.03 - 27.9m/min

Wire Size (High Speed) Solid: 0.6 - 1.2mm

Wire Size (High Speed) Cored: 0.9 - 1.2mm

Dimensions: 508x230x729mm

Weight: 27.7kg
