Cormak Mill 1040 Vertical Machining Centre

Cormak Mill 1040 Vertical Machining Centre

Machine Type: 3 Axis CNC Vertical Machining Centre

Control: Siemens 808D Control

Machine Description

Cormak CNC centers have been designed based on proven components that guarantee reliability for a long time of use. The massive machine body ensures efficient and precise machining. Hermetic chamber ensures safety and cleanliness at the workplace. The table with a hardened surface can accept workpieces without loading the mechanical elements of the structure. Each machine in this series is equipped with an efficient cooling system to ensure optimal cutting conditions.

• Top quality guides for all axes
• Heavy Duty machine body
• Good accessibility of the work table
• Hermetic working chamber ensuring work safety
• CNC control (SIEMENS SINUMERIK 808D)

Technical Specifications

Spindle taper: BT40

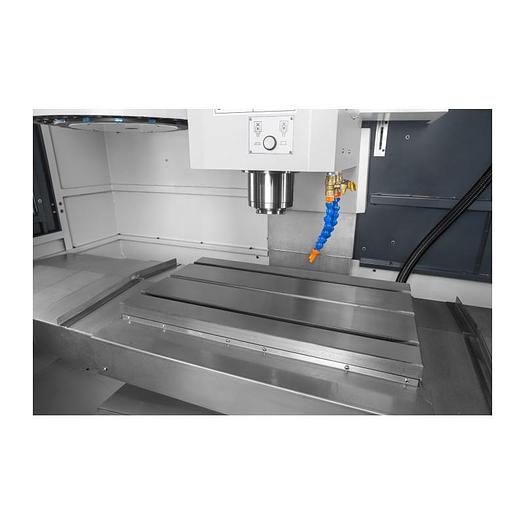

Table dimensions: 1000 x 400 mm

X Axis Travel: 1000mm

Y Axis Travel: 400 mm

Z Axis Travel: 500 mm

Spindle speed: 8000 rpm

Number / width / spacing of T-slots: 5 / 18 mm / 100 mm

Rapid feed X,Y,Z: 24/24/12 m/min

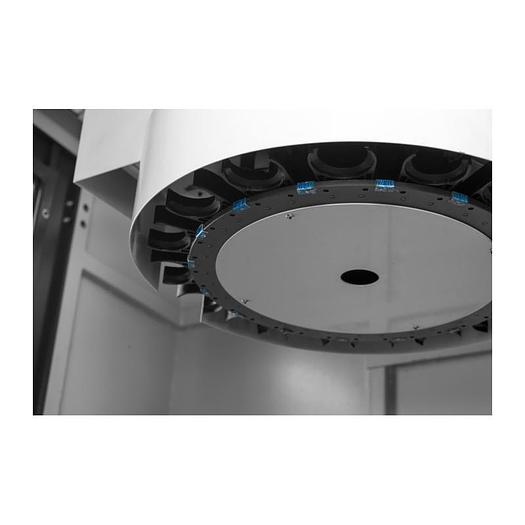

Number of tools in the magazine: 16

Max Tool Length: 300mm

Max Tool Weight: 7.5kg

Spindle motor power: 5,5 kW (optional 7.5kW)

Dimensions (L x W x H): 2900 x 2000 x 2800 mm

Includes

Siemens 808D CNC control

8000 RPM spindle

16-tool magazine

3-colour alarm indicators

Lighting

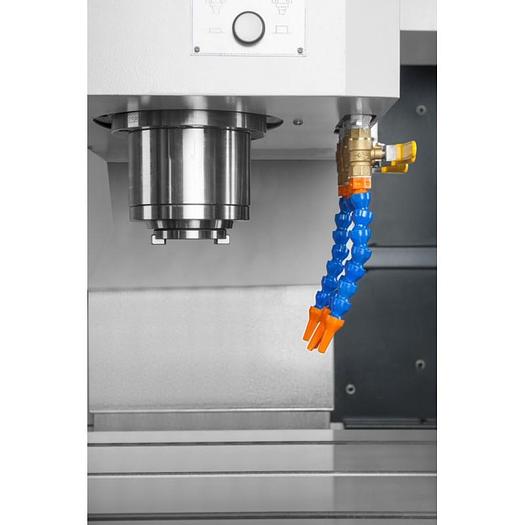

Hermetic cooling system

Hermetic body of the machine

Automatic lubrication system

Pneumatic system
