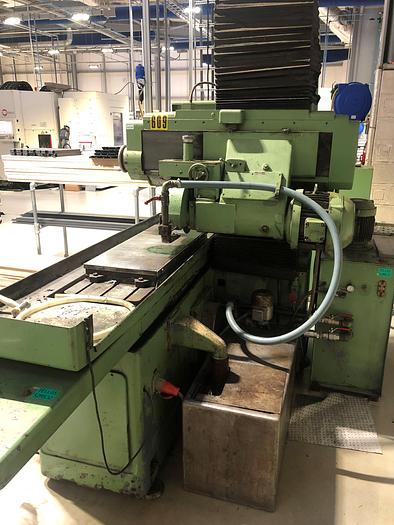

ABAWERK FFU 1000/50 Surface Grinder
Sold
Description
Abawerk FFU 1000/50 Surface Grinder
Machine Type: Surface Grinder
Year: 1974
Condition: Very Good
Includes
Magnetic Chuck 1000x400mm
Technical Specifications
Grinding Length: 1000mm
Grinding Width: 500mm
Work Piece Height: 550mm
Grinding Height: 550mm
Max Wheel Dimensions: 350 x 80 x 127mm
Table Clamping Surface: 1420 x 400mm
Longitudinal Travel: 150 to 1050mm
Traverse Travel: 450mm
Vertical Travel: 580mm
Grinding Spindle Speed: 1460rpm
Table Speed: 3 - 30m/min
Feed Speed: 1.5 - 5m/min
Total Power Requirement: 11.84kW
Dimensions(approx): 3380x1800x2390mm
Machine Weight: 4000kg
Specifications
| Manufacturer | ABAWERK |
| Model | FFU 1000/50 Surface Grinder |
| Year | 1974 |
| Condition | Used |
| Serial Number | 6051 |
| Stock Number | 968883 |
| Machine Type | Surface Grinder |
| Year | 1974 |
| Condition | Very Good |
| Grinding Length | 1000mm |
| Grinding Width | 500mm |
| Work Piece Height | 550mm |
| Grinding Height | 550mm |
| Table Clamping Surface | 1420 x 400mm |
| Longitudinal Travel | 150 to 1050mm |
| Traverse Travel | 450mm |
| Vertical Travel | 580mm |
| Grinding Spindle Speed | 1460rpm |
| Table Speed | 3 - 30m/min |
| Feed Speed | 1.5 - 5m/min |
| Total Power Requirement | 11.84kW |
| Dimensions(approx) | 3380x1800x2390mm |
| Machine Weight | 4000kg |
