Cormak CK7140 LT12 CNC Lathe

Cormak CK7140 LT12 CNC Lathe

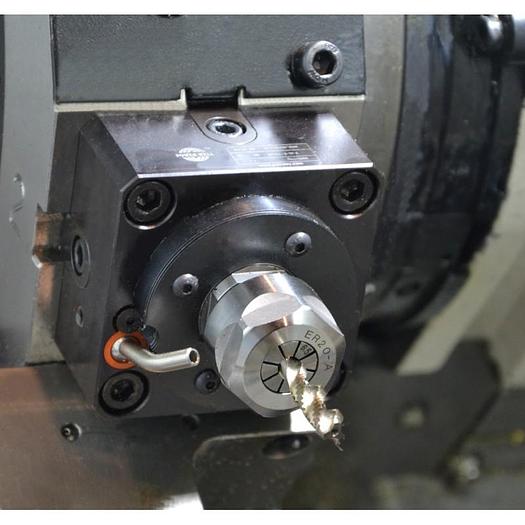

Machine Type: Driven Tool CNC Lathe

Control: Siemens

Axis: 2 Axis

Description

CK7140 LT12 CNC lathe is characterized compact construction with attractive form, comfortable use and maintain, and a wide processing capability. Suitable for machining non-ferrous, ferrous and non-ferrous metal parts. This lathe can perform turning of cylindrical and tapered surfaces, face surfaces, boring, grooving, threading, turning of spherical surfaces etc., thanks to which it can be widely used in the industry of mechanical devices, vehicles, firing devices, in light industry and manufacturing of electrical elements, for mass and single production.

Technical Specifications

Swing over bed: 400 mm

Swing over the support: 210 mm

Maximum length of workpiece: 500 mm

Spindle bore: 46 mm

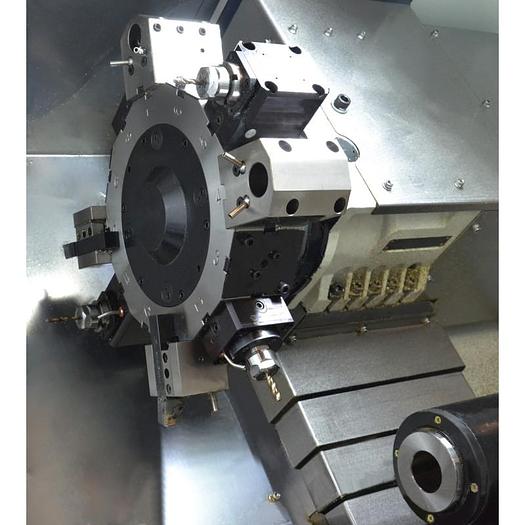

Turret: 12 positions

Tool size: 20 x 20 mm

Main motor power: 11 kW

Max speed: 3000 rpm

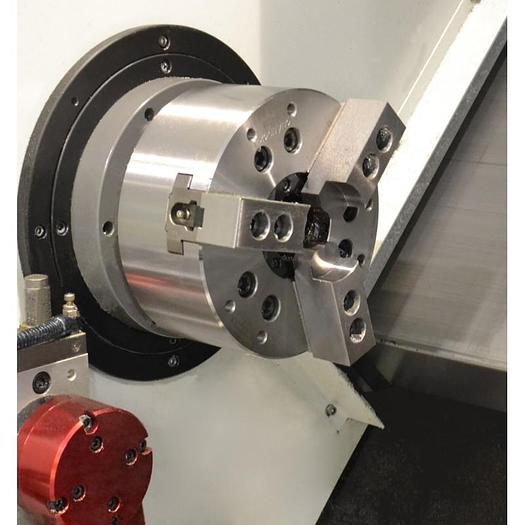

Lathe chuck: 200 mm

X- axis maximum travel: 200 mm

Z- axis maximum travel: 375 mm

Tailstock taper: MT5

Tailstock sleeve diameter: 88 mm

Tailstock travel: 85 mm

External diameters: 3000 x 1750 x 2100 mm
