€34,000 + Vat

Cormak CK7135AP Slant Bed CNC Lathe

1

Poland

orCall +353 838108745

Description

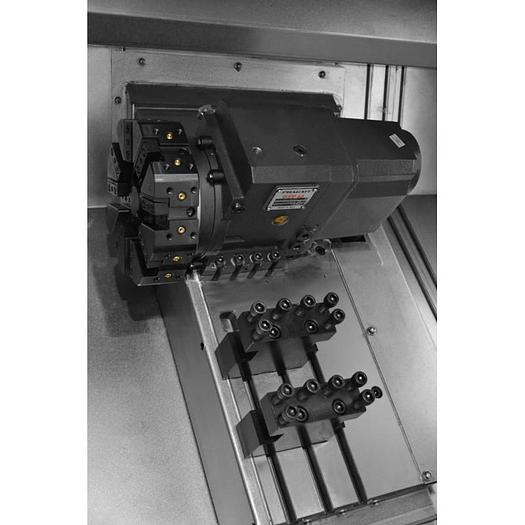

Cormak CK7135AP Slant Bed CNC Lathe


Machine Type: Slant Bed CNC Lathe

Control: Siemens 808D Control

Axis: 2


Description

This lathe provides not only precise machining but also high X/Z axes positioning repeatability = 0.006 mm (compared to 0.01 mm for ordinary CNC lathes). This is possible due to the factory mounted ball bearings and innovative design solutions implemented in the machine. By default, it comes with a series-array tool holder – stays within the desired place and decreases machining time by as much as 25%.


Includes

SINUMERIK 808D control system in English

SIEMENS servomotors

3-jaw hydraulic chuck

Series-array toolholder

Soft jaw kit

HIWIN linear guides

Telescopic guide guards

Cooling system

Automatic gear and guide lubrication system

24V halogen lighting

English manuals

CE declaration


Technical Specification

Swing over bed: 400 mm

Swing over cross slide: 130 mm

Maximum working length: 400 mm

Spindle bore: 56 mm

Spindle speed: 200–3000 rpm

Main motor power: 5.5 kW

Bed type/Guide type: inclined/linear 45°

Maximum shaft diameter in bore: 49 mm

X/Z axes travel: 40/500 mm

Chuck type: rotary

Number of tools in the holder: 6

Tool holder size: 20×20 mm

Tailstock type: hydraulic

Chuck: hydraulic

Dimensions: 2500×1340×1710 mm

Weight: 2500 kg


Options

SINUMERIK 828 control

Tool probe

Swarf Conveyor

Additional set of soft jaws

Set of hard jaws

Sleeve chucks

Gripper for workpieces

Bar feeder

Tool holders

CAD/CAM software


Specifications

ManufacturerCormak
ModelCK7135AP Slant Bed CNC Lathe
ConditionNew
Stock Number968721
Machine TypeSlant Bed CNC Lathe
ControlSiemens 808D Control
Axis2
Swing over bed400 mm
Swing over cross slide130 mm
Maximum working length400 mm
Spindle bore56 mm
Spindle speed200–3000 rpm
Main motor power5.5 kW
Bed type/Guide typeinclined/linear 45°
X/Z axes travel40/500 mm
Chuck typerotary
Tool holder size20×20 mm
Tailstock typehydraulic
Chuckhydraulic
Dimensions2500×1340×1710 mm
Weight2500 kg
