€15,100 + Vat

Cormak CKT320x500 Flat Bed CNC Lathe



orCall +353 838108745

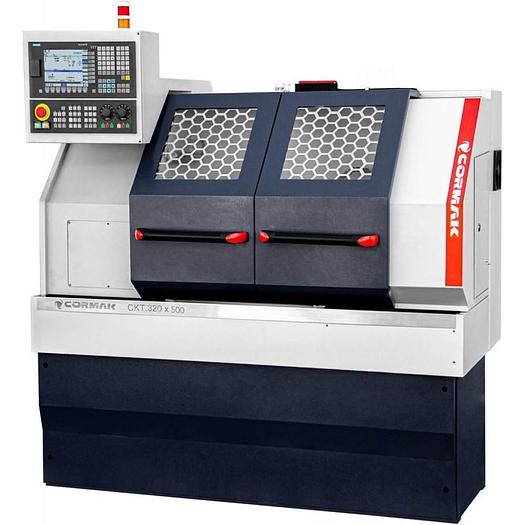

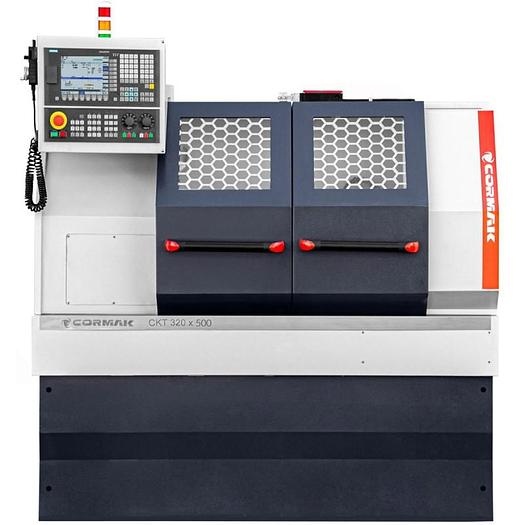

Cormak CKT320x500 Flat Bed CNC Lathe

Machine Type: CNC Lathe

Control: Siemens Sinumerik 808D

Axis: 2

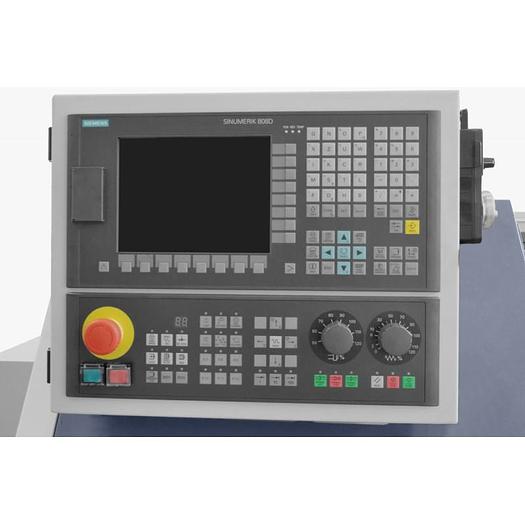

SINUMERIK 808D control system in English

SIEMENS servomotors

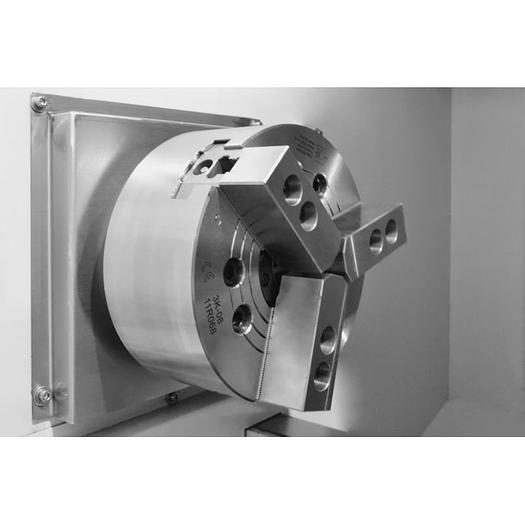

3-jaw 160mm Manual chuck

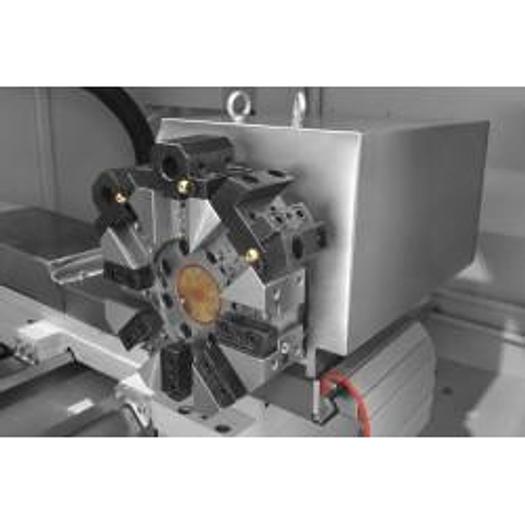

6-position turret head

Soft jaw kit

Manual tailstock

Cooling system

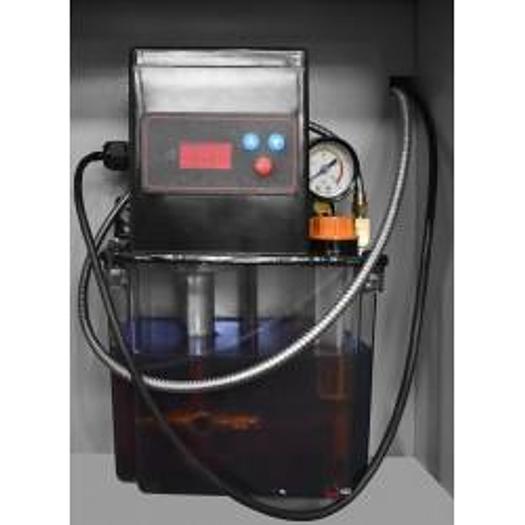

Automatic gear and guide lubrication system

24V halogen lighting

English manuals

CE declaration

Technical Specifications

Swing over bed: 320 mm

Swing over cross slide: 160 mm

Maximum turning length: 500 mm

X Axis Travel: 145mm

Z Axis Travel: 255mm

Spindle speed: 100–2500 rpm

Spindle bore: Ø 32 mm (44mm Optional)

Spindle nose: A2-5

Spindle taper: MT5

Number of tools in the holder: 6 (8 optional)

Tools size: 16×16 mm

Tailstock Taper: MT3

Tailstock spindle feed: 100 mm

Main motor power: 2.2 kW

Dimensions: 1500×1000×1700 mm

Weight: 850 kg


Hydraulic chuck

Hydraulic tailstock

Follow rest

Steady rest

Tool probe

Additional set of soft jaws

Set of hard jaws

Sleeve chucks

Gripper for workpieces

Bar feeder

Tool holders

CAD/CAM software


ModelCKT320x500 Flat Bed CNC Lathe
Machine TypeCNC Lathe
ControlSiemens Sinumerik 808D
Swing over bed320 mm
Swing over cross slide160 mm
Maximum turning length500 mm
Spindle speed100–2500 rpm
Spindle taperMT5
Spindle noseA2-5
X Axis Travel145mm
Z Axis Travel255mm
Tools size16×16 mm
Tailstock spindle feed100 mm
Tailstock TaperMT3
Main motor power2.2 kW
Dimensions1500×1000×1700 mm
Weight850 kg
