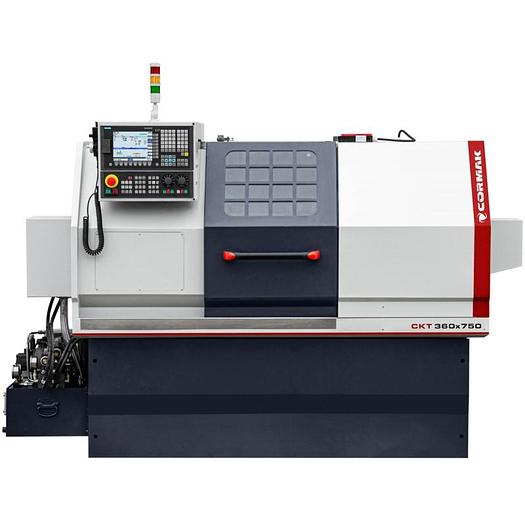

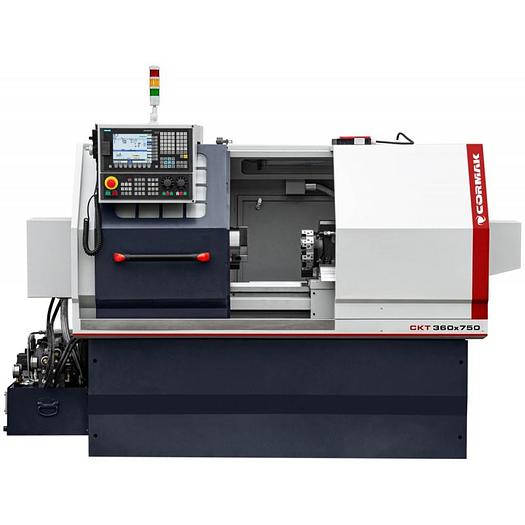

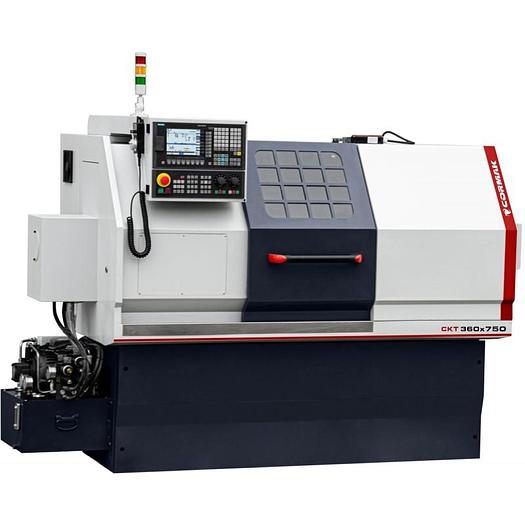

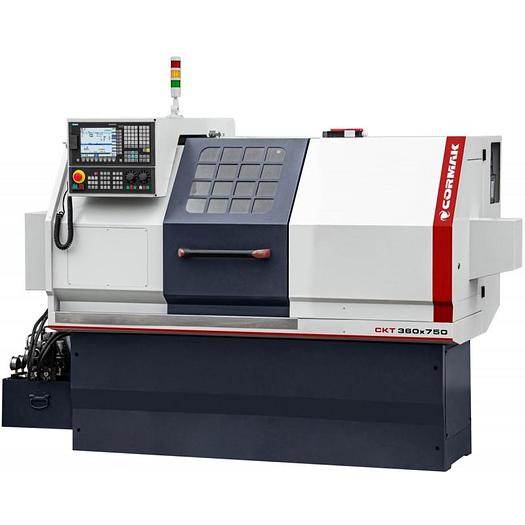

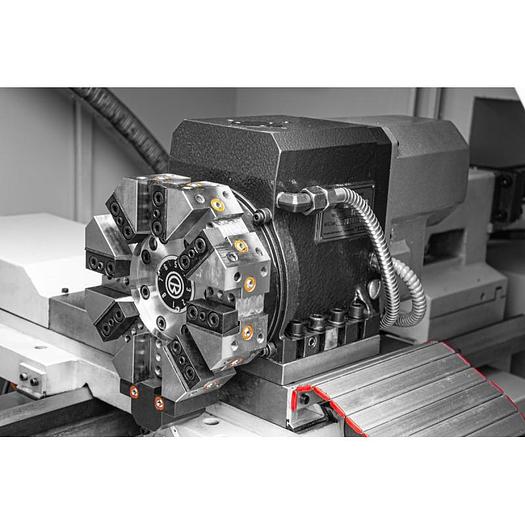

Cormak CKT360x750 Flat Bed CNC Lathe

Cormak CKT360x750 Flat Bed CNC Lathe

Machine Type: CNC Lathe

Control: Siemens Sinumerik 808D

Axis: 2

Includes

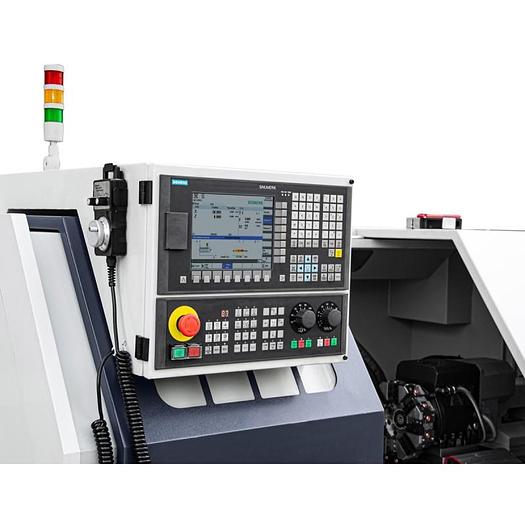

SINUMERIK 808D control system in English

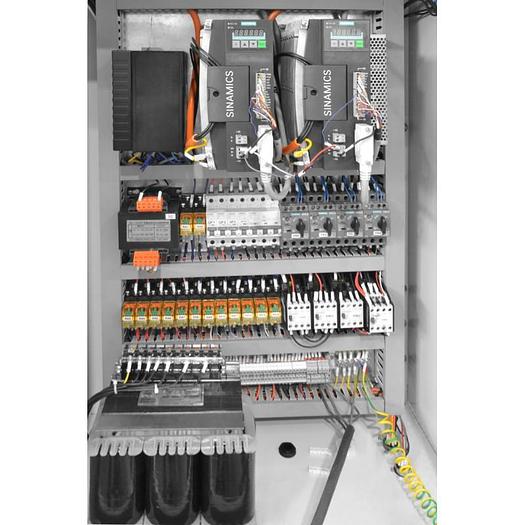

SIEMENS servomotors

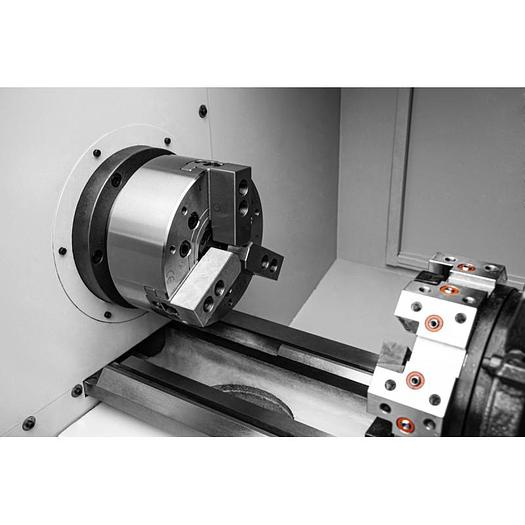

3-jaw manual chuck

4-position turret head

Soft jaw kit

Manual tailstock

Cooling system

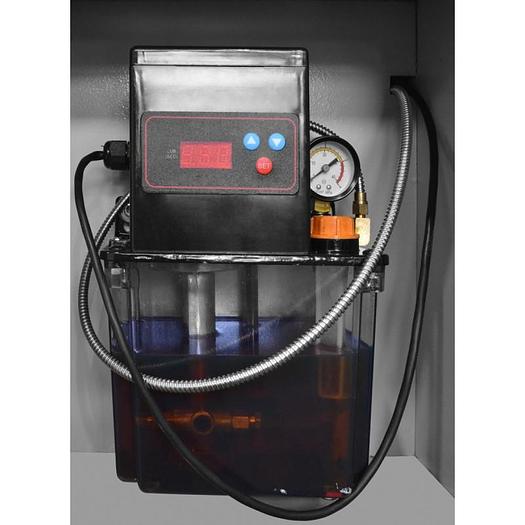

Automatic gear and guide lubrication system

24V halogen lighting

English manuals

CE declaration

Technical Specifications

Swing over bed: 360 mm

Swing over cross slide: 150 mm

Maximum turning length: 750 mm

Spindle speed: 100–2000 rpm

Spindle bore: Ø 38 mm (Ø 47 mm optional)

Spindle Taper: A2-6

Tailstock spindle taper: MT5

Number of tools in the holder: 4 (6, 8 optional)

Tools size: 16×16 mm (20×20 optional)

Tailstock spindle feed: 100 mm

Main motor power: 3.7 kW

Dimensions: 1815×1300×1600 mm

Weight: 1300 kg

Options

Additional set of soft jaws

Set of hard jaws

Sleeve chucks

Gripper for workpieces

Bar feeder

Tool holders

CAD/CAM software

3-jaw hydraulic chuck

Hydraulic tailstock

6-position turret head
