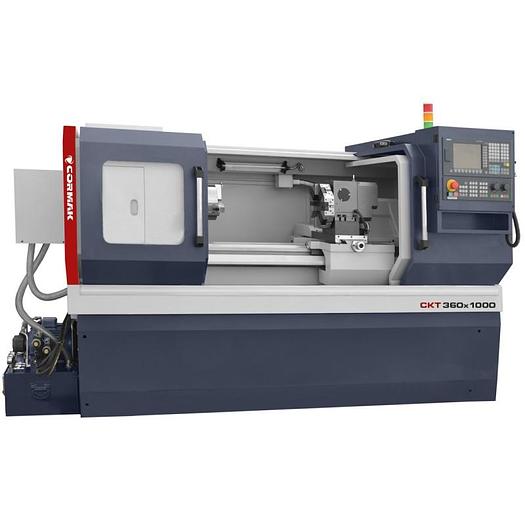

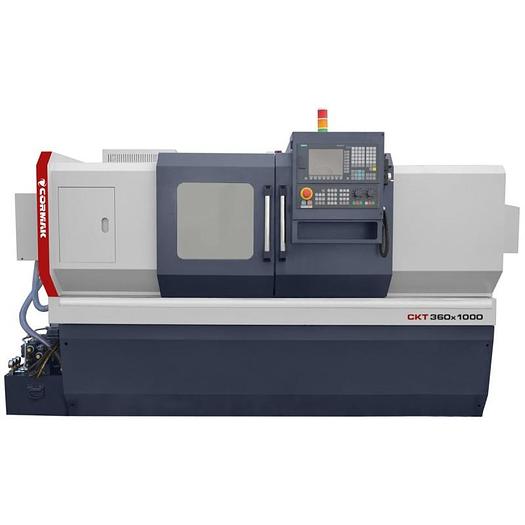

Cormak CKT360x1000 Flat Bed CNC Lathe
Description
Cormak CKT360x1000 Flat Bed CNC Lathe
Machine Type: CNC Lathe
Control: Siemens Sinumerik 808D
Axis: 2
Includes
SINUMERIK 808D control system in English

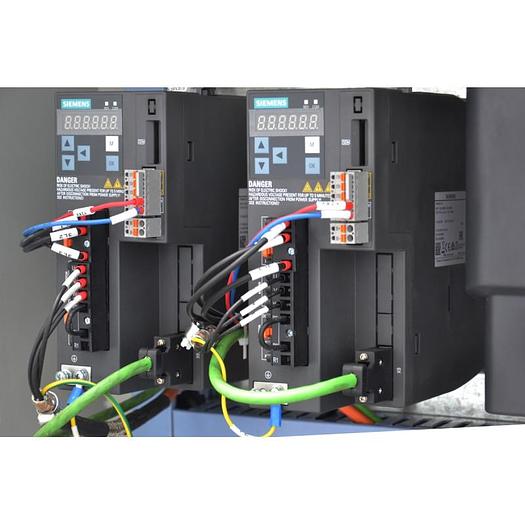

SIEMENS servomotors

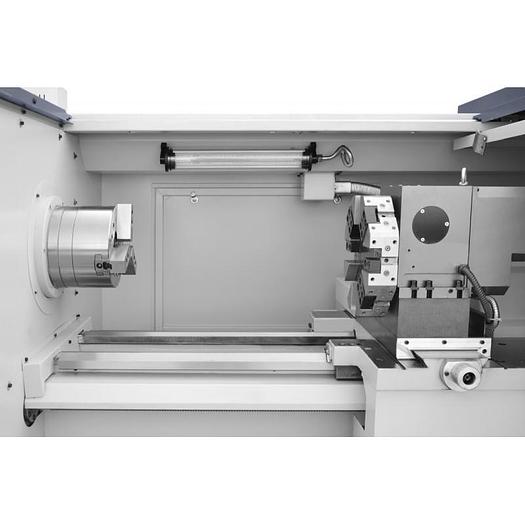

3-jaw hydraulic chuck
6-position turret head
Soft jaw kit

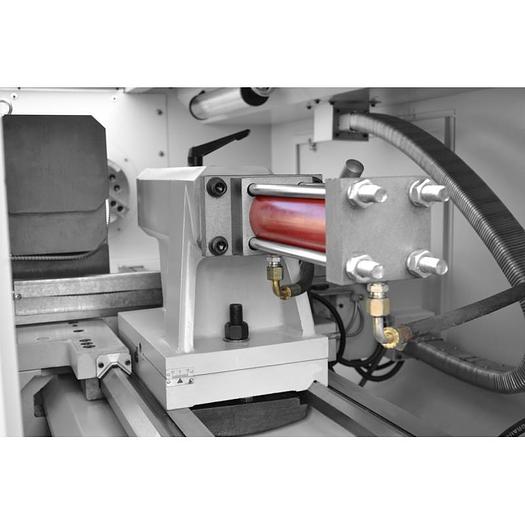

Hydraulic tailstock
Cooling system
Automatic gear and guide lubrication system
24V halogen lighting
English manuals
CE declaration
Technical Specifications
Swing over bed: 360 mm
Swing over cross slide: 150 mm
Maximum turning length: 1000 mm
Spindle speed: 100–2000 rpm
Spindle bore: Ø 38 mm (Ø 47 mm optional)
Tailstock spindle taper: MT5
Number of tools in the holder: 6 (8, 10 optional)
Tools size: 16×16 mm (20×20 optional)
Tailstock spindle feed: 100 mm
Main motor power: 3.7 kW
Dimensions: 1815×1300×1600 mm
Weight: 1300 kg
Options
Additional set of soft jaws
Set of hard jaws
Sleeve chucks
Gripper for workpieces
Bar feeder
Tool holders
CAD/CAM software
Specifications
| Manufacturer | Cormak |
| Model | CKT360x1000 Flat Bed CNC Lathe |
| Condition | New |
| Machine Type | CNC Lathe |
| Control | Siemens Sinumerik 808D |
| Axis | 2 |
| Swing over bed | 360 mm |
| Swing over cross slide | 150 mm |
| Maximum turning length | 1000 mm |
| Spindle speed | 100–2000 rpm |
| Tailstock spindle taper | MT5 |
| Tools size | 16×16 mm (20×20 optional) |
| Tailstock spindle feed | 100 mm |
| Main motor power | 3.7 kW |
| Dimensions | 1815×1300×1600 mm |
| Weight | 1300 kg |
