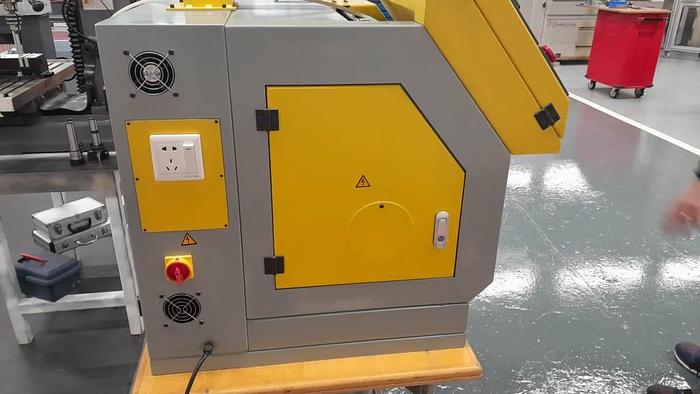

JBEC Turn 280 Bench Top CNC Lathe
Sold
Description
JBEC Turn 280 CNC Bench Top Lathe
Machine Type: Bench Top CNC Lathe
Year: 2018
Control: Siemens Sinumerik 808D
Power: 220V Single Phase
Manufactured: In Ireland
Condition: As New(College Machine, Rarely Used)
Includes
8 Station Automatic Turret
Tailstock
Chuck
Technical Specification
Swing Over Bed: 200mm
Distance Between Centres: 280mm
Chuck Diameter: 100mm
Spindle Bore: 21mm
Spindle Speeds: 100-3000rpm
Spindle Taper: MT3
Spindle Motor Power: 1100W
X Axis Travel: 125mm
Z Axis Travel: 190mm
Rapid Feed: 1000mm/min
Rapid Traverse: 2000mm/min
Turret: 8 Station
Tool Dimensions: 8x8mm
Tailstock Taper: MT1
Tailstock Barrel Diameter: 22mm
Tailstock Travel: 40mm
Positioning Accuracy: 0.015mm
Repeatability Accuracy: 0.015mm
Connected Power: 220V
Specifications
| Manufacturer | JBEC |
| Model | Turn 280 Bench Top CNC Lathe |
| Year | 2018 |
| Condition | Used |
| Stock Number | 968898 |
| Machine Type | Bench Top CNC Lathe |
| Year | 2018 |
| Control | Siemens Sinumerik 808D |
| Power | 220V Single Phase |
| Manufactured | In Ireland |
| Swing Over Bed | 200mm |
| Distance Between Centres | 280mm |
| Chuck Diameter | 100mm |
| Spindle Bore | 21mm |
| Spindle Speeds | 100-3000rpm |
| Spindle Taper | MT3 |
| Spindle Motor Power | 1100W |
| X Axis Travel | 125mm |
| Z Axis Travel | 190mm |
| Rapid Feed | 1000mm/min |
| Rapid Traverse | 2000mm/min |
| Turret | 8 Station |
| Tool Dimensions | 8x8mm |
| Tailstock Taper | MT1 |
| Tailstock Barrel Diameter | 22mm |
| Tailstock Travel | 40mm |
| Positioning Accuracy | 0.015mm |
| Repeatability Accuracy | 0.015mm |
| Connected Power | 220V |
