2009 Quaser MV 184E Machining Center
Sold
Description

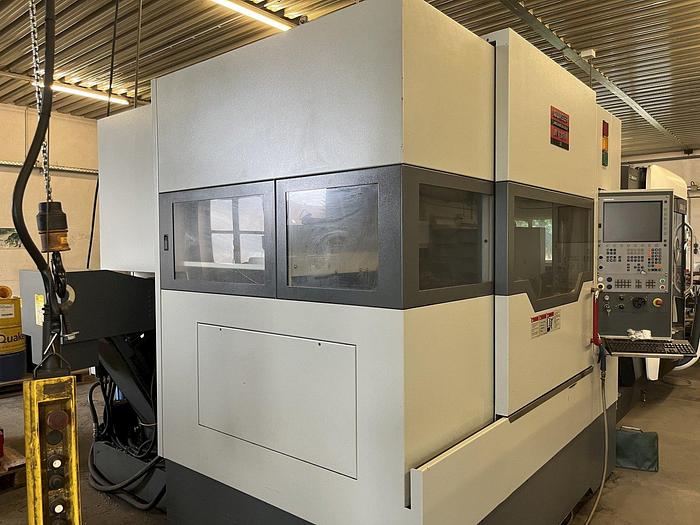

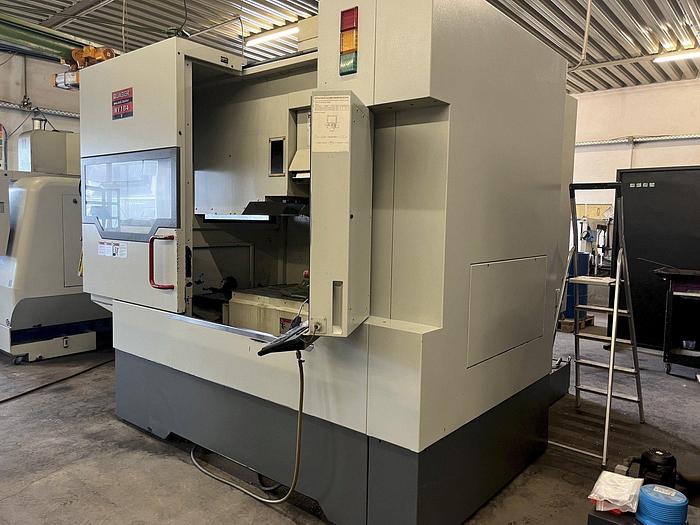

Quaser MV 184E Vertical Machining Center
Machine Type: 3 Axis Vertical Machining Center
Year: 2009

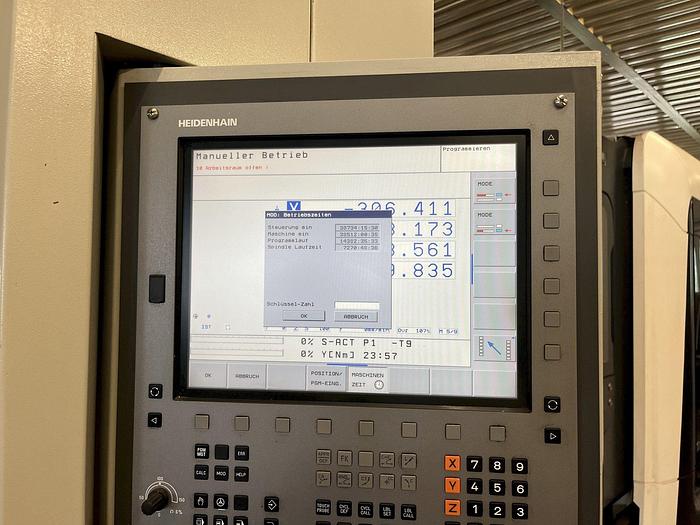

Control: Heidenhain iTNC620

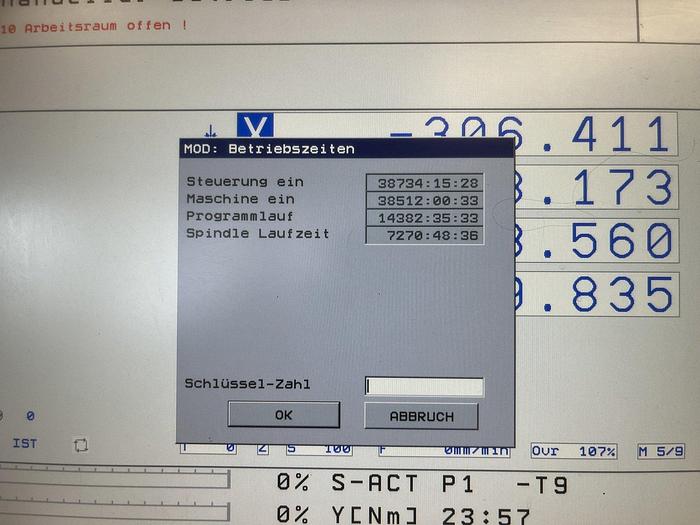

Spindle On Hours: 7270hrs
Condition: Very Good
Includes
Swarf Conveyor
Glass Scales on X,Y & Z Axes

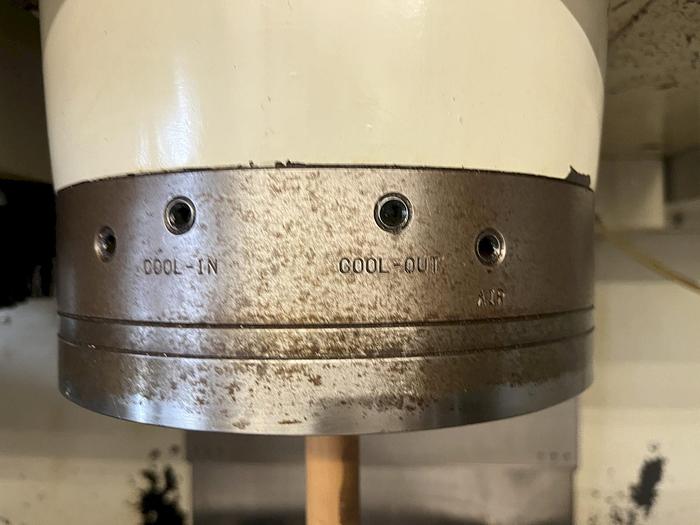

20 Bar Through Spindle Coolant
Technical Specification

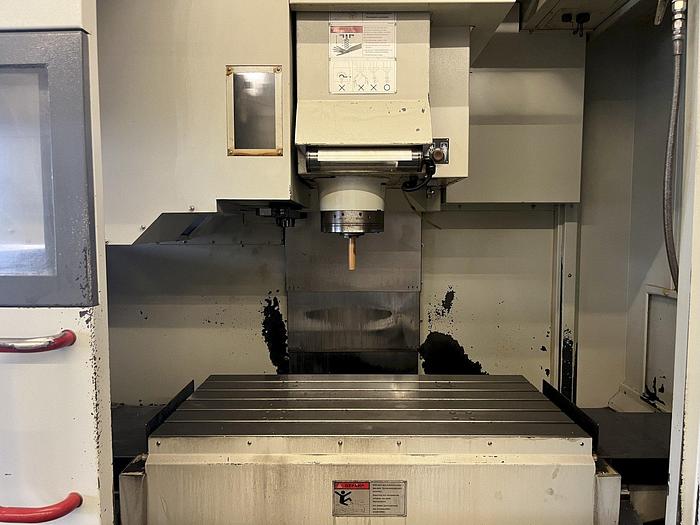

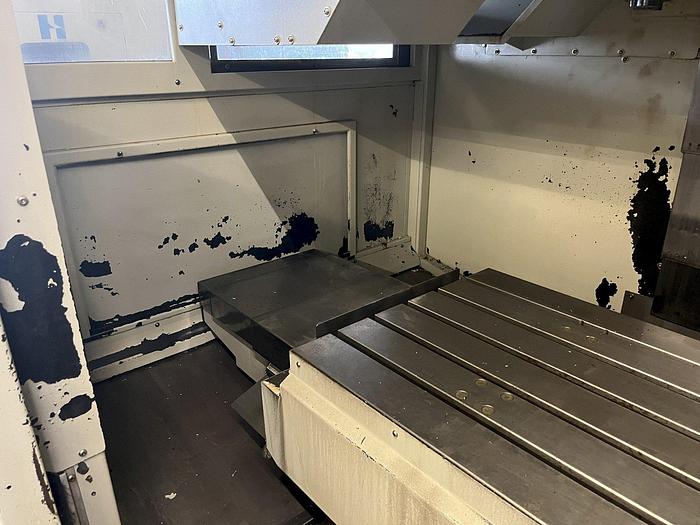

Table Dimensions: 1200 x 600mm
X Axis Travel: 1020mm
Y Axis Travel: 610mm
Z Axis Travel: 610mm
Rapid Feed (X,Y): 32m/min
Rapid Feed (Z): 24m/min
Spindle Speed: 30-12,000rpm
Spindle Power: 17kW
Spindle Taper: SK40

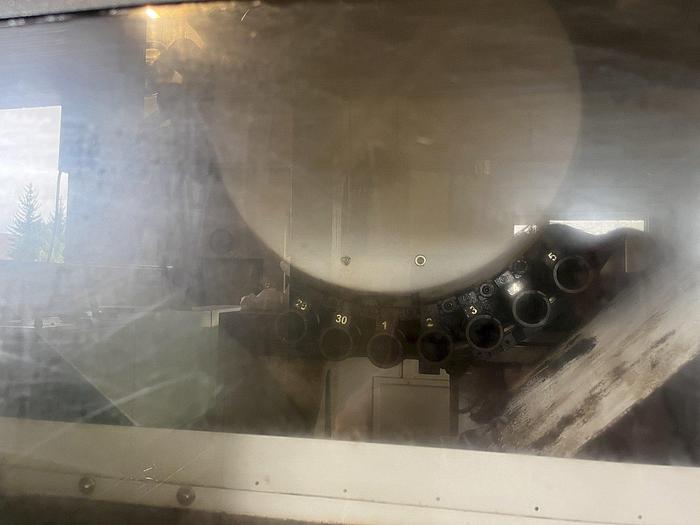

ATC: 30 Station
Dimensions: 2820x2920x2860mm
Weight: 6790kg
Specifications
| Manufacturer | Quaser |
| Model | MV 184E Machining Center |
| Year | 2009 |
| Condition | Used |
| Year | 2009 |
| Control | Heidenhain iTNC620 |
| Spindle On Hours | 7270hrs |
| Condition | Very Good |
| Table Dimensions | 1200 x 600mm |
| X Axis Travel | 1020mm |
| Y Axis Travel | 610mm |
| Z Axis Travel | 610mm |
| Rapid Feed (X,Y) | 32m/min |
| Rapid Feed (Z) | 24m/min |
| Spindle Speed | 30-12,000rpm |
| Spindle Power | 17kW |
| Spindle Taper | SK40 |
| ATC | 30 Station |
| Dimensions | 2820x2920x2860mm |
| Weight | 6970kg |
