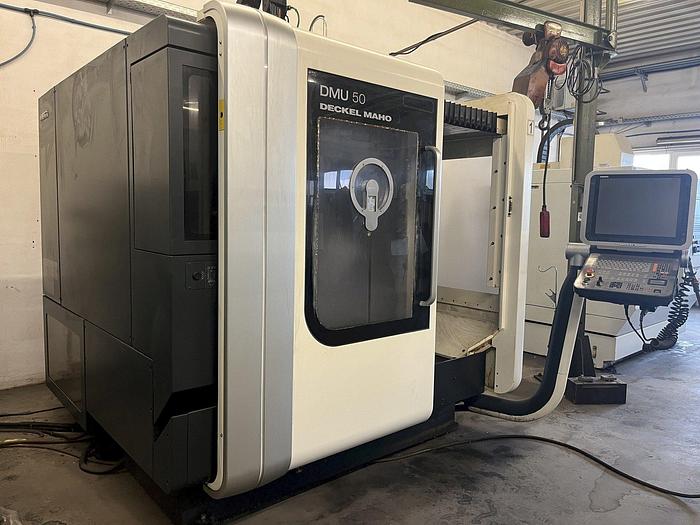

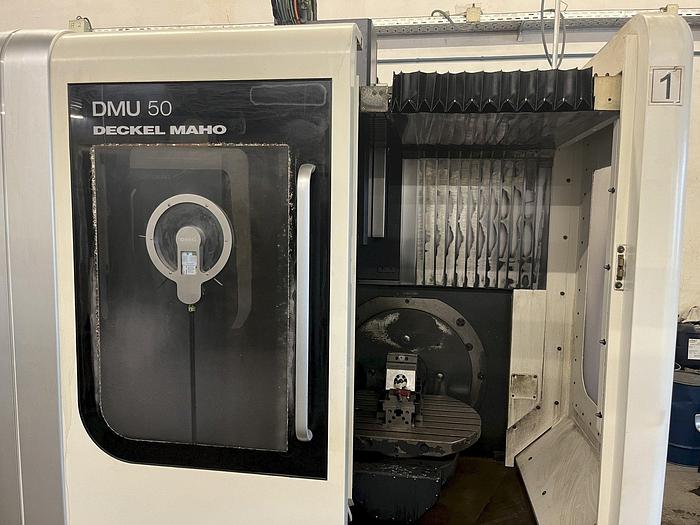

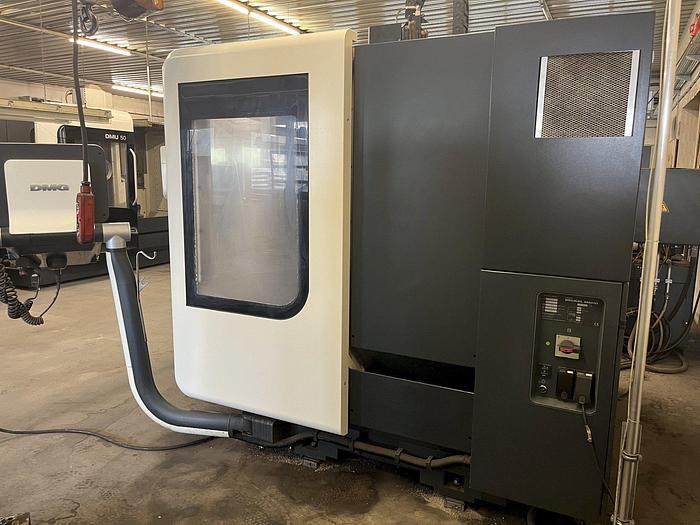

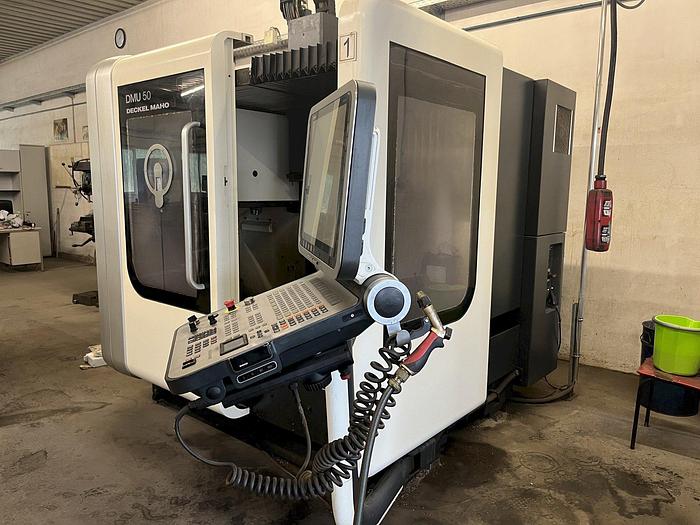

2011 DMG Deckel Maho DMU 50 5 Axis Machining Center
Sold
Description
DMG Deckel Maho DMU 50 Machining Centre
Machine Type: 5 Axis Machining Centre
Year: 2011

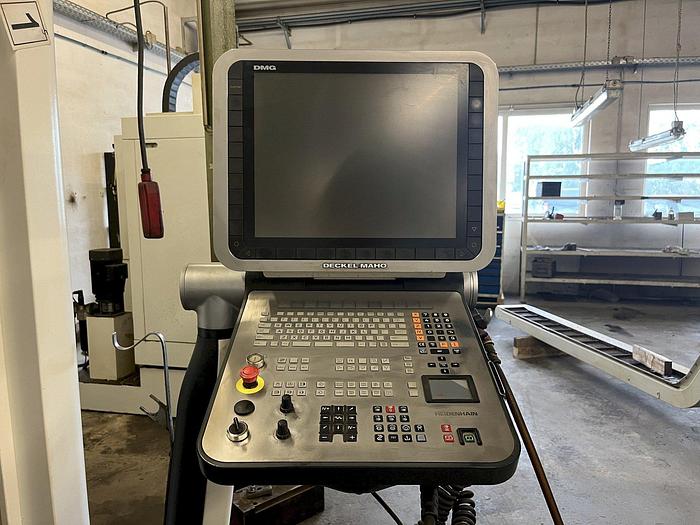

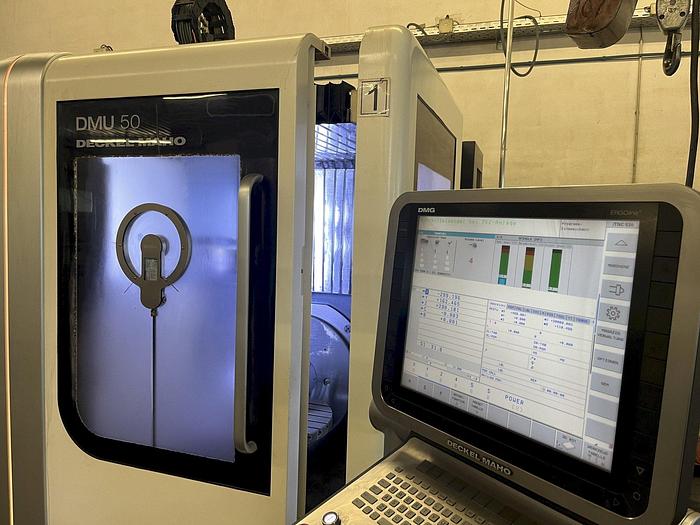

Control: Heidenhain iTNC 530 ERGOline

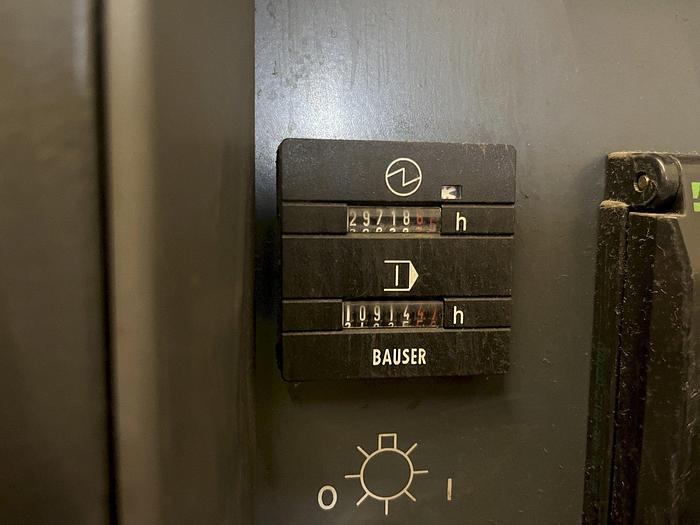

Machining Hours: 11,000hrs
Condition: Very Good
Includes

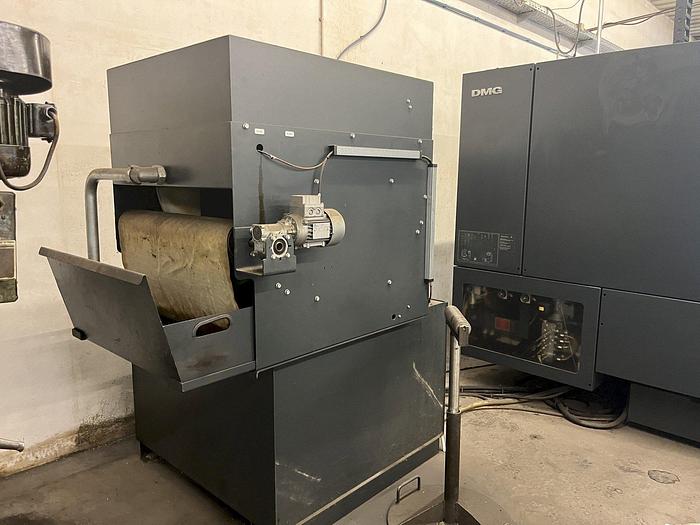

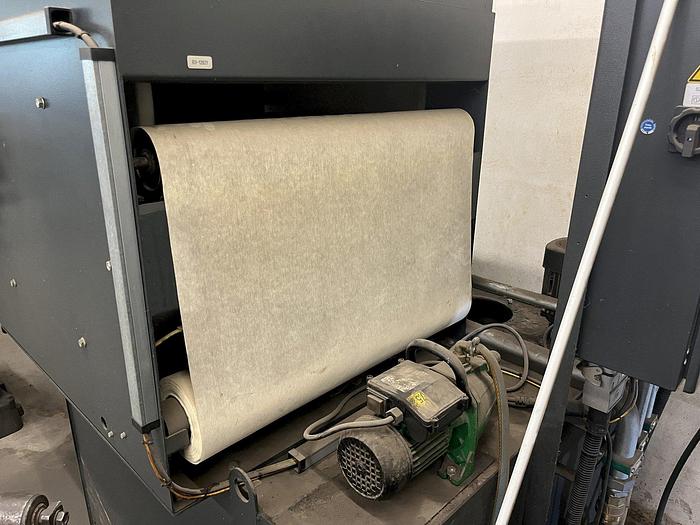

Coolant Filtration System

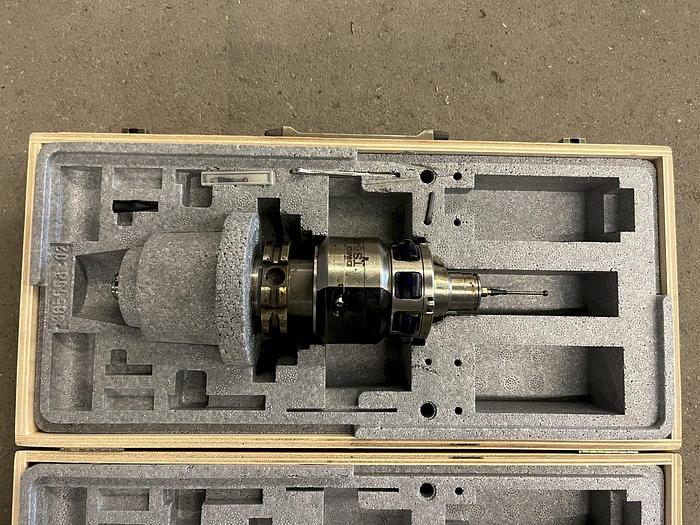

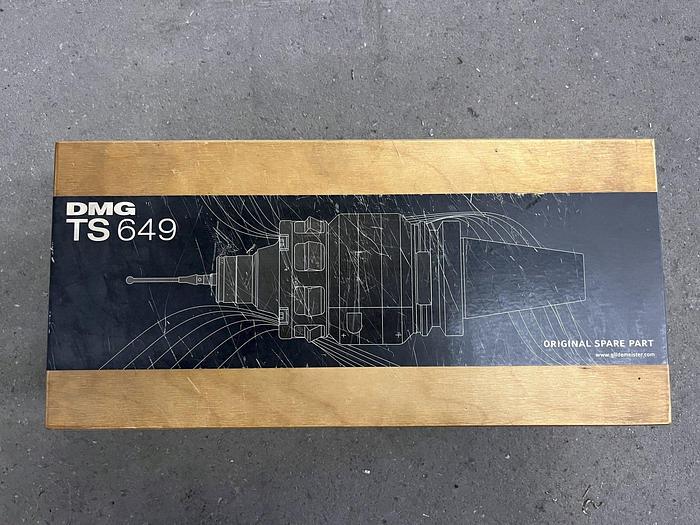

TS649 Probe
Through Spindle Coolant
20 Bar Coolant System
Electronic Hand Wheel
Technical Specification

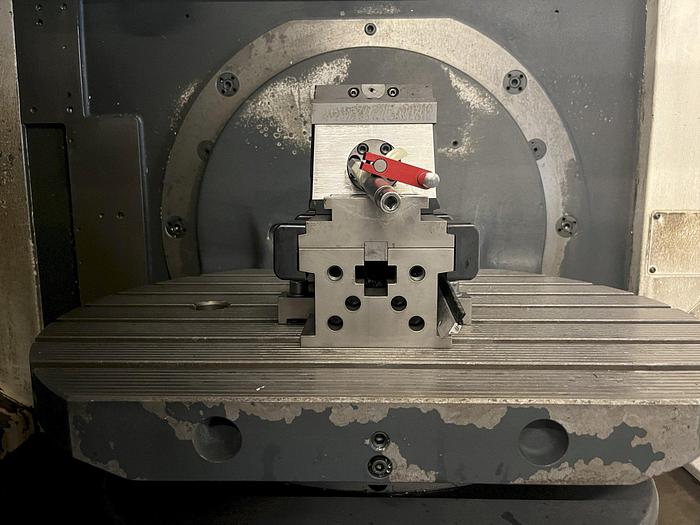

Table Size: D650mm x 500mm
B Axis Swivel: from -35 to +110 Deg
Rotation: 360 Deg
Max Table Load: 200kg
X Axis Travel: 500mm
Y Axis Travel: 450mm
Z Axis Travel: 400mm
Rapids (X,Y,Z): 24m/min

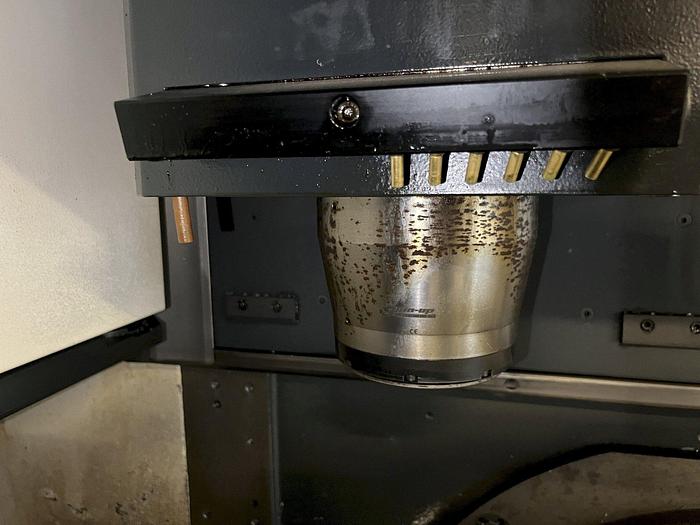

Spindle Taper: SK 40
Spindle Speeds: 20-10,000rpm
ATC: 30 Places

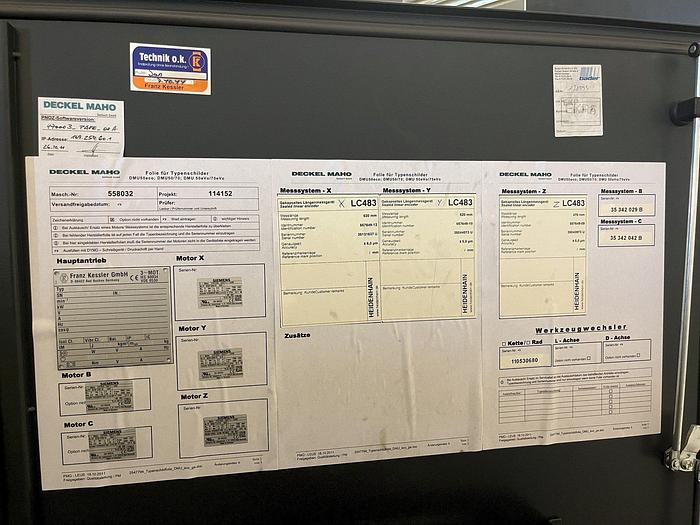

Measuring System: Direct in X,Y & Z Axes
Dimensions: 3100x2400x2750mm
Weight: 5,000kg
Specifications
| Manufacturer | DMG Deckel Maho |
| Model | DMU 50 5 Axis Machining Center |
| Year | 2011 |
| Condition | Used |
| Machine Type | 5 Axis Machining Centre |
| Year | 2011 |
| Control | Heidenhain iTNC 530 ERGOline |
| Machining Hours | 11,000hrs |
| Condition | Very Good |
| Table Size | D650mm x 500mm |
| Rotation | 360 Deg |
| Max Table Load | 200kg |
| X Axis Travel | 500mm |
| Y Axis Travel | 450mm |
| Z Axis Travel | 400mm |
| Rapids (X,Y,Z) | 24m/min |
| Spindle Taper | SK 40 |
| Spindle Speeds | 20-10,000rpm |
| ATC | 30 Places |
| Dimensions | 3100x2400x2750mm |
| Weight | 5,000kg |
