Cormak LF50 Fiber Laser Marking Machine
Description
Cormak LF50 Fiber Laser Marking Machine
Machine Type: Laser Marking Machine
Description
Fiber laser marking machine with a very wide range of applications. The device can successfully process standard metals and their alloys (iron, copper, aluminum, zinc, etc.), precious metals (gold, silver, titanium, etc.) and other metallic materials
The device complies with all safety requirements!
It has the appropriate marking in accordance with the standards, and is activated by a key.
- Precise X,Y Cross Table
- High positioning precision
- The laser does not require calibration
- Communication via the USB port
- EzCad2 software in English
- Laser lifetime over 100,000 h
- Support for popular graphic file formats
- Low power consumption
- Built-in fans keep the device cool

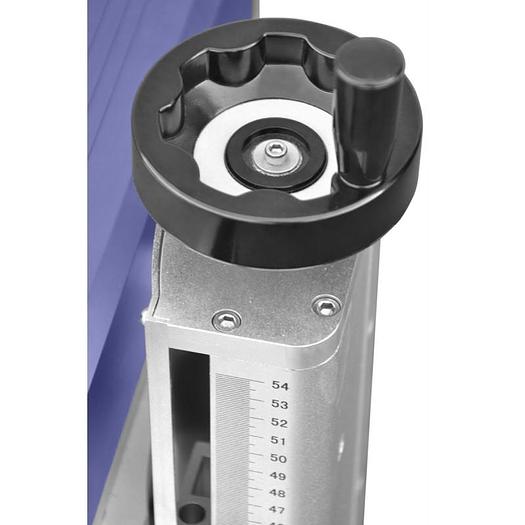

- Adjustable laser height (0-80cm)
- Rotary axis available as an option
Included with the machine:
- Fiber laser marking machine, 50W
- Working area: 110 x 110 [mm]
- Collimator

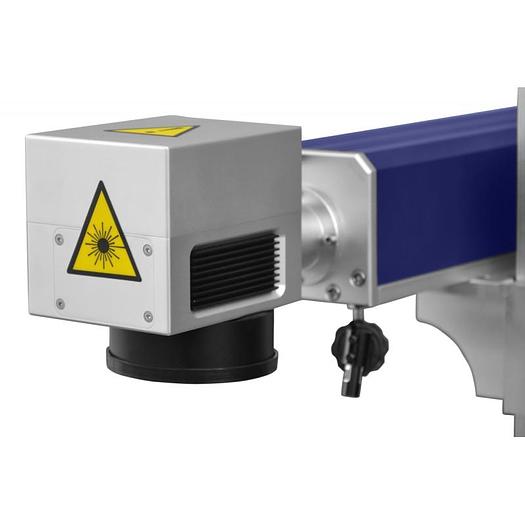

- Scanner (galvo)

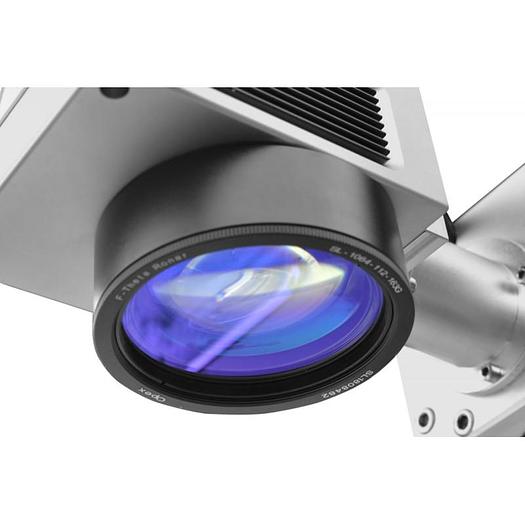

- Lens
- Red point
- Mobile Platform
- START pedal
- Software
- User manual
Technical Specification
Maximum Absorbed Power: 800W
Type of laser: Fiber optic 1064 um/50W
Auxiliary Laser (pointer): red <=5mW
Control program: EZCAD2
Supported file formats: PLT, DXF, DWG, BMP, JPG, PNG
Worktable: 295x220 mm
Marking area (lens): 100x100 mm
Table Height: 780 mm
Dimensions: 800 x 650 x 1700 mm
Weight: 65 kg
Specifications
| Manufacturer | Cormak |
| Model | LF50 Fiber Laser Marking Machine |
| Condition | New |
| Machine Type | Laser Marking Machine |
| Working area | 110 x 110 [mm] |
| Maximum Absorbed Power | 800W |
| Type of laser | Fiber optic 1064 um/50W |
| Auxiliary Laser (pointer) | red <=5mW |
| Control program | EZCAD2 |
| Worktable | 295x220 mm |
| Marking area (lens) | 100x100 mm |
| Table Height | 780 mm |
| Weight | 65 kg |
