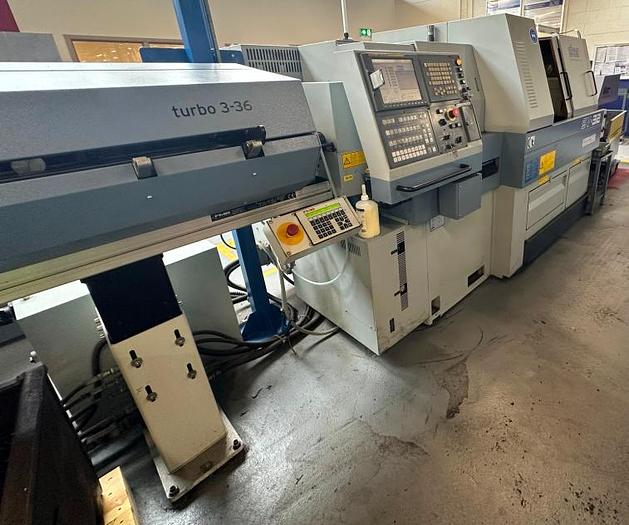

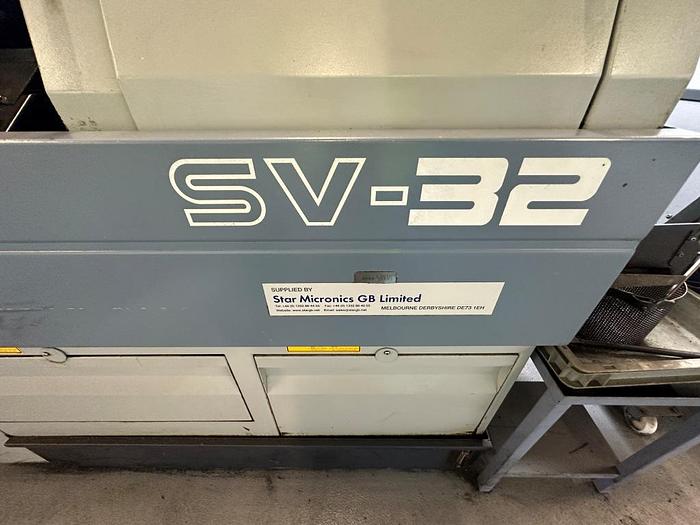

2008 Star SV-32 Sliding Head CNC Lathe
Description

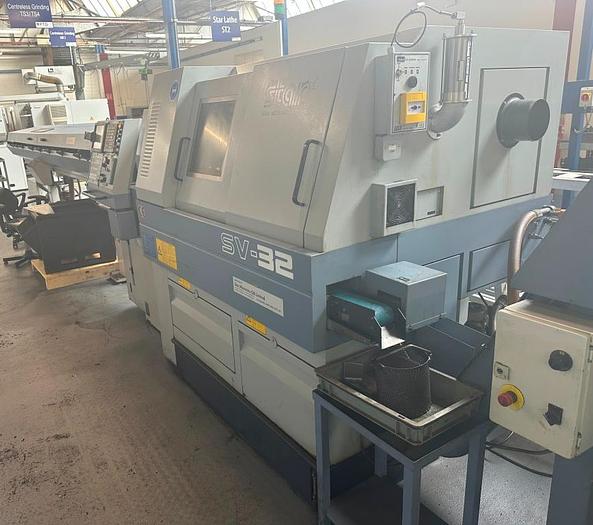

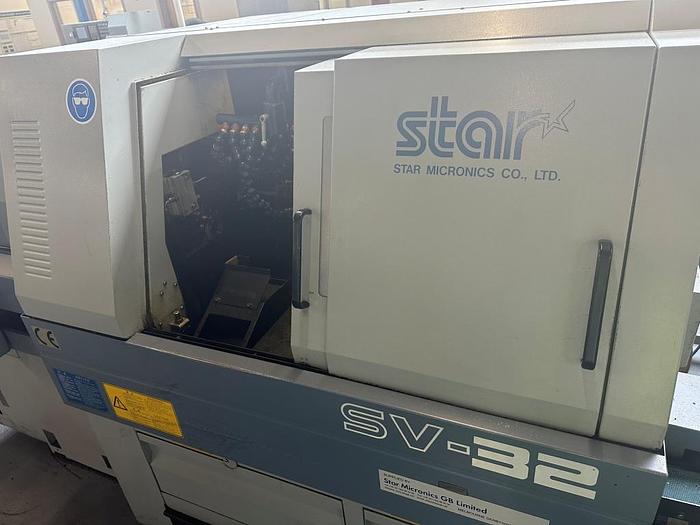

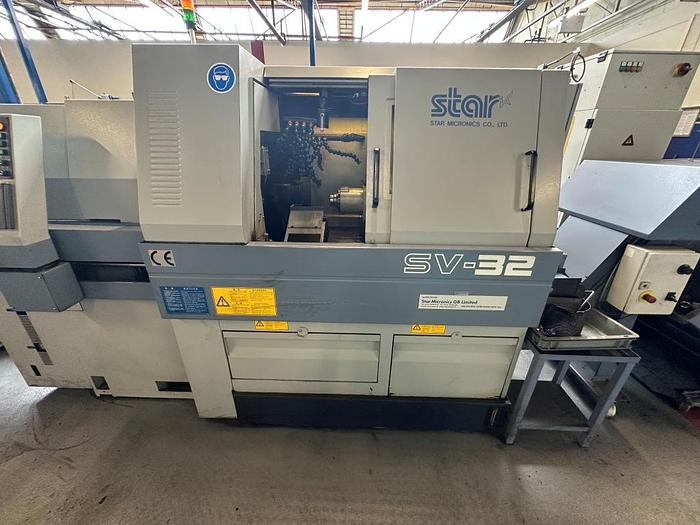

Star SV-32 Sliding Head CNC Lathe
Machine Type: Swiss Type Sliding Head Lathe
Year: 2008

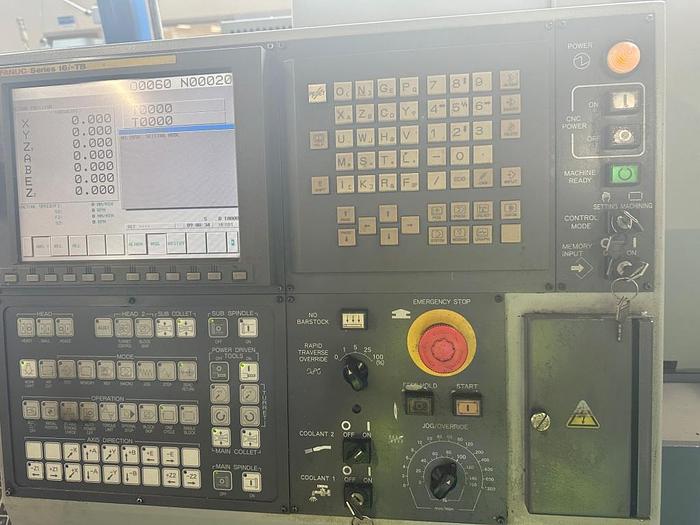

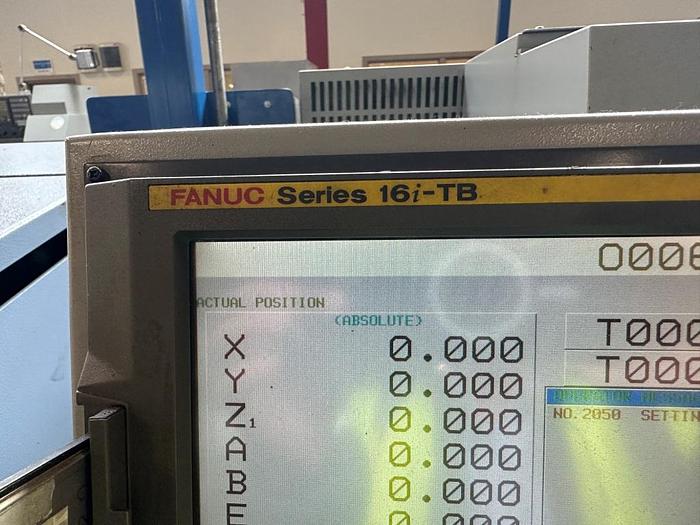

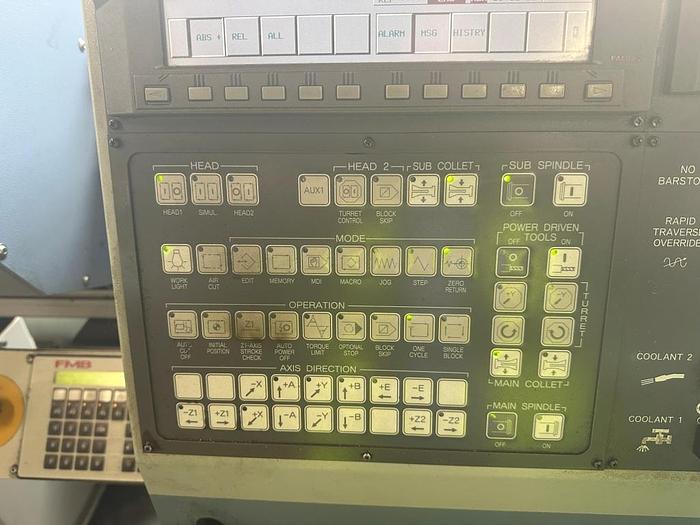

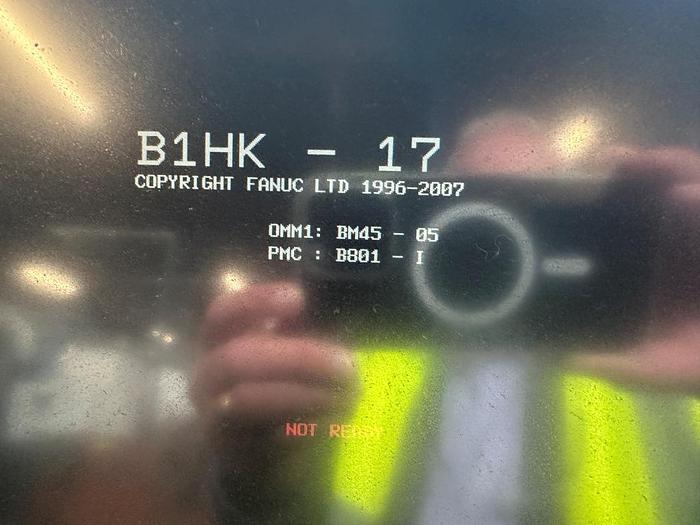

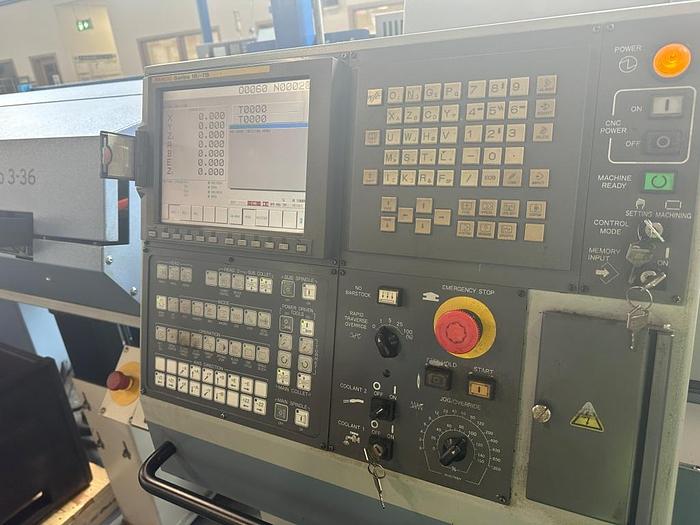

Control: Fanuc Series 16i-TB
Axis: 9 Axes
Condition: Very Good
Includes

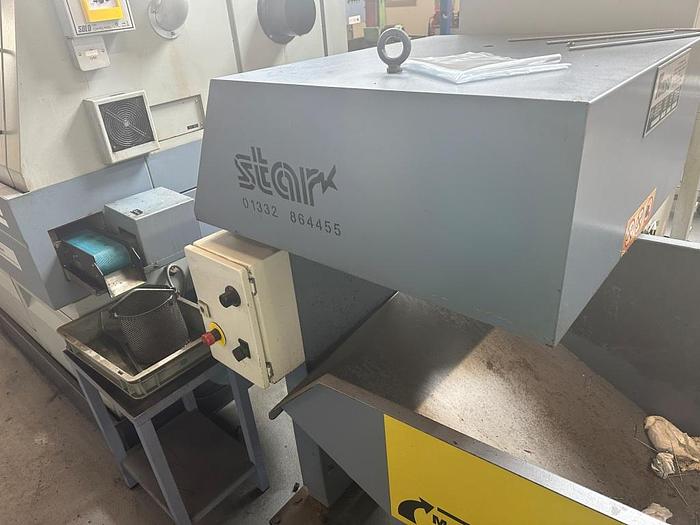

FMB Swarf Conveyor

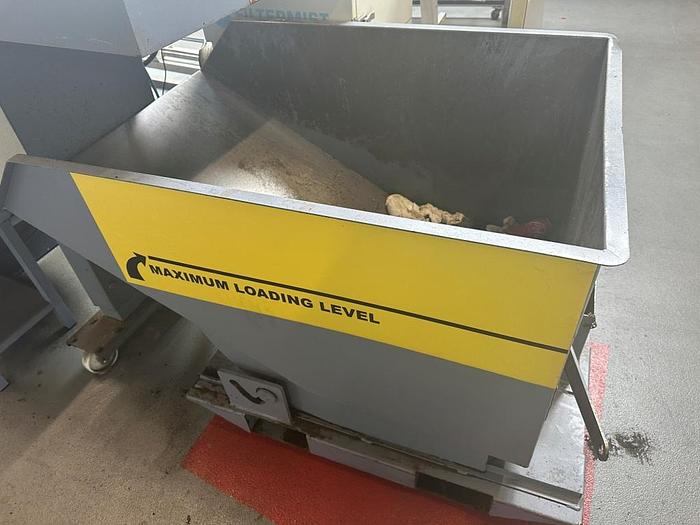

Swarf Bin

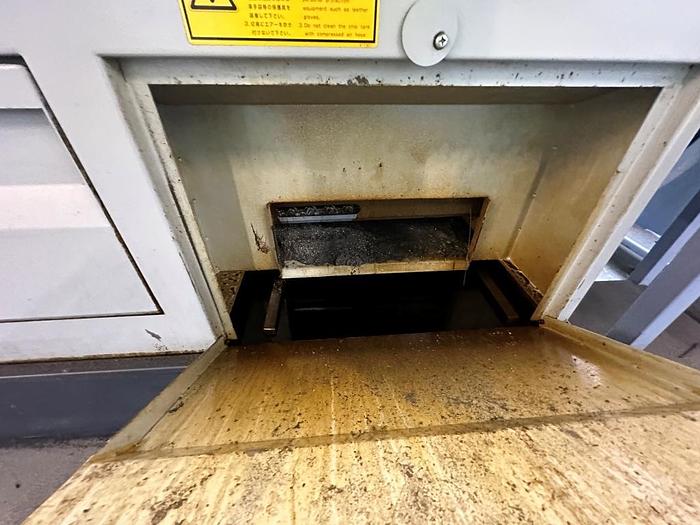

Parts Conveyor

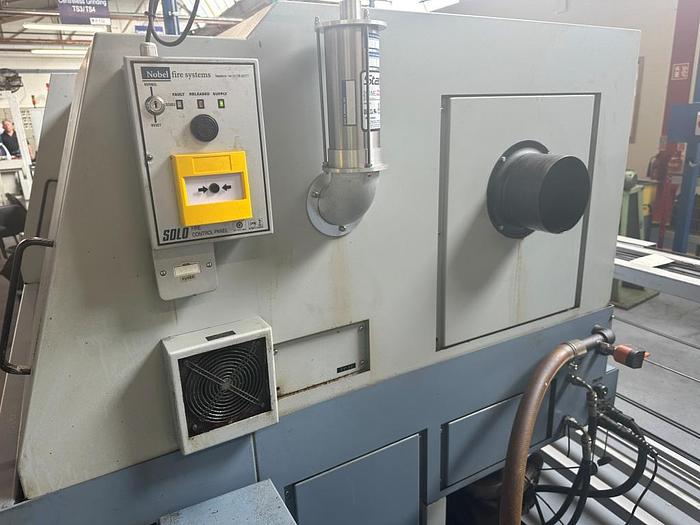

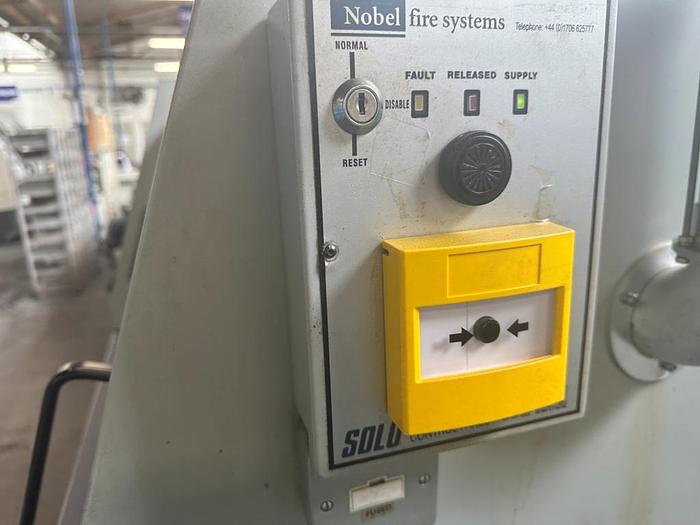

Nobel Fire Suppression

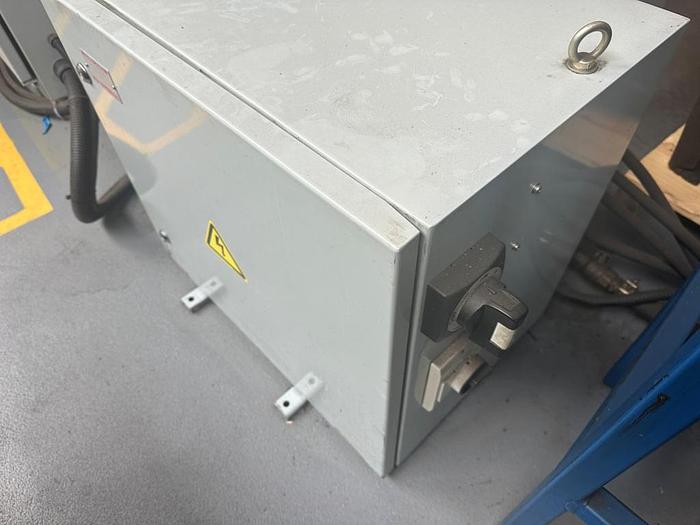

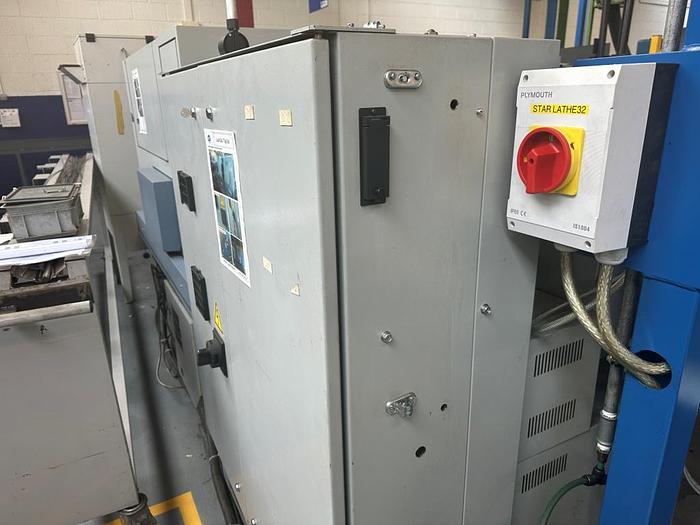

Transformer

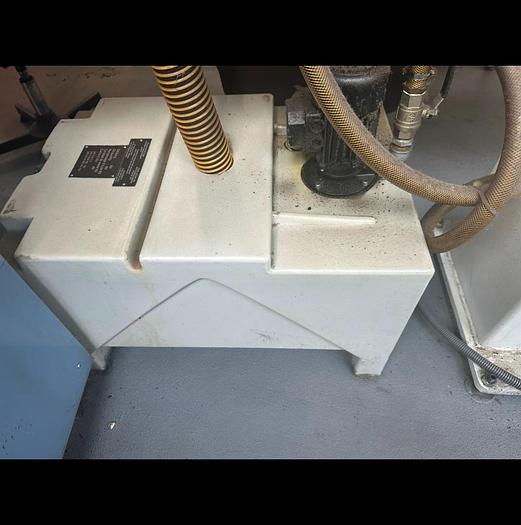

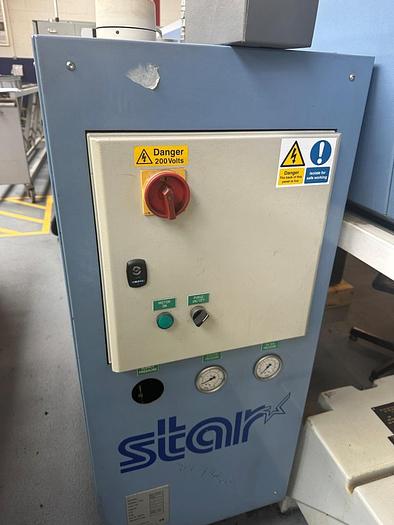

Star G4-2000 Pump

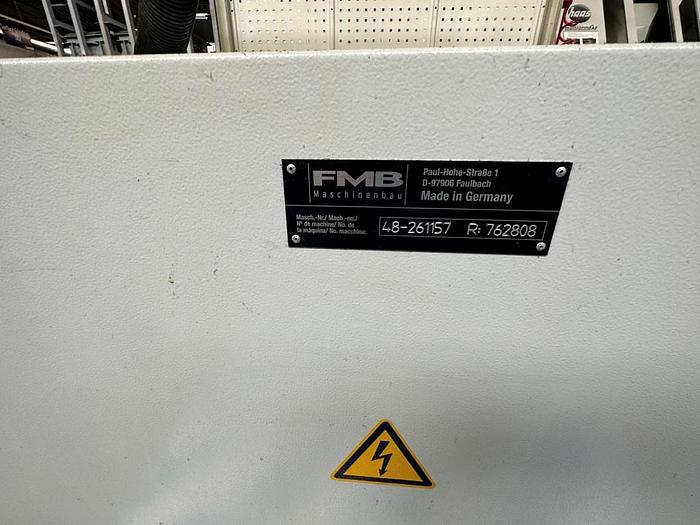

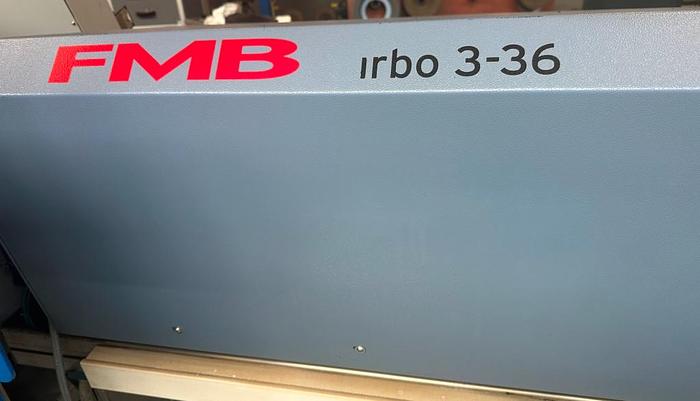

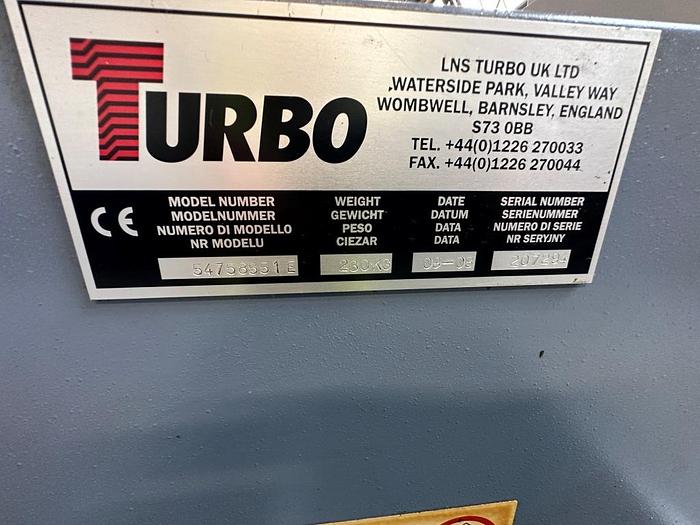

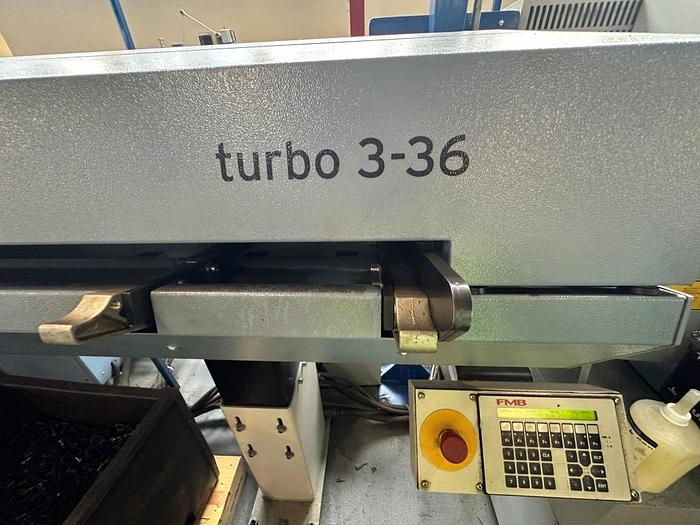

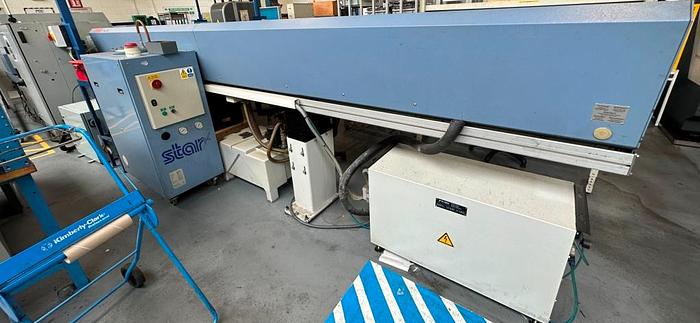

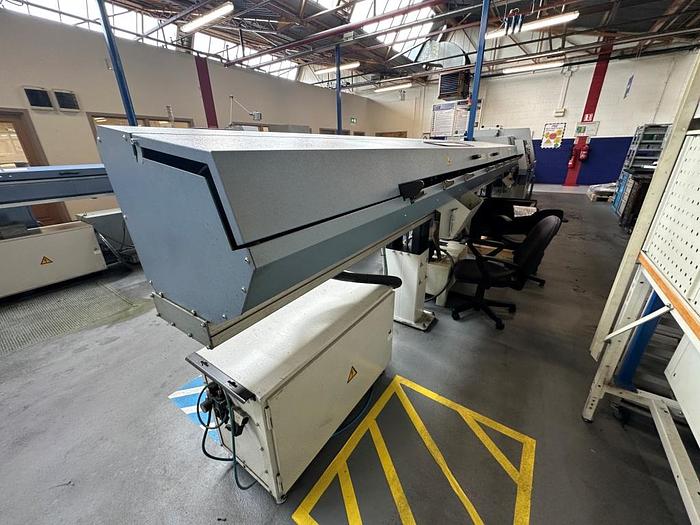

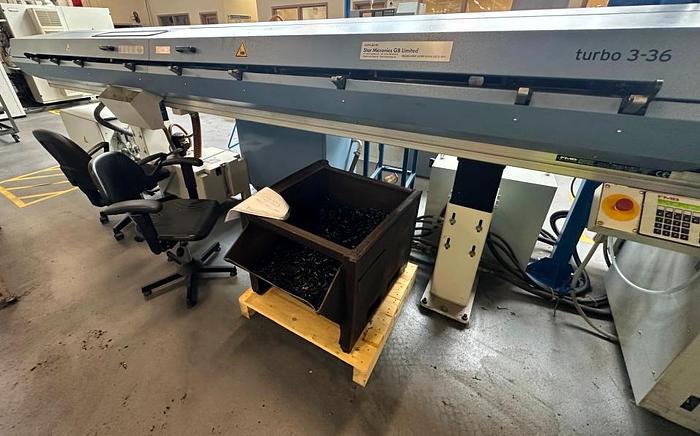

FMB Turbo 3-36 Barfeed

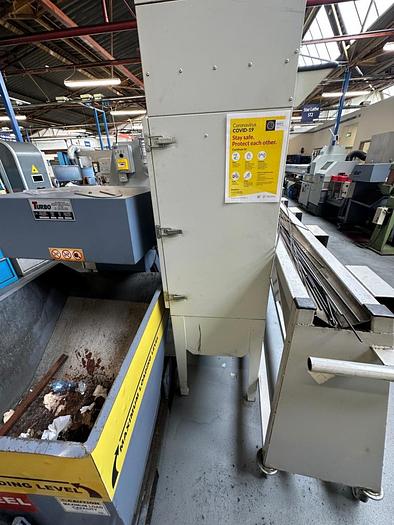

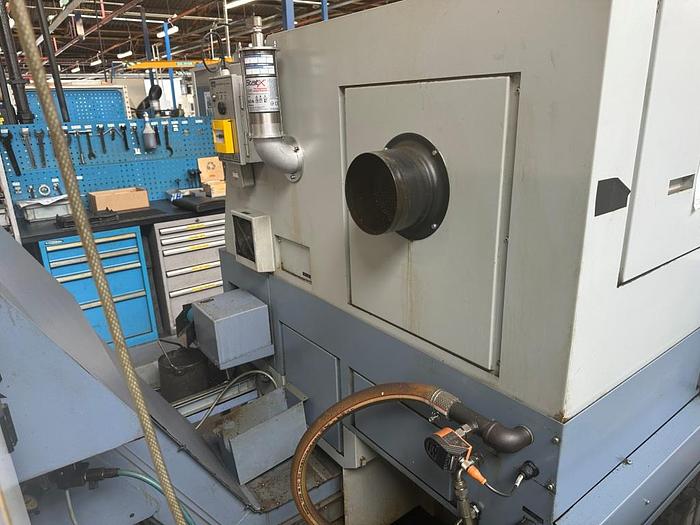

Filtermist FF10V
Technical Specification
Max Bar Cap: 32mm
Number of Spindles: 2
Main Spindle Speed: 280-7000rpm
Main Spindle Power: 7.5kW
Sub Spindle Speed: 280-7000rpm
Sub Spindle Power: 3.7kW
Head Stock Travel: 310mm(Z1)
Sub Spindle Travel: 150mm(Z2)

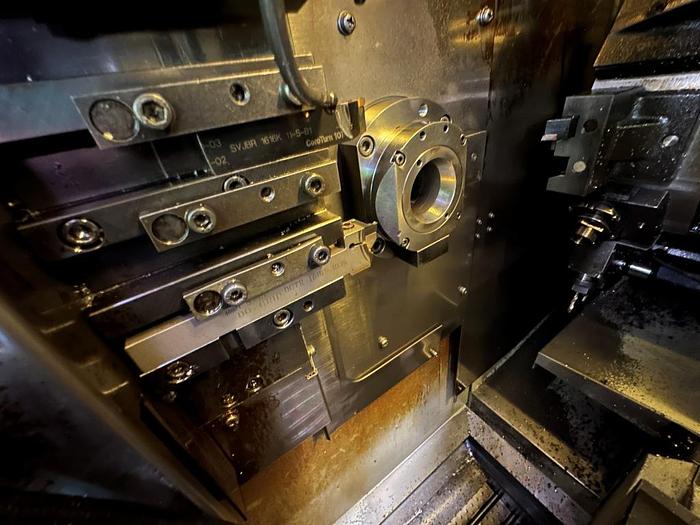

Rear Turret Stations: 10 (B,E & Y)
Rear Turret Driven Stations: 10
Driven Tool Speed: 5700rpm
Driven Tools Power: 2.8kw

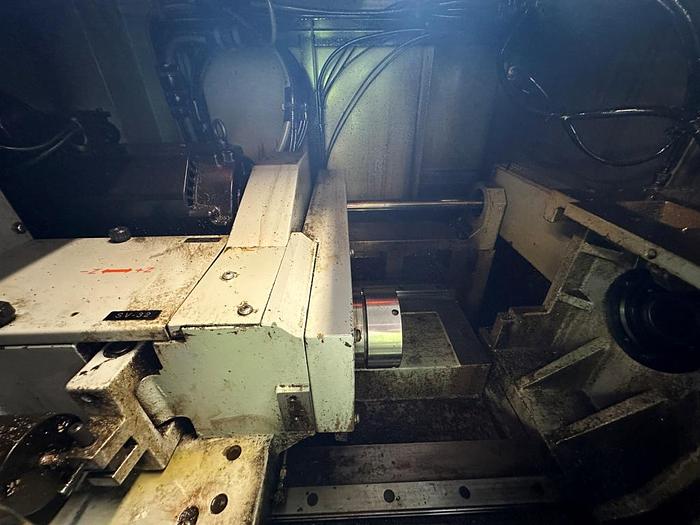

Guide Bush Stations: 4 x Turning
Guide Bush Driven Stations: 3 (A & X)
Driven Stations Speed: 6000rpm
C Axis: On Main & Sub Spindles (0.001Deg)

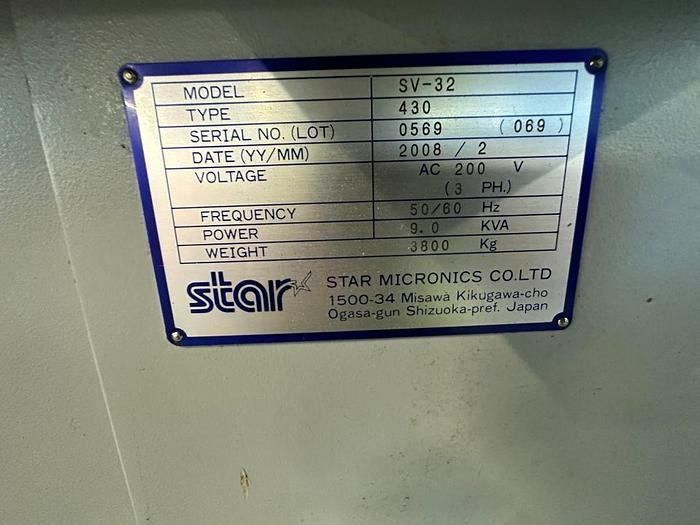

Total Installed Power: 9kVA
Machine Dimensions: 2645x1405x1680mm
Machine Weight: 3800kg
Specifications
| Manufacturer | Star |
| Model | SV-32 Sliding Head CNC Lathe |
| Year | 2008 |
| Condition | Used |
| Year | 2008 |
| Control | Fanuc Series 16i-TB |
| Axis | 9 Axes |
| Condition | Very Good |
| Max Bar Cap | 32mm |
| Number of Spindles | 2 |
| Main Spindle Speed | 280-7000rpm |
| Main Spindle Power | 7.5kW |
| Sub Spindle Speed | 280-7000rpm |
| Sub Spindle Power | 3.7kW |
| Head Stock Travel | 310mm(Z1) |
| Sub Spindle Travel | 150mm(Z2) |
| Rear Turret Stations | 10 (B,E & Y) |
| Rear Turret Driven Stations | 10 |
| Driven Tool Speed | 5700rpm |
| Driven Tools Power | 2.8kw |
| Guide Bush Stations | 4 x Turning |
| Guide Bush Driven Stations | 3 (A & X) |
| Driven Stations Speed | 6000rpm |
| Total Installed Power | 9kVA |
| Machine Dimensions | 2645x1405x1680mm |
| Machine Weight | 3800kg |
