Cormak WS32BGP Pedestal Drilling Machine

Cormak WS32BGP Pedestal Drilling Machine

Machine Type: Pedestal Drill

Machine Description

Powerful and efficient 190 cm high column drilling machine for industrial purposes. Equipped with spindle autofeed and cooling system. This machine also features automatic rotation switch during tapping, two worktables and the newest generation induction motor, which, along with the properly designed belt drive, ensures high power and great efficiency.

Machine Features

• Autofeed
• Sturdy spindle
• Tapping done through the automatic left rotation switching
• Left rotation switch
• Headstock, column, table and column base made of the highest quality castings
• Spindle and gearbox shafts made of hardened and thermally processed steel
• Integrated LED lamp
• High motor power
• Large spindle stroke

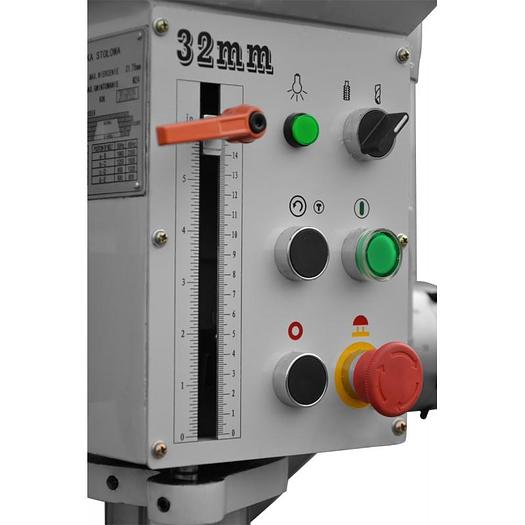

• Readable control panel
• U-type spindle guard with a limiting switch, EC regulation compliant
• Manually raised, 360 rotational worktable with T-slots
• Belt drive guard with a limiting emergency switch
• EC certification
• Adjustable drill chuck with a key and a Morse taper mount
• Wedge for taper release

Technical Specifications

Maximum steel drilling diameter: 32 mm

Maximum steel tapping diameter: M20

Column diameter: 100 mm

Spindle stroke: 150 mm

Distance from spindle to column: 265 mm

Worktable travel: 820 mm

Table rotation around column range: 360°

Maximum distance from spindle to base : 1235 mm

Spindle taper: MT3

Number of speeds: 8

Speeds: 140, 250, 380, 500, 580, 850, 1250, 1960 rpm

Table dimensions: 334×334 mm

Base dimensions: 310×380 mm

Machine height: 1900 mm

Motor power: 1.5 kW

Feed motor power: 0.12 kW

Power supply: 400V

Net weight: 310 kg

Packaging dimensions: 1040×640×2050 mm
