€52,000 + VAT

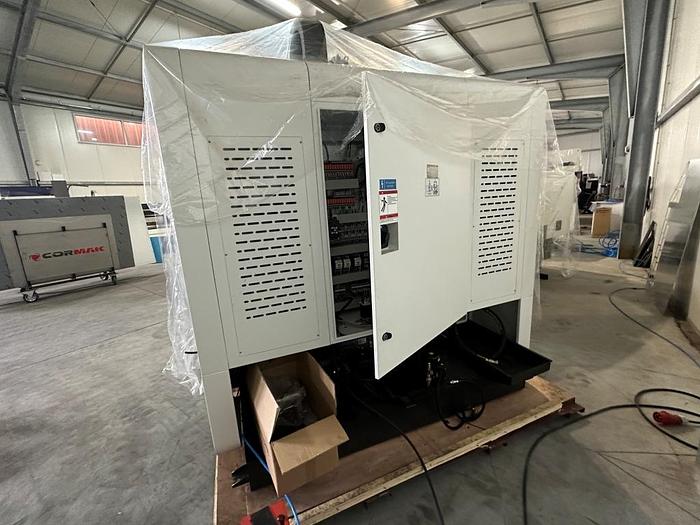

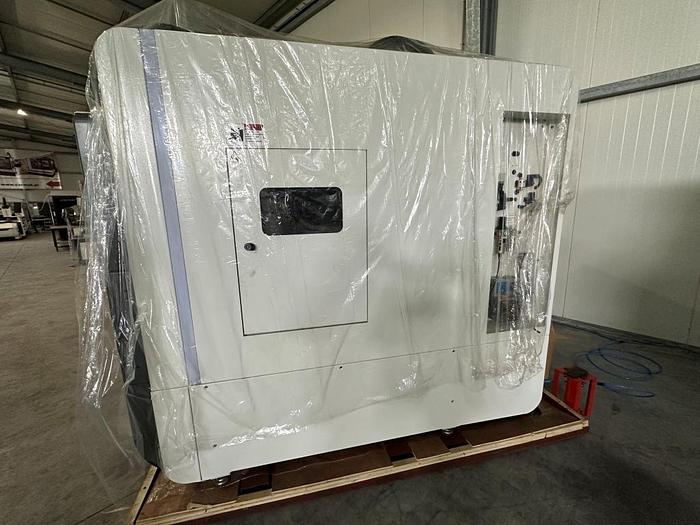

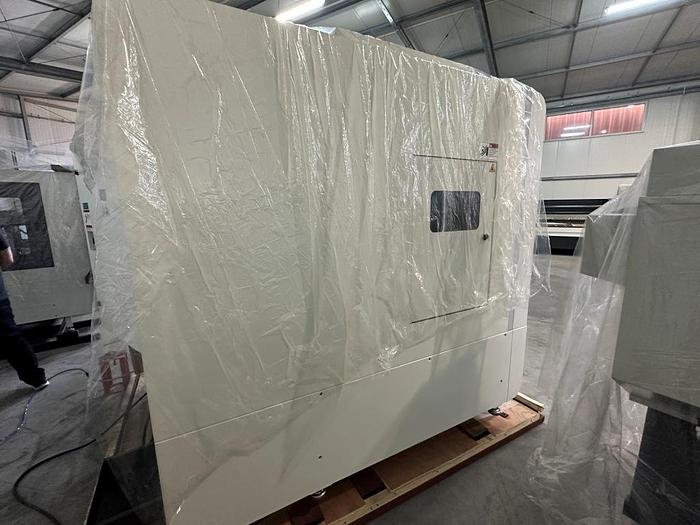

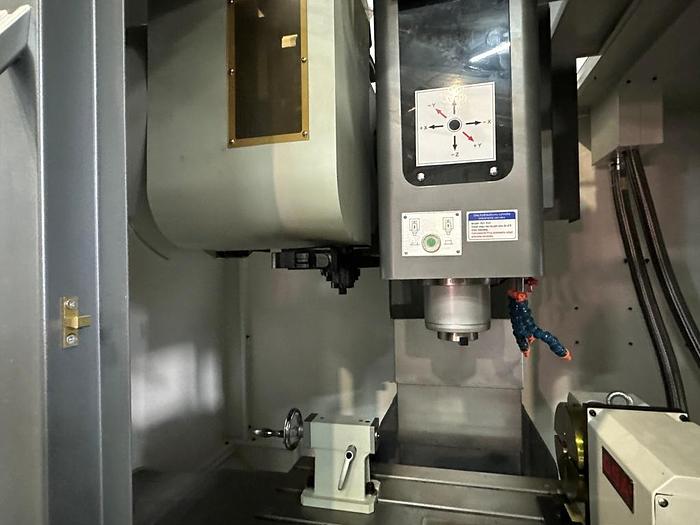

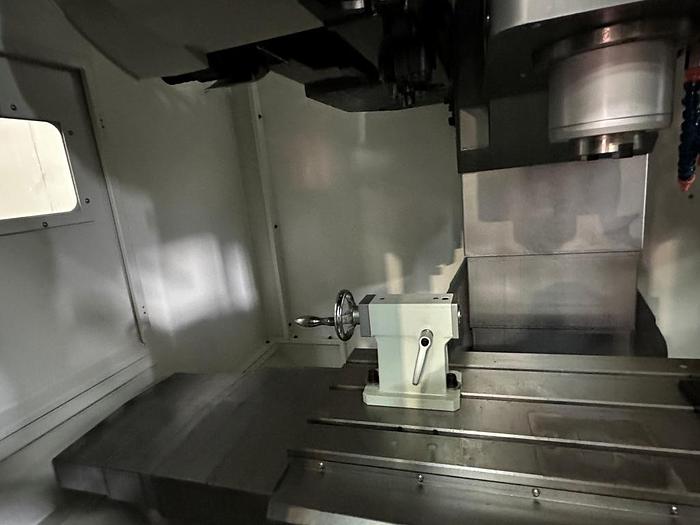

Cormak Mill 650 Vertical Machining Centre



orCall +353 838108745

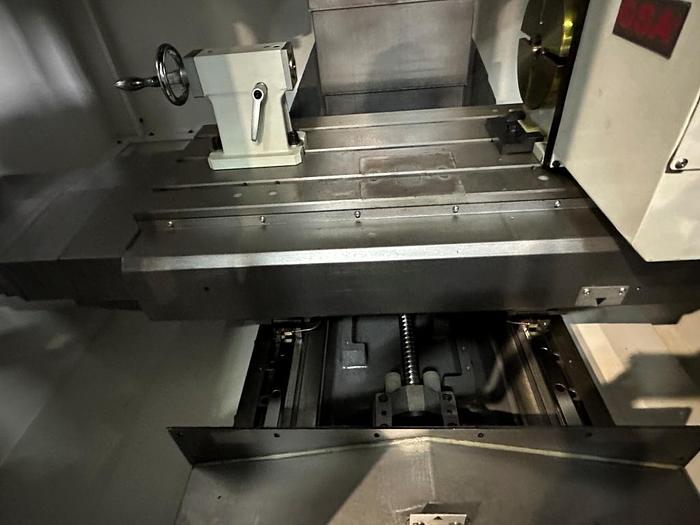

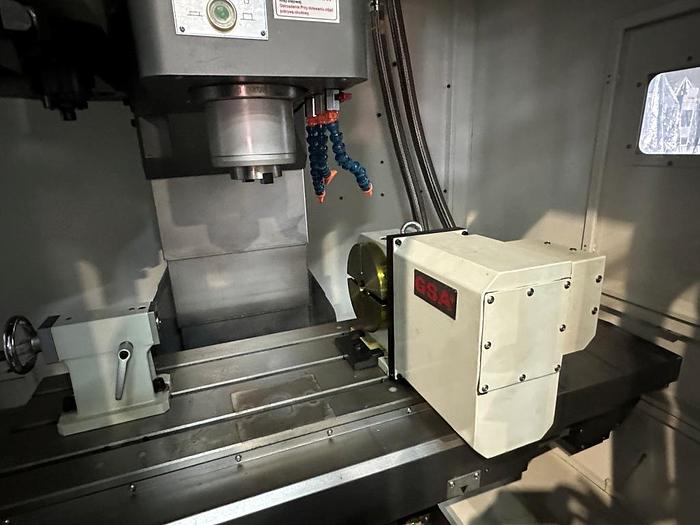

Cormak Mill 650 Vertical Machining Centre with 4th Axis

Machine Type: 3 Axis Vertical Machining Centre with 4th Axis

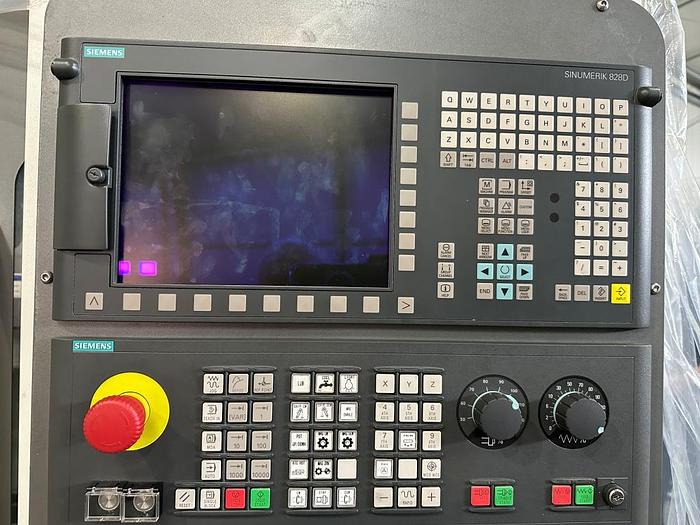

Control: Siemens 828D Control

Machine Description

High quality components used in this machining centre ensure reliable, long-term operation. This machine is efficient in many activities such as milling, drilling, threading and reaming while preserving high accuracy of operation. Every machine of this series is equipped with an efficient cooling system, providing optimal machining conditions.

Technical Specifications

Table dimensions: 900×400 mm

X Axis Travel: 650 mm

Y Axis Travel: 400 mm

Z Axis Travel: 500 mm

Number/width/distance of T-slots: 3–18–130 mm

Table load capacity: 400 kg

Spindle from table surface distance: 120–620 mm

Spindle axis from column distance: 510 mm

Rapid feed (X,Y,Z): 30/30/24 m/min

Feed speed: 2.5–4000 mm/min

Spindle taper: BT40

Spindle speed: 40–8000 rpm

Spindle motor power: 5.5 kW

Number of tools in magazine: 24

Maximum weight of tools: 8 kg

Maximum dimensions of tools: 150×350 mm

Positioning accuracy: 0.005 mm

Positioning repeatability: 0.003 mm

Dimensions: 2120×2150×2290 mm

Weight: 3600 kg


ModelMill 650 Vertical Machining Centre
ControlSiemens 828D Control
Table dimensions900×400 mm
X Axis Travel650 mm
Y Axis Travel400 mm
Z Axis Travel500 mm
Number/width/distance of T-slots3–18–130 mm
Table load capacity400 kg
Rapid feed (X,Y,Z)30/30/24 m/min
Feed speed2.5–4000 mm/min
Spindle taperBT40
Spindle speed40–8000 rpm
Spindle motor power5.5 kW
Maximum weight of tools8 kg
Maximum dimensions of tools150×350 mm
Positioning accuracy0.005 mm
Positioning repeatability0.003 mm
Dimensions2120×2150×2290 mm
Weight3600 kg
