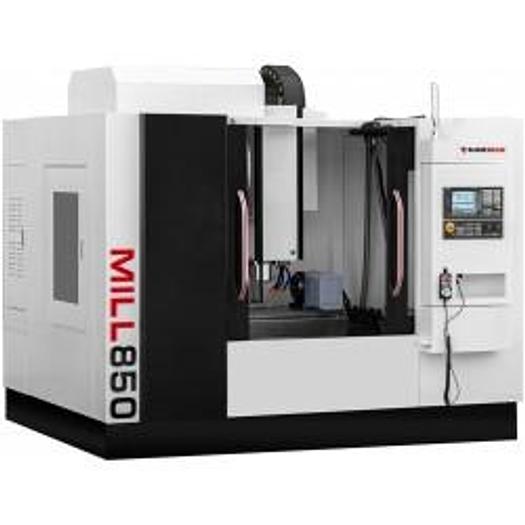

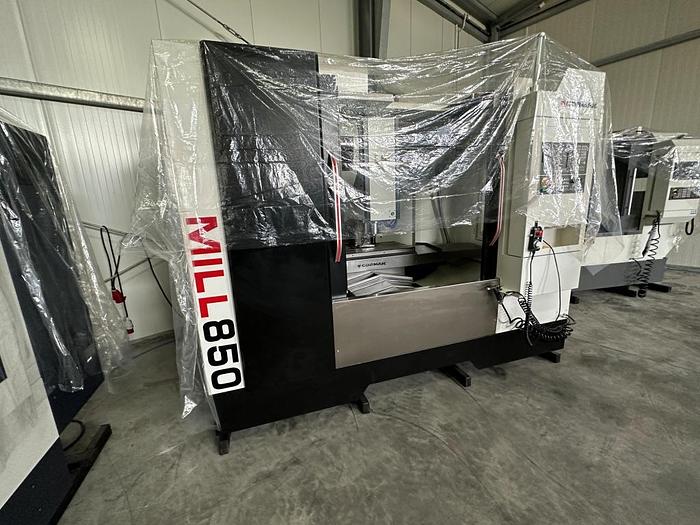

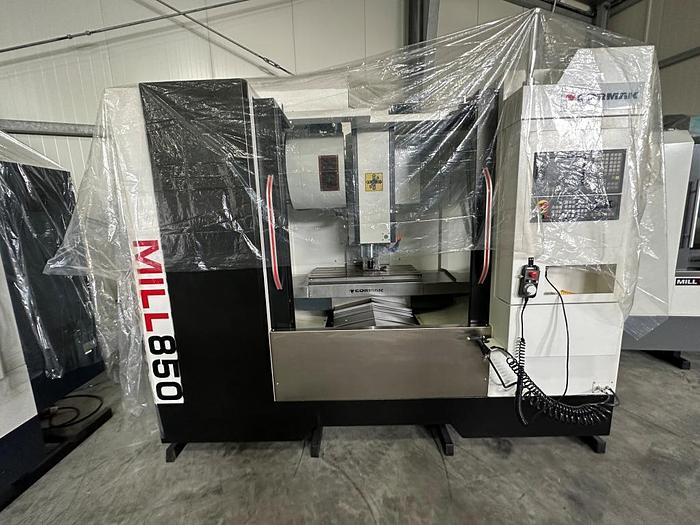

Cormak Mill 850 Vertical Machining Centre

Cormak Mill 850 Vertical Machining Centre

Machine Type: 3 Axis CNC Vertical Machining Centre

Control: Siemens 808D Control

Machine Description

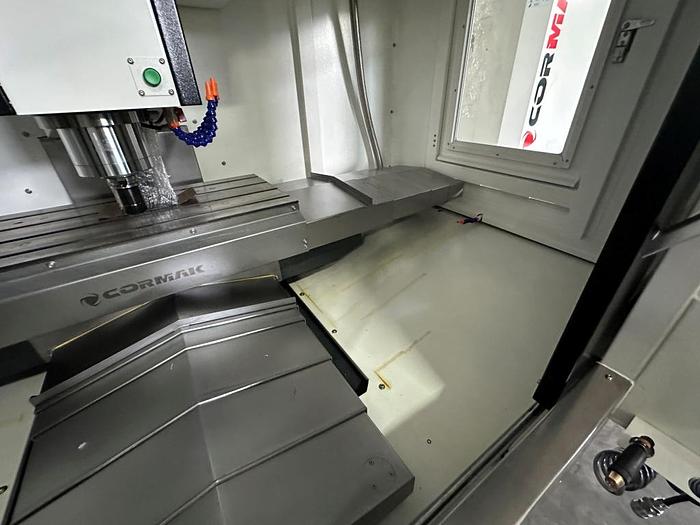

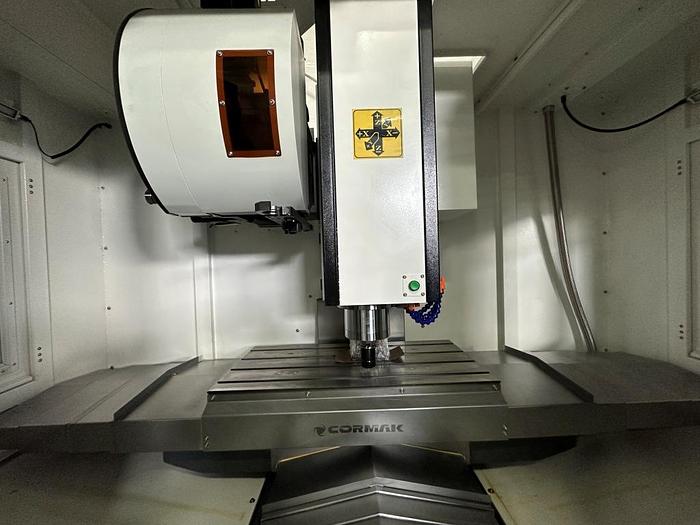

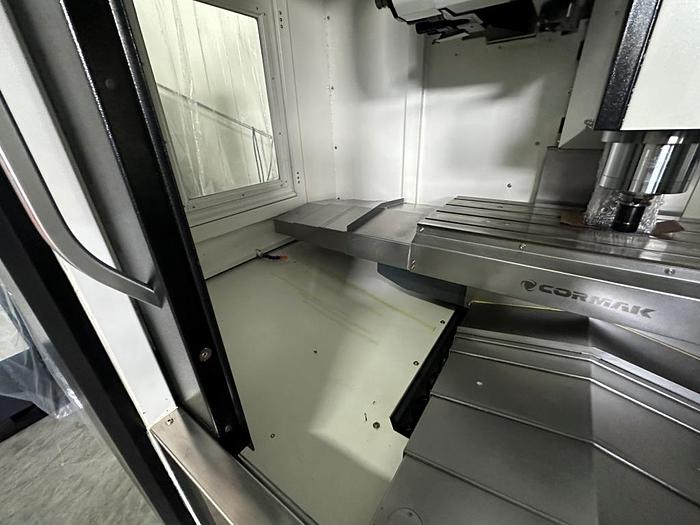

Cormak CNC centers have been designed based on proven components that guarantee reliability for a long time of use. The massive machine body ensures efficient and precise machining. Hermetic chamber ensures safety and cleanliness at the workplace. The table with a hardened surface can accept workpieces without loading the mechanical elements of the structure. Each machine in this series is equipped with an efficient cooling system to ensure optimal cutting conditions.

• Top quality linear guides for all axes
• Heavy Duty machine body
• Good accessibility of the work table
• Hermetic working chamber ensuring work safety
• CNC control (SIEMENS SINUMERIK 808D)

Technical Specifications

Spindle taper: BT40

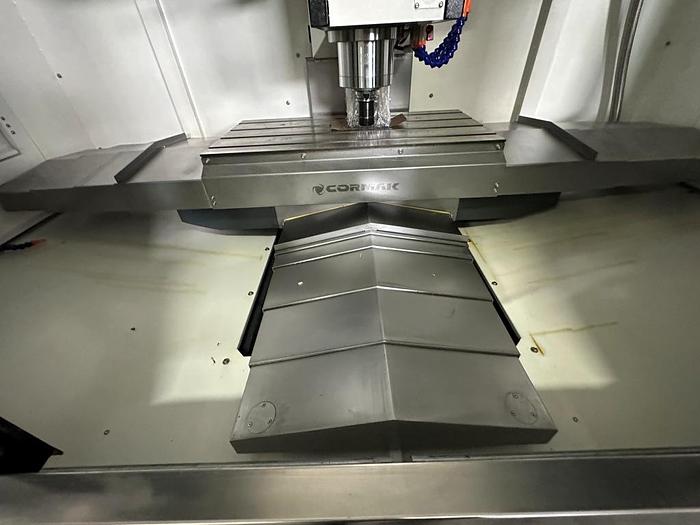

Table dimensions: 1000 x 500 mm

The distance between the spindle and the table surface: 705 mm

The distance between the spindle and the column: 530 mm

X Axis Travel: 800mm

Y Axis Travel: 555 mm

Z Axis Travel: 555 mm

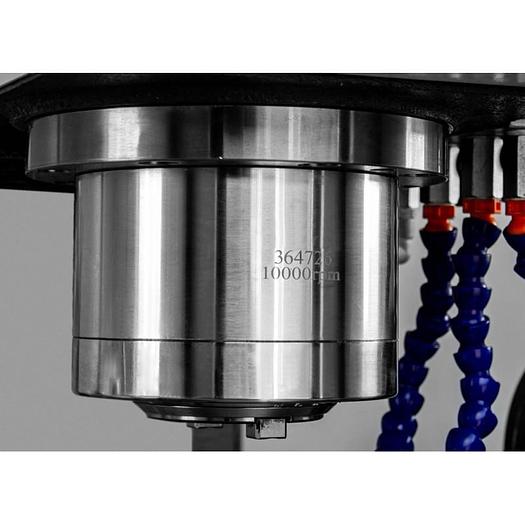

Spindle speed: 10000 rpm

Number / width / spacing of T-slots: 5 / 18 mm / 120 mm

Working feed: 2000 mm/min

Rapid feed X,Y,Z: 15 m/min

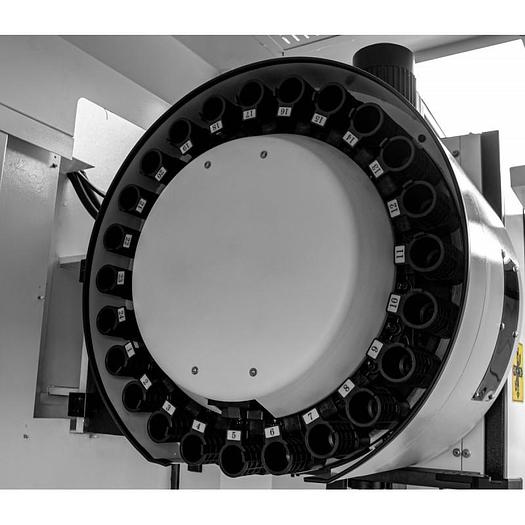

Number of tools in the magazine: 24

Power (torque) of feed drives: 2 / 2 / 3,4 kW

Spindle motor power:7,5 kW

Power supply, total power: 400V / 18 kW

Max. table load: 500 kg

Dimensions (L x W x H): 2800 x 2300 x 2700 mm

Weight: 5000 kg
