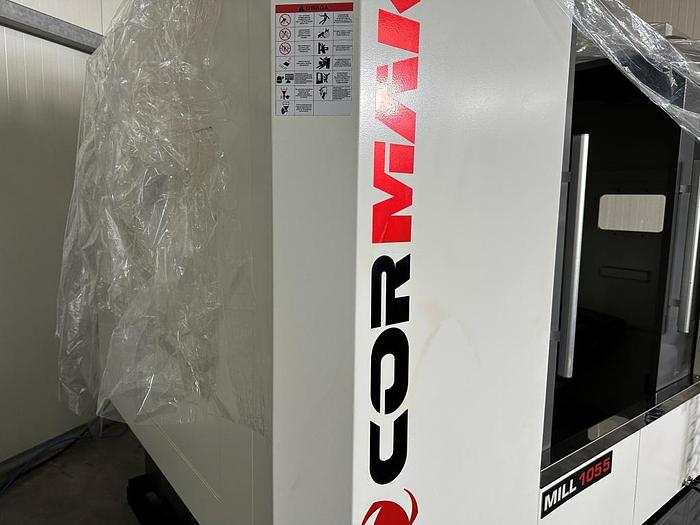

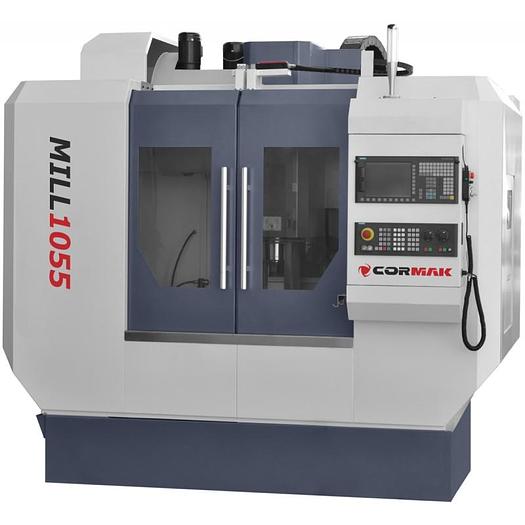

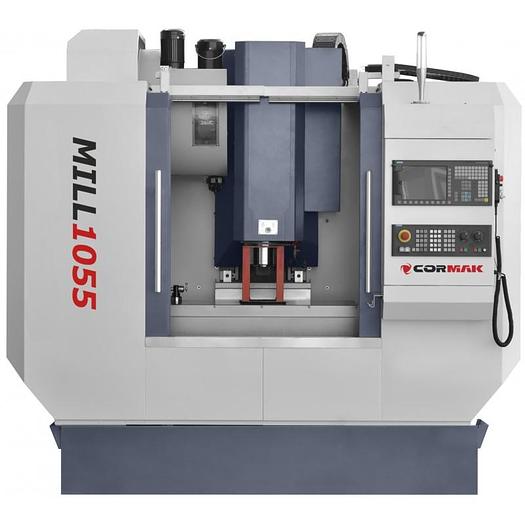

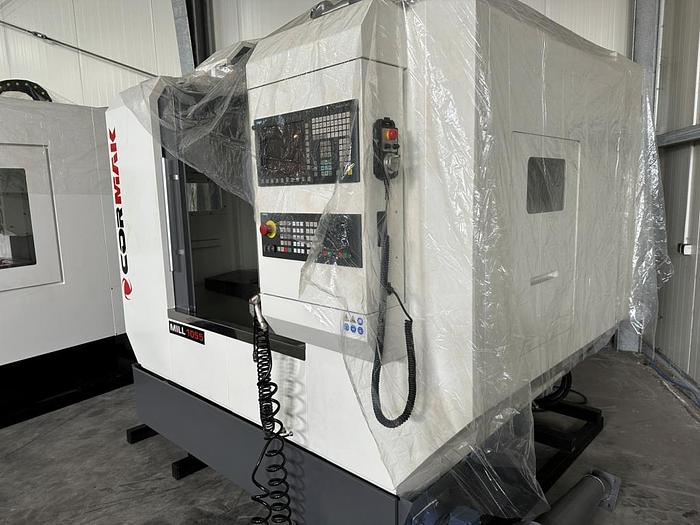

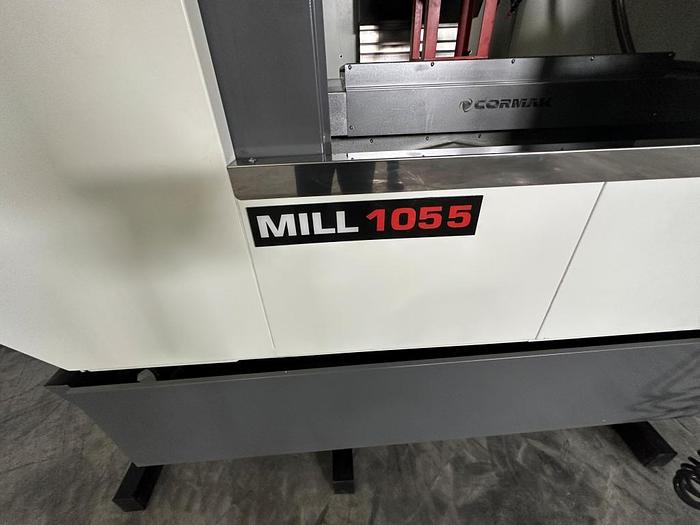

Cormak Mill 1055 Vertical Machining Centre

Cormak Mill 1055 Vertical Machining Centre

Machine Type: 3 Axis Vertical Machining Centre

Control: Siemens 828D Control

Machine Description

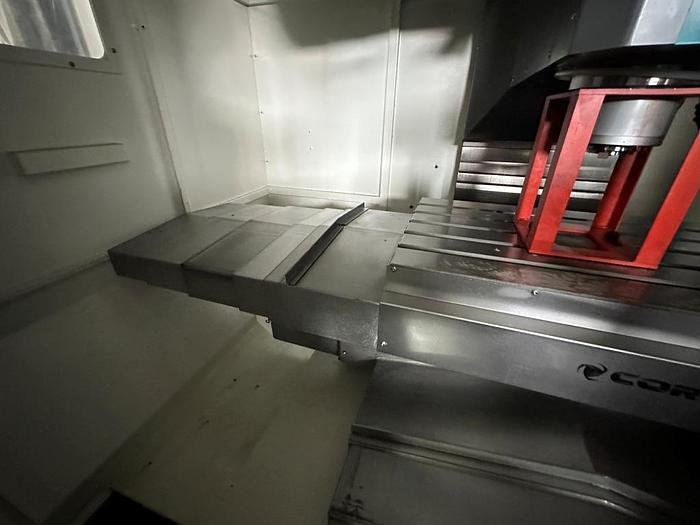

Cormak CNC machining centers have been designed based on proven components that guarantee reliability for a long time of use. The heavy duty machine body ensures efficient and precise machining. The hermetic chamber ensures safety and cleanliness at the workplace. A table with a hardened surface can receive workpieces without stressing the mechanical components of the structure. Each machine in this series is equipped with an efficient cooling system ensuring optimal cutting conditions.

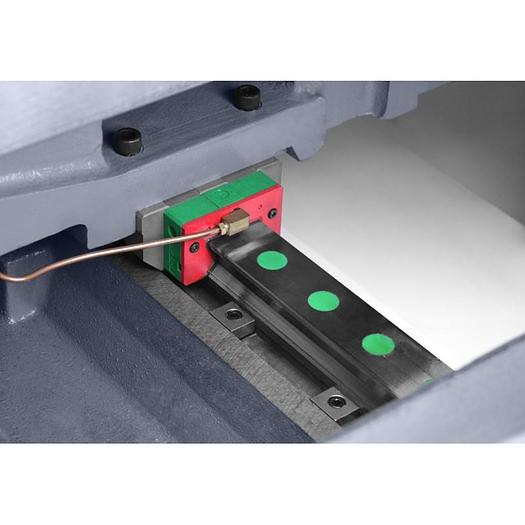

• Best quality guides for all axes
• Heavy duty machine body
• Good accessibility of the work table

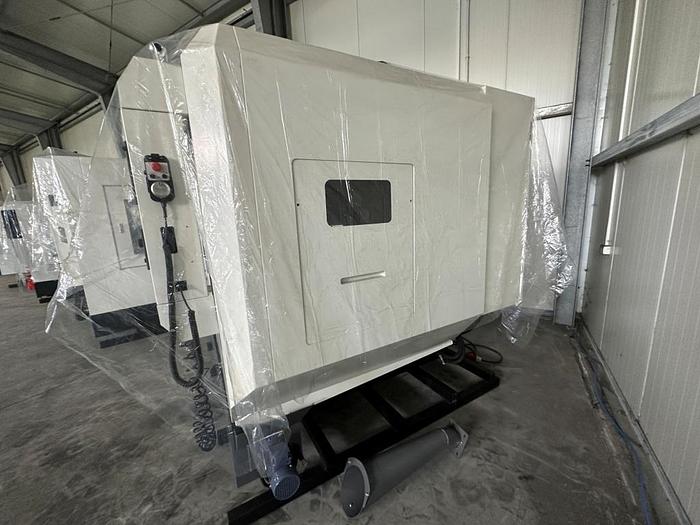

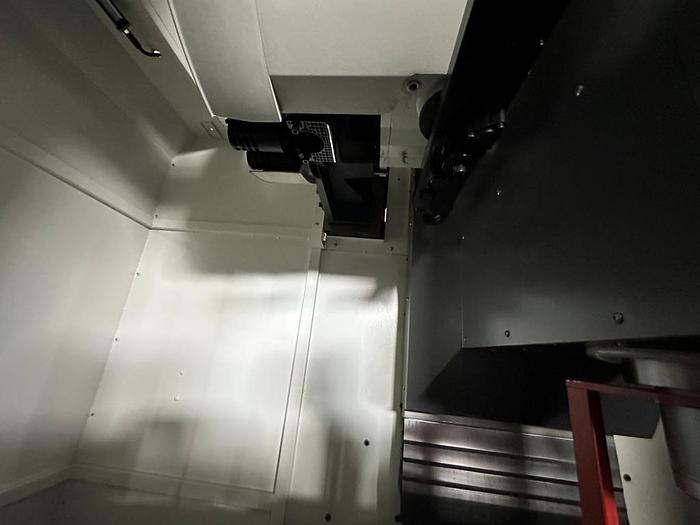

• Hermetic working chamber ensuring work safety

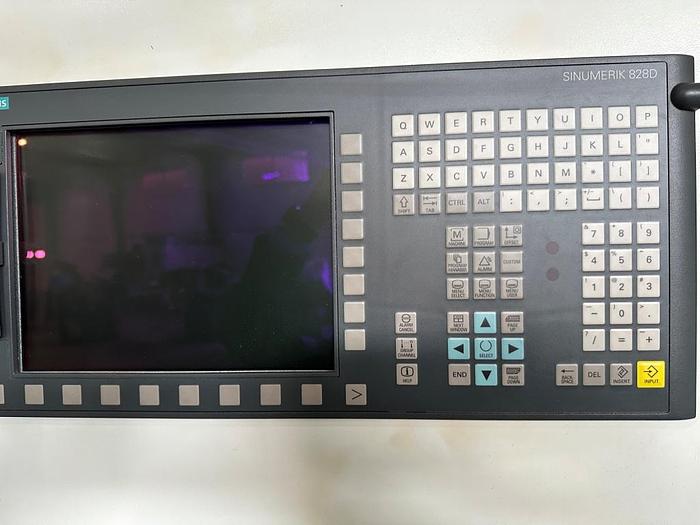

• SINUMERIK 828D control

Technical Specifications

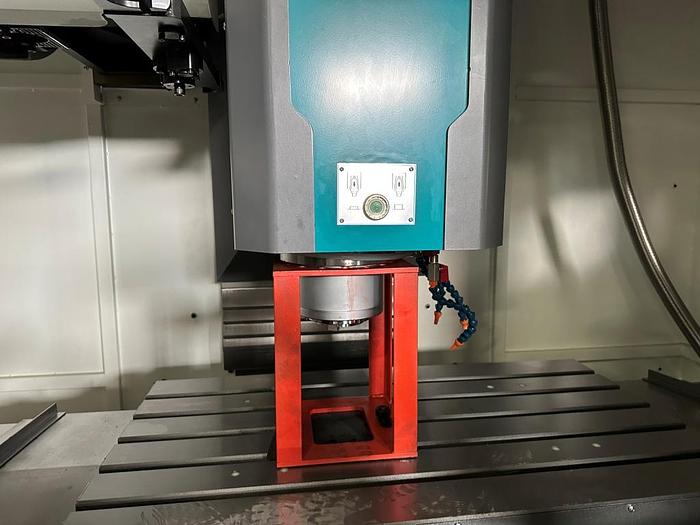

Spindle taper: BT40

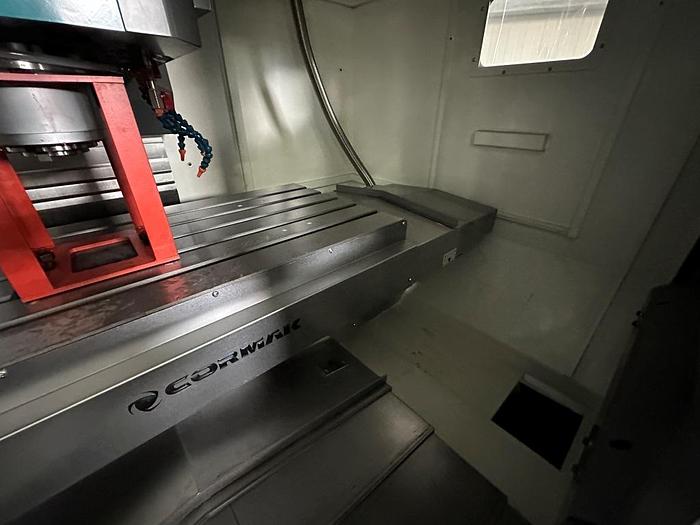

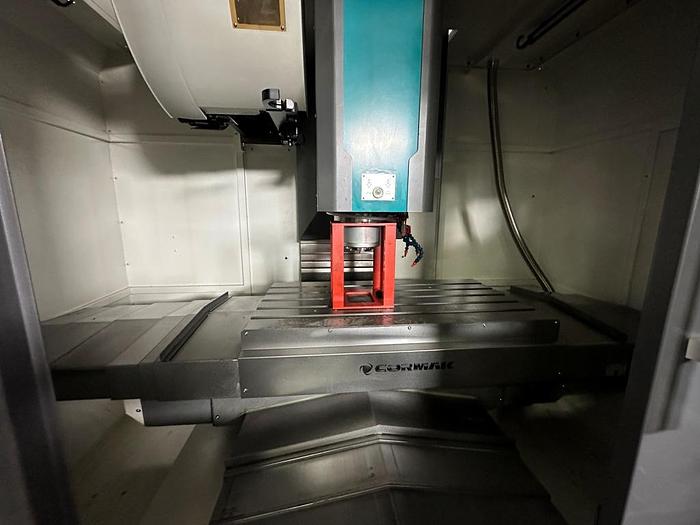

Worktable dimensions: 1000x550 mm

Distance of the spindle nose to the table surface: 150-700 mm

Distance of the spindle axis to the column: 560 mm

X Axis Travel: 850 mm

Y Axis Travel: 540 mm

Z Axis Travel: 550 mm

Spindle speed range: 10000 rpm/min

Number of T-slots, width, spacing: 5 - 18 mm - 90 mm

Rapid feed X, Y, Z: 30, 30, 24 mm/min

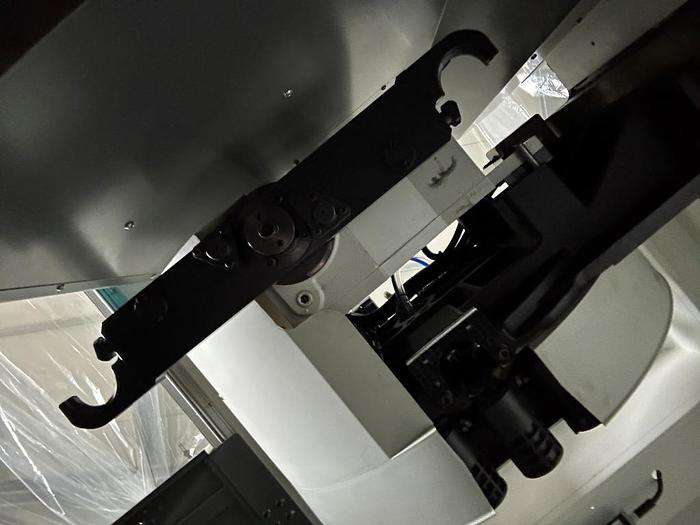

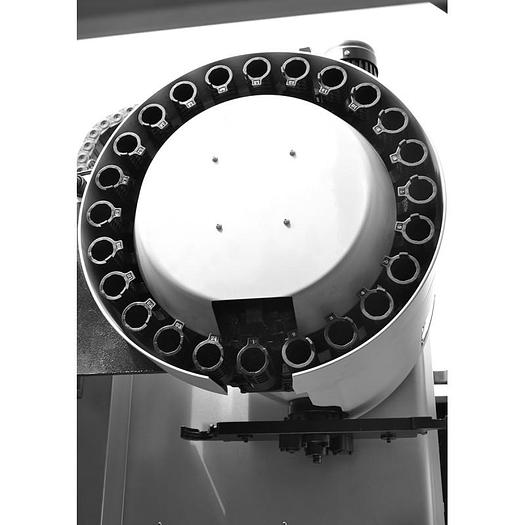

Number of tools in the magazine: 24

Spindle motor power: 7,5 kW

Power supply: 400V

Max. table loading: 500 kg

Dimensions: 2550x2420x2788 mm

Weight: 5000 kg
