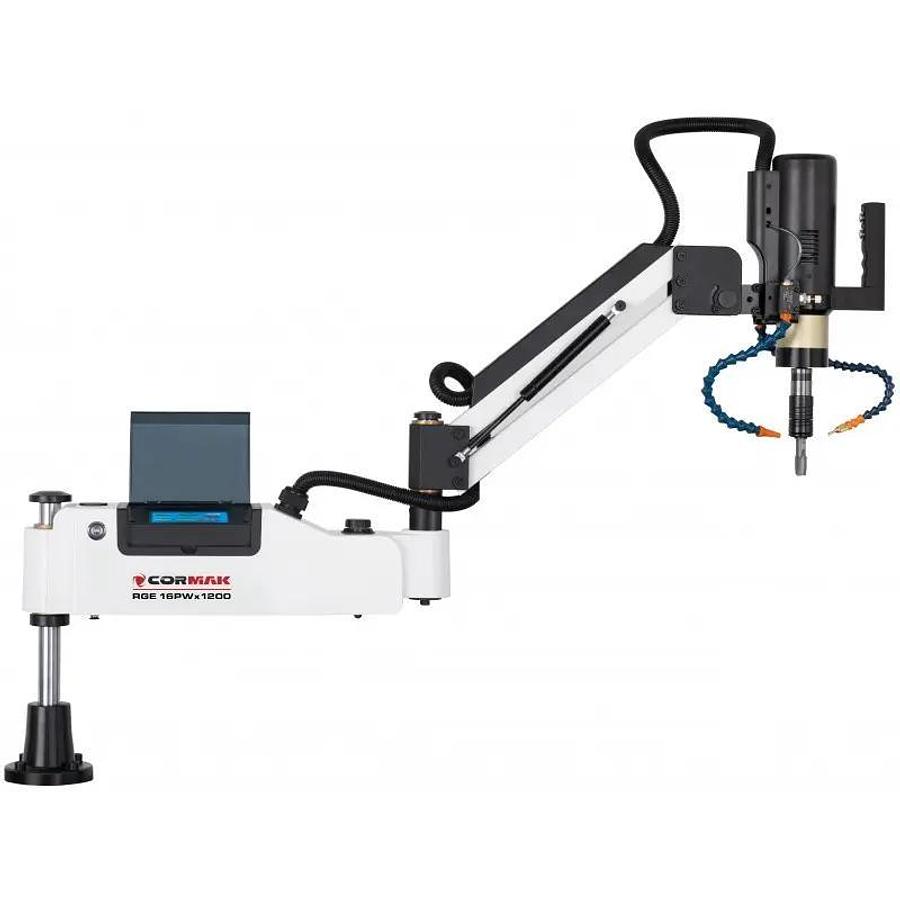

Cormak RGE16PW Tapping Machine

Cormak RGE16PW Tapping Machine

Machine Type: Electrically Powered Tapping Machine

Machine Description

The electric tapping machine is a versatile threading device that is used in both large production plants and small workshops. Its main advantage is shortening the time of threading operations, making the process much more effective.

The threading machine has a simple and compact design, equipped with a swivel head, which increases the possibilities of its use. The device is driven by a high-torque servo drive, which ensures strong and reliable operation. In order to operate the device, the threading arm is equipped with a touch control panel with a menu available in Polish. This intuitive panel allows you to easily program threading parameters such as rotational speed, threading direction and thread cutting depth.

The standard equipment of the threading machine includes a micro-spraying system, which is used for constant cooling with minimal consumption of cooling lubricant. In addition, the device is equipped with a chip blower, which ensures optimal visibility of the drilled hole.

The tapping arm is equipped with a quick-mount holder that allows easy and quick attachment of taps to through and blind holes. Additionally, the device has a rotating motor unit that allows thread cutting at any angle ranging from 0° to 90°. Compared to manual threading, the threading machine offers greater accuracy and reliable threading while maintaining a right angle (90°).

Collets for taps are equipped with adjustable overload clutches. The couplings in the sleeves are pre-adjusted to standard torque values ​​for specific tap sizes, but these settings can be corrected using a special key included in the set. It also includes a large radius swivel arm that makes it easier to position the tap on the workpiece, ensuring precise and efficient thread cutting. It is intended for cutting threads in various materials such as steel, stainless steel, aluminum and non-ferrous metals.

An electric threading machine is a reliable and effective tool that speeds up the threading process, improving the precision and quality of threads. Thanks to its versatility and ease of use, it is used in various industries, from industrial production to craft workshops.

Thanks to the use of modern technologies and solid construction, the threading machine ensures not only time savings, but also long-term efficiency and durability. It is an indispensable tool for professionals who require fast, precise and reliable threading in their work.

The set includes tap holders:

M3, M4, M5, M6-8, M10, M12, M13, M16

The machine is sold without a work table, vice and taps

Technical Specification

Motor Power: 0.6kW

Electrical Connection: 230V

Weight: 30kg

Max Arm Reach: 1100mm

Max Rotation Speed: 312rpm
