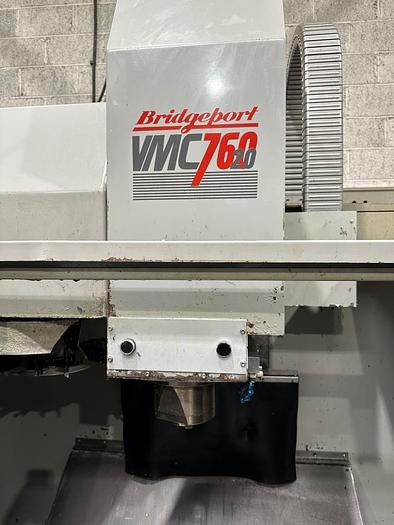

1993 Bridgeport VMC 760/22 Vertical Machining Centre
Sold
Description
Bridgeport VMC 760/20 Vertical Machining Centre
Machine Type: 3 Axis Vertical Machining Centre
Year: 1993

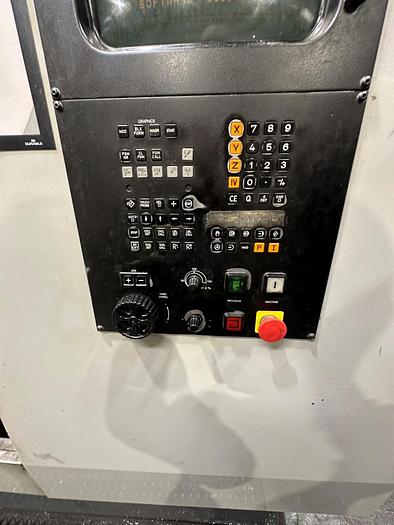

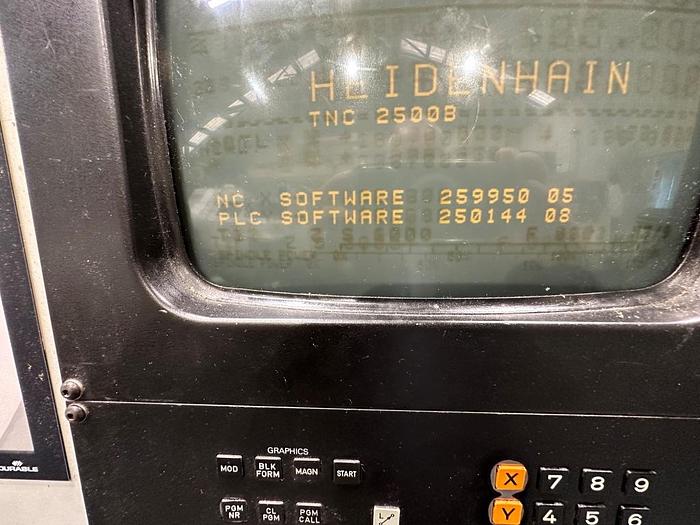

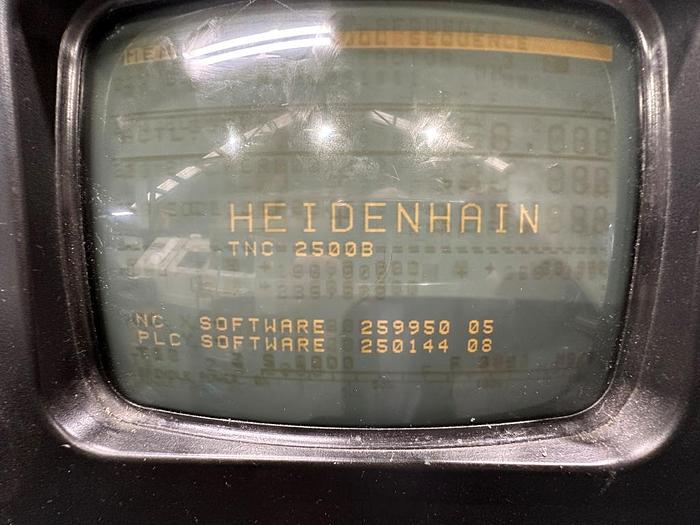

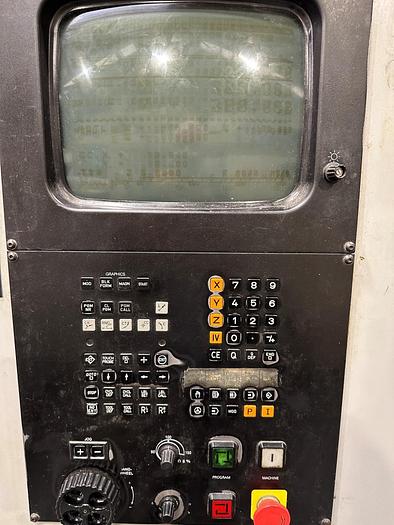

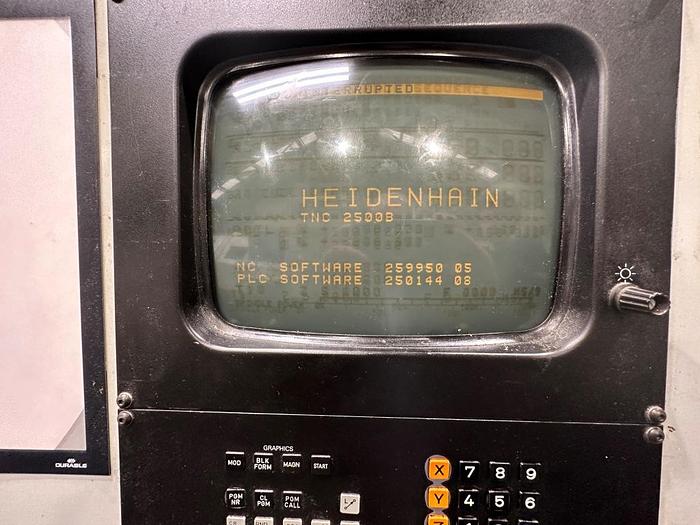

Control: Heidenhain TNC 2500B
Condition: Running Well
Technical Specifications

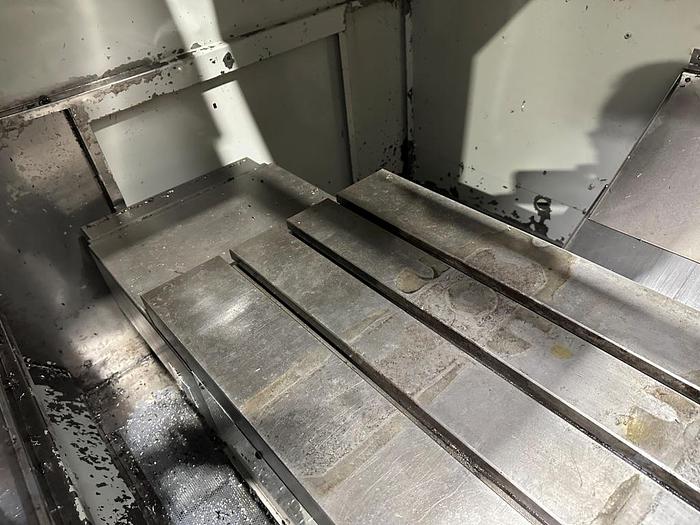

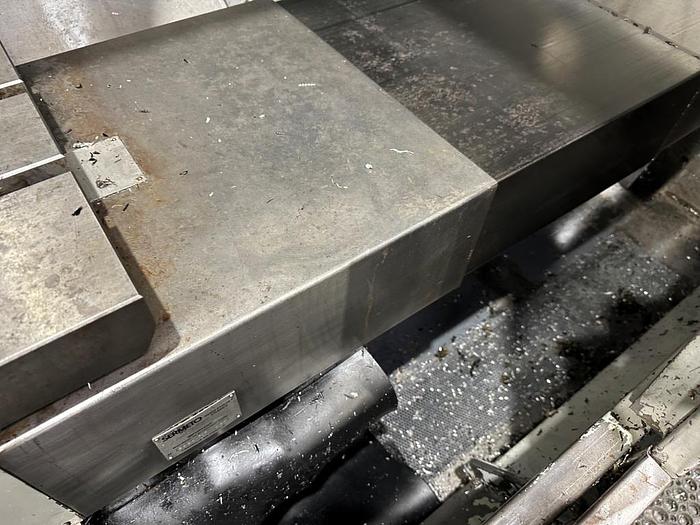

Table Size: 990 x 490mm
X Axis Travel: 760mm
Y Axis Travel: 500mm
Z Axis Travel: 480mm

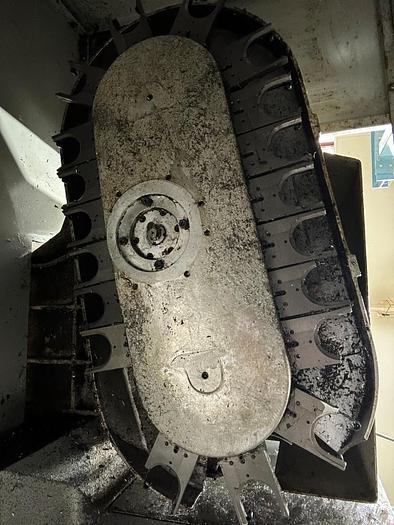

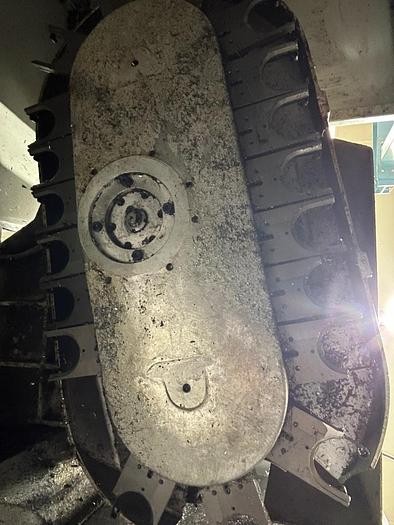

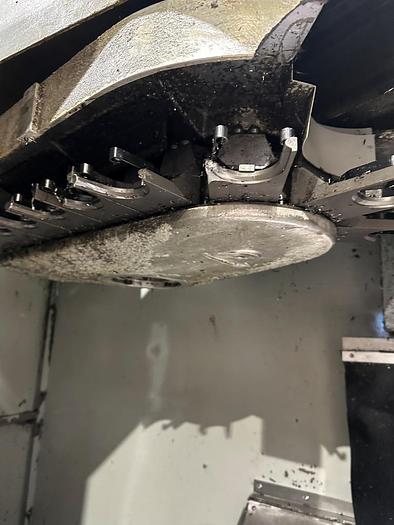

ATC Capacity: 20 Tools

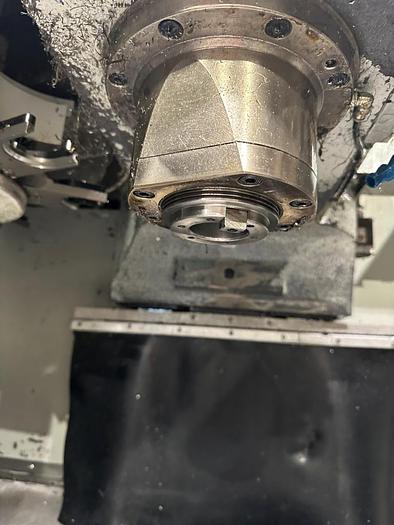

Spindle Taper: BT 40
Spindle Motor Power: 11kW
Max Spindle Speed: 6000rpm
Machine Dimensions: 3100 x 2520 x 2500mm
Machine Weight: 3600kg
Specifications
| Manufacturer | Bridgeport |
| Model | VMC 760/22 Vertical Machining Centre |
| Year | 1993 |
| Condition | Used |
| Year | 1993 |
| Control | Heidenhain TNC 2500B |
| Condition | Running Well |
| Table Size | 990 x 490mm |
| X Axis Travel | 760mm |
| Y Axis Travel | 500mm |
| Z Axis Travel | 480mm |
| ATC Capacity | 20 Tools |
| Spindle Taper | BT 40 |
| Spindle Motor Power | 11kW |
| Max Spindle Speed | 6000rpm |
| Machine Weight | 3600kg |
