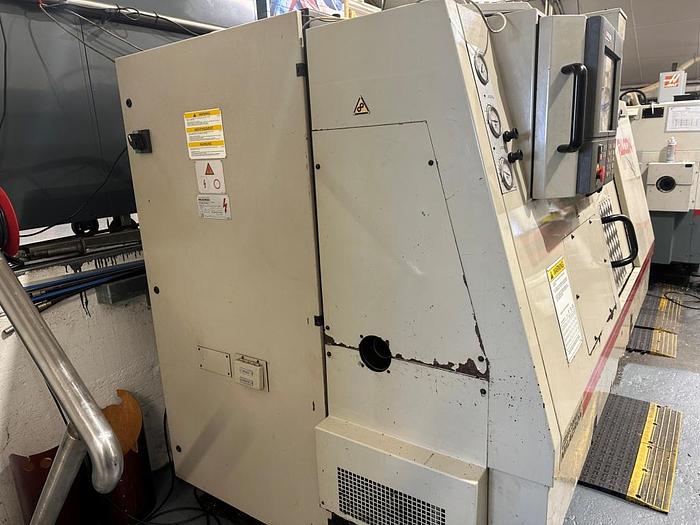

Cincinnati Milacron Falcon 200 CNC Lathe
Sold
Description

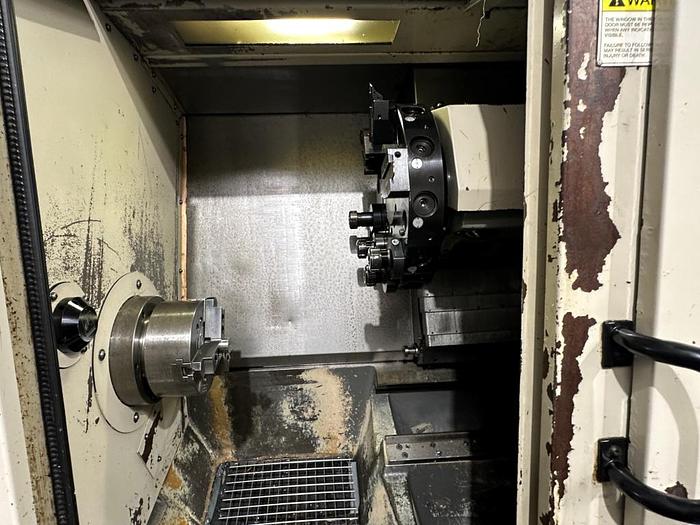

Cincinnati Milacron Falcon 200 CNC Lathe
Machine Type: 2 Axis CNC Lathe

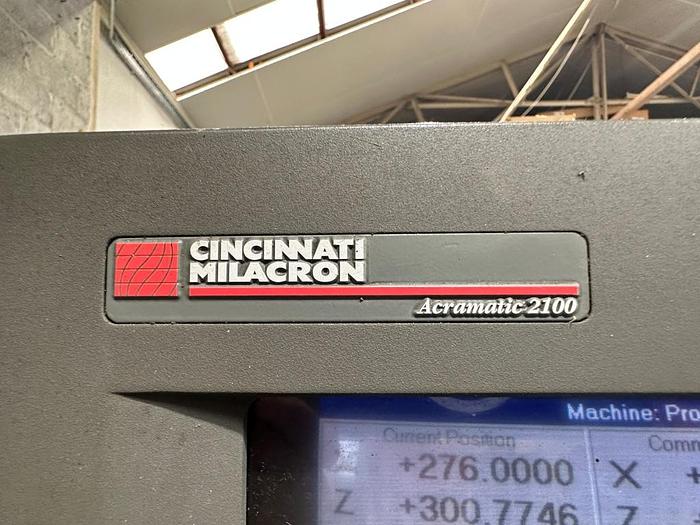

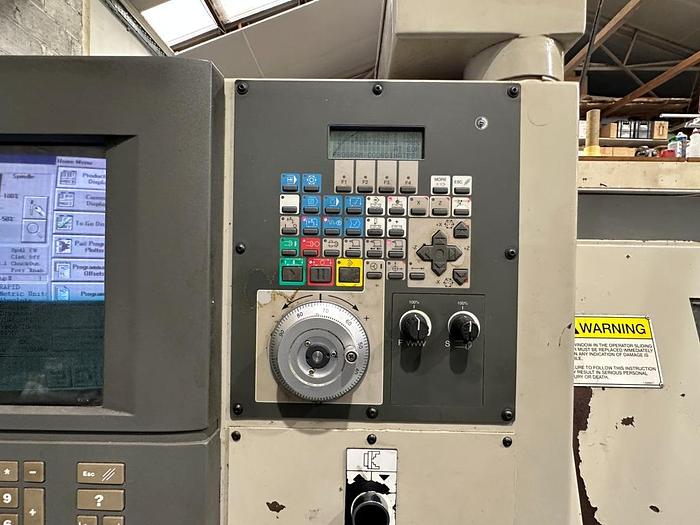

Control: Acramatic 2100
Condition: Running Well
Notes: New Solid State Drive(SSD) & Reconditioned Spindle Motor Fitted
Includes
Selection of Tool Holders

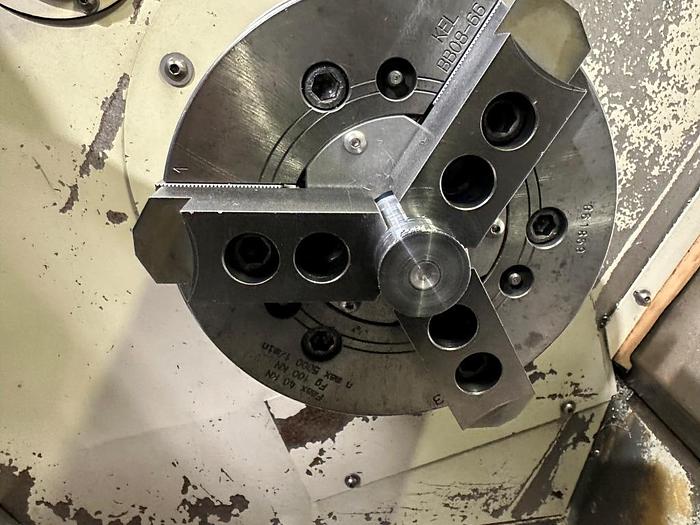

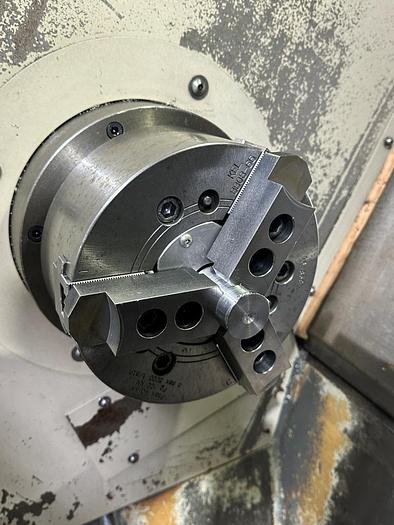

210mm Power Chuck

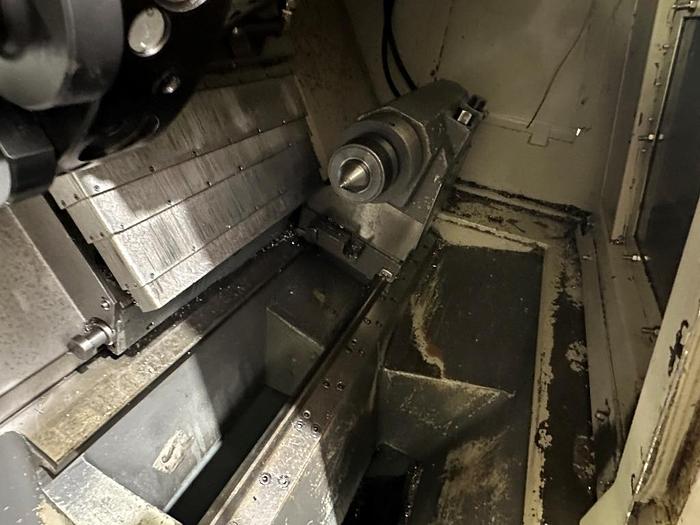

Tail Stock
Swarf Conveyor
HP Coolant

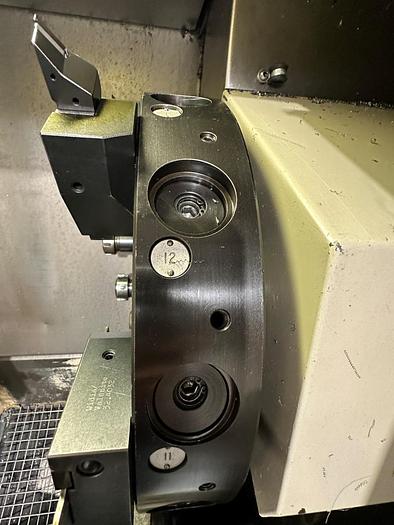

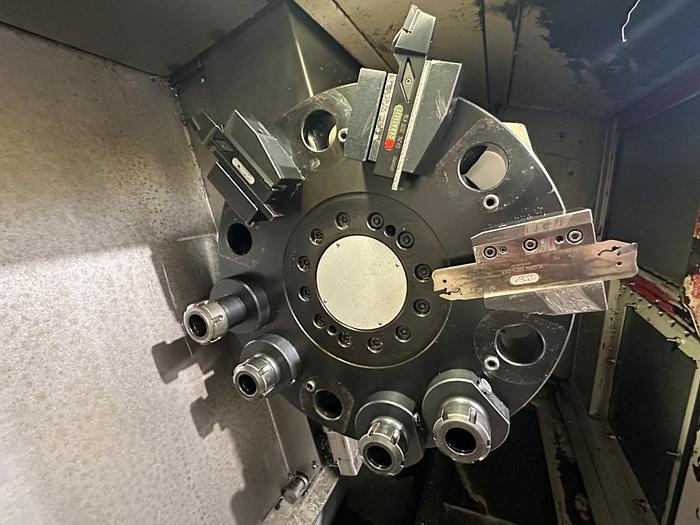

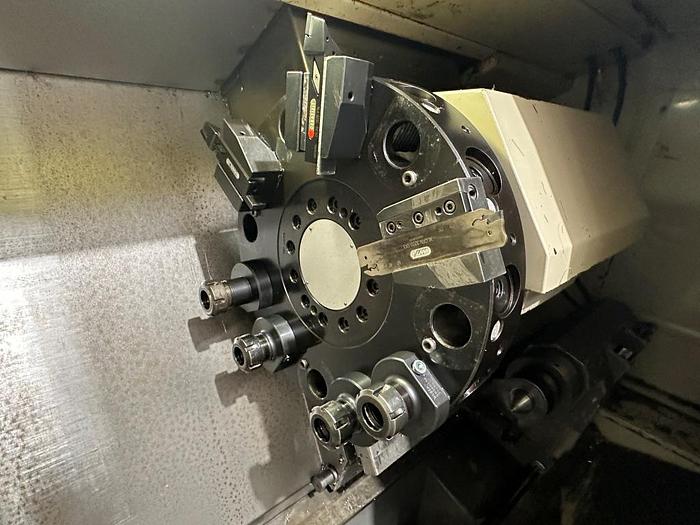

12 Station Turret
Technical Specifications
Max Spindle Speed: 4500rpm
Spindle Bore: 67mm
Max Bar Capacity: 51mm
X Axis Travel: 215mm
Z Axis Travel: 420mm
Max Machining Length: 400mm
Swing: 530mm
Max Turning Diameter: 360mm
Turret: 12 Station VDI 40
Tailstock: Yes
Tailstock Taper: MT5
Main Drive Power: 15kW
Machine Dimensions: 2770 x 1400 x 1955mm
Machine Weight: 3000kg
Specifications
| Manufacturer | Cincinnati Milacron |
| Model | Falcon 200 CNC Lathe |
| Condition | Used |
| Machine Type | 2 Axis CNC Lathe |
| Control | Acramatic 2100 |
| Condition | Running Well |
| Max Spindle Speed | 4500rpm |
| Spindle Bore | 67mm |
| Max Bar Capacity | 51mm |
| X Axis Travel | 215mm |
| Z Axis Travel | 420mm |
| Max Machining Length | 400mm |
| Swing | 530mm |
| Max Turning Diameter | 360mm |
| Turret | 12 Station VDI 40 |
| Tailstock | Yes |
| Tailstock Taper | MT5 |
| Main Drive Power | 15kW |
| Machine Weight | 3000kg |
