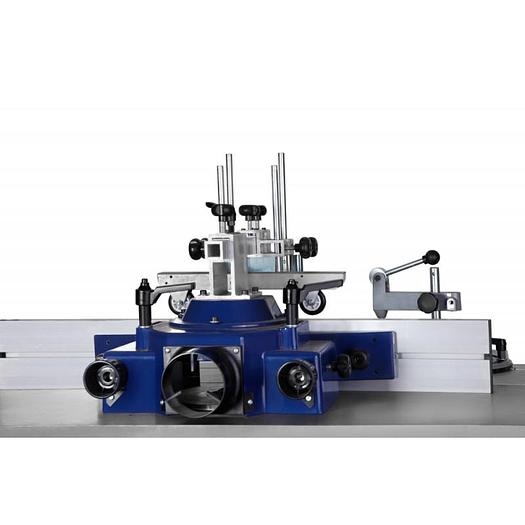

Cormak WS1000TA Spindle Moulder

Cormak WS1000TA Spindle Moulder

Machine Type: Spindle Moulder

Machine Description

Perfect machine for both professionals and novices. Tilting cutter arbor expands the capabilities of basic tools. Thanks to its sturdy construction it is used in small workshops and in large carpentry facilities.

• Large milling cast iron table, ground and polished.
• Moulder base made of welded steel metal sheets
• Precise spindle height adjustment through a big handwheel
• Precise milling limiter adjustment
• Stability of milling unit in bearings with column guide
• Easy switching between 4 speeds: 1800/3000/6000/9000 rpm
• V-belt drive
• Tilting cutter arbor expands the capabilities of basic tools
• Easy exchange of milling cutter

Standard Equipment

• 30 mm spindle
• Movable table expansion

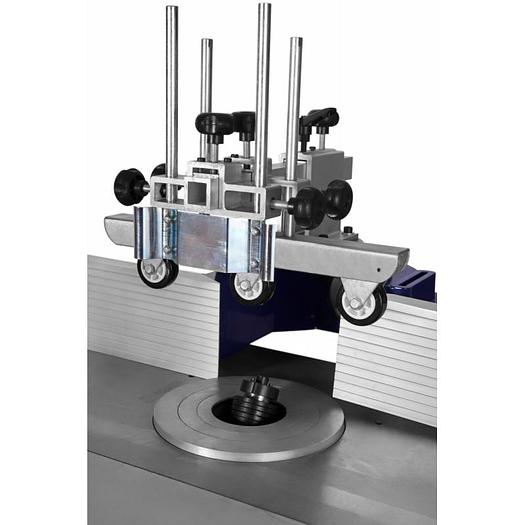

• Side and upper workpiece clamping
• Precise setting of milling limiter
• Component for arc milling

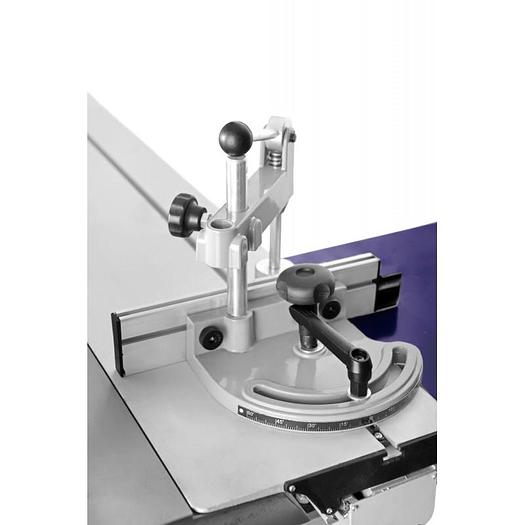

• Angular limiter
• User manual
• EC declaration of conformity

Technical Specifications

Spindle diameter: 30 mm

Spindle speeds: 1800, 3000, 6000, 9000 rpm

Spindle stroke: 100 mm

Table dimensions (length×width): 1000×360 mm

Movable table dimensions (length×width): 1000×240 mm

Table height: 900 mm

Maximum cutter diameter: 180 mm

Spindle tilt: +5/-45°

Motor power: 2.8 kW

Weight: 270 kg
