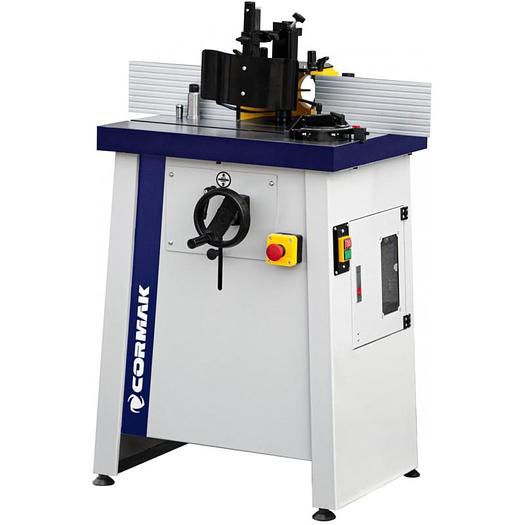

Cormak SH-30S Spindle Moulder

Cormak SH-30S Spindle Moulder

Machine Type: New Spindle Moulder for Woodworking

Machine Description

The retractable spindle of 30 mm rotates at four speeds. In the upper part of the cover there is a mechanism holding the processed material. The machine has a thick cast spindle iron table and a stable and massive base that dampens vibrations. Replacement spindle for ER collets for end mills is also included.

• Heavy, stable spindle moulder with interchangeable spindle and collet!

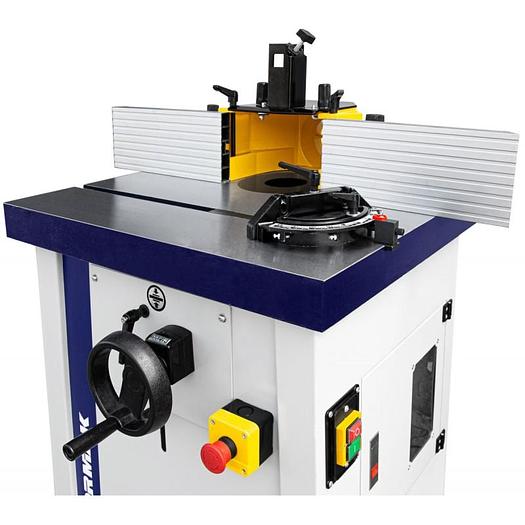

• The milling table made of cast iron, ground guarantees optimal sliding of the workpiece
• Included : workpiece holder, tilting stop 60 ° left / right, workpiece stop
• REINFORCED balanced spindle for perfect milling during machining.
• Standard height adjustment with scale!

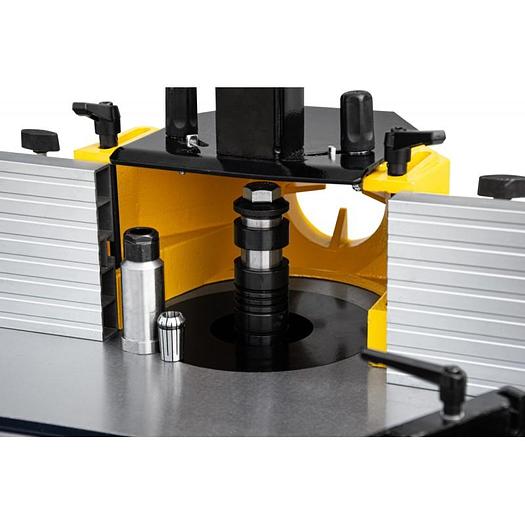

• Interchangeable spindle with collet (1/2 "), angle stop, clamp, clamping tool
• Spindle speed 1400 / 4000 / 6000 / 9000 rpm /min.
• The machine has non-slip feet (work without vibrations)
• Intended for processing the edges of rectilinear elements and for creating decorative strips, grooves, tongues, tenons and dovetails
• The machine meets all security requirements that meet all health and safety, DTR, and CE conditions

Technical Specifications

S1 Motor power: 2200W

Voltage: 400V

Table dimensions: 620 x 510mm

Table height: 860mm

Dust port: 100mm

Spindle pitch: 100mm

Max. mounting height: 105mm

Table hole: 160mm

Max. diameter of tools under the table: 150mm

Spindle speed: 1400 / 4000 / 6000 / 9000 rpm /min.

Spindle diameter: 30mm

Overall dimensions: 640 x 660 x 1250mm

Gross weight: 126 kg
