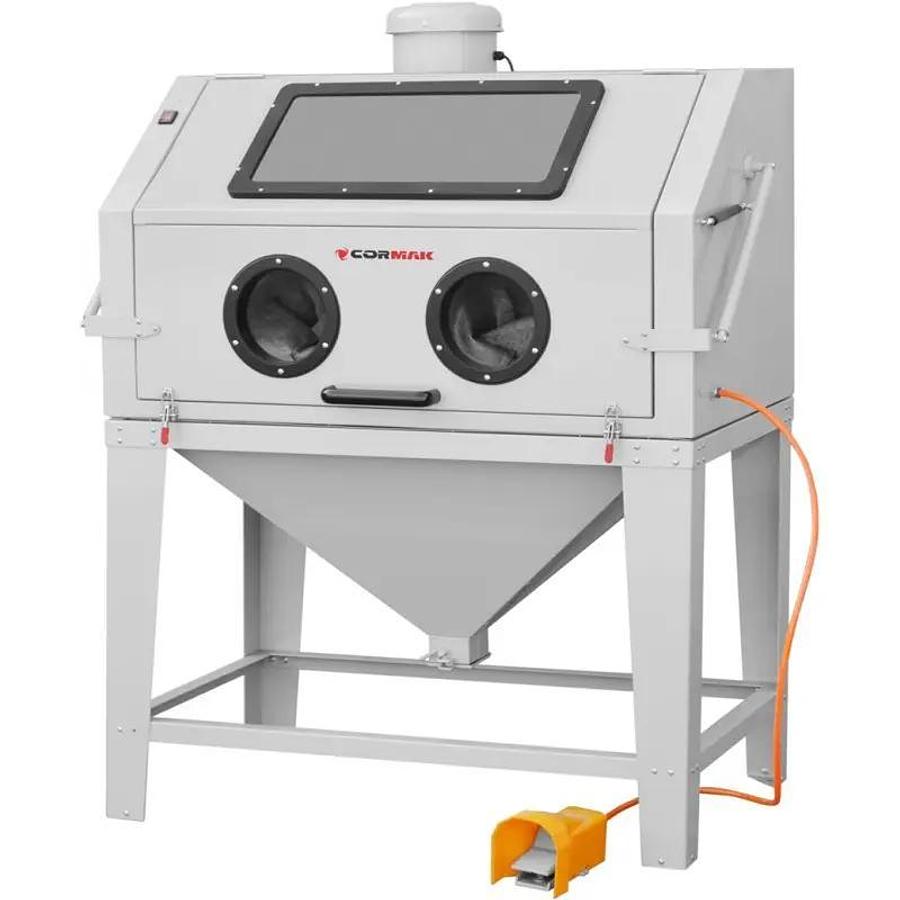

Cormak KDP450TOP - 450L Sandblaster with Dust Extraction

Cormak KDP450TOP - 450L Sandblaster with DC15 Dust Extractor

Machine Description

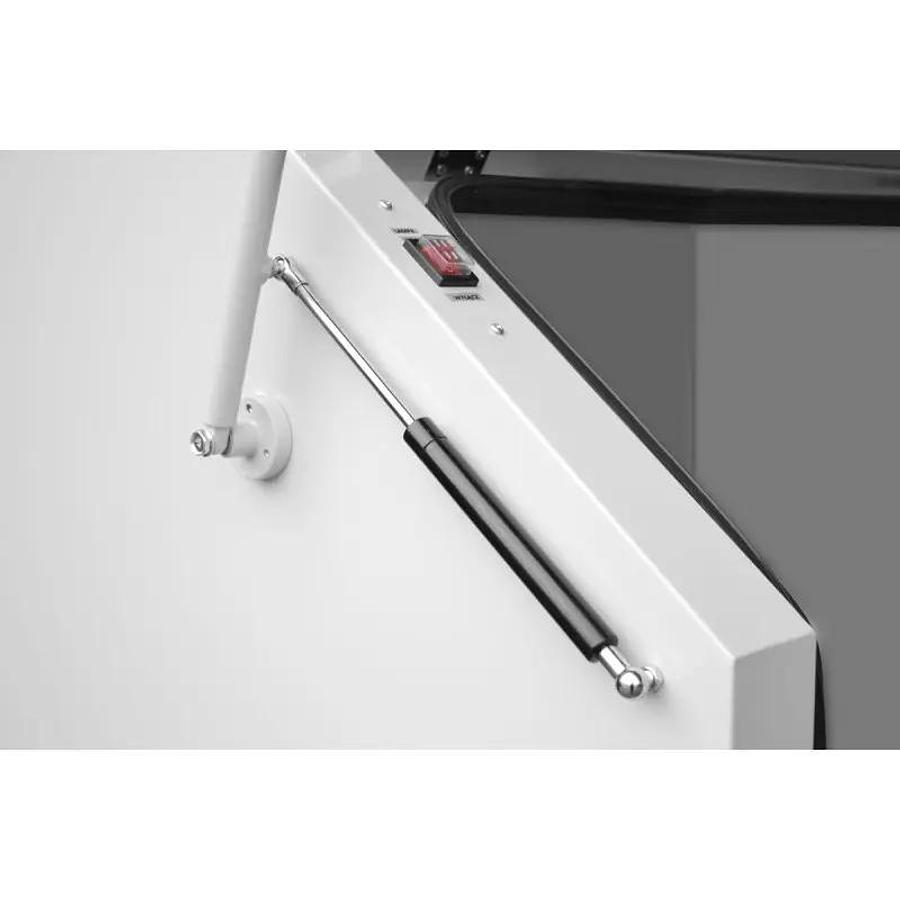

A cabinet sandblaster with a top-opening design is a significant convenience when working with large and heavy workpieces. Telescopic struts mounted in the doors make opening easier. The sandblaster is supplied as standard with an integrated dust extraction system generated during blasting. Equipped with a set of nozzles, a blasting gun and protective films for the viewing window.

Cabinet Sandblaster KDP450TOP – professional sandblasting cabinet for wheels, metal and steel structures

Cabinet sandblaster KDP450TOP is a reliable and efficient industrial machine designed for abrasive blasting of various metal surfaces. The 450-litre working chamber allows cleaning and matting of larger components such as wheels, housings, steel profiles and rims. The top-opening design and spacious cabinet interior ensure comfortable access to the workpieces. This model is ideally suited for industrial plants, automotive workshops, regeneration services and companies providing renovation services.

Main advantages of the machine

Large 450L working chamber – enables cleaning of large and bulky components.

Dust-free operation – tight perimeter seals prevent dust from escaping during sandblasting.

DC15 cyclone dust extractor included – ensures efficient removal of abrasive particles and dust.

High-quality equipment: blasting gun with ceramic nozzles, viewing window 580 × 270 mm, integrated protective gloves.

Compatible with various abrasives: glass beads, quartz, emery, plastic media, etc.

Easy abrasive replacement thanks to the drain opening located in the lower part of the hopper.

1/4" quick coupling – standard air connection compatible with most compressed air systems.

Design and technology

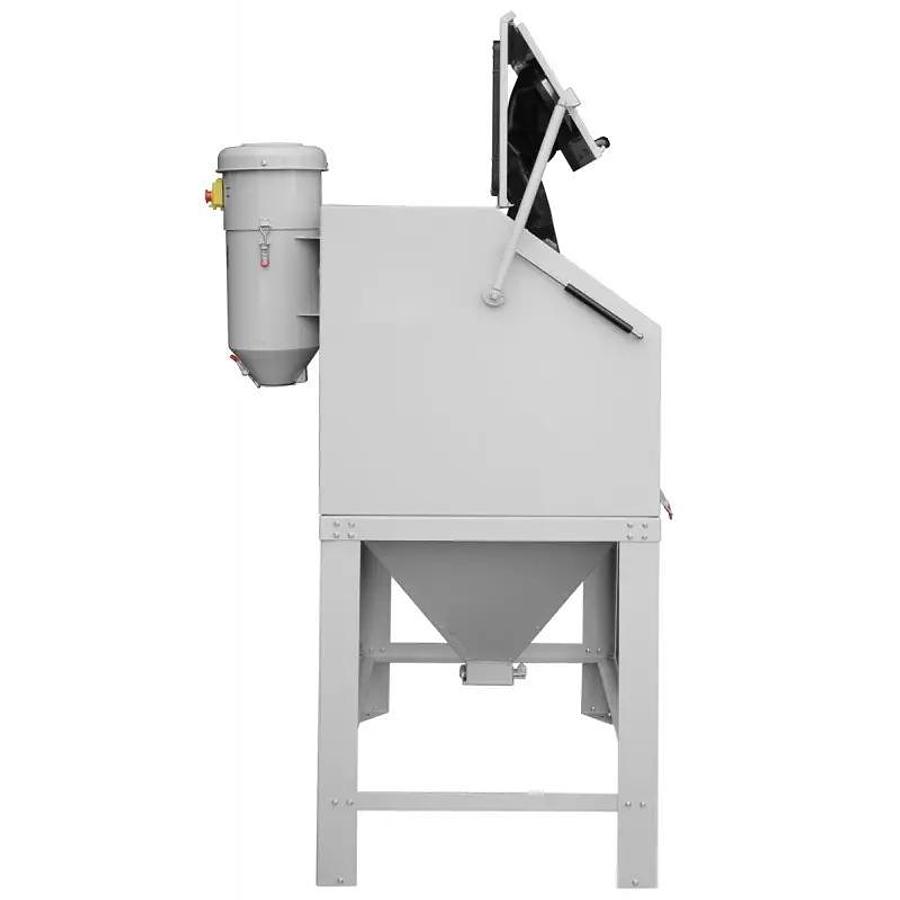

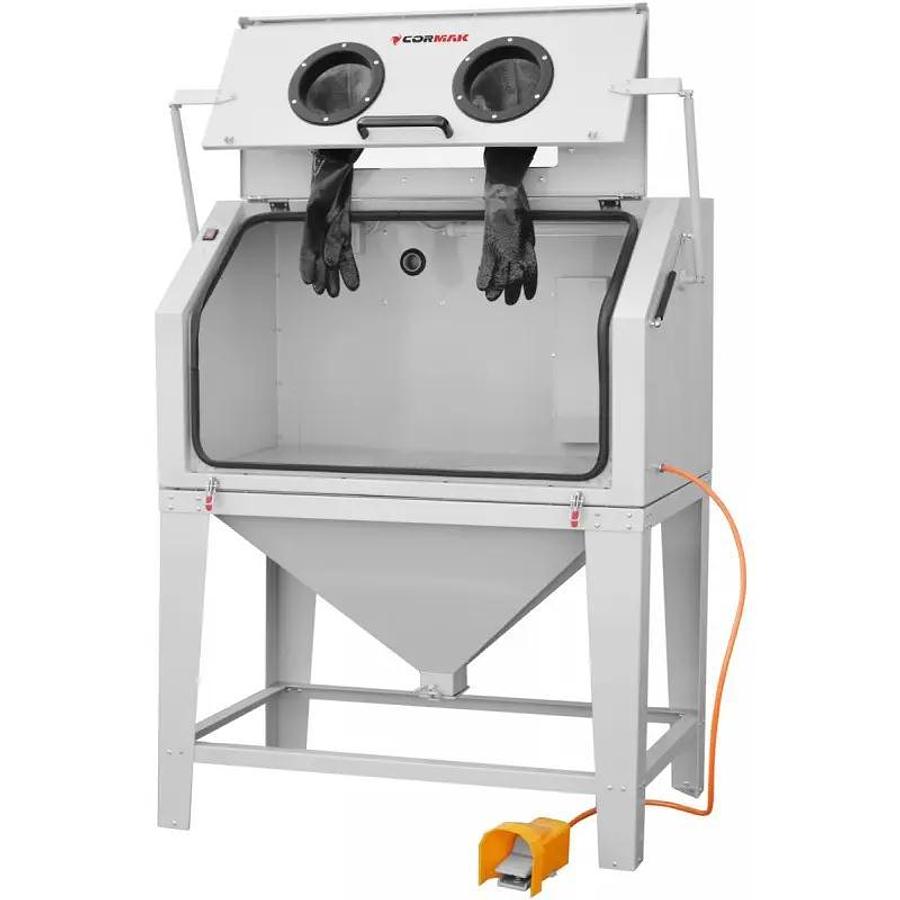

The KDP450TOP cabinet sandblaster is manufactured from durable materials and finished with an anti-corrosion coating. The top-opening construction combined with front doors sealed with rubber gaskets enables safe and ergonomic operation. The lower positioning of the blasting hose and the easily accessible drain opening allow quick abrasive replacement without dismantling components. The cabinet interior has been designed to maximise the use of working space while providing comfortable working conditions for the operator.

Precision and performance

Adjustable working pressure in the range of 4–8 BAR and air consumption of 400–1,000 L/min allow the operating parameters to be adapted to different materials. Thanks to the large viewing area and interior lighting, the operator maintains full control over the blasting process. The 580 × 270 mm viewing window ensures good visibility without blind spots, resulting in precise and even sandblasting.

Applications

The machine has been designed for a wide range of industrial applications. The KDP450TOP cabinet sandblaster is particularly suitable for:

• renovation of steel and aluminium wheels,
• removal of rust and old paint coatings,
• cleaning engine components, fittings, housings and steel structures,
• surface matting before painting, welding and bonding,
• preparation of components for further processing or quality inspection.

Thanks to compatibility with multiple abrasive types, the KDP450TOP sandblasting cabinet is a versatile tool for professionals who value efficiency and reliability.

Standard equipment

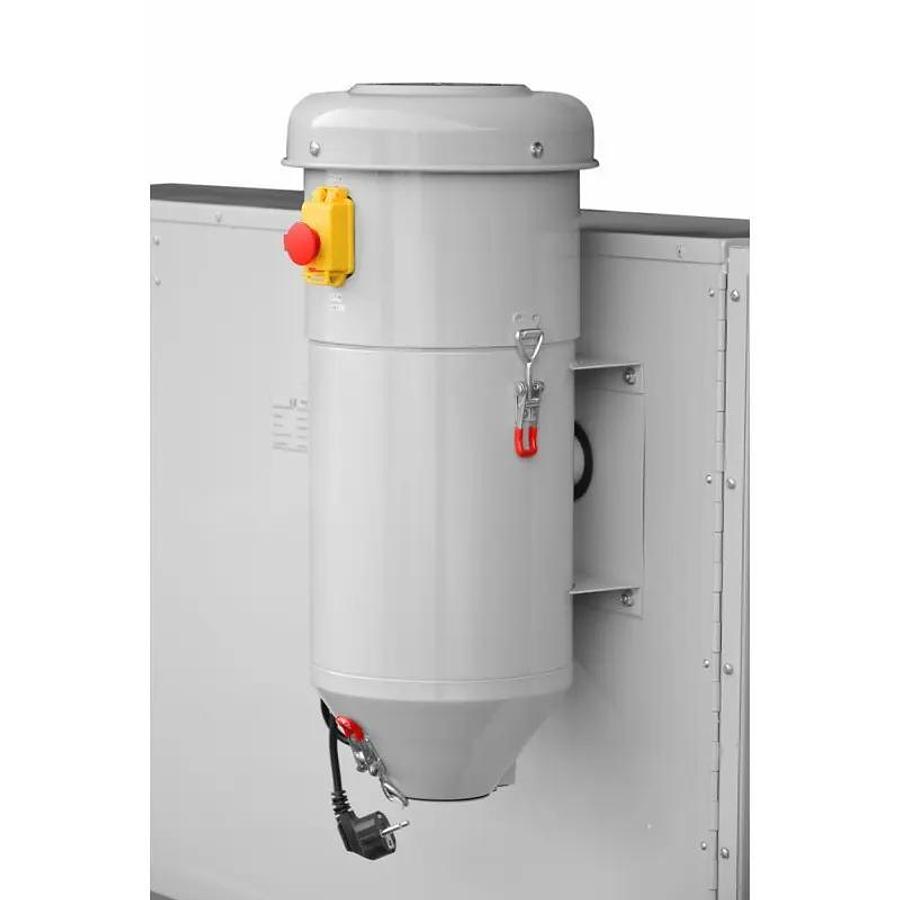

DC15 cyclone dust extractor

Working area lighting – 12 V fluorescent lamp powered by 230 V with switch

2 integrated rubber working gloves

2 extraction ports with diameters Ø64 mm and Ø90 mm

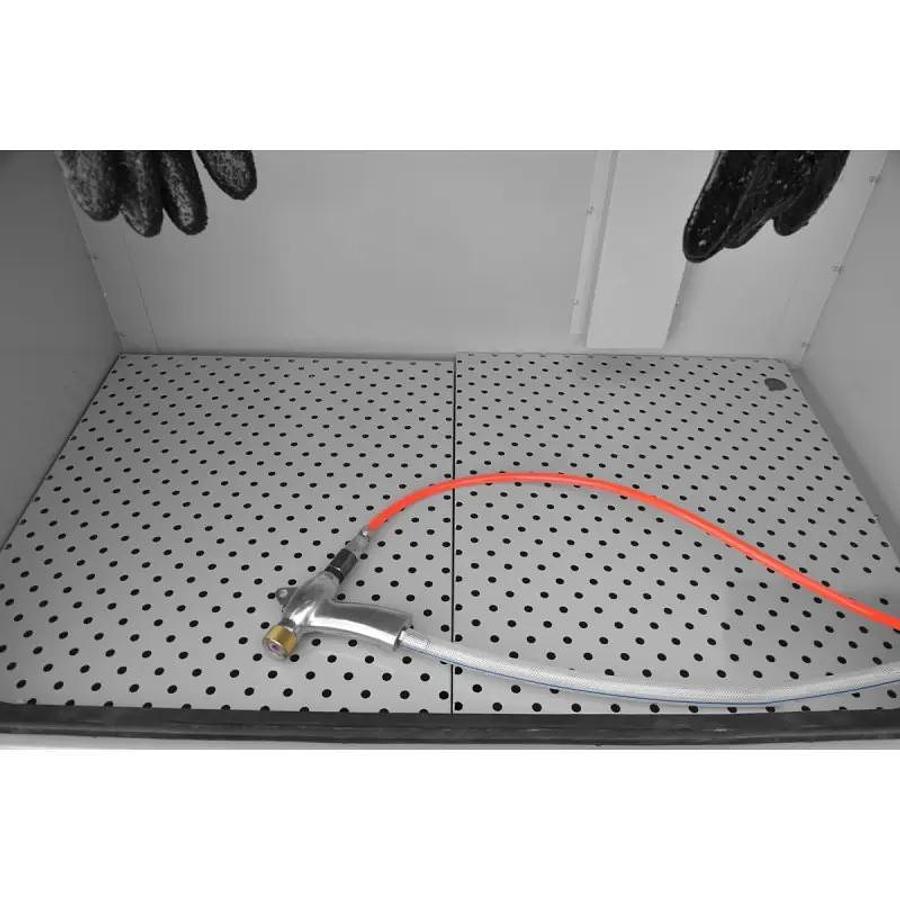

Sandblasting gun with 4 ceramic nozzles

4 replacement protective films for the viewing window

Front doors with rubber perimeter seals

User manual

Technical Specification

Capacity: 450 L (0.45 m3)

Doors: 1 Average air consumption: 400-1000 L/min Working pressure: 4 - 8 bar Air connection: quick coupling 1/4 " Extraction connection: 64 & 90 mm Viewing Window: 580 x 270 mm Internal dimensions of cabin(LxWxHmax): 1140 x 650 x 630 mm Dimensions(LxWxH): 1260 x 1000 x 1600 mm Weight: 105 kg

Note: The machine is supplied as a self-assembly kit.
