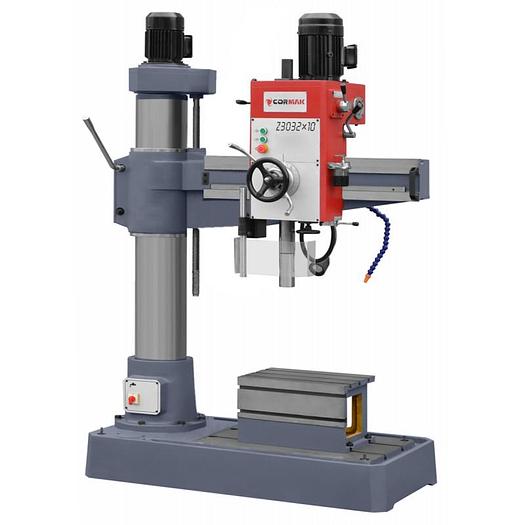

Cormak 3032 x 1000 Radial Arm Drill

Cormak 3032 x 1000 Radial Arm Drill

An industrial radial drilling machine characterized by simple and rigid construction what enables a broad range of use for holes machining such as: drilling, reaming, deepening, boring and threading.

Machine Features

Heavy and sturdy design ensures stability and vibration-free operation

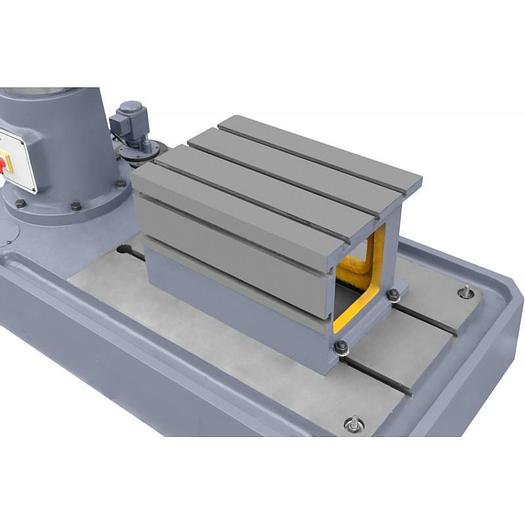

Cube table provides adjustability and easy fixing of workpiece

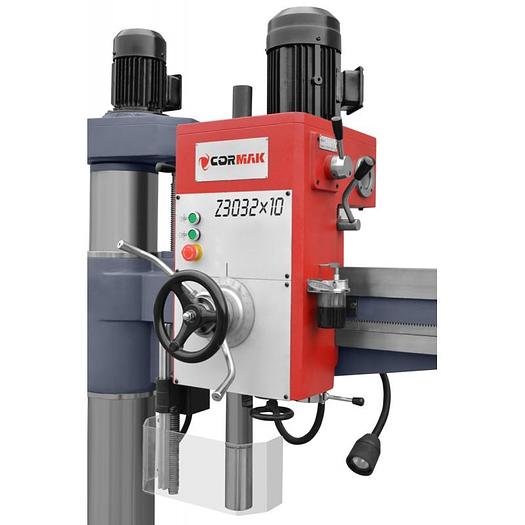

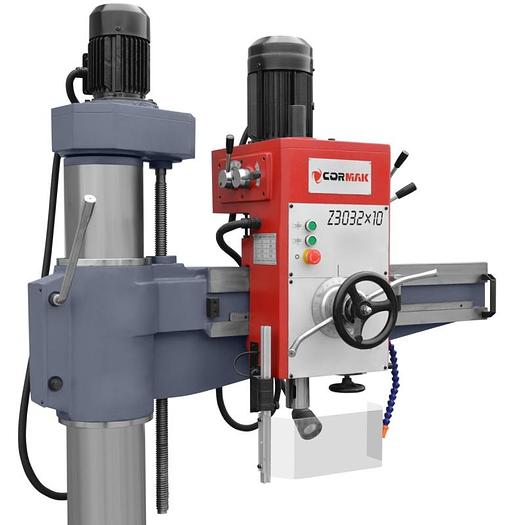

Control panel located at the front of the machine for improved convenience

Ground column surface provides easy, precise arm travel

Machine equipped with manual head and column arm limiter

Large speed range for accurate and quick machining

Technical Details

Maximum drilling diameter: 32 mm

Distance from spindle to base: 340–1125 mm

Distance from spindle axis to column surface: 330–890 mm

Horizontal traverse of spindle head: 500 mm

Spindle extension: 215 mm

Spindle taper: MT4

Spindle speed: 75–1200 rpm

Spindle speed ranges(6): 75, 130, 240, 380, 660, 1220 rpm

Spindle feed ranges: 0.10/0.16/0.25 mm/rev

Max feed force: 5300 N

Swivel of arm: 180 Deg

Main motor power: 2.2 kW

Worktable dimensions: 500 × 330 × 294 mm

Machine dimensions: 1400 × 660 × 2100 mm

Weight: 950 kg
