€9,975 + VAT

Cormak ZX 7550 ZB Universal Milling Machine

Cork, Ireland

orCall +353 838108745

Description

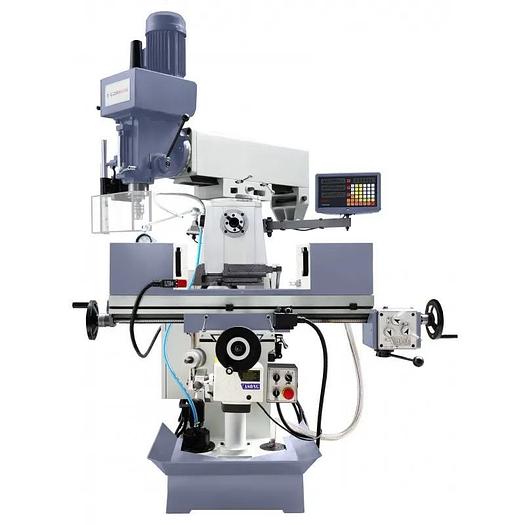

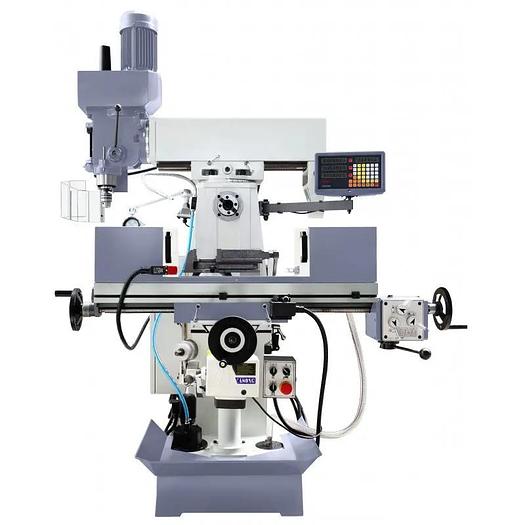

Cormak ZX 7550 ZB Universal Milling Machine

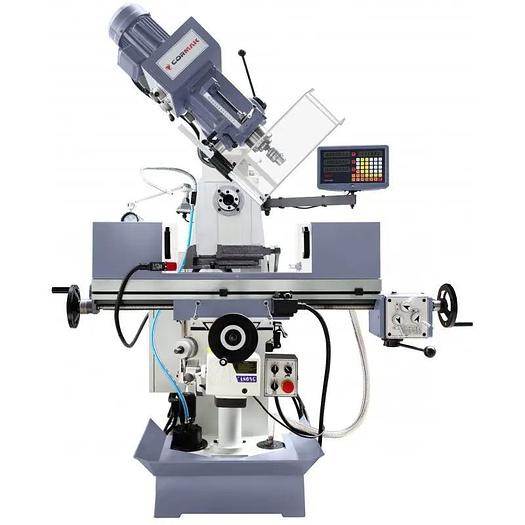

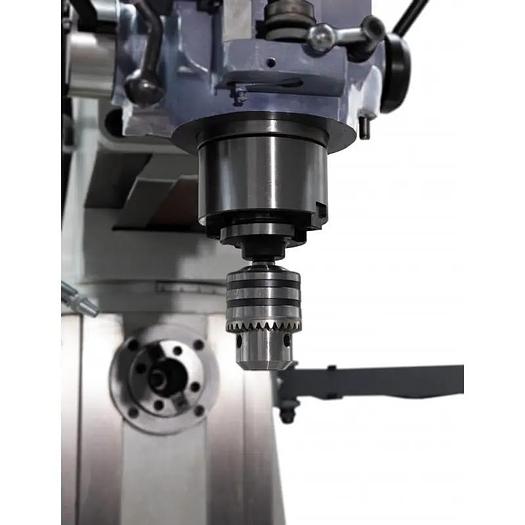

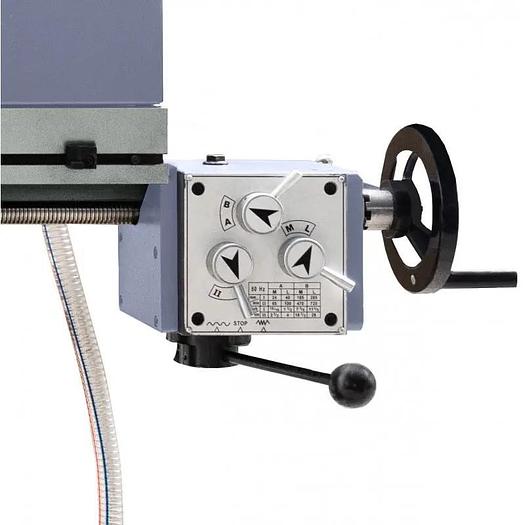

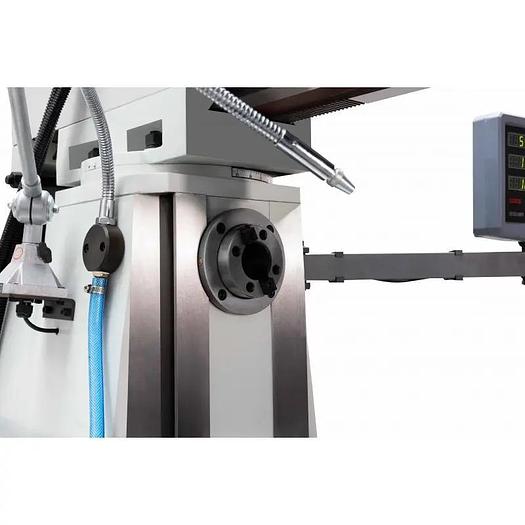

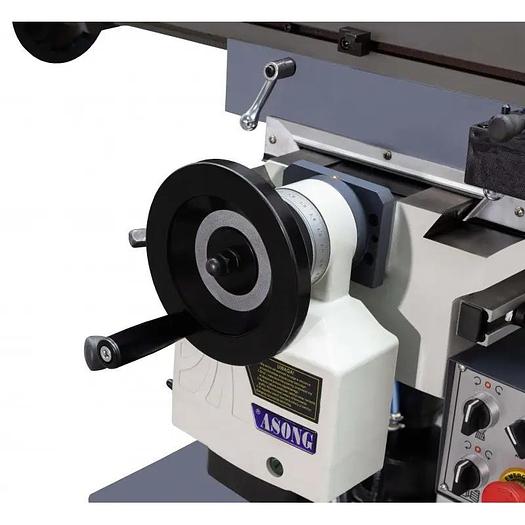

Universal milling machine with a strong construction, equipped with two spindles - horizontal and vertical spindle with auto feed - driven by two independent motors 2.2 and 1.5 kW. Automatic feeds in the X and Y axes make work much easier. Machine Description • Automatic Electrical Feed In All Axes • Automatic Mechanical Table Feed In X Axis • Automatic Spindle Feed • Heavy Stable Construction • Large Cross Table With Precisely Ground Surface • Precision Guides In All 3 Axes • Silent Operation Thanks To Ground Gear Wheels • Left And Right Head Rotation • Turret Head +/- 90 ° TECHNICAL DATA Working dimensions: 1000 x 240 mm Longitudinal table travel (x):550 mm Cross-table travel (y): 230 mm Knee-column travel (z):320 mm Amount of t-grooves in the table:5 Distance between grooves:45 mm Maximum loading of the table:100 kg Vertical head:90 ° turret head Spindle: vertical - retractable by L 120 mm Spindle taper:ISO 40 Spindle speed vertical spindle: 115 - 1750 rpm Horizontal spindle speed: 60 - 1350 rpm Speed for longitudinal speed (x):74 - 720 mm / min Power of the spindle motor: 2.2 kw Power of the vertical spindle motor: 1.5 kw Dimensions: 1290 x 1220 x 2200 mm Weight:970 kg Included Equipment • 3 Axes SIno Digital Readout • ISO 40 Morse reduction sleeves • Drill chuck B16 • Declaration of conformity CE • Machine vice L - 160 mm • Milling spindle complete with clamping sleeves for end mills • Basic tools • 24V halogen lighting installation • Cooling system • Instruction Manual Optional Extras • Rotary Vices • Tilting Vices • Precision Vices • Dividing Tables • Dividing Heads • threading heads • Clamping Set

Specifications

ManufacturerCormak
ModelZX 7550 ZB Universal Milling Machine
ConditionNew
