€3,595 + VAT

Cormak ZX 7045 B1 DRO Milling & Drilling Machine

5

Poland

orCall +353 838108745

Description

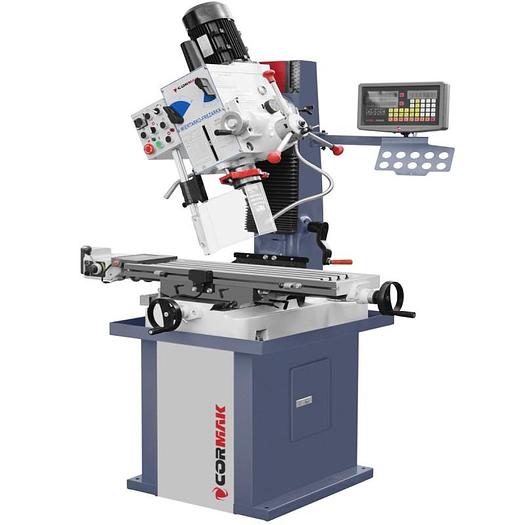

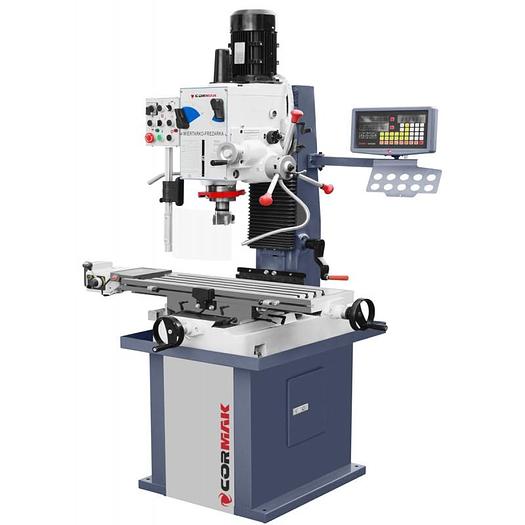

Cormak ZX 7045 B1 DRO Milling & Drilling Machine


This machine can be used for drilling, reaming and expanding holes up to 45/40 mm in cast iron and threading screws for M12 mm, milling up to 80 mm width, and counter boring up to 22 mm. It is also suitable for cutting and face milling. The machine is equipped with a digital readout & Coolant.


SPECIFICATION Heavy stable cast iron

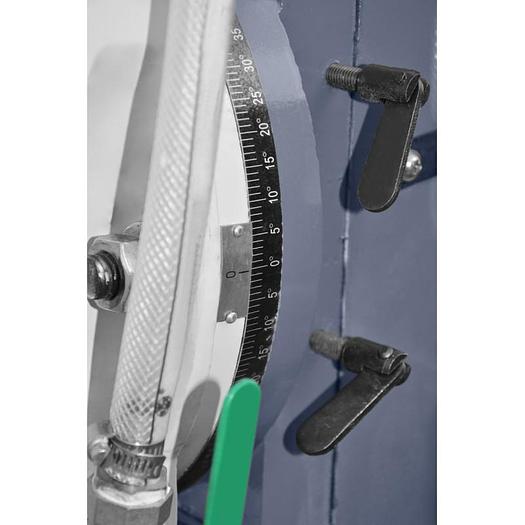

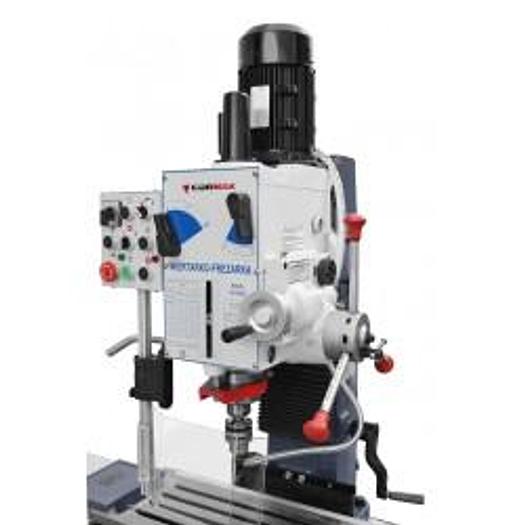

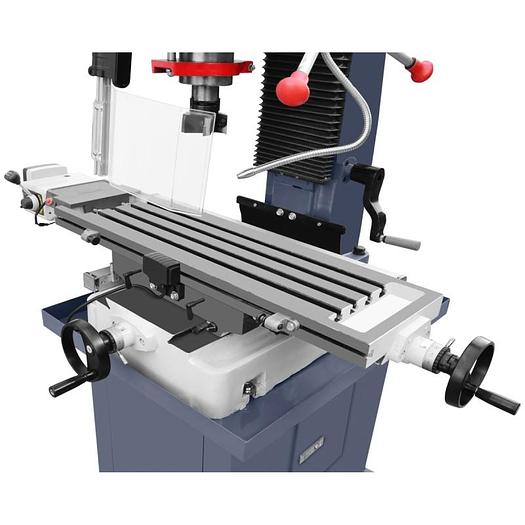

Automatic Feed Large cross table with precisely ground surface Vee Guides Quiet operation thanks to ground gear wheels Left and right rotation Rotating head +/- 90 degrees

Height adjustable head Includes Machine Base

Includes DRO Includes Flood Coolant Equipment TECHNICAL DATA Maximum drilling size (Cast Iron):45 mm Maximum drilling size (Mild Steel): 32mm Maximum face milling: 80 mm Maximum end milling: 28 mm Spindle taper: MT4 Spindle speed 50 - 3024 rpm Max. Distance of spindle nose from the table: 475 mm Dimensions Of Work Table: 820 X 240 mm Travel (x): 550mm Travel (y): 170mm Travel (Spindle): 110mm Auto-feed Motor: 1300W, 1400 min-1 Packing Size: 1140 x 800 x 1040 mm Power: 400V Net Weight: 360 Kg INCLUDED EQUIPMENT:

Machine Vice: 160 x 125mm Mk4 / B18 Drill Chuck Shank Hand tools Drill Chuck 3-16 mm / B18 MK4 / MK3 reduction sleeve MK3 / MK2 reduction sleeve

Machine Base Instruction manual OPTIONAL EQUIPMENT Rotary Vices Tilting Vices Precision Vices Dividing Table Dividing Head Clamping Set

Specifications

ManufacturerCormak
ModelZX 7045 B1 DRO
ConditionNew
