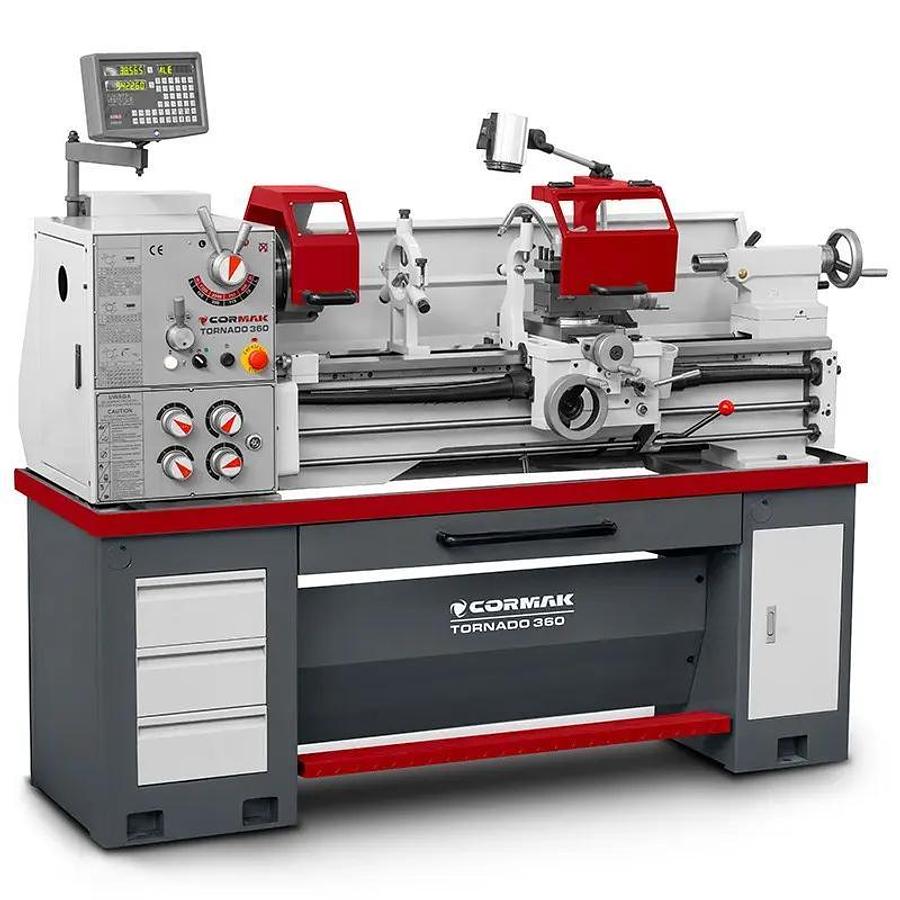

Cormak 360 x 1000 Plus Universal Lathe

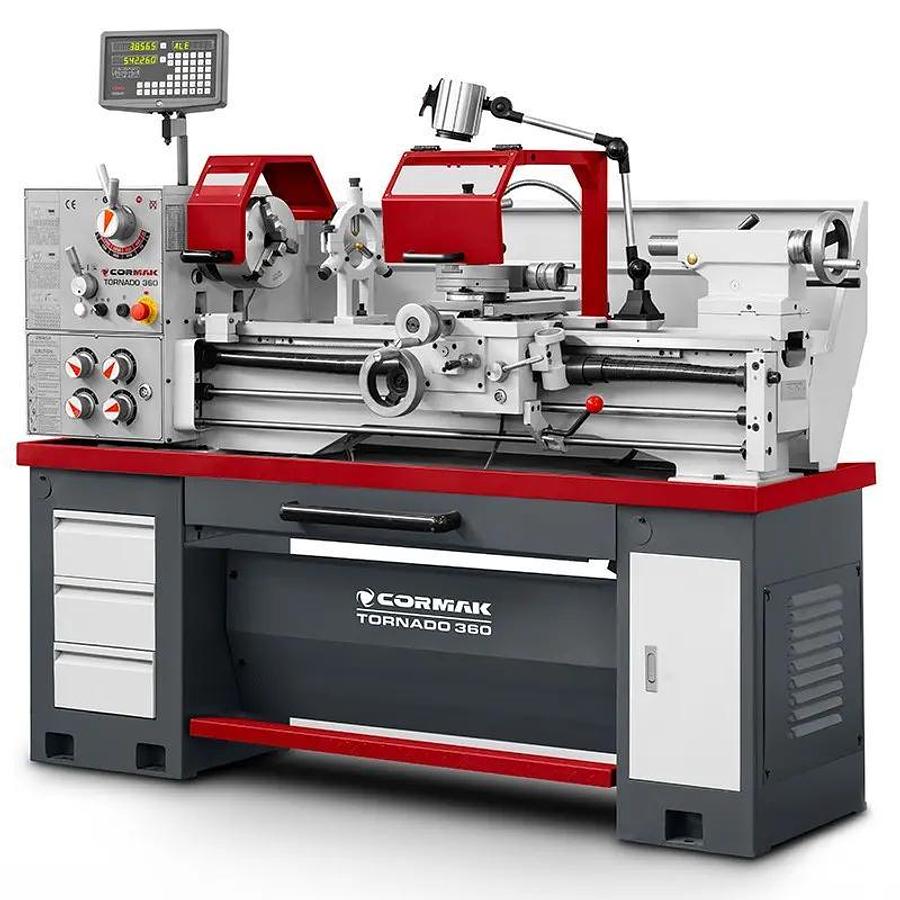

Cormak Tornado 360 x 1000 Plus Universal Lathe

Description

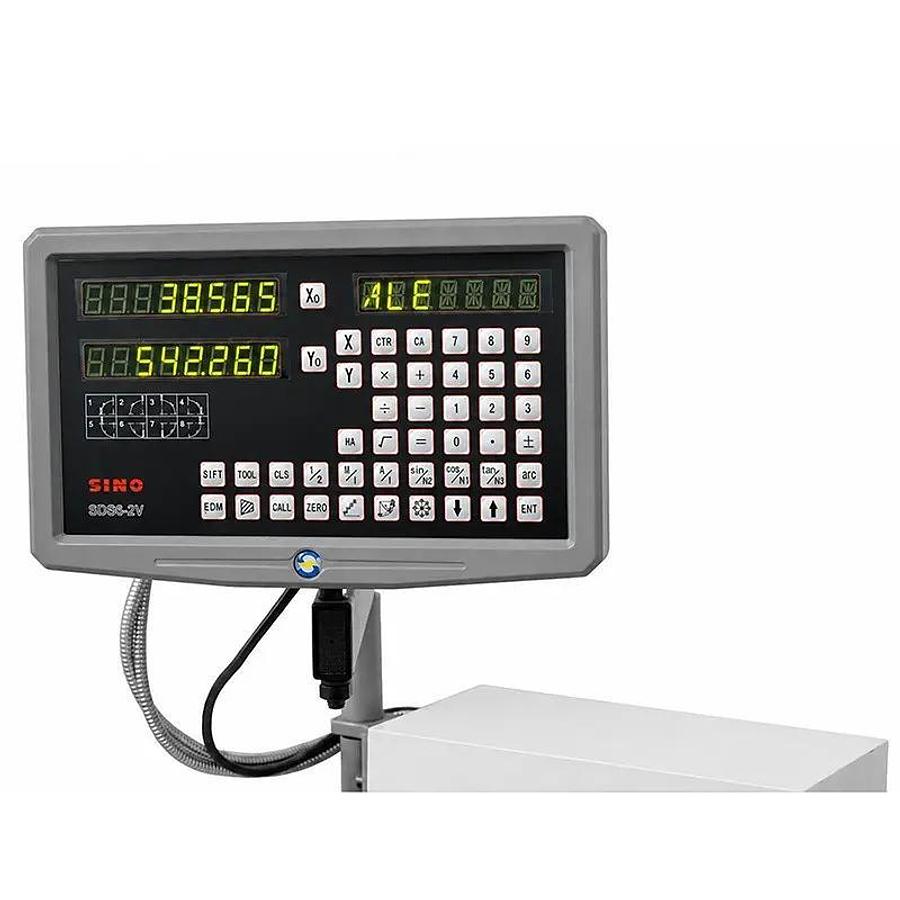

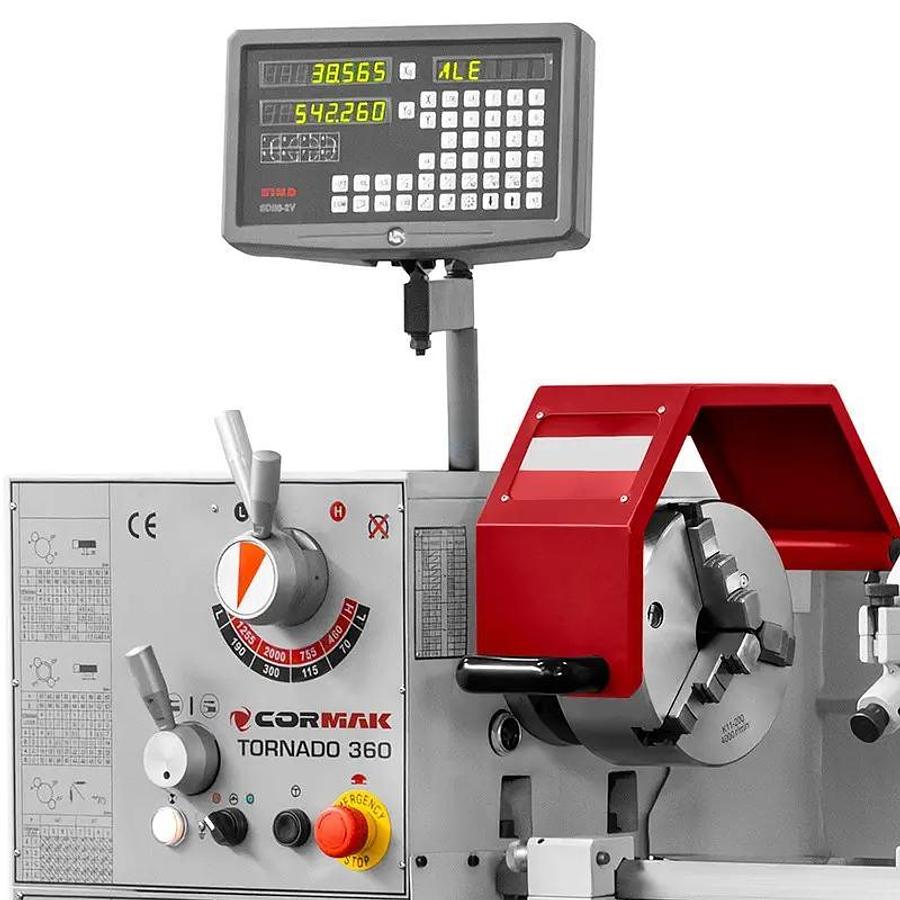

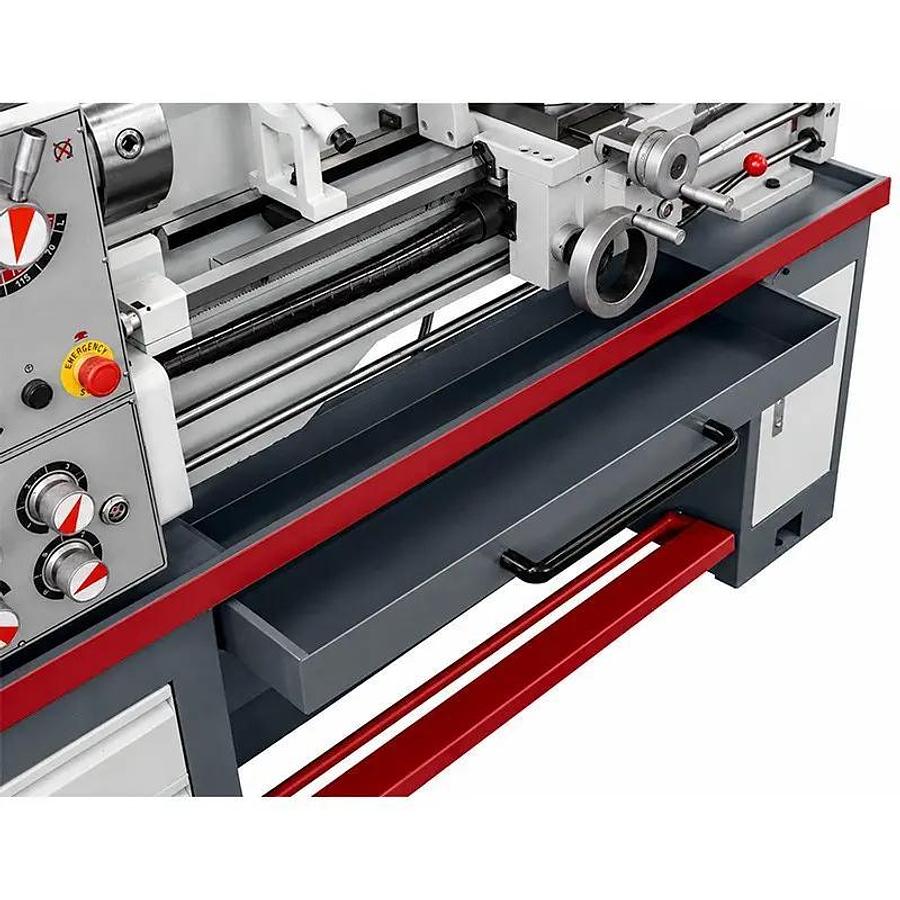

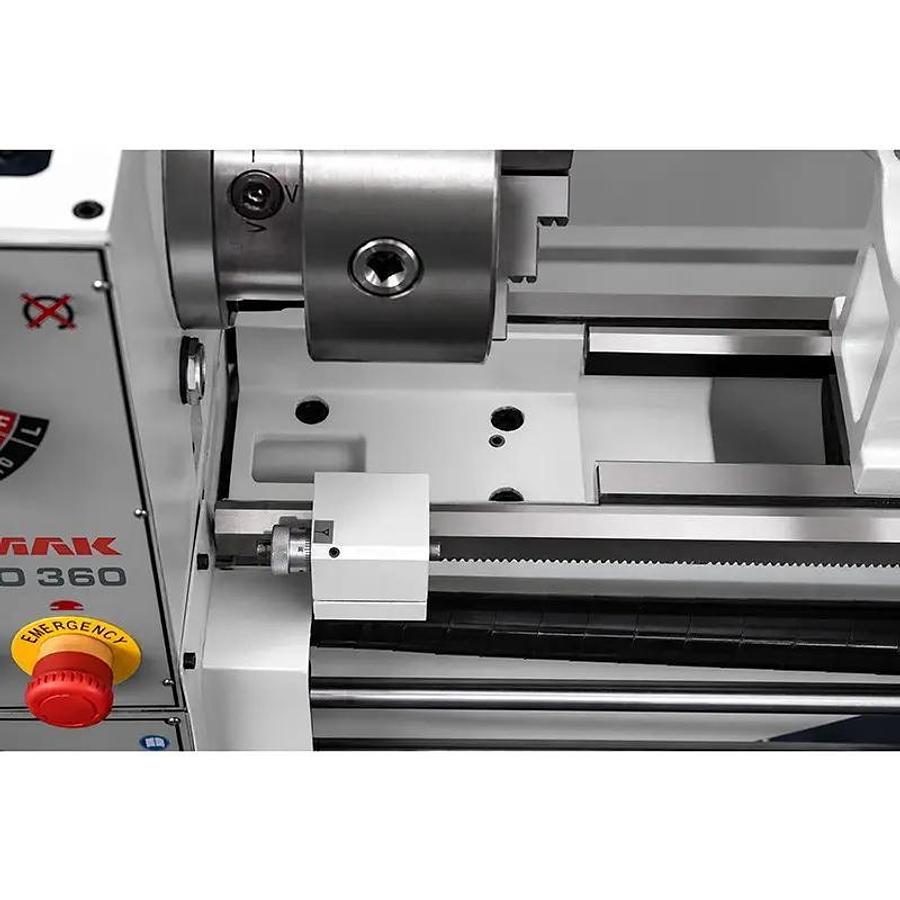

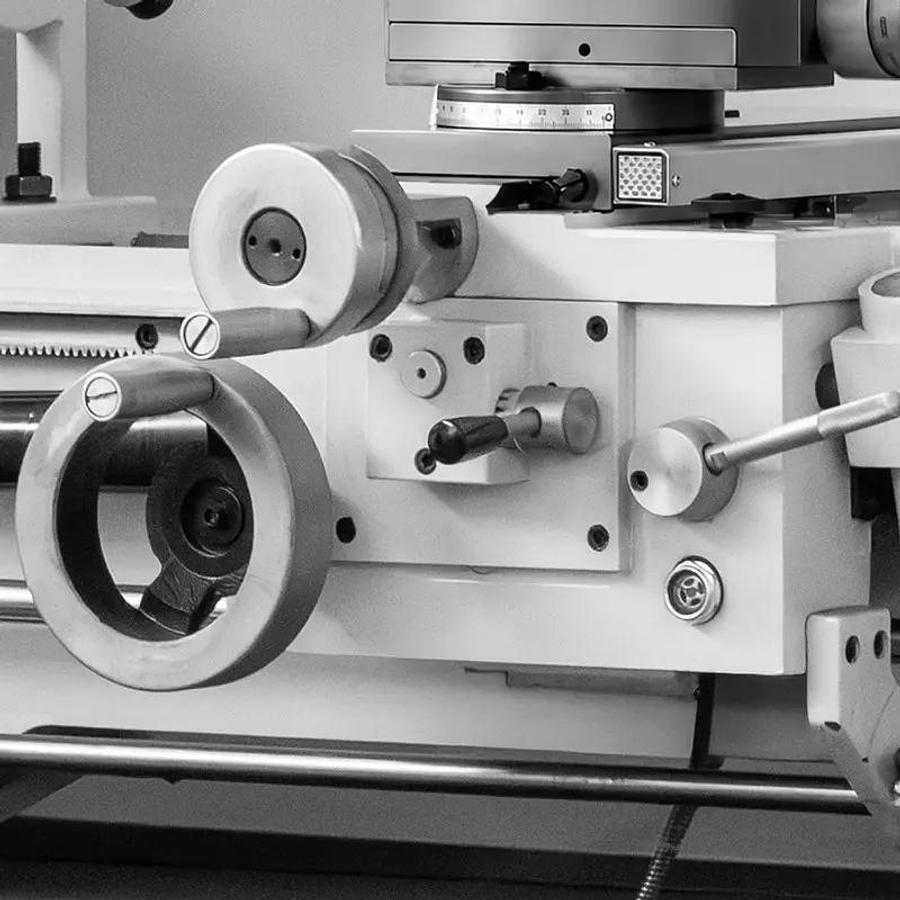

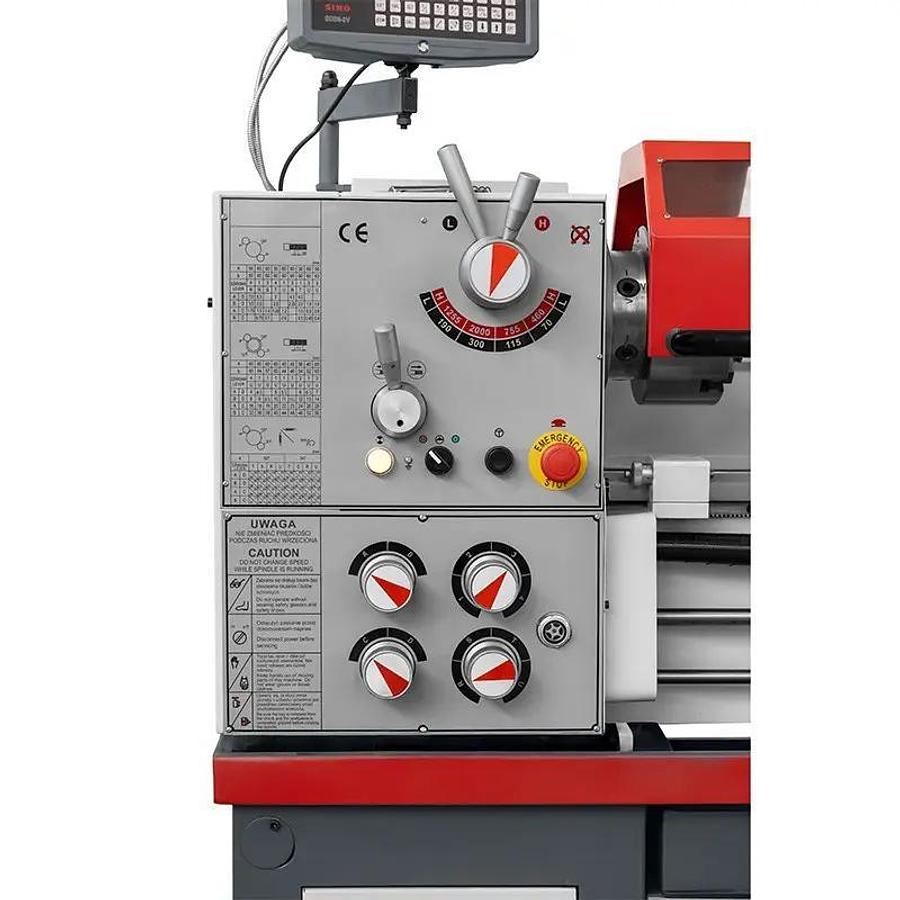

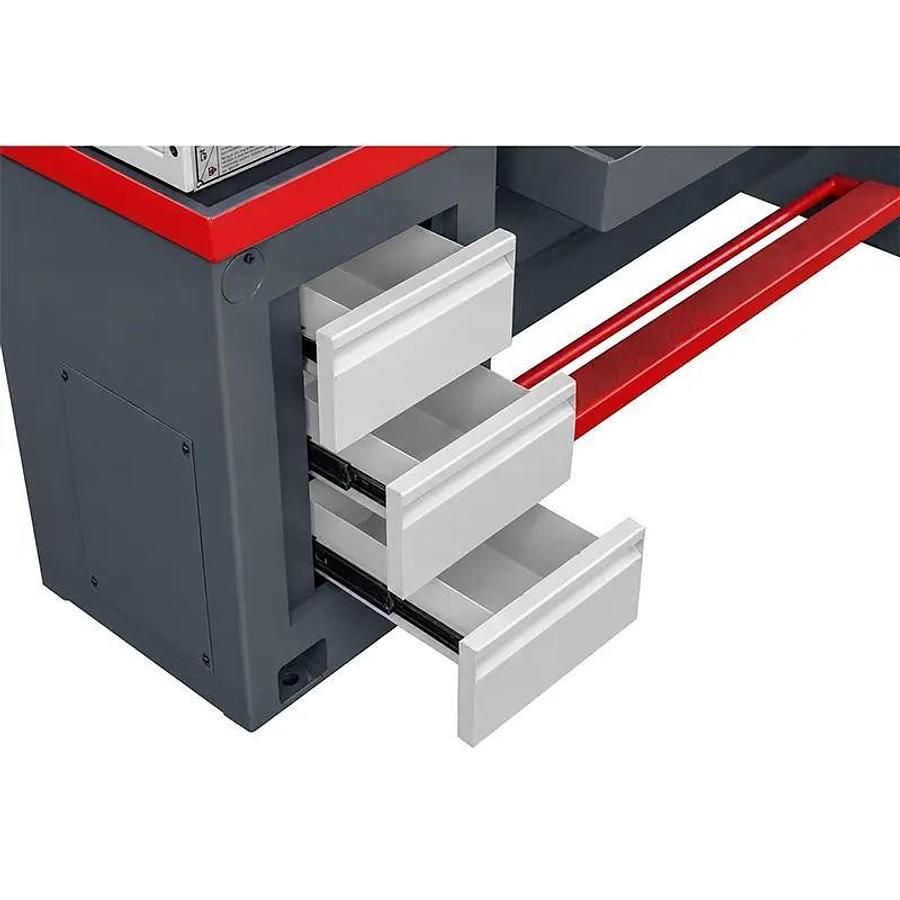

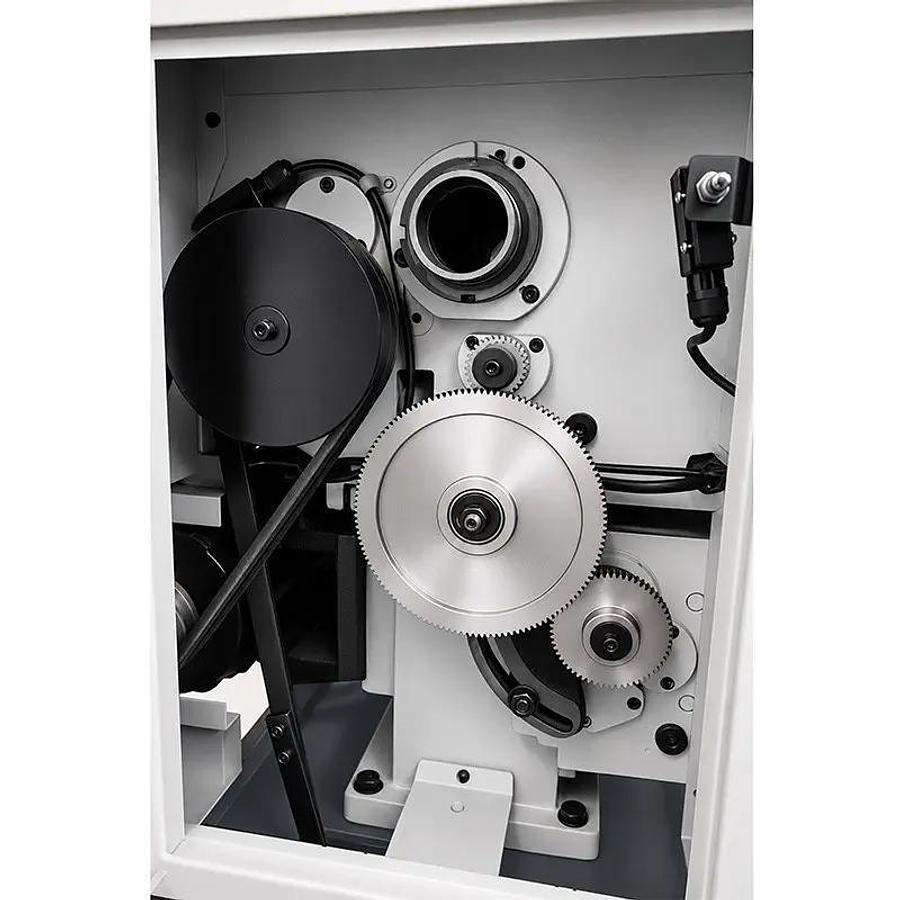

The Cormak 360 x 1000 Plus Metal Working Lathe is a new improved version of their previous version of this machine. For example, the cover of the tool holder, the spindle bearing system, the new digital reading have been improved. They are suitable for production plants, workshops and tool rooms. Ideally suited for unit and small lot production. Features • DRO • The reinforced, ribbed surface of the lathe bed ensures maximum reduction of vibrations and additionally the bed is precisely ground and hardened • Optimum working conditions are ensured by the 52mm spindle bore • Thanks to the removable gap, it is possible to machine parts with increased diameter • Efficient machining thanks to two automatic feeds • Feed shaft and lead screw • Sliding chip drawer for better and more efficient operation • High-quality and reinforced spindle bearing system • A new protection system in accordance with CE standards • The latest model of DRO • Reinforced and modernized lathe base with tool drawers and pull out tray for chips Machine Characteristics • Induction hardened bed • Hardened gear wheels • Adjustable friction clutch on a train gear wheel • Removable gap Technical Details

Maximum turning diameter: 360 mm

Maximum turning diameter over cross slide: 225 mm

Maximum turning diameter in gap: 490 mm

Max Turning Length Between Centres : 1000 mm

Spindle nose:D1-5

Spindle bore: 52 mm

Spindle taper: MT6

Spindle speeds: 70-2000 rpm

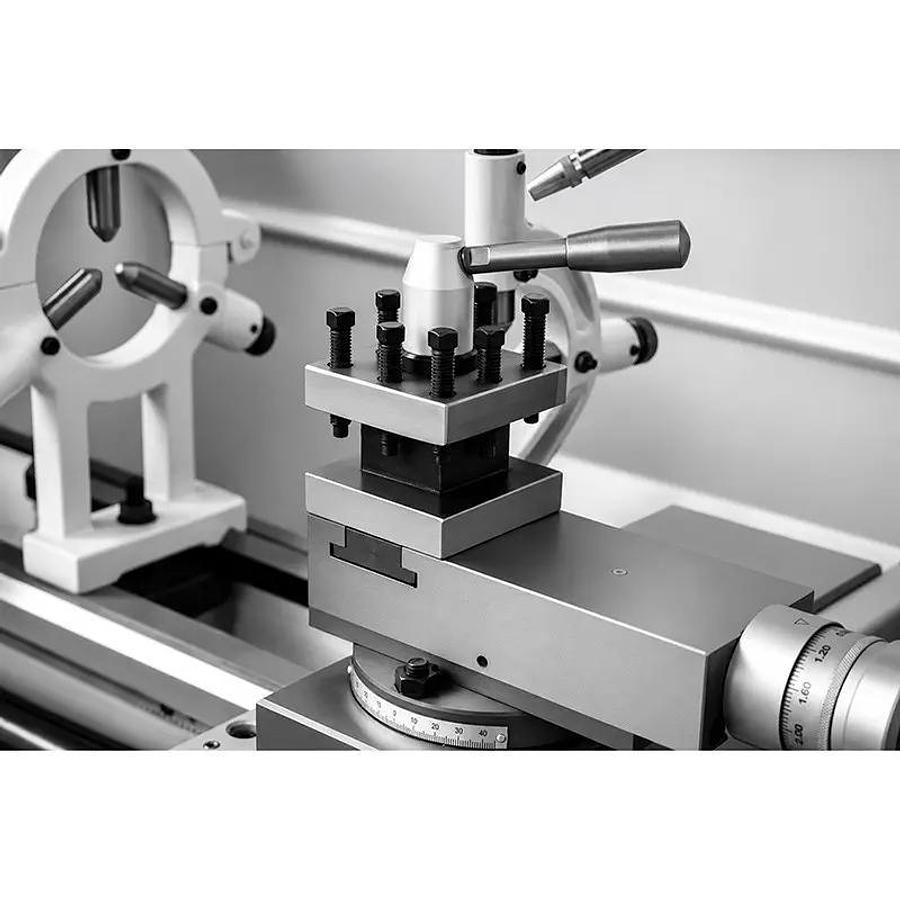

Tool Post: 4 Way (Optional Quick Change at extra cost)

Maximum dimension of cutting tools: 20 mm x 20 mm

Metric thread: 0.4-7.0 mm

Imperial thread: 4-56 tpi

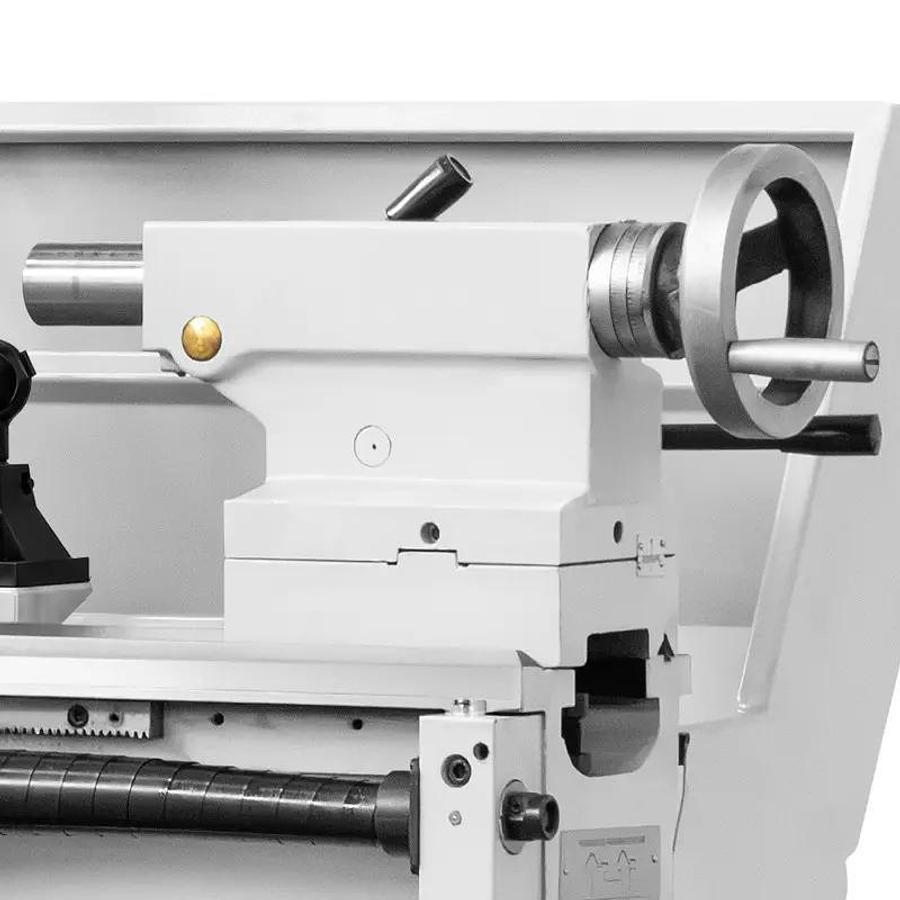

Diameter tailstock shaft: 42 mm

Tail stock quill travel: 100 mm

Motor power: 2.4 kw

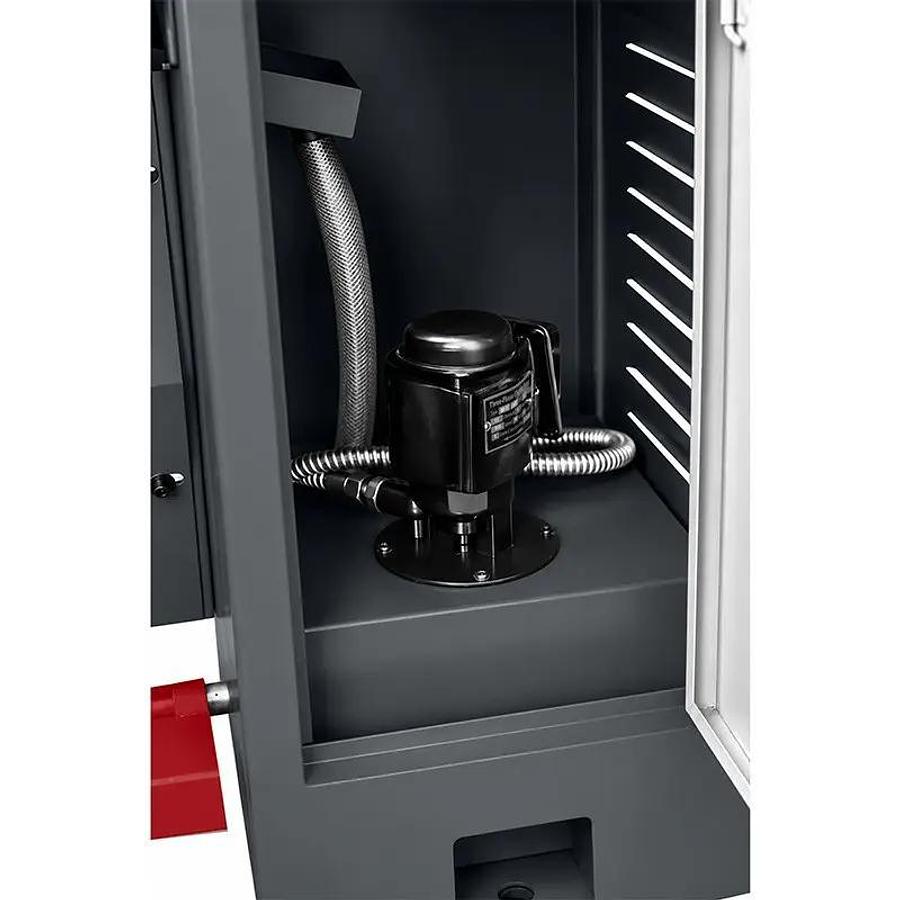

Coolant pump power: 0.1 Kw

Weight: 760 kg

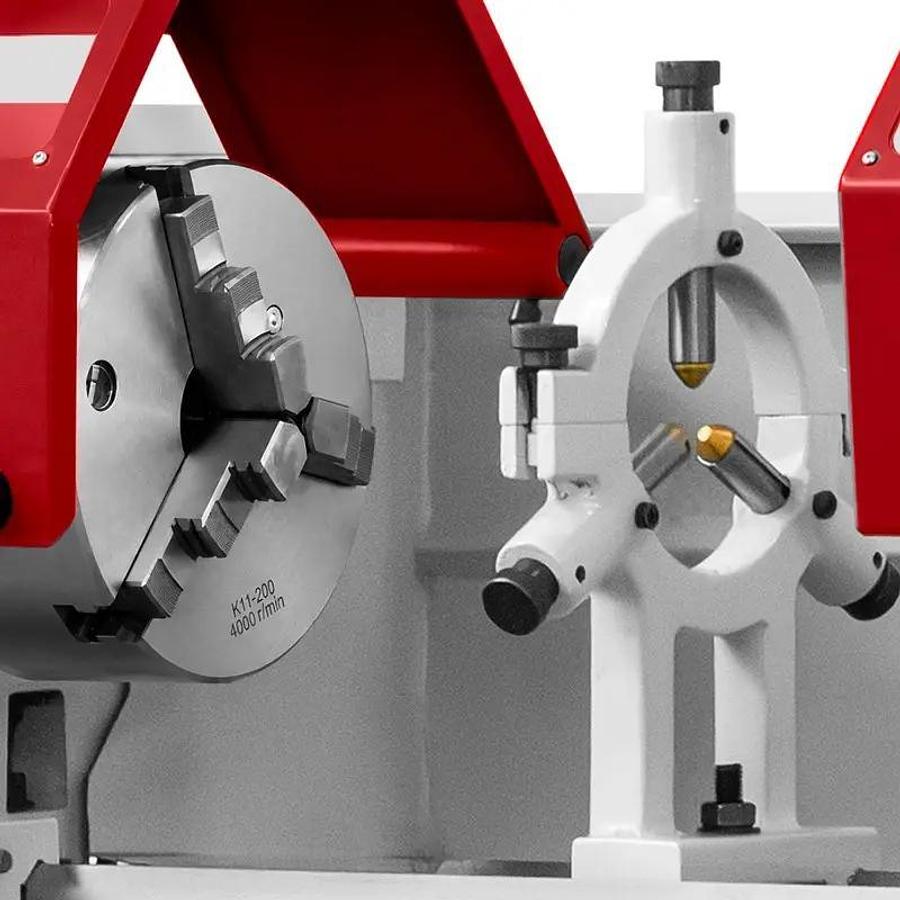

Dimensions: 1800x750x1650 mm Included Equipment DRO 3-jaw chuck 200 mm 4-jaw chuck Chuck guard Fixed steady Travelling steady Coolant equipment Machine light Instructions EC / CE compliance declaration Factory machine - 12 month warranty
