€3,765 + VAT

Cormak AT320 Lathe-Milling Machine Combination - Single Phase

Poland

orCall +353 838108745

Description

Cormak AT320 Combination Milling & Turning Machine

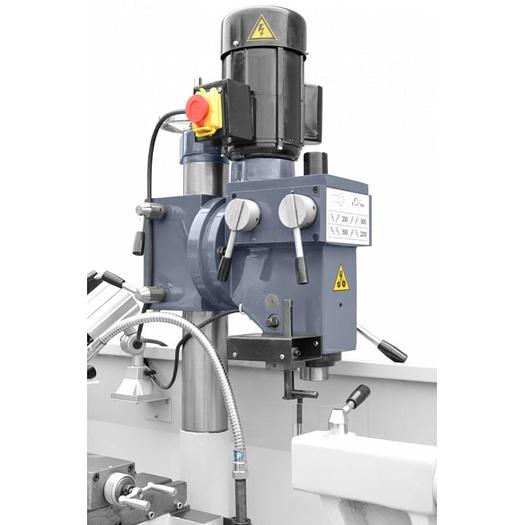

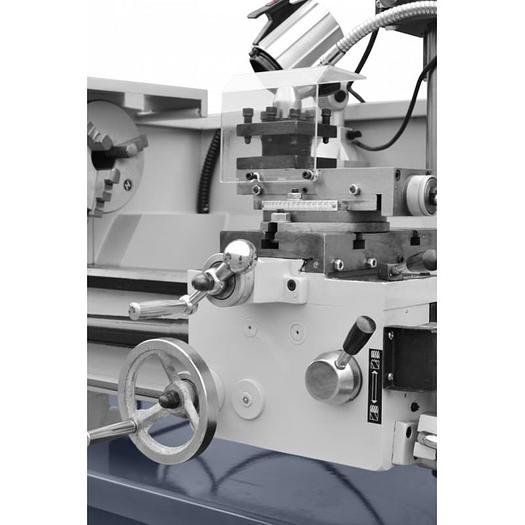

This machine meets expectations where accuracy is key, perfect for school and industrial training workshops. Drilling, milling and turning done taking only a small amount of space. 2 x autofeed- longitudinal and cross. Characteristics • Swivel milling head • Spindle bore 38 mm • Induction-hardened and ground bed guides • Automatic longitudinal and transversal feed • Fitted with a cooling system and lighting • Threading capability • Swivel cutter support for machining of conical surfaces Included Equipment - stand

- 2 dead centres

- set of gears

- set of soft jaws

- drilling chuck 16mm

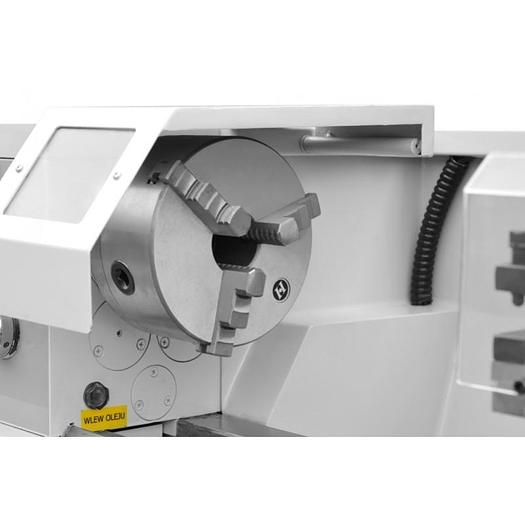

- 3-jaw lathe chuck

- tools Technical Details - Turning Max. Turning diameter (swing): 320 mm Max. Work length: 750 mm Max. Turning diameter over cross-slide: 210 mm Spindle bore: 38 mm Spindle taper: MT5 Cross slide travel: 160 mm Top-slide travel: 100 mm Metric thread selection: 17 Metric thread pitch: 0.5-4 mm Imperial thread selection: 20 Imperial thread pitch: 9-40 1 / n '' Carriage feedrate: 0.135-1.80 mm / rev Cross-slide feedrate:0.025-0.34 mm / rev Tailstock quill travel:70 mm Tailstock taper: MT3 Number of spindle speeds: 6 Spindle speed: 75-1900 rpm Motor power: 1.1 kw, 230v 50 hz Technical Details - Milling & Drilling Spindle taper: MT3 Number of spindle speeds: 4 Spindle speed:240-2700 rpm Max. Diameter of drilling: 16 mm Motor power:370 W Dimensions: 1500 x 635 x 1200mm Weight: 390 kg

Specifications

ManufacturerCormak
ModelAT320
ConditionNew
